Facom - The Art of Precision since 1918.
1 2

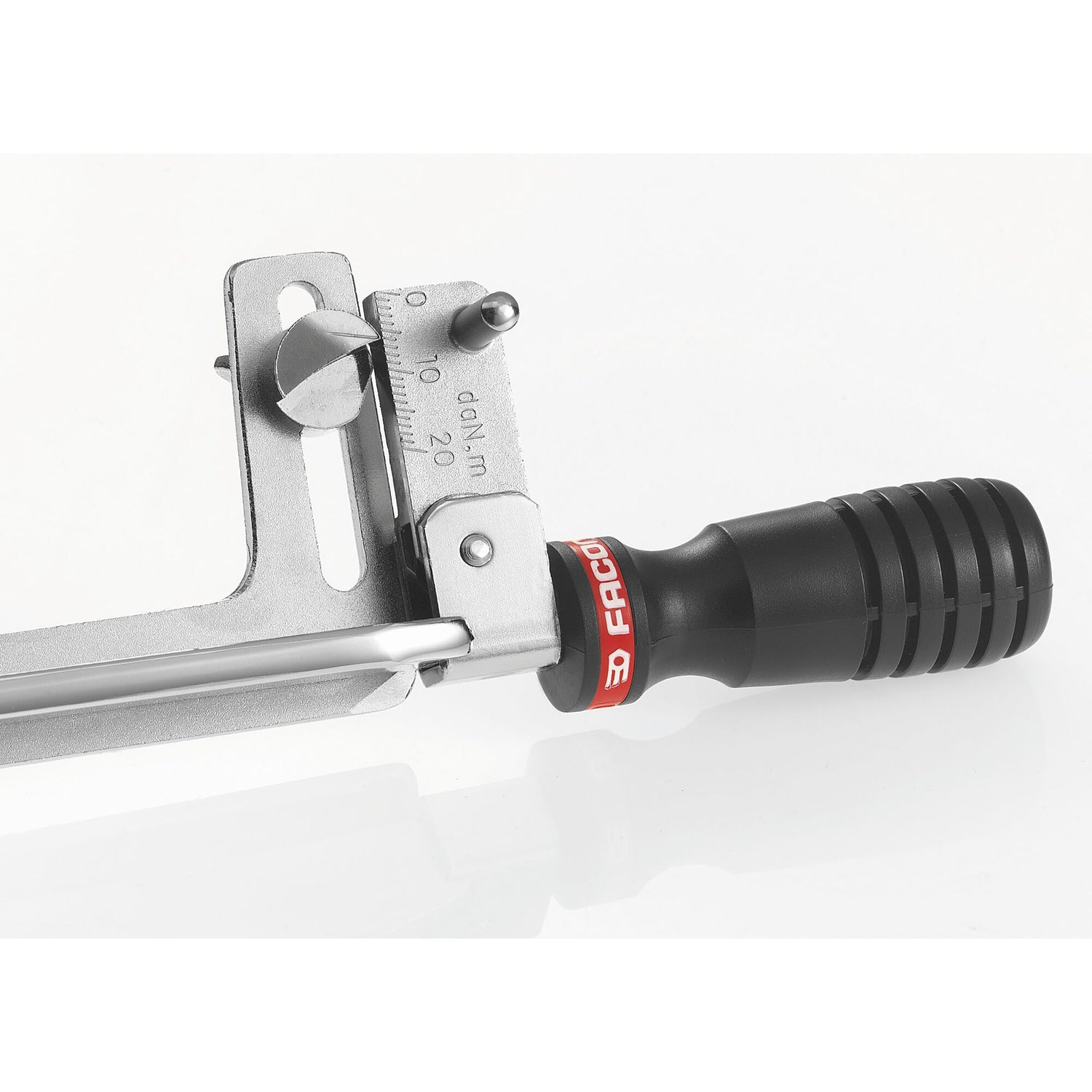

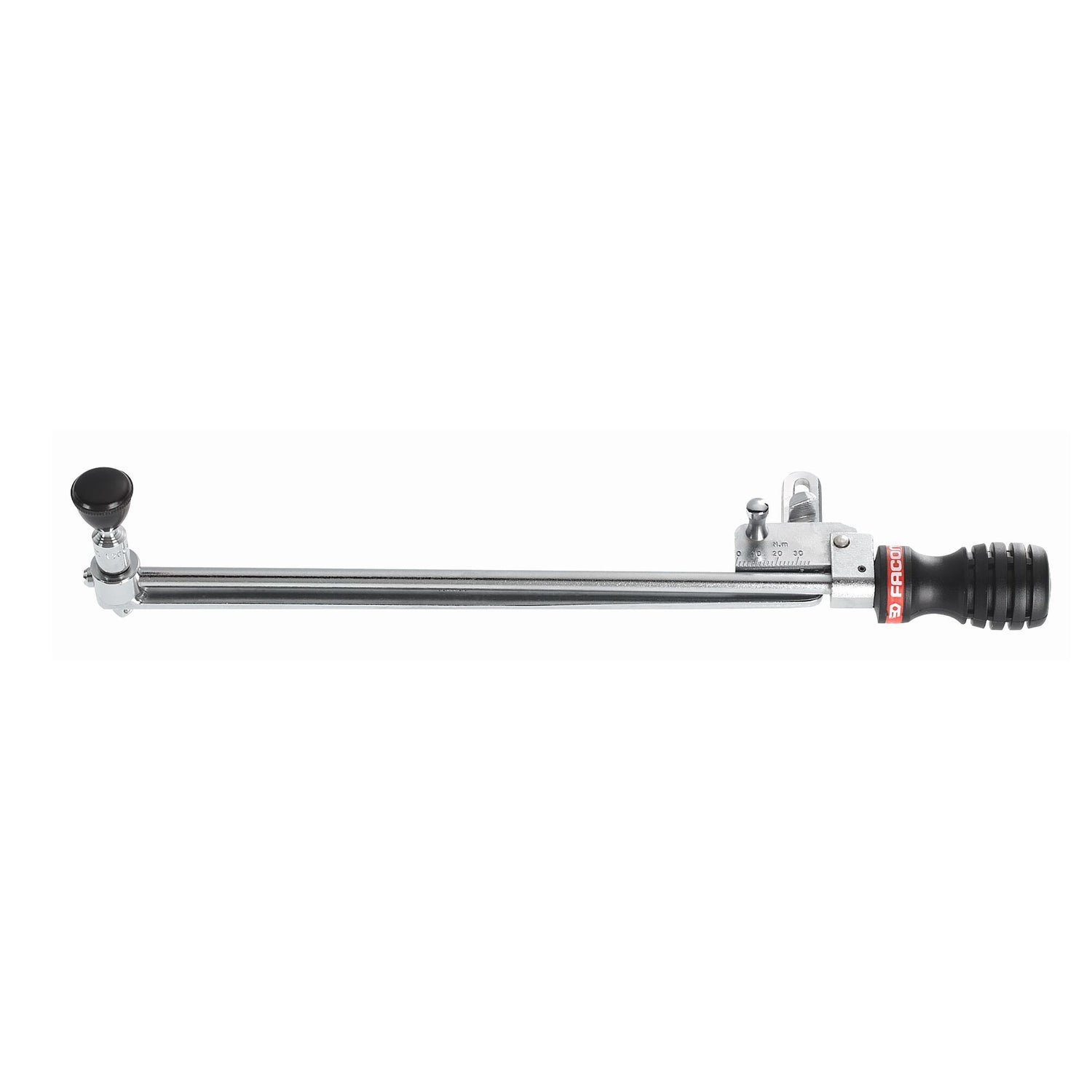

1/2 in. Manual Reset Torque Wrench With Square Drive and Handle, 40-200Nm Range

SKU: J.203A  -  Barcode: 3148515035555
  • ACCURACY: ± 6% value displayed.
  • UNITS: R.203A wrench, graduated in N.m, J.203A - S.203A wrenches, graduated in daN.m.
  • STANDARDS: Supplied with ISO 6789 calibration certificate.
  • STORAGE: Supplied in plastic storage case.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

DIN EN ISO 6789, ISO 6789, NF EN ISO 6789

Click here to learn more about the different standards and certifications.

Warranty

This product is: Please refer to the warranty for each item included in this set

Click here to learn more about our warranties.

Description
  • ACCURACY: ± 6% value displayed.
  • UNITS: R.203A wrench, graduated in N.m, J.203A - S.203A wrenches, graduated in daN.m.
  • STANDARDS: Supplied with ISO 6789 calibration certificate.
  • STORAGE: Supplied in plastic storage case.

Specifications
  • AttachéNon
  • Certificat d’étalonnage fourniOui
  • EmballageBoîtier en plastique
  • GripBi-matière
  • Longueur du produit440 mm
  • Numéro d’identification individuel fourniOui
  • Précision sens horaire sortie d'usine+/-6%
  • Poids net0.95 Kg
  • Taille du carré conducteur3/8 in

Spare parts

HANDLE - J.203D7
WING NUT - S.203D5
SPRING - S.203D6
WASHER M5 - S.203D8
PIN - S.203D9

Documents
User Guide

1/2 in. Manual Reset Torque Wrench With Square Drive and Handle, 40-200Nm Range

References available

  • [J.203A] 3/8 in. Manual Reset Torque Wrench With Square Drive and Handle, Range 20-100Nm
  • [R.203A] 1/4 in. Manual Reset Torque Wrench With Square Drive and Handle, Range 6-36Nm
  • [S.203A] 1/2 in. Drive 40-200Nm Range Manual Reset Torque Wrench With Square Drive and Handle

Lieu de fabrication

N/A

Normes & certifications

DIN EN ISO 6789, ISO 6789, NF EN ISO 6789

Période de garantie

Please refer to the warranty for each item included in this set
