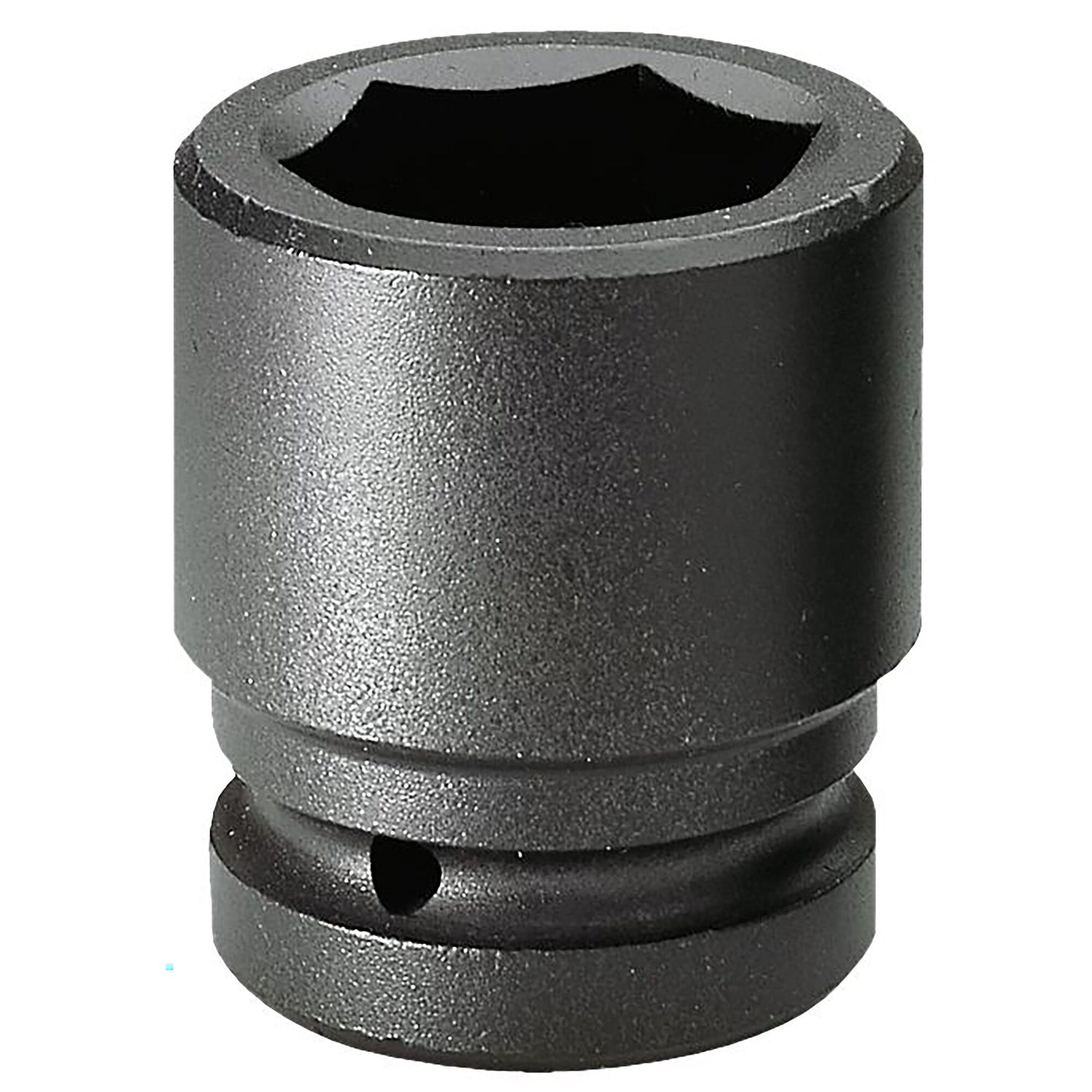

1 in. Impact Socket 6-points, Metric

SKU: NM.22A - Barcode: 3148516559043

HIGH PERFORMANCE - Designed and manufactured for extremely high tightening forces.
IMPACT TOOL - Use with energised tools.
OGV® PROFILE - Maximizing the contact between the socket and nut/bolt to preserves fasteners.
TREATEMENT - Molybdenum chrome steel tempered with heat treatment.
HIGH PROTECTION - Coated with manganese phosphate for higher protection and corrosion resistance.

Full product description

Standards and certifications

This product complies with the following standards and certifications:

DIN 3129, ISO 1711-2, ISO 2725-2, NF ISO 1711-2, NF ISO 2725-2

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

HIGH PERFORMANCE - Designed and manufactured for extremely high tightening forces.
IMPACT TOOL - Use with energised tools.
OGV® PROFILE - Maximizing the contact between the socket and nut/bolt to preserves fasteners.
TREATEMENT - Molybdenum chrome steel tempered with heat treatment.
HIGH PROTECTION - Coated with manganese phosphate for higher protection and corrosion resistance.

Specifications

AttachéNon
Clé à chocsOui
Diamètre54 mm
\"Extensible
Non\"
\"Entrainement carré (femelle)
1\"\"
FinitionPhosphate
FlexibleNon
Isolation 1000VNon
Longueur du produit60 mm
MagnétiqueNon
Pour visseuse à chocNon
Poids net0.5 Kg
Taille de la douille22 mm

Technical drawing and dimensions

		D1 (mm)	D (mm)	L1 (mm)	L (mm)
NM.22A	[NM.22A] 1 in. Impact Socket, 6-point, 22 mm	40.00	54.00	17.00	60.00
NM.24A	[NM.24A] 1" impact socket 6-point, 24 mm	42.00	54.00	18.00	60.00
NM.27A	[NM.27A] 1 in. Impact Socket 6-points (27 mm)	44.00	54.00	18.00	60.00
NM.28A	[NM.28A] 1" impact socket 6-point, 28 mm	44.00	54.00	18.00	60.00
NM.29A	[NM.29A] 1 in. Impact Socket, 6-point, 29 mm	46.00	54.00	18.00	63.00
NM.30A	[NM.30A] 1" impact socket 6-point, 30 mm	48.00	54.00	20.00	63.00
NM.32A	[NM.32A] 1 in. Impact Socket 6-points, 32 mm	50.00	54.00	22.00	63.00
NM.33A	[NM.33A] 1 in. Impact Socket, 6-point, 33 mm	52.00		22.00	63.00
NM.34A	[NM.34A] 1" impact socket 6-point, 34 mm	52.00		22.00	63.00
NM.35A	[NM.35A] 1" impact socket 6-point, 35 mm	54.00		24.00	63.00
NM.36A	[NM.36A] 1 in. Impact Socket, 6-point, 36 mm	56.00		24.00	65.00
NM.38A	[NM.38A] 1 in. Impact Socket, 6-point, 38 mm	58.00		26.00	65.00
NM.41A	[NM.41A] 1 in. Impact Socket, 6-point, 41 mm	63.00		27.00	70.00
NM.42A	[NM.42A] 1 in. Impact Socket 6-points, 42 mm	66.00		30.00	70.00
NM.46A	[NM.46A] 1 in. Impact Socket, 6-point, 46 mm	68.00		30.00	70.00
NM.50A	[NM.50A] 1 in. Impact Socket, 6-point, 50 mm	73.00		33.00	75.00
NM.52A	[NM.52A] 1 in. Drive 6-Point 52mm Impact Socket
NM.54A	[NM.54A] 1 in. Impact Socket, 6-point, 54 mm	78.00		36.00	80.00
NM.55A	[NM.55A] 1 in. Impact Socket, 6-point, 55 mm
NM.56A	[NM.56A] 1 in. Impact Socket, 6-point, 56 mm	83.00		39.00	82.00
NM.58A	[NM.58A] 1 in. Impact Socket, 6-point, 58 mm	83.00		39.00	82.00
NM.60A	[NM.60A] 1 in. Impact Socket, 6-point, 60 mm	87.00		39.00	82.00
NM.65A	[NM.65A] 1 in. Impact Socket, 6-point, 65 mm	93.00		45.00	87.00
NM.70A	[NM.70A] 1" impact socket 6-point, 70 mm	99.00		45.00	94.00
NM.75A	[NM.75A] 1" impact socket 6-point, 75 mm	106.00		48.00	100.00
NM.77A	[NM.77A] 1 in. Impact Socket, 6-point, 77 mm	108.00		52.00	100.00
