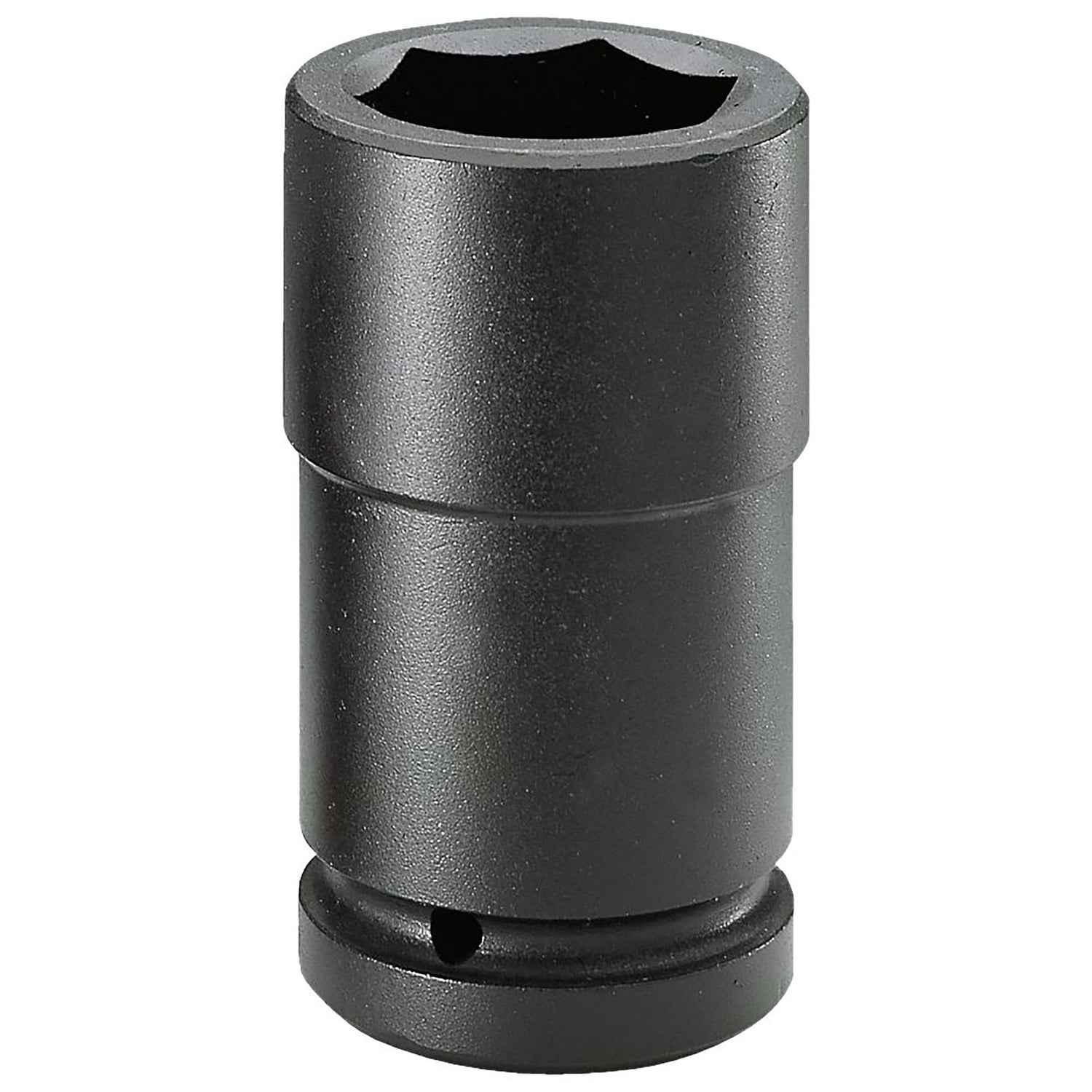

1 in. Long Impact Socket 6-points, Metric

SKU: NM.22LA - Barcode: 3148516566164

HIGH PERFORMANCE - Designed and manufactured for extremely high tightening forces.
IMPACT TOOL - Use with energised tools.
OGV® PROFILE - Maximizing the contact between the socket and nut/bolt to preserves fasteners.
TREATEMENT - Molybdenum chrome steel tempered with heat treatment.
HIGH PROTECTION - Coated with manganese phosphate for higher protection and corrosion resistance.

Full product description

Standards and certifications

This product complies with the following standards and certifications:

DIN 3129, ISO 1711-2, ISO 2725-2, NF ISO 1711-2, NF ISO 2725-2

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

HIGH PERFORMANCE - Designed and manufactured for extremely high tightening forces.
IMPACT TOOL - Use with energised tools.
OGV® PROFILE - Maximizing the contact between the socket and nut/bolt to preserves fasteners.
TREATEMENT - Molybdenum chrome steel tempered with heat treatment.
HIGH PROTECTION - Coated with manganese phosphate for higher protection and corrosion resistance.

Specifications

Technical drawing and dimensions

		D1 (mm)	D (mm)	L1 (mm)	L (mm)
NM.22LA	[NM.22LA] 1 in. Long Impact Socket, 6-point, 22 mm	40.00	54.00	17.00	100.00
NM.24LA	[NM.24LA] 1 in. Long Impact Socket, 6-point, 24 mm	42.00	54.00	18.00	100.00
NM.27LA	[NM.27LA] 1" long impact socket 6-point, 27 mm	46.00	54.00	18.00	100.00
NM.29LA	[NM.29LA] 1 in. Long Impact Socket, 6-point, 29 mm	49.00	54.00	18.00	100.00
NM.30LA	[NM.30LA] 1 in. Long Impact Socket, 6-point, 30 mm	50.00	54.00	20.00	100.00
NM.32LA	[NM.32LA] 1 in. 6-point Long Impact Socket, 32 mm	50.00	54.00	22.00	100.00
NM.33LA	[NM.33LA] 1" long impact socket 6-point, 33 mm	52.00	54.00	22.00	100.00
NM.34LA	[NM.34LA] 1 in. Long Impact Socket, 6-point, 34 mm	52.00	54.00	22.00	100.00
NM.36LA	[NM.36LA] 1" long impact socket 6-point, 36 mm	56.00	54.00	24.00	100.00
NM.38LA	[NM.38LA] 1 in. Long Impact Socket, 6-point, 38 mm	58.00	54.00	26.00	100.00
NM.41LA	[NM.41LA] 1 in. Long Impact Socket, 6-point, 41 mm	63.00	54.00	27.00	100.00
NM.42LA	[NM.42LA] 1 in. Long Impact Socket, 6-point, 42 mm	64.00	54.00	27.00	100.00
NM.46LA	[NM.46LA] 1" long impact socket 6-point, 46 mm	68.00	54.00	30.00	100.00
NM.50LA	[NM.50LA] 1 in. Long Impact Socket, 6-point, 50 mm	73.00	54.00	33.00	100.00
NM.55LA	[NM.55LA] 1 in. Drive 6-Point 55mm Long Impact Socket	80.00	54.00	36.00	100.00
NM.60LA	[NM.60LA] 1 in. Long Impact Socket, 6-point, 60 mm	87.00	54.00	39.00	120.00
NM.65LA	[NM.65LA] 1 in. Long Impact Socket, 6-point, 65 mm	93.00	54.00	45.00	120.00
NM.70LA	[NM.70LA] 1 in. Long Impact Socket, 6-point, 70 mm	99.00	54.00	45.00	125.00
