Facom - The Art of Precision since 1918.

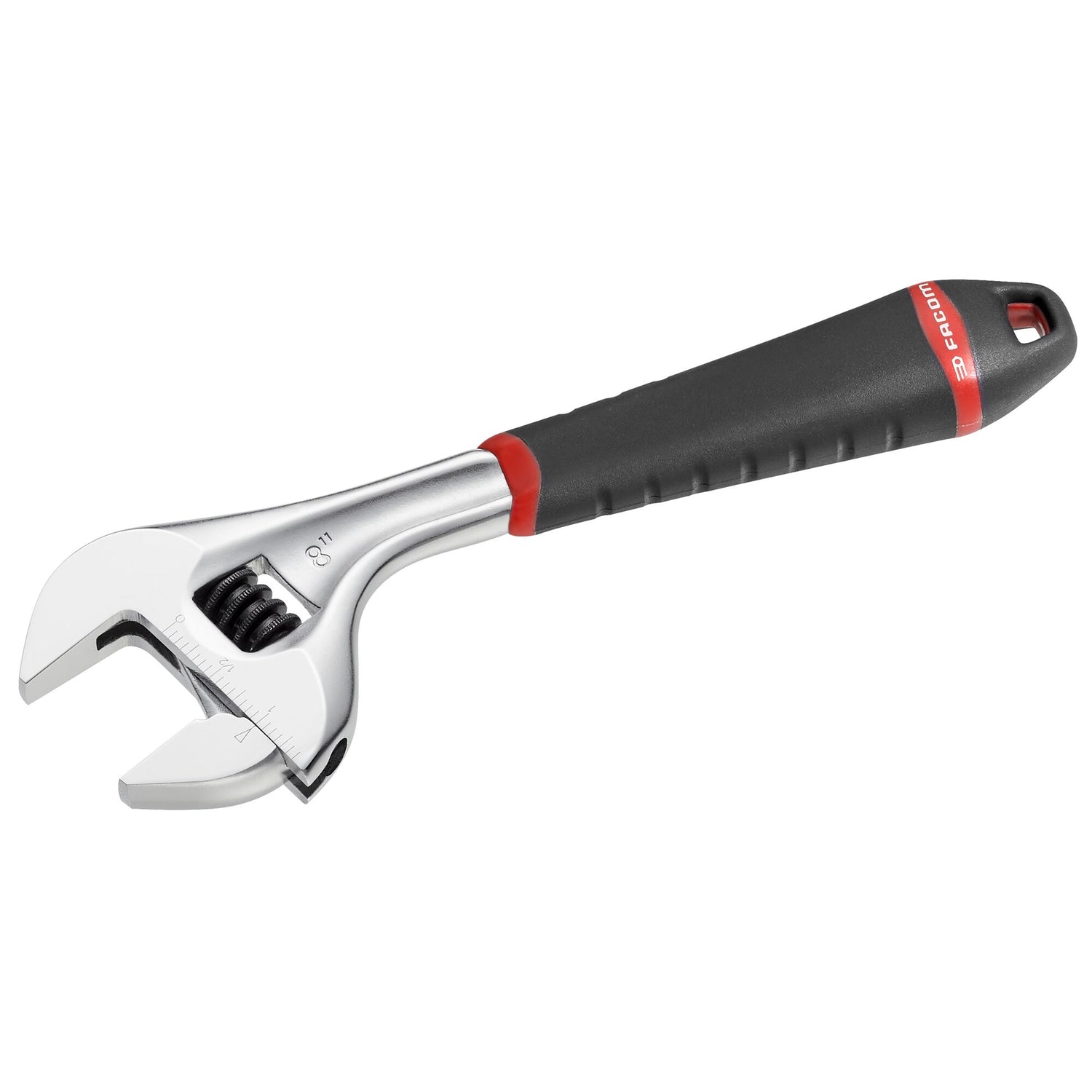

101.G - Adjustable wrenches, Quick Adjust, bi-material

SKU: 101.8G  -  Barcode: 3662424092251
  • QUICK ADJUST - Easy and fast moving jaw tightening on the nut using the button.
  • SLIM JAW PROFILE - For Better Accessibility.
  • EXTRA-WIDE OPENING - Higher Versatility: More dimensions with a single wrench.
  • HANDLE - Bi-Material Grip for Ergonomy.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.100, DIN 3117, ISO 6787, NF ISO 6787

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • QUICK ADJUST - Easy and fast moving jaw tightening on the nut using the button.
  • SLIM JAW PROFILE - For Better Accessibility.
  • EXTRA-WIDE OPENING - Higher Versatility: More dimensions with a single wrench.
  • HANDLE - Bi-Material Grip for Ergonomy.

Specifications
  • AntidéflagrantNon
  • AttachéOui
  • FinitionVernis chromé
  • Largeur de la tête65.47
  • Longueur du produit201 mm
  • Matériau de la poignéeBi-matière
  • Poids net0.25 Kg

Technical drawing and dimensions

A (mm)B (mm)C1 (mm)C (mm)E1 (mm)E (mm)L (mm)
101.8G [101.8G] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 8 in. 33.0065.4729.9018.0014.206.70201.00
101.8GPB [101.8GPB] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 8 in. 33.0065.47029.9018.0014.206.70201.00
101.10G [101.10G] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 10 in. 38.0075.6034.8021.0016.308.80255.00
101.10GPB [101.10GPB] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 10 in. 38.0075.6034.8021.0016.308.80255.00
101.12G [101.12G] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 12 in. 41.0089.3039.7025.0018.5010.10301.00
101.12GPB [101.12GPB] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 12 in. 41.0089.3039.7025.0018.5010.10301.00
101.15G [101.15G] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 15 in. 50.00105.6042.0028.0020.4013.40376.00
101.15GPB [101.15GPB] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 15 in. 50.00105.6042.0028.0020.4013.40376.00

Documents

101.G - Adjustable wrenches, Quick Adjust, bi-material

References available

  • [101.8G] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 8 in.
  • [101.8GPB] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 8 in.
  • [101.10G] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 10 in.
  • [101.10GPB] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 10 in.
  • [101.12G] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 12 in.
  • [101.12GPB] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 12 in.
  • [101.15G] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 15 in.
  • [101.15GPB] ADJUSTABLE WRENCH - 101.G - Quick Adjustment - Bi-Material Handle - 15 in.

Lieu de fabrication

N/A

Normes & certifications

ASME B107.100, DIN 3117, ISO 6787, NF ISO 6787

Période de garantie

Lifetime warranty on the tool (replacement)
