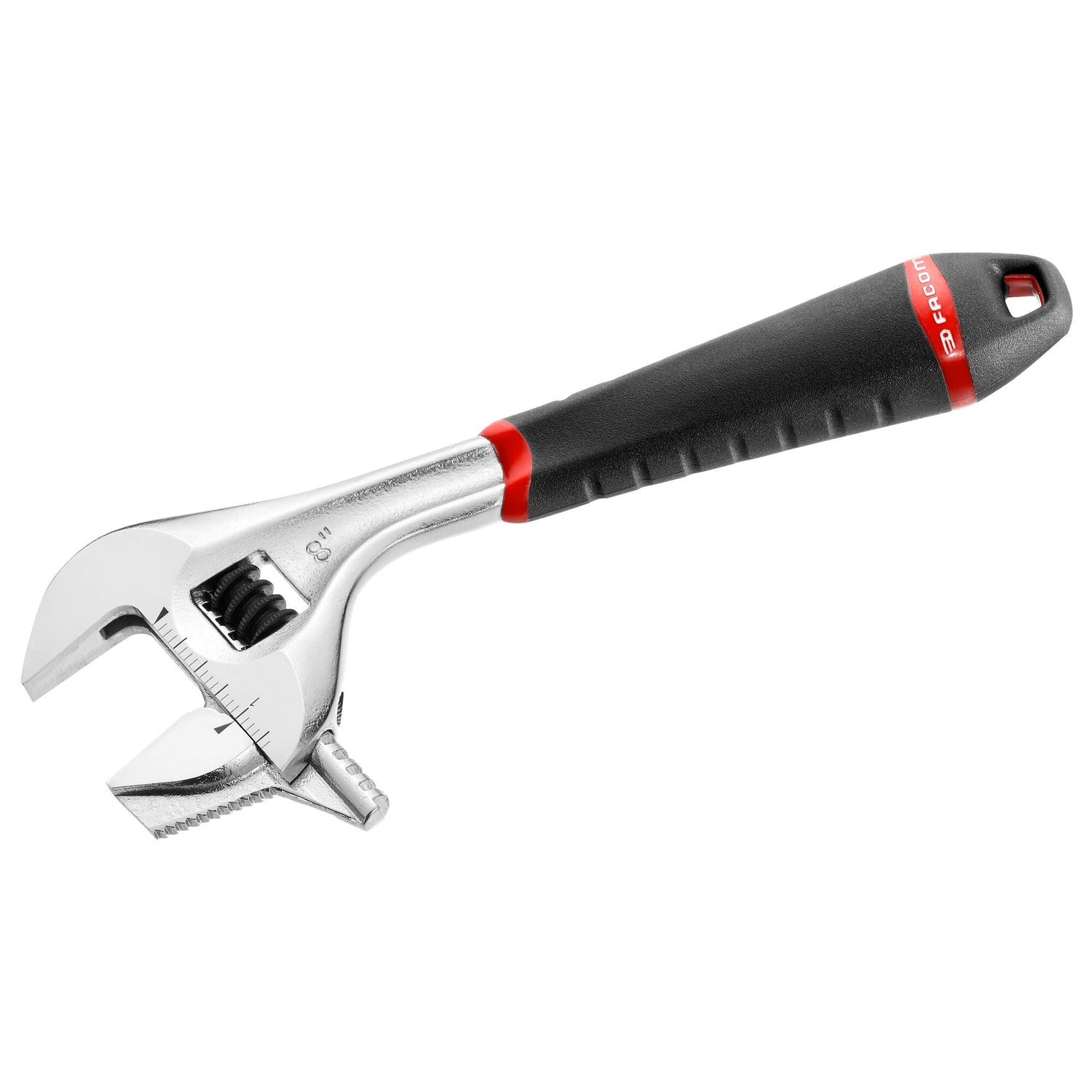

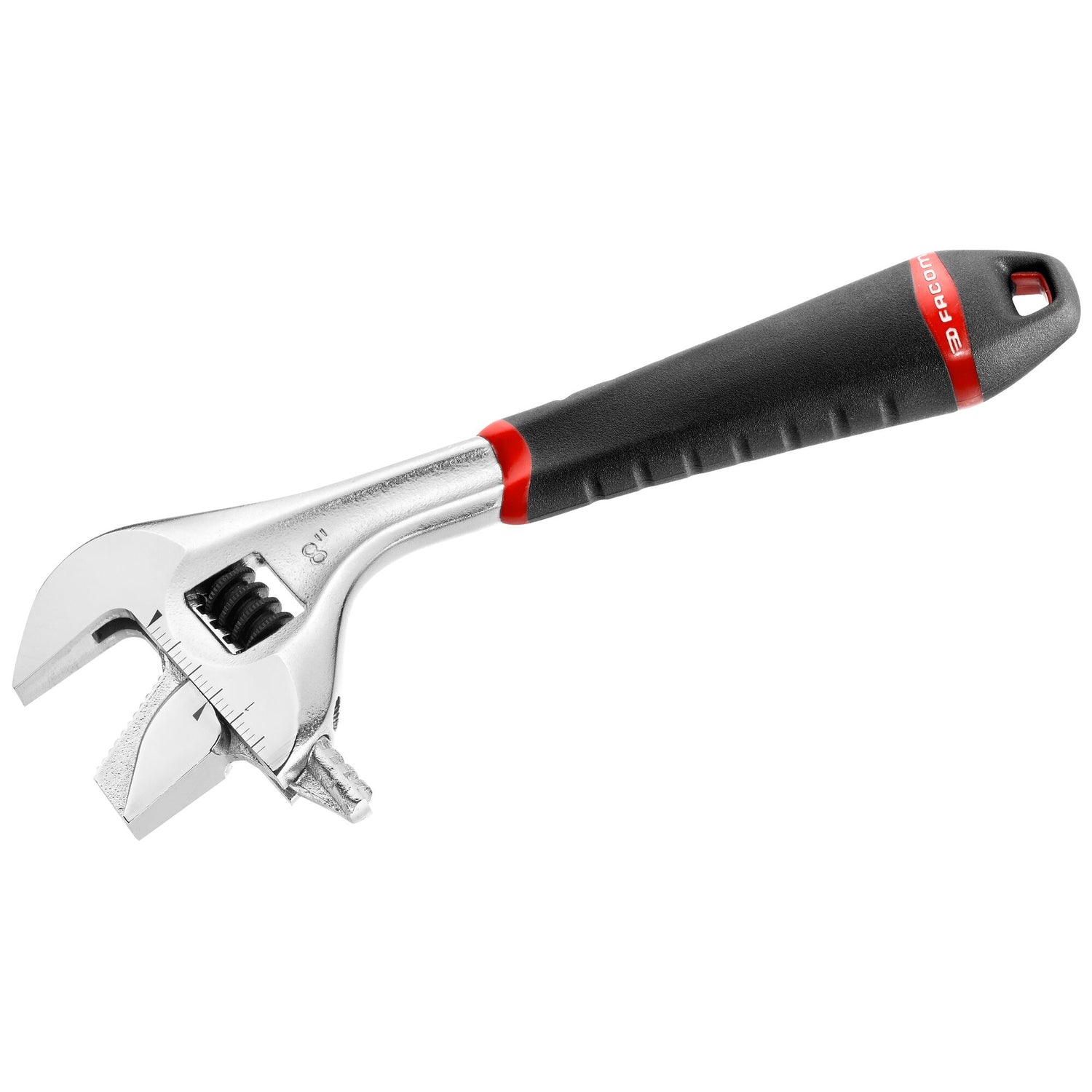

101.GR - Adjustable wrenches, Quick Adjust, bi-material

SKU: 101.8GR  -  Barcode: 3662424092299
  • QUICK ADJUST - Easy and fast moving jaw tightening on the nut using the button.
  • SLIM JAW PROFILE - For Better Accessibility.
  • EXTRA-WIDE OPENING - Higher Versatility: More dimensions with a single wrench.

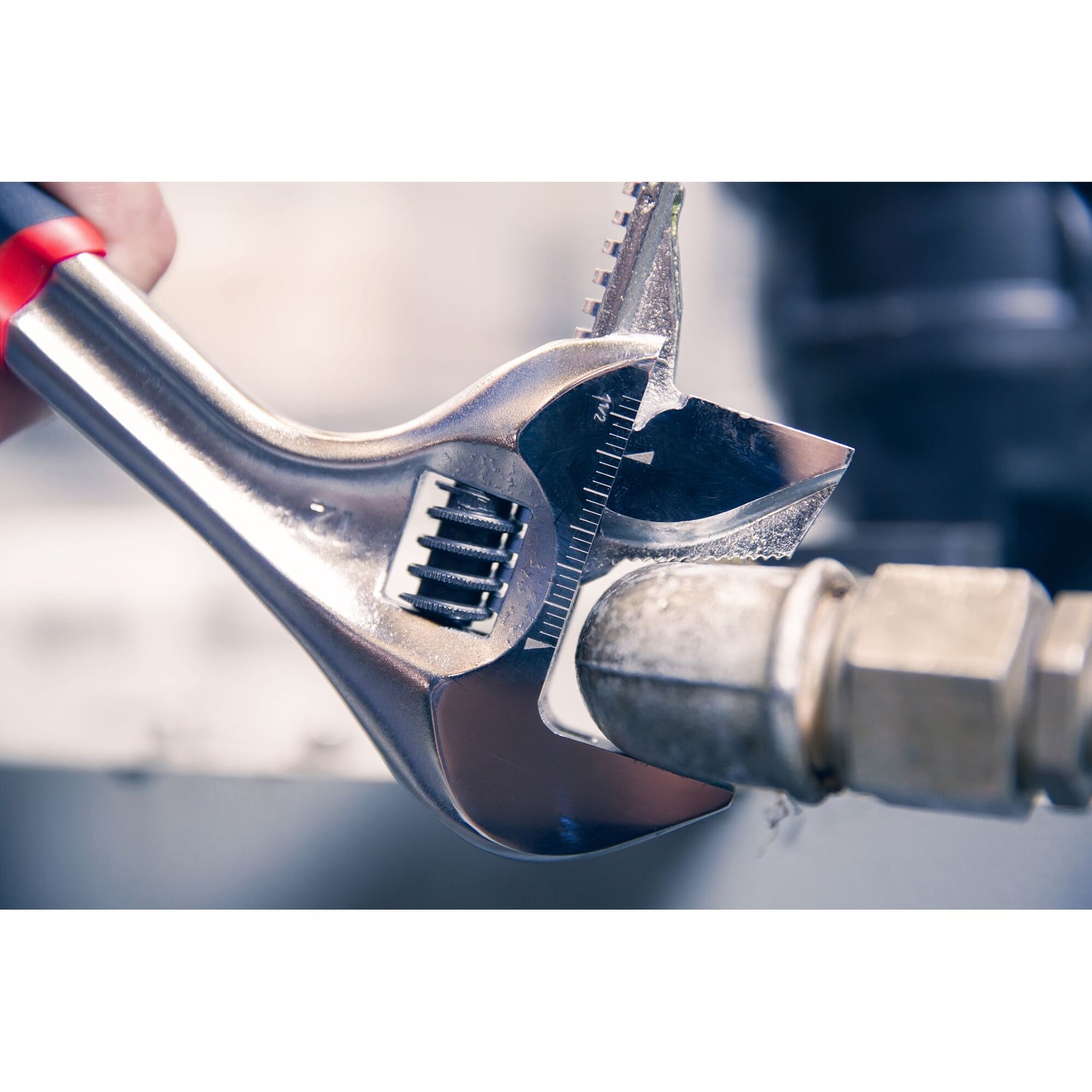

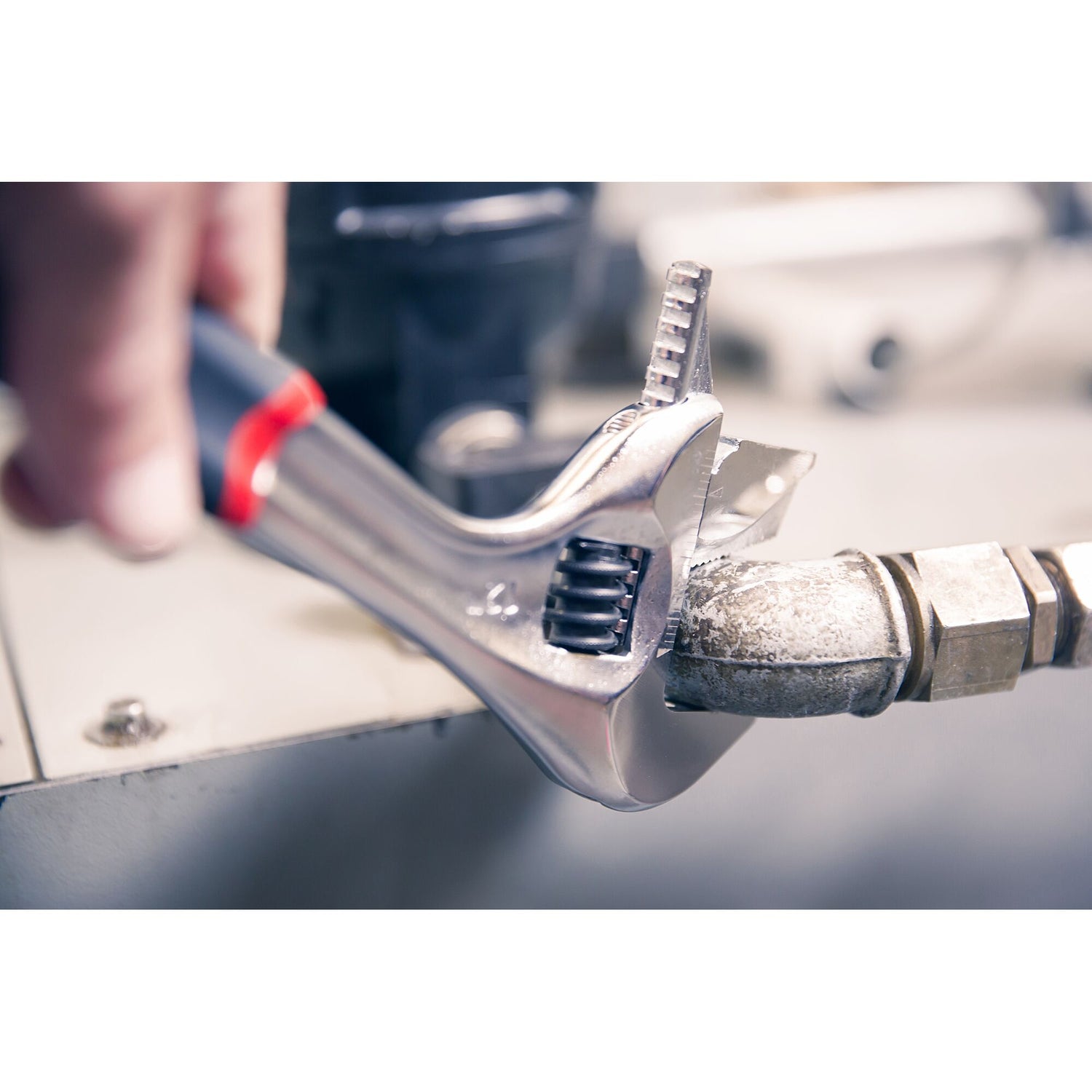

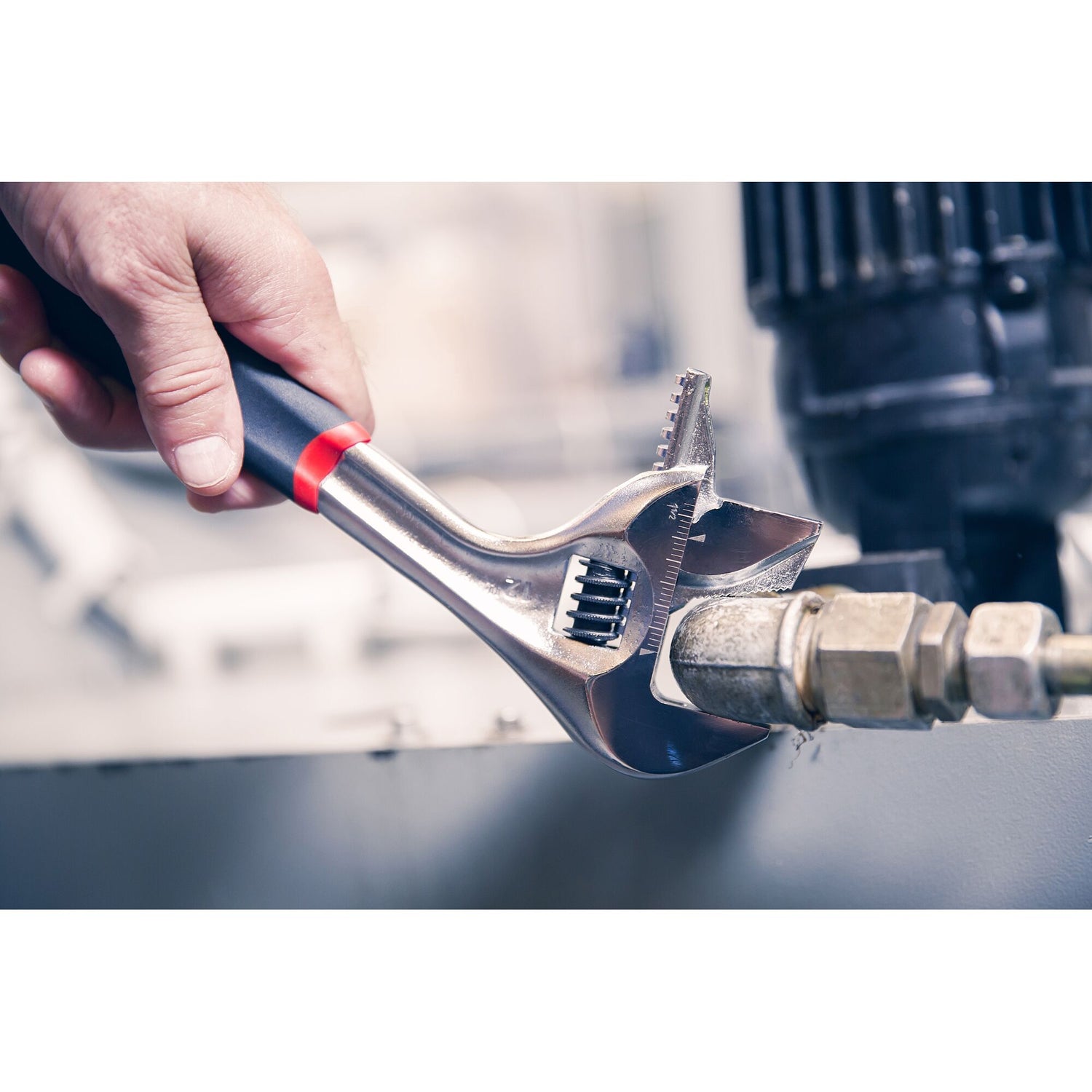

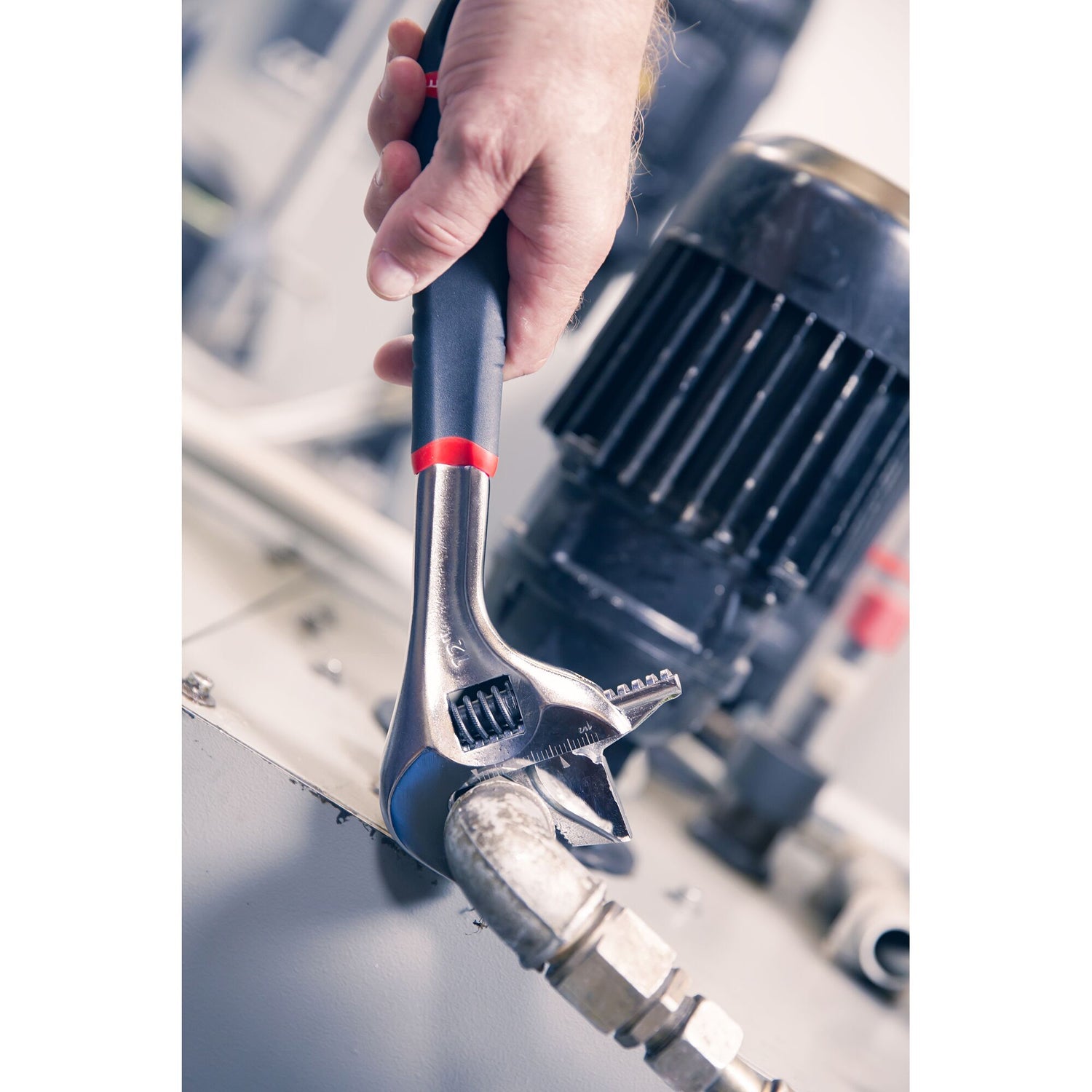

  • REVERSIBLE - On one side, The jaw is flat for traditional usage to avoid damaging the parts worked. On the other side, the jaw is finely serrated for powerful tightening on tubes and other parts requiring strong grip and high torque.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.100, DIN 3117, ISO 6787

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • QUICK ADJUST - Easy and fast moving jaw tightening on the nut using the button.
  • SLIM JAW PROFILE - For Better Accessibility.
  • EXTRA-WIDE OPENING - Higher Versatility: More dimensions with a single wrench.
  • REVERSIBLE - On one side, The jaw is flat for traditional usage to avoid damaging the parts worked. On the other side, the jaw is finely serrated for powerful tightening on tubes and other parts requiring strong grip and high torque.

Specifications
  • AntidéflagrantNon
  • AttachéOui
  • FinitionVernis chromé
  • Isolation 1000VNon
  • Largeur de la tête65.4
  • Longueur du produit201 mm
  • Matériau de la poignéeBi-matière
  • Poids net0.27 Kg

Technical drawing and dimensions

A (mm)B (mm)C1 (mm)C (mm)E1 (mm)E (mm)L (mm)
101.8GR [101.8GR] ADJUSTABLE WRENCH - 101.GR - Reversible Jaw - Bi-Material Handle - 8 in. 33.0065.4029.9018.0014.206.70201.00
101.10GR [101.10GR] ADJUSTABLE WRENCH - 101.GR - Reversible Jaw - Bi-Material Handle - 10 in. 38.0075.6034.8021.0016.308.80255.00
101.12GR [101.12GR] ADJUSTABLE WRENCH - 101.GR - Reversible Jaw - Bi-Material Handle - 12 in. 41.0089.3039.7025.0018.5010.10301.00
101.15GR [101.15GR] ADJUSTABLE WRENCH - 101.GR - Reversible Jaw - Bi-Material Handle - 15 in. 50.00105.6047.0028.0020.4013.40376.00

Documents

101.GR - Adjustable wrenches, Quick Adjust, bi-material

References available

  • [101.8GR] ADJUSTABLE WRENCH - 101.GR - Reversible Jaw - Bi-Material Handle - 8 in.
  • [101.10GR] ADJUSTABLE WRENCH - 101.GR - Reversible Jaw - Bi-Material Handle - 10 in.
  • [101.12GR] ADJUSTABLE WRENCH - 101.GR - Reversible Jaw - Bi-Material Handle - 12 in.
  • [101.15GR] ADJUSTABLE WRENCH - 101.GR - Reversible Jaw - Bi-Material Handle - 15 in.

Lieu de fabrication

N/A

Normes & certifications

ASME B107.100, DIN 3117, ISO 6787

Période de garantie

Lifetime warranty on the tool (replacement)
