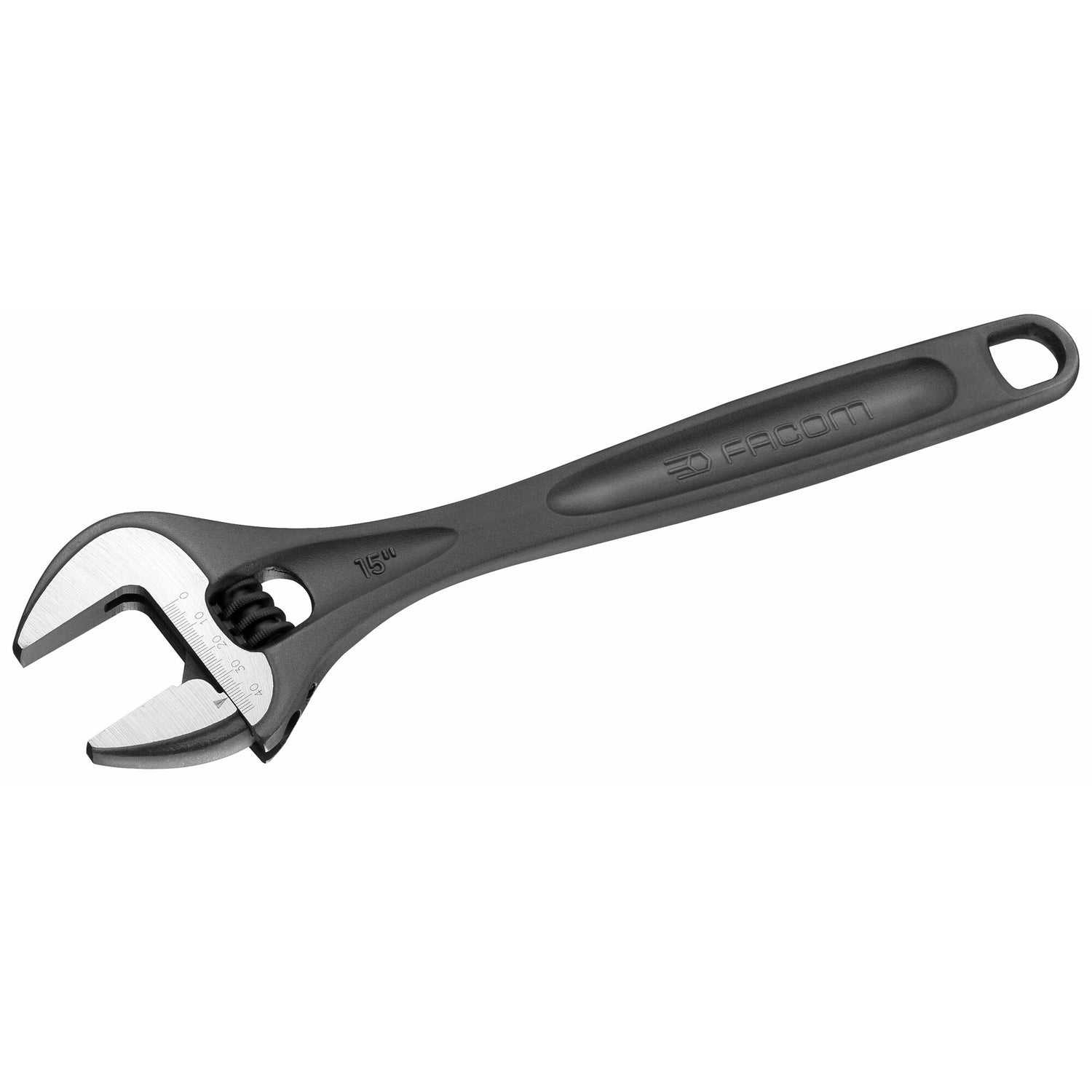

113A.T - Adjustable wrenches, phosphate

SKU: 113A.4T  -  Barcode: 3148517036895
  • HIGH PERFORMANCE - Designed and manufactured for extremely high tightening forces.
  • EASY-SETTING - Smooth Jaw with an easy-access and milimetric graduation.
  • SAFETY - Non-protruding moving jaw at maximum capacity.
  • HANGING HOLE - To be stored on panel or hung to avoid loss or fall.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.100, DIN 3117, ISO 6787, NF ISO 6787

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • HIGH PERFORMANCE - Designed and manufactured for extremely high tightening forces.
  • EASY-SETTING - Smooth Jaw with an easy-access and milimetric graduation.
  • SAFETY - Non-protruding moving jaw at maximum capacity.
  • HANGING HOLE - To be stored on panel or hung to avoid loss or fall.

Specifications
  • AttachéOui
  • FinitionPhosphate
  • Largeur de la tête34
  • Longueur du produit114 mm
  • Poids net0.065 Kg

Technical drawing and dimensions

A (mm)B (mm)C1 (mm)C (mm)E1 (mm)E2 (mm)E (mm)L1 (mm)L (mm)
113A.4T [113A.4T] ADJUSTABLE WRENCH - 113A.T - Heavy Duty - Phosphated body - 4 in. 13.0034.0014.0011.009.505.004.5013.00114.00
113A.6T [113A.6T] ADJUSTABLE WRENCH - 113A.T - Heavy Duty - Phosphated body - 6 in. 20.0045.0018.5014.8011.806.005.0019.00155.00
113A.8T [113A.8T] ADJUSTABLE WRENCH - 113A.T - Heavy Duty - Phosphated body - 8 in. 27.0061.5024.0018.5013.509.006.5024.00206.00
113A.10T [113A.10T] ADJUSTABLE WRENCH - 113A.T - Heavy Duty - Phosphated body - 10 in. 30.0069.5028.5021.5015.509.509.0029.00255.00
113A.12T [113A.12T] ADJUSTABLE WRENCH - 113A.T - Heavy Duty - Phosphated body - 12 in. 34.0080.0031.0025.0018.0010.2010.0034.00306.00
113A.15T [113A.15T] ADJUSTABLE WRENCH - 113A.T - Heavy Duty - Phosphated body - 18 in. 44.0097.0035.0028.0020.0012.0013.5044.00380.00
113A.18T [113A.18T] ADJUSTABLE WRENCH - 113A.T - Heavy Duty - Phosphated body - 4 in. 53.00115.0038.5031.0022.5014.3016.0053.00456.00

Documents

113A.T - Adjustable wrenches, phosphate

References available

  • [113A.4T] ADJUSTABLE WRENCH - 113A.T - Heavy Duty - Phosphated body - 4 in.
  • [113A.6T] ADJUSTABLE WRENCH - 113A.T - Heavy Duty - Phosphated body - 6 in.
  • [113A.8T] ADJUSTABLE WRENCH - 113A.T - Heavy Duty - Phosphated body - 8 in.
  • [113A.10T] ADJUSTABLE WRENCH - 113A.T - Heavy Duty - Phosphated body - 10 in.
  • [113A.12T] ADJUSTABLE WRENCH - 113A.T - Heavy Duty - Phosphated body - 12 in.
  • [113A.15T] ADJUSTABLE WRENCH - 113A.T - Heavy Duty - Phosphated body - 18 in.
  • [113A.18T] ADJUSTABLE WRENCH - 113A.T - Heavy Duty - Phosphated body - 4 in.

Lieu de fabrication

N/A

Normes & certifications

ASME B107.100, DIN 3117, ISO 6787, NF ISO 6787

Période de garantie

Lifetime warranty on the tool (replacement)
