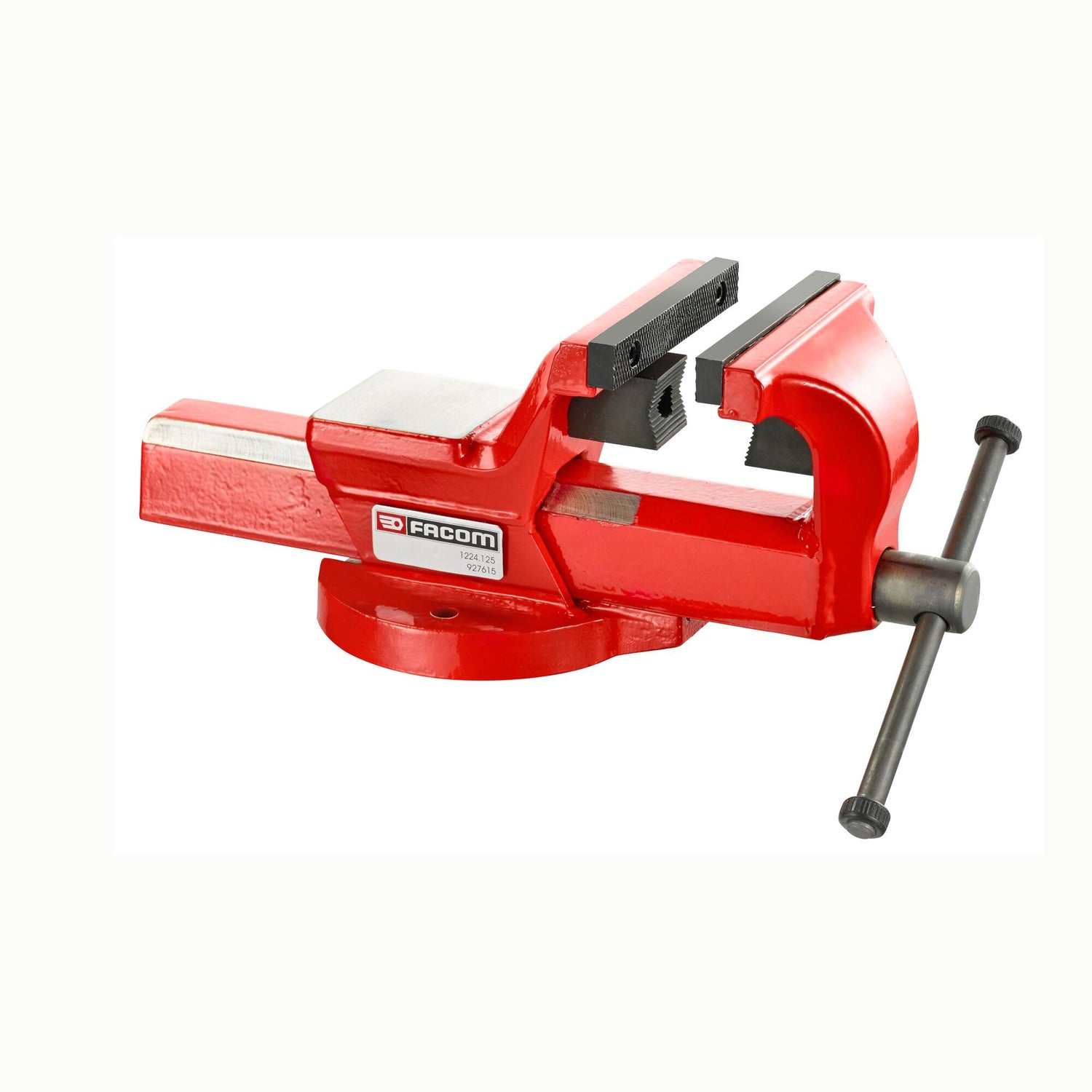

1224.E - Worksite-maintenance fixed vices

SKU: 1224.100E  -  Barcode: 3148519276404
  • Spheroidal graphite cast iron vice, 700 N/mm² tensile strength.
  • Seemlessly operate even under heavy loads.
  • Interchangeable parallel jaws. High wear resistance, hardness 48/53 HRc.
  • Removable V-shaped jaws for holding pipes. Hardness 40/46 HRc.
  • Quickly swivel the vice using the 2 adjustment screws.
  • Burnished control bar.
Full product description
Reference comparison

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description
  • Spheroidal graphite cast iron vice, 700 N/mm² tensile strength.
  • Seemlessly operate even under heavy loads.
  • Interchangeable parallel jaws. High wear resistance, hardness 48/53 HRc.
  • Removable V-shaped jaws for holding pipes. Hardness 40/46 HRc.
  • Quickly swivel the vice using the 2 adjustment screws.
  • Burnished control bar.

Specifications
  • ConnectivitéNon
  • Hauteur du produit142 mm
  • Largeur de la tête63
  • Largeur ouverture63 mm
  • Longueur du produit345 mm
  • Poids net8.67 Kg
  • RouesNon
  • Type de supportÉtabli/Étaux

Technical drawing and dimensions

A max (mm)B (mm)H1 (mm)H (mm)L1 (mm)L2 (mm)L3 (mm)L (mm)
1224.100E [1224.100E] 100mm Worksite Maintenance Fixed Vice 125.0063.0074.00142.00104.0051.0070.00345.00
1224.125E [1224.125E] Worksite-maintenance fixed vice, 125 mm 150.0075.0083.00156.00127.0053.0076.00380.00
1224.150E [1224.150E] 150mm Worksite-Maintenance Fixed Vice 200.0095.0094.00183.00154.0060.0091.00460.00
1224.175E [1224.175E] 175mm Worksite Maintenance Fixed Vice 235.00118.00123.00216.00178.0068.00111.00532.00

Documents

1224.E - Worksite-maintenance fixed vices

References available

  • [1224.100E] 100mm Worksite Maintenance Fixed Vice
  • [1224.125E] Worksite-maintenance fixed vice, 125 mm
  • [1224.150E] 150mm Worksite-Maintenance Fixed Vice
  • [1224.175E] 175mm Worksite Maintenance Fixed Vice

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

This product is covered by a 2-year warranty
