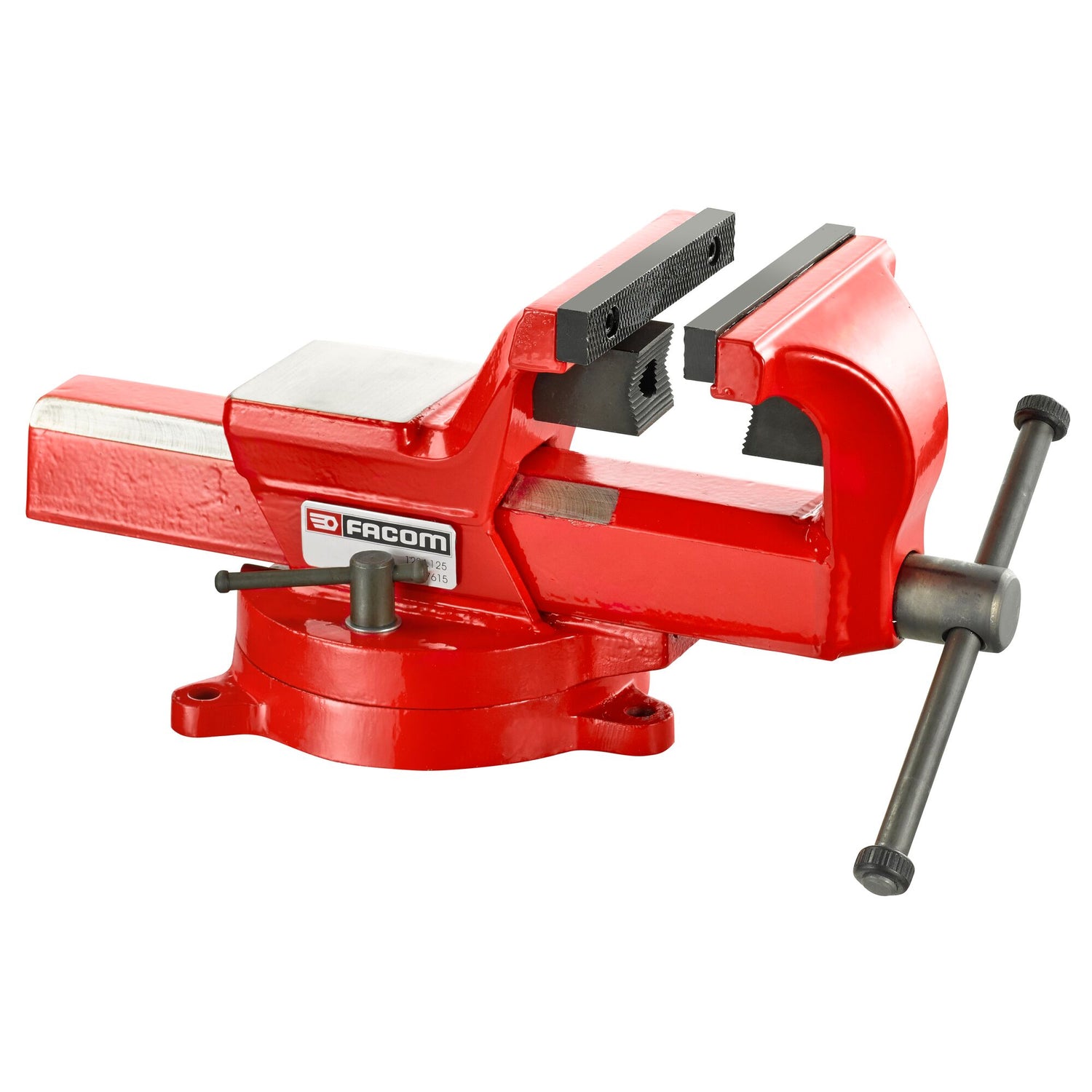

1224 - Worksite-maintenance 360° swivel vices

SKU: 1224.100 - Barcode: 3148519276077

Vices in spheroid graphite cast iron, tensile strength 700 N/mm² minimum.
Wide bearing base of the prism guide/mobile jaw: lack of guide flexion, vice operation preserved even under heavy loads.
Interchangeable parallel jaws. High wear resistance, hardness 48/53 HRc.
Removable V-shaped jaws for tightening the pipes. Hardness 40/46 HRc.
Adjustment system by 2 complex gap compensation screws.
Burnished control bar.

Full product description

References available Reference comparison

Product variants

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Vices in spheroid graphite cast iron, tensile strength 700 N/mm² minimum.
Wide bearing base of the prism guide/mobile jaw: lack of guide flexion, vice operation preserved even under heavy loads.
Interchangeable parallel jaws. High wear resistance, hardness 48/53 HRc.
Removable V-shaped jaws for tightening the pipes. Hardness 40/46 HRc.
Adjustment system by 2 complex gap compensation screws.
Burnished control bar.

Technical drawing and dimensions

		A max (mm)	B (mm)	H1 (mm)	H (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L (mm)
1224.100	[1224.100] 1224 - Worksite-maintenance 360° swivel vices	125.00	63.00	74.00	164.00	104.00	51.00	70.00	345.00
1224.125	[1224.125] 125mm Worksite Maintenance 360® Wwivel Vice	150.00	75.00	83.00	178.00	127.00	53.00	76.00	380.00
1224.150	[1224.150] Worksite maintenance 360° swivel vice, 150 mm	200.00	95.00	94.00	205.00	154.00	60.00	91.00	460.00
1224.175	[1224.175] 175mm Worksite Maintenance 360 Deg Swivel Vice	235.00	118.00	123.00	241.00	178.00	68.00	111.00	532.00
