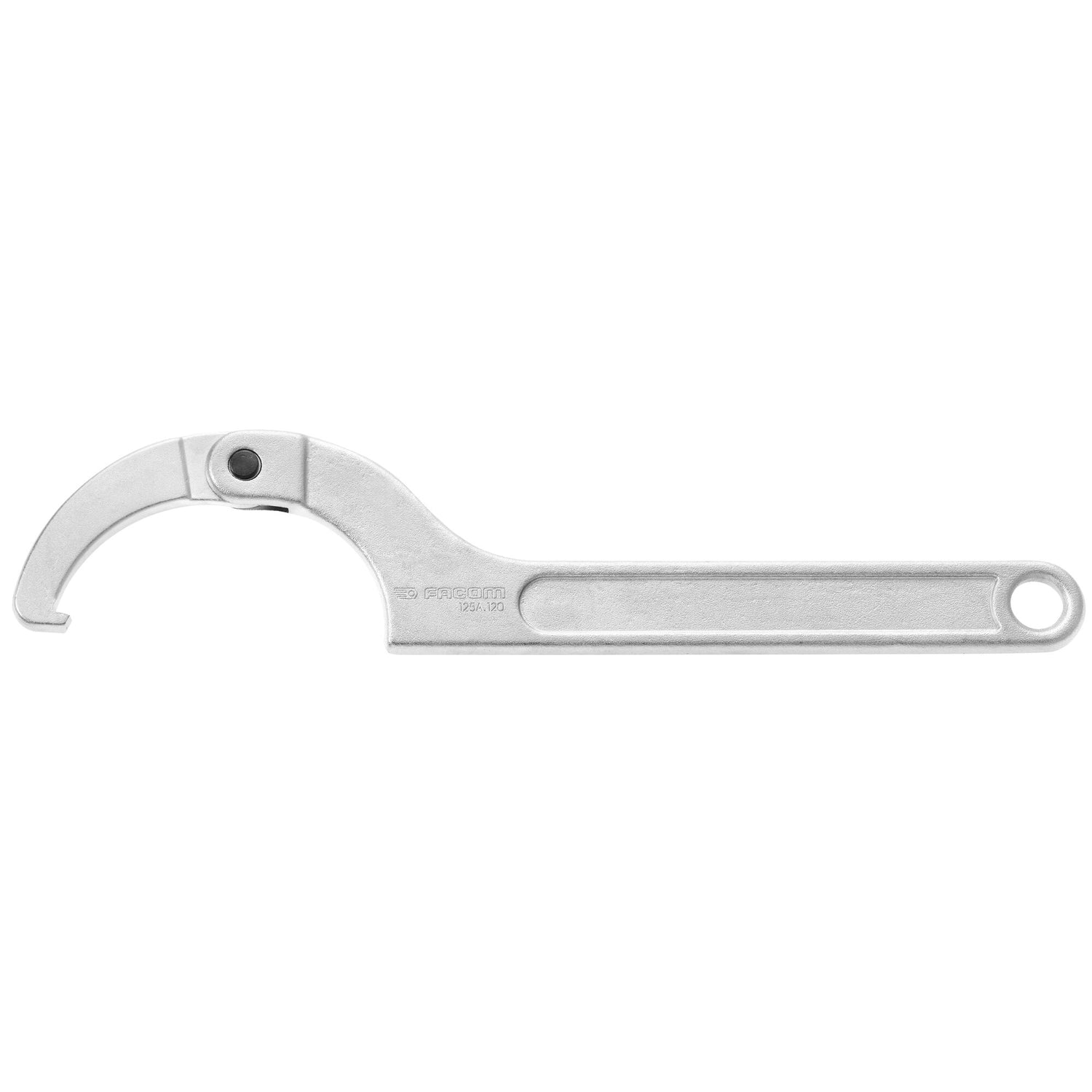

125A - Hinged Wrenches

SKU: 125A.35 - Barcode: 3148511346518

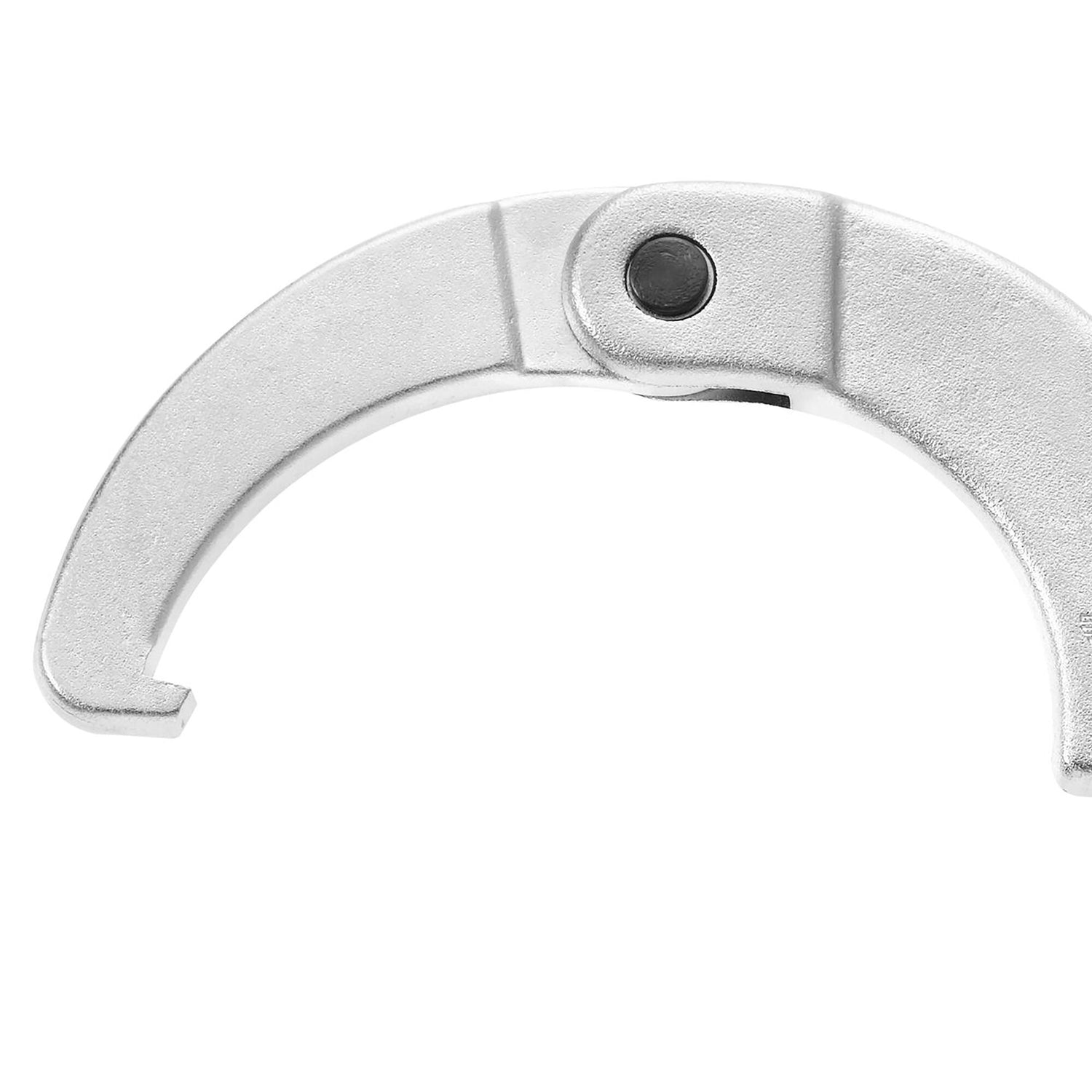

HIGH PERFORMANCE - The hinge is fitted with a spring washer guaranteeing smooth and reliable operation.
MULTI-OPENING - These 5 dimensions replace more wrenches than classical fixed models.
LARGE CAPACITY - From 15 to 180 mm.

Full product description

References available Reference comparison

Product variants

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

HIGH PERFORMANCE - The hinge is fitted with a spring washer guaranteeing smooth and reliable operation.
MULTI-OPENING - These 5 dimensions replace more wrenches than classical fixed models.
LARGE CAPACITY - From 15 to 180 mm.

Specifications

Technical drawing and dimensions

		A (mm)	E (mm)	L (mm)
125A.35	[125A.35] HINGED HOOK WRENCH - 125A - Multi Openings - Satin Chrome Finish - 35 mm	3.00	5.00	168.00
125A.50	[125A.50] HINGED HOOK WRENCH - 125A - Multi Openings - Satin Chrome Finish - 50 mm	4.00	6.00	202.00
125A.80	[125A.80] HINGED HOOK WRENCH - 125A - Multi Openings - Satin Chrome Finish - 80 mm	5.00	8.00	280.00
125A.120	[125A.120] HINGED HOOK WRENCH - 125A - Multi Openings - Satin Chrome Finish - 120 mm	5.50	9.00	345.00
125A.180	[125A.180] HINGED HOOK WRENCH - 125A - Multi Openings - Satin Chrome Finish - 180 mm	7.50	11.00	492.00
