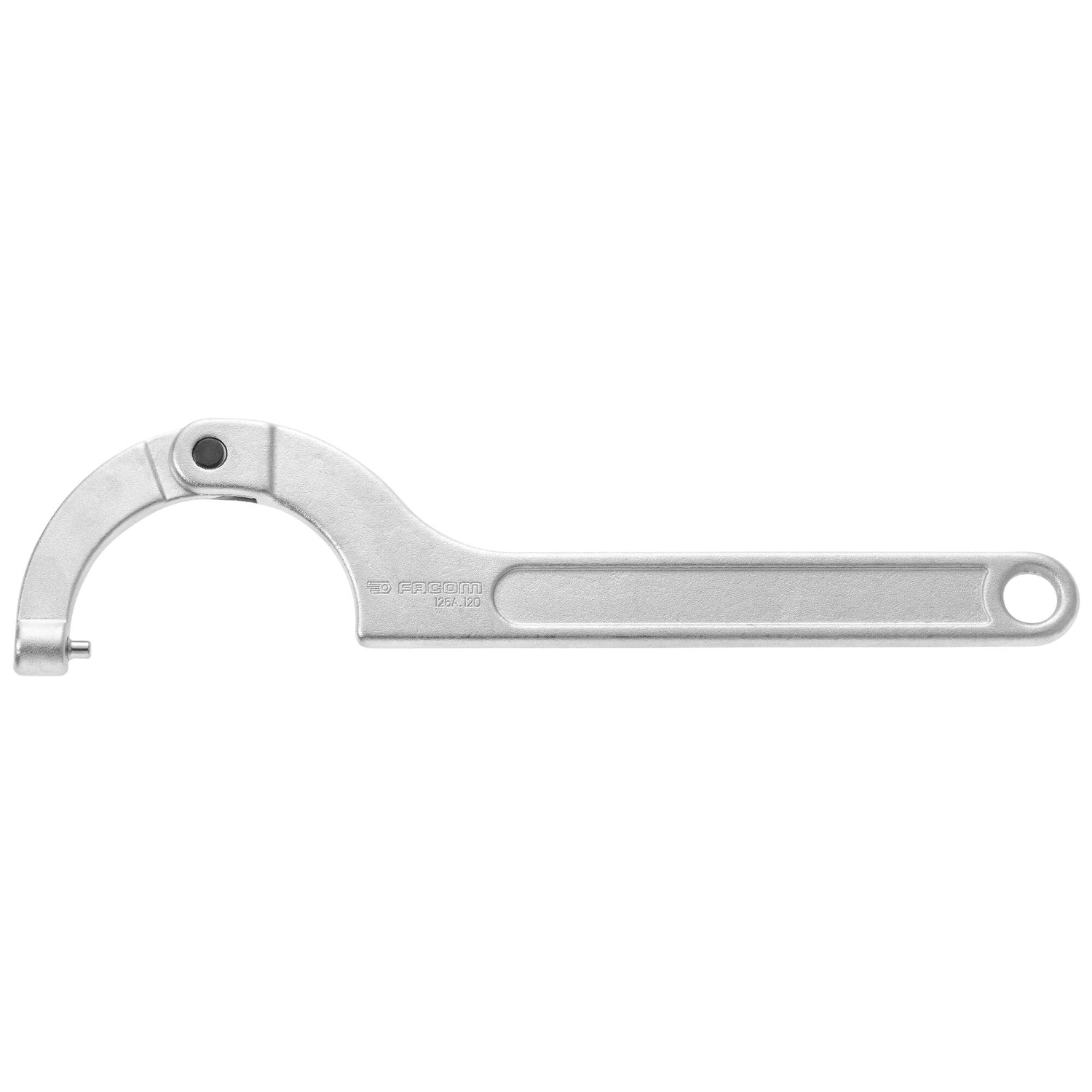

126A - Hinged hook and pin wrenches

SKU: 126A.35 - Barcode: 3148511346914

SPECIFIC APPLICATION - For nuts with lateral holes.
VERSATILE - Removable hooks.
HIGH PERFORMANCE - The hinge is fitted with a spring washer guaranteeing smooth and reliable operation.
MULTI-OPENING - These 5 dimensions replace more wrenches than classical fixed models.
HIGH PERFORMANCE - Hooks treated for high hardness.
LARGE CAPACITY - From 15 to 180 mm.

Full product description

References available Reference comparison

Product variants

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

SPECIFIC APPLICATION - For nuts with lateral holes.
VERSATILE - Removable hooks.
HIGH PERFORMANCE - The hinge is fitted with a spring washer guaranteeing smooth and reliable operation.
MULTI-OPENING - These 5 dimensions replace more wrenches than classical fixed models.
HIGH PERFORMANCE - Hooks treated for high hardness.
LARGE CAPACITY - From 15 to 180 mm.

Specifications

Technical drawing and dimensions

		A (mm)	E (mm)	L (mm)
126A.35	[126A.35] HINGED PIN WRENCH - 126A - Removable Hooks - High Performance - 35 mm	3.00	10.00	168.00
126A.50	[126A.50] HINGED PIN WRENCH - 126A - Removable Hooks - High Performance - 50 mm	4.00	12.00	202.00
126A.80	[126A.80] HINGED PIN WRENCH - 126A - Removable Hooks - High Performance - 80 mm	5.00	14.00	280.00
126A.120	[126A.120] HINGED PIN WRENCH - 126A - Removable Hooks - High Performance - 120 mm	6.00	18.00	345.00
126A.180	[126A.180] HINGED PIN WRENCH - 126A - Removable Hooks - High Performance - 180 mm	8.00	20.00	492.00
