Facom - The Art of Precision since 1918.

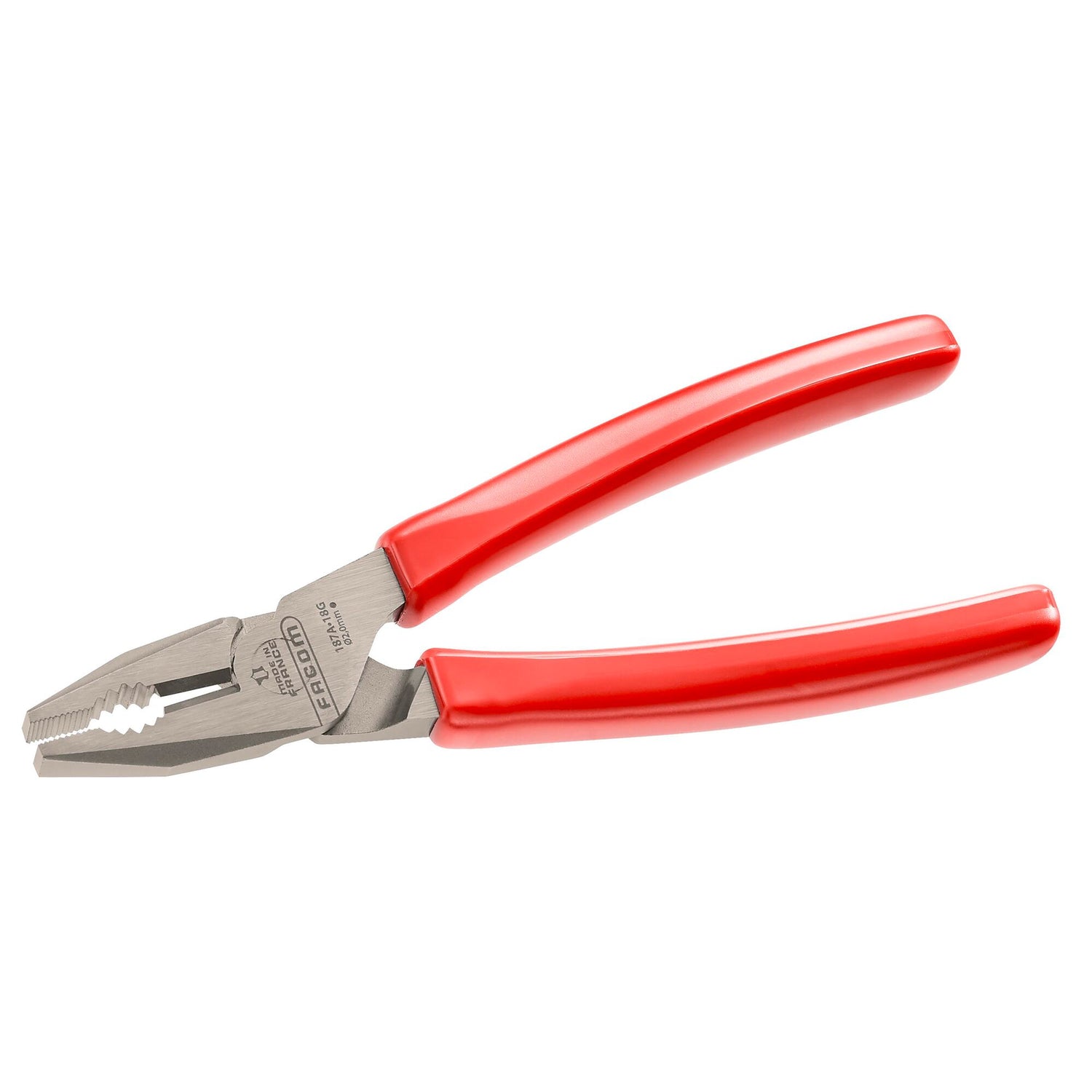

187A.G - Combination pliers

SKU: 187A.18G  -  Barcode: 3662424087134
  • Serrated flat and and oval pipe/cable gripping surfaces combined with a high perfomance cutting edges.
  • Cutting edges designed to cleanly cut all types of wire: soft wires and modern materials to a maximum piano wire specification of: - 187A.16G : 1.8mm 215 kg/mm² - 187A.18G : 2.0mm 210 kg/mm² - 187A.20G : 2.2mm 205 kg/mm².
  • High Mechanical advantage due to off-set rivet and cutting edge geometry reducing effort.
  • High durability carbon alloy steel, with induction hardened cutting edges.
  • Mono-Material ergonomic grips maintining accessibililty benefits of classic dip grips, resistant to workshop chemical agents.
  • Varnish finish to help prevent rusting.
  • Lenght 180 mm.
Full product description
Reference comparison

Made in France

This product is Made in France in our factories.

Click here to learn more about Our Factories.

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.500, ASME B107.501, DIN ISO 5746, ISO 5746, NF ISO 5746

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

  • Serrated flat and and oval pipe/cable gripping surfaces combined with a high perfomance cutting edges.
  • Cutting edges designed to cleanly cut all types of wire: soft wires and modern materials to a maximum piano wire specification of: - 187A.16G : 1.8mm 215 kg/mm² - 187A.18G : 2.0mm 210 kg/mm² - 187A.20G : 2.2mm 205 kg/mm².
  • High Mechanical advantage due to off-set rivet and cutting edge geometry reducing effort.
  • High durability carbon alloy steel, with induction hardened cutting edges.
  • Mono-Material ergonomic grips maintining accessibililty benefits of classic dip grips, resistant to workshop chemical agents.
  • Varnish finish to help prevent rusting.
  • Lenght 180 mm.

Specifications

  • Attache pour travail en hauteurOui
  • Bec coudé15°
  • Capacité de dénudage de fil9.5 mm
  • Épaisseur23 mm
  • Hauteur du produit23 mm
  • Isolation électrique 1000 VNon
  • Largeur de la tête23
  • Longueur du produit185 mm
  • Largeur du produit23 mm
  • Matériaux adaptésAcier
  • Type de poignéePVC trempé
  • Type de pincesPinces universelles

Documents

187A.G - Combination pliers

References available

  • [187A.18G] 180mm Combination Pliers
  • [187A.20G] 200mm Combination Pliers

Lieu de fabrication

N/A

Normes & certifications

ASME B107.500, ASME B107.501, DIN ISO 5746, ISO 5746, NF ISO 5746

Période de garantie

Lifetime warranty on the tool (replacement)
View product
