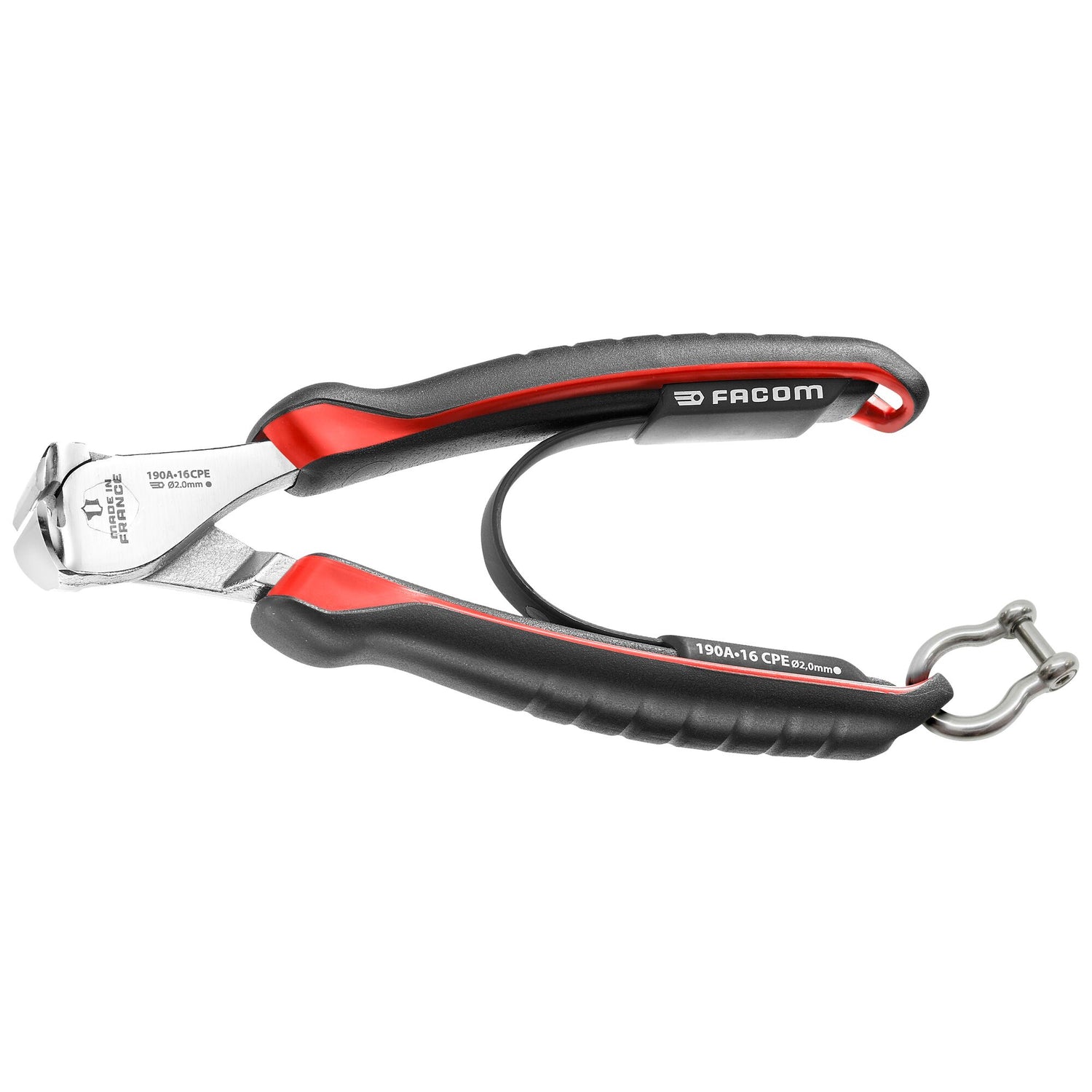

190.CPESLS - End cutters

SKU: 190.16CPESLS - Barcode: 3662424028342

Tool fitted with a FACOM SLS fastener preventing any risk of accidental fall.
Shackle solution chosen by FACOM for particularly heavy and/or large tools.
Cutting edges designed to cut all types of wires clean: soft wires, modern materials and maximum reached with piano wire: - 190.16CPESLS: 2.0mm 210 kg/mm².
Minimum cutting effort with the offset axis and cutting edge geometry.
Durable with Molybdenum Chrome Steel and hardness by induction on cutting edges.
Bi-material ergonomic sheaths offering high resistance to chemicals.
Removable return spring.
Chrome finish.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.500, DIN ISO 5748, ISO 5748, NF ISO 5748

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Tool fitted with a FACOM SLS fastener preventing any risk of accidental fall.
Shackle solution chosen by FACOM for particularly heavy and/or large tools.
Cutting edges designed to cut all types of wires clean: soft wires, modern materials and maximum reached with piano wire: - 190.16CPESLS: 2.0mm 210 kg/mm².
Minimum cutting effort with the offset axis and cutting edge geometry.
Durable with Molybdenum Chrome Steel and hardness by induction on cutting edges.
Bi-material ergonomic sheaths offering high resistance to chemicals.
Removable return spring.
Chrome finish.

Specifications

Technical drawing and dimensions

			B (mm)	C (mm)	D max (mm)	E (mm)	H (mm)	L (mm)
	190.16CPESLS	[190.16CPESLS] 160mm End Cutter Safety Lock System	28.00	6.50	1.60	11.50	23.00	160.00
	190.20CPESLS	[190.20CPESLS] 200mm End Cutter, Safety Lock System	31.00	7.50	2.00	13.50	29.00	200.00
