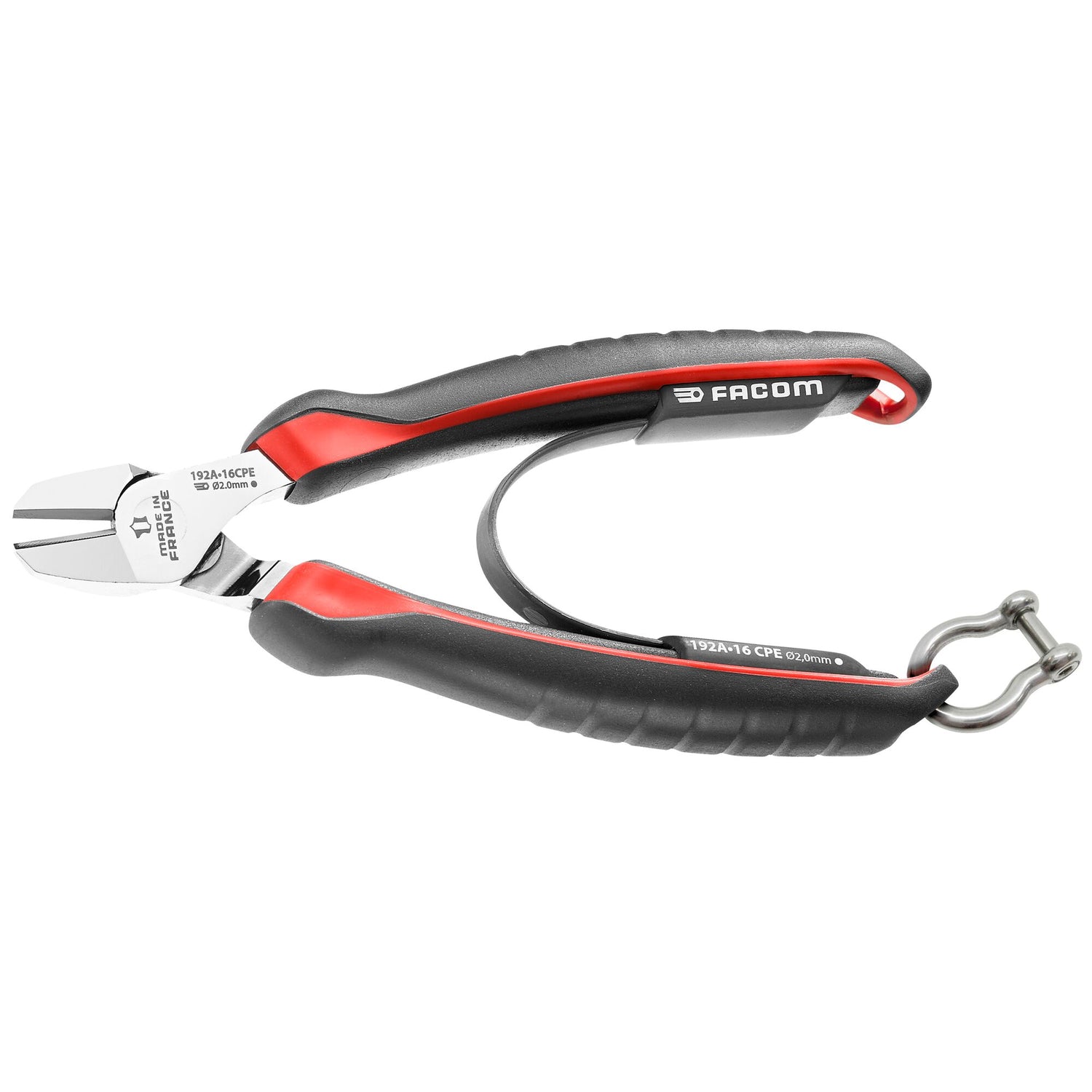

192.CPESLS - diagonal cutters

SKU: 192.16CPESLS - Barcode: 3662424028328

Tool equipped with a FACOM SLS attachment solution, preventing any risk of accidental falls.
Length: 160mm.
The crimped "rotating" cable solution, selected and tested by FACOM, maintains user ergonomics.
Cutting edges designed to cleanly cut all types of wire: piano wire, soft wires and modern materials 200 kg/mm²).
Minimum cutting force thanks to long lever arm and offset axis.
High durability Chrome-Molybdenum-Vanadium steel, very hard cutting edges 61/63 HRc.
Ergonomic grips resistant to chemical agents.
Removable return spring.
Finish: chromed.
Length: 200mm.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.500, DIN ISO 5749, ISO 5749, NF ISO 5749

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Tool equipped with a FACOM SLS attachment solution, preventing any risk of accidental falls.
Length: 160mm.
The crimped "rotating" cable solution, selected and tested by FACOM, maintains user ergonomics.
Cutting edges designed to cleanly cut all types of wire: piano wire, soft wires and modern materials 200 kg/mm²).
Minimum cutting force thanks to long lever arm and offset axis.
High durability Chrome-Molybdenum-Vanadium steel, very hard cutting edges 61/63 HRc.
Ergonomic grips resistant to chemical agents.
Removable return spring.
Finish: chromed.
Length: 200mm.

Specifications

Technical drawing and dimensions

			B (mm)	C (mm)	D max (mm)	E (mm)	L (mm)
	192.16CPESLS	[192.16CPESLS] Diagonal cutter 160 mm Safety Lock System	24.00	18.00	2.00	10.00	160.00
	192.20CPESLS	[192.20CPESLS] Diagonal cutter 200 mm Safety Lock System	28.00	22.00	2.50	11.50	200.00
