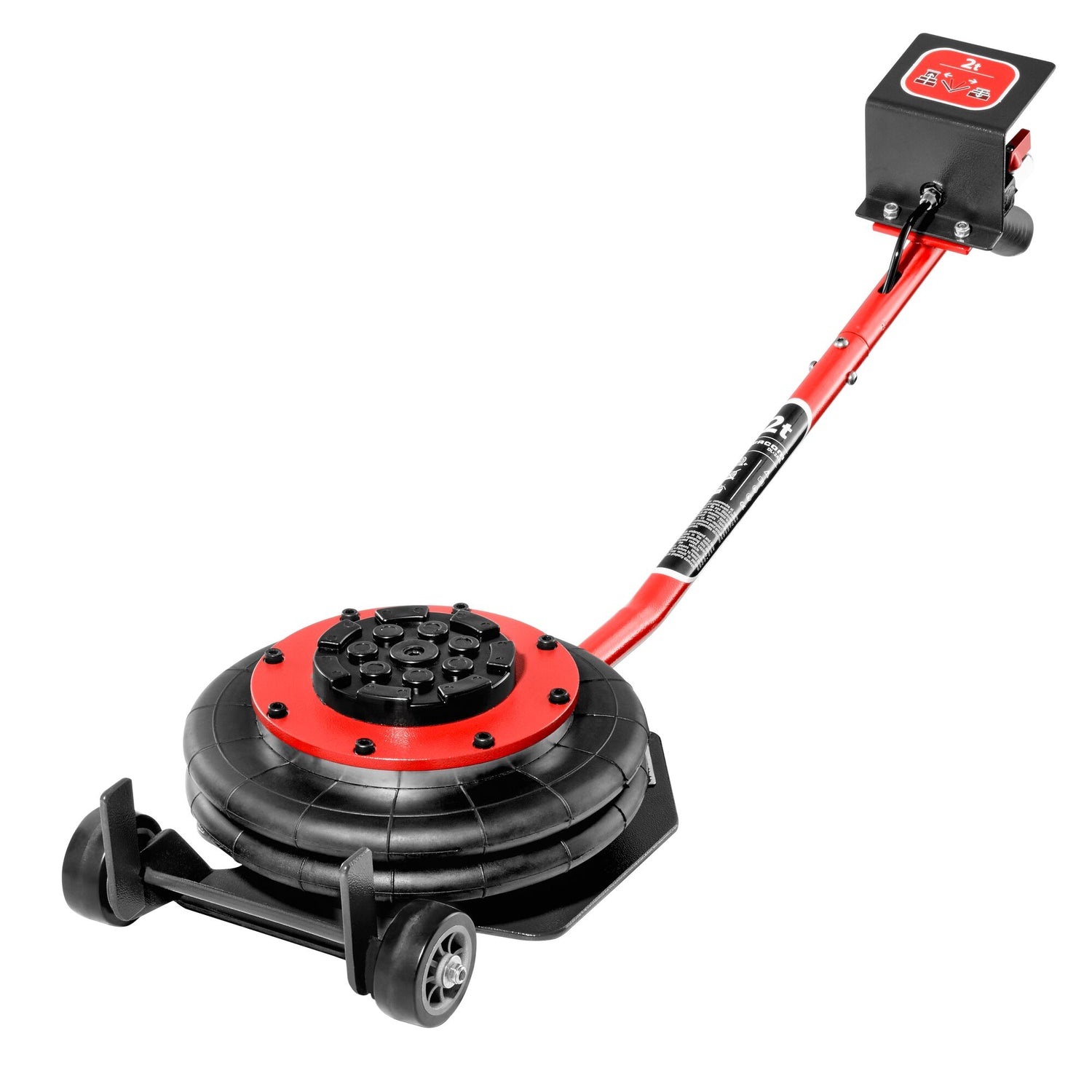

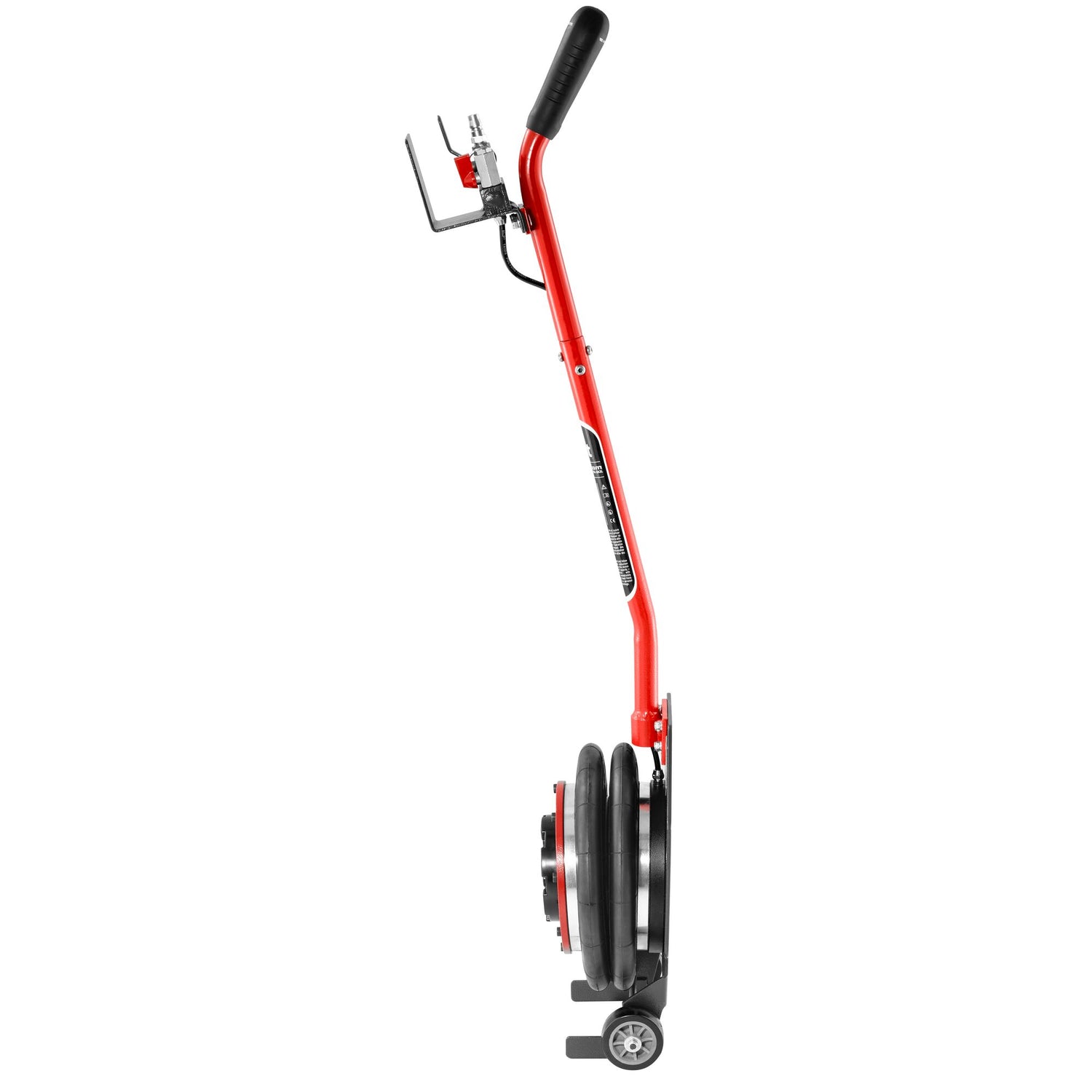

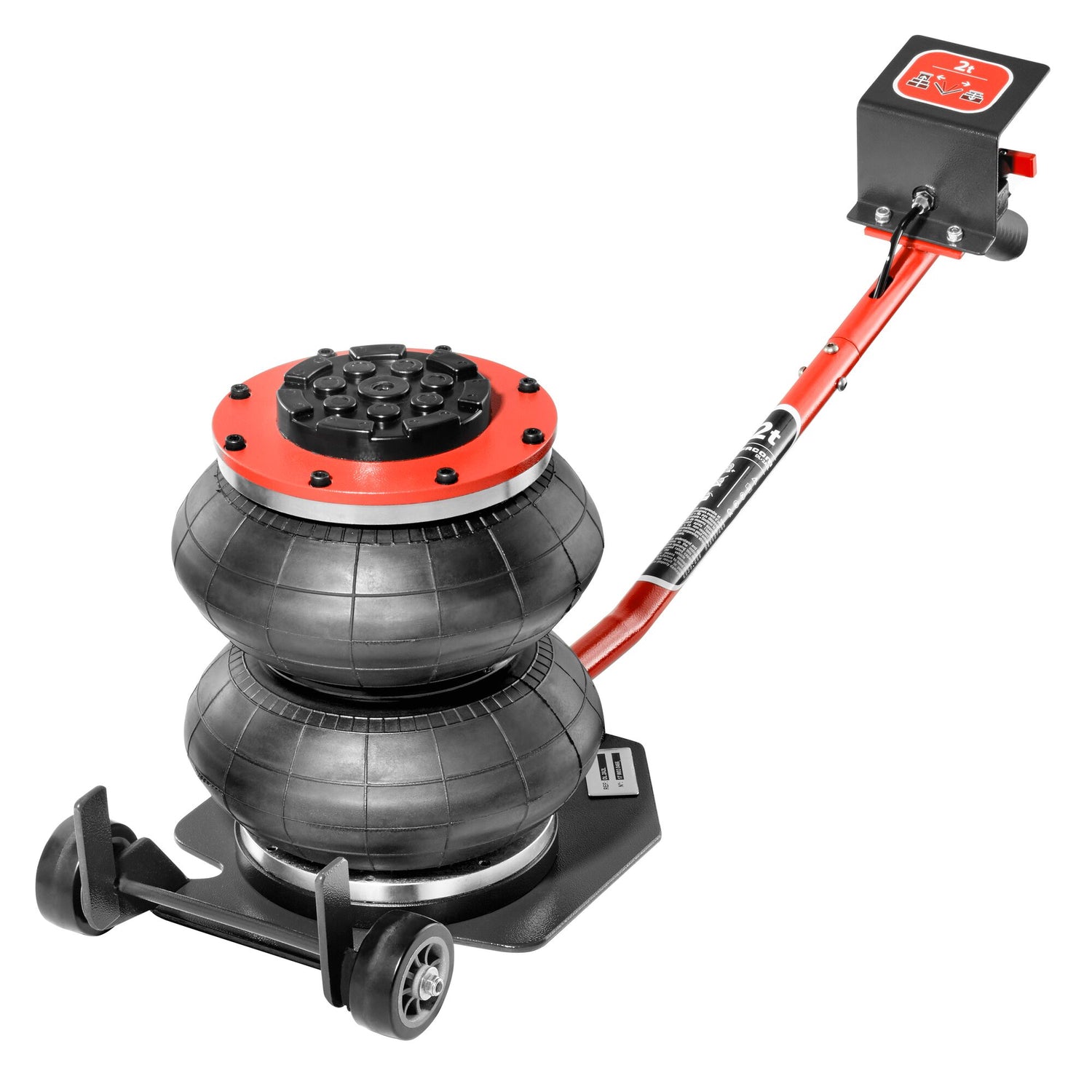

2 t pneumatic jack

SKU: DL.2A2L - Barcode: 3662424059834

Load capacity: 2 t.
Maximum lifting height: 300 mm.
Minimum height under body: 120 mm.

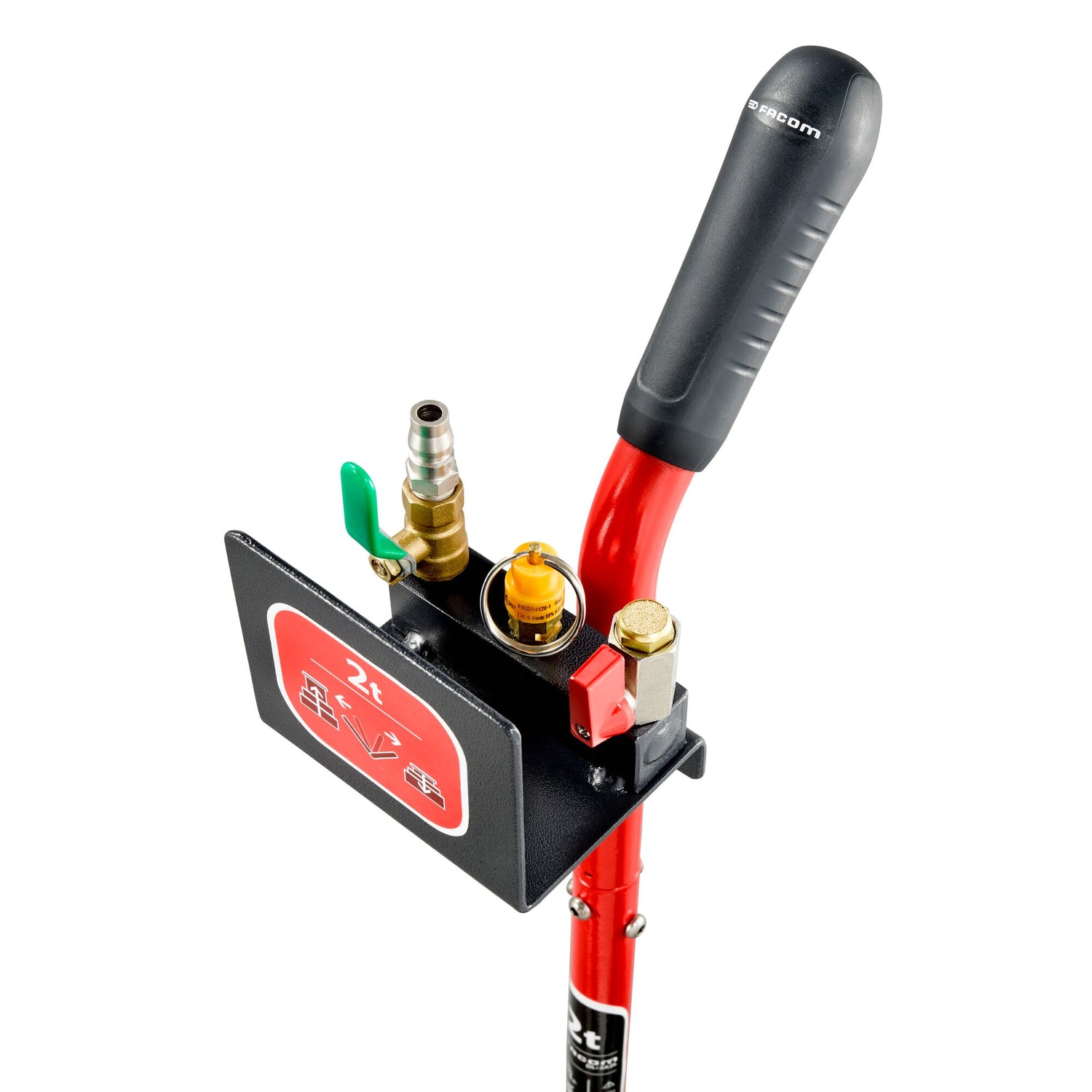

Descent speed regulation with the control valve.
Dimensions (L. x W.): 250 x 1055 mm.
CE compliance Standard EN1494+A1.
Fitted with a discharge valve in case of air overpressure.
Minimum operating pressure: 6 bar.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

EN 1494, EN1494+A1, MSD 2006/42/CE

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Load capacity: 2 t.
Maximum lifting height: 300 mm.
Minimum height under body: 120 mm.
Descent speed regulation with the control valve.
Dimensions (L. x W.): 250 x 1055 mm.
CE compliance Standard EN1494+A1.
Fitted with a discharge valve in case of air overpressure.
Minimum operating pressure: 6 bar.

Specifications

Appareil connectéNon
Bluetooth®Non
Conformité ECNon
Capacité de levage2 t
Charge maximale du châssis300 mm
Charge maximale20000 Kg
Empreinte au sol200 mm
Hauteur maximale240 mm
Hauteur du produit300 mm
Longueur du produit1055 mm
Largeur du produit250 mm
Marquage CEOui
MatériauAluminium
Nombre de pièces1
Nombre de roues2
Presse d’établiNon
Pour poids lourds-véhicules industrielsNon
Poids lourds-véhicules industrielsNon
Poids net16 Kg
Rangement des outilsNon
Surface magnétiséeNon
Source d’alimentationPneumatique
Type de fonctionPneumatique
Type de presses hydrauliquesPresses hydropneumatiques
Usage intensifNon
VoitureOui
Vanne de surchargeOui

Spare parts

PLATE KIT - DL.2A2L-10
LOWER HANDLE - DL.2A2L-11
HANDLE UPPER - DL.2A2L-12
AIRBAG - DL.2A2L-14
WHEEL SA - DL.2A2L-16
HANDLE - DL.2A2L-21
PIPE - DL.2A2L-29
CONTROL SA - DL.2A2L-40

Documents

User Guide
