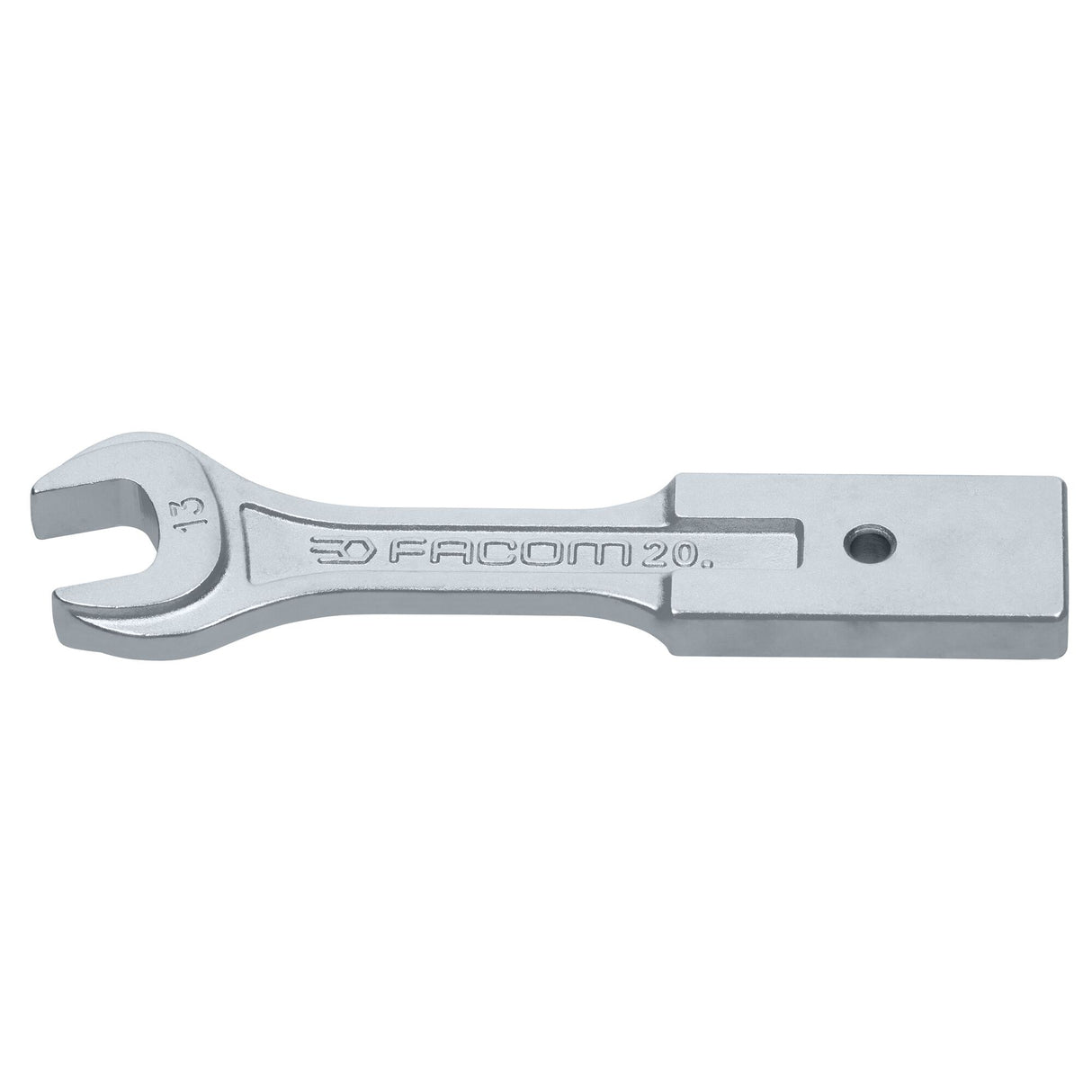

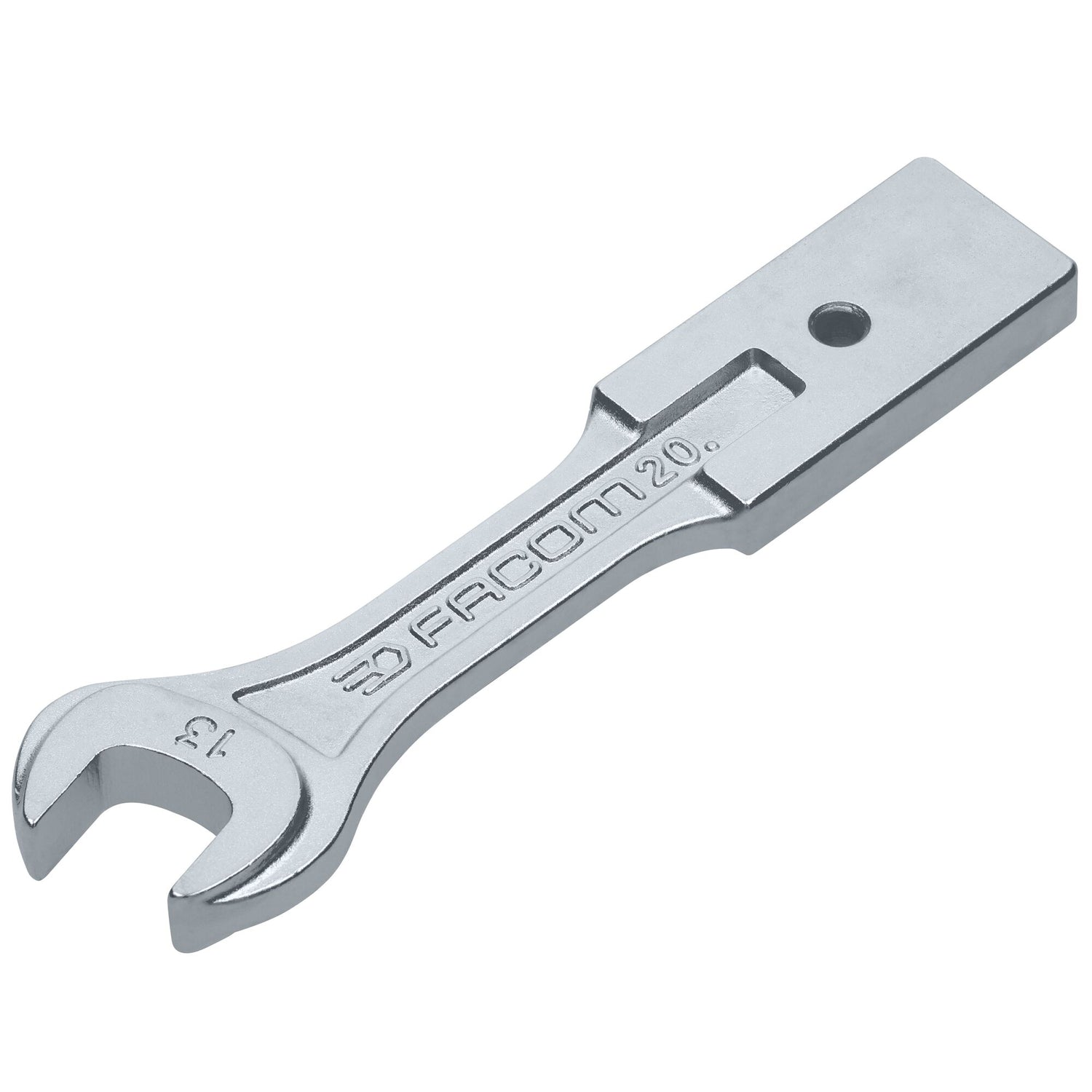

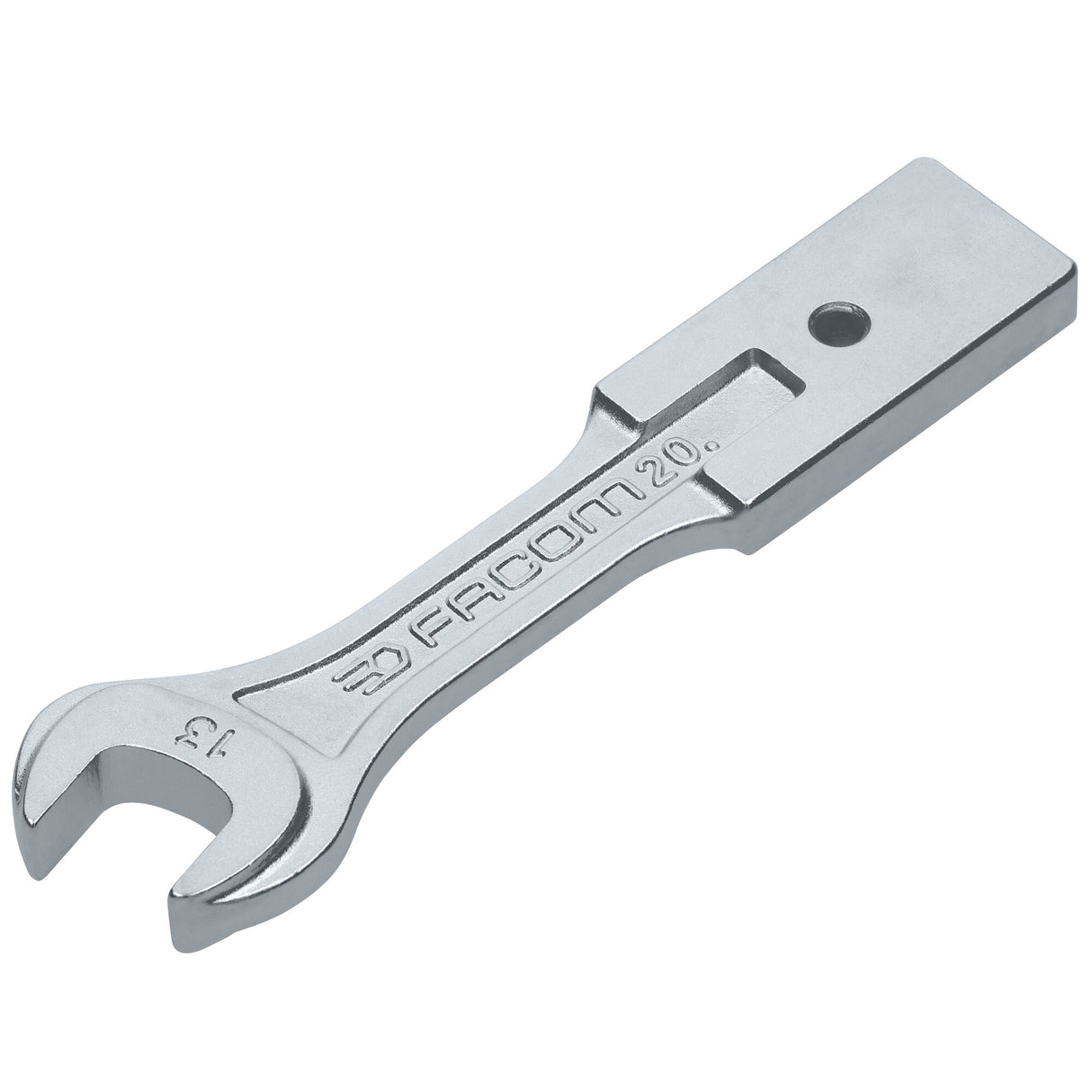

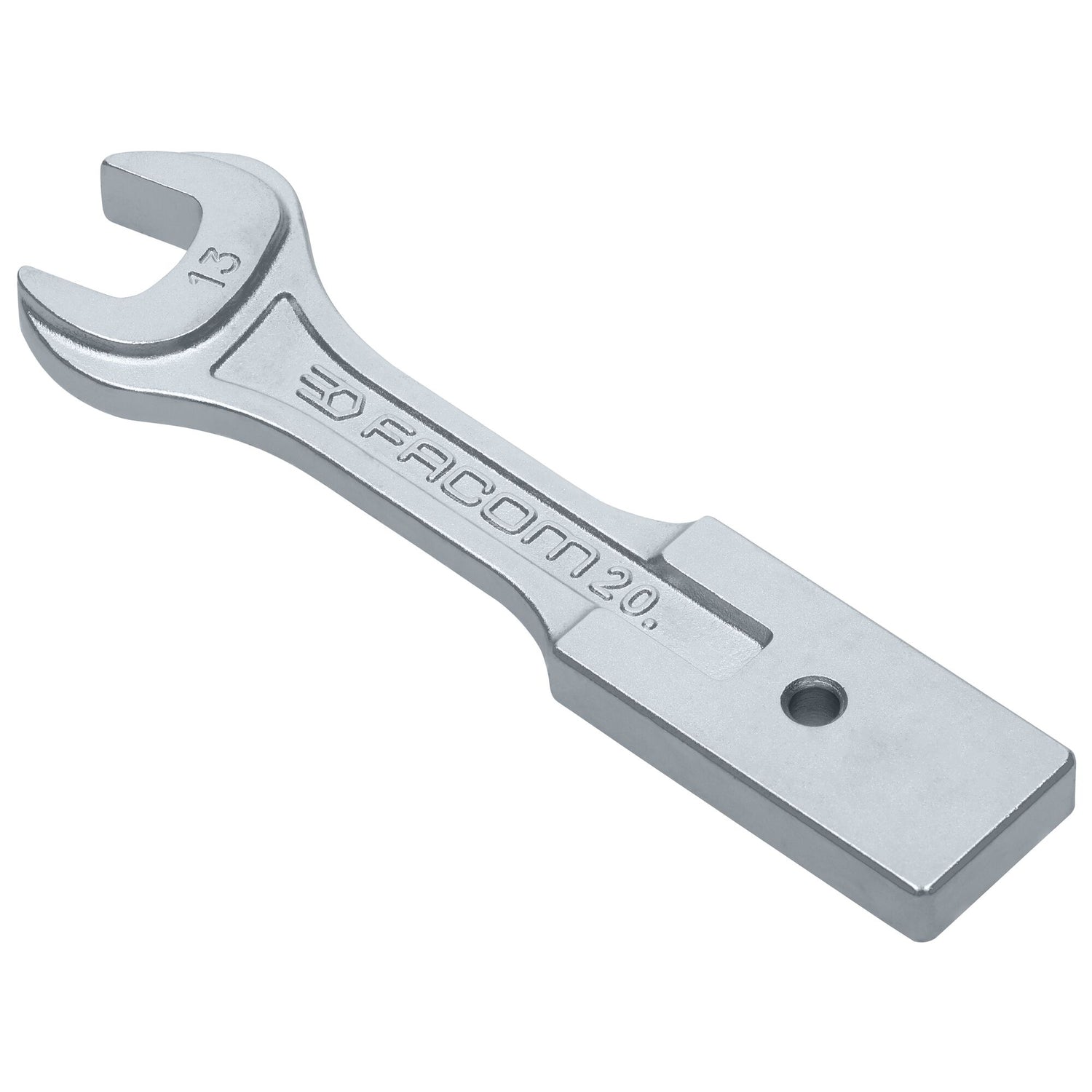

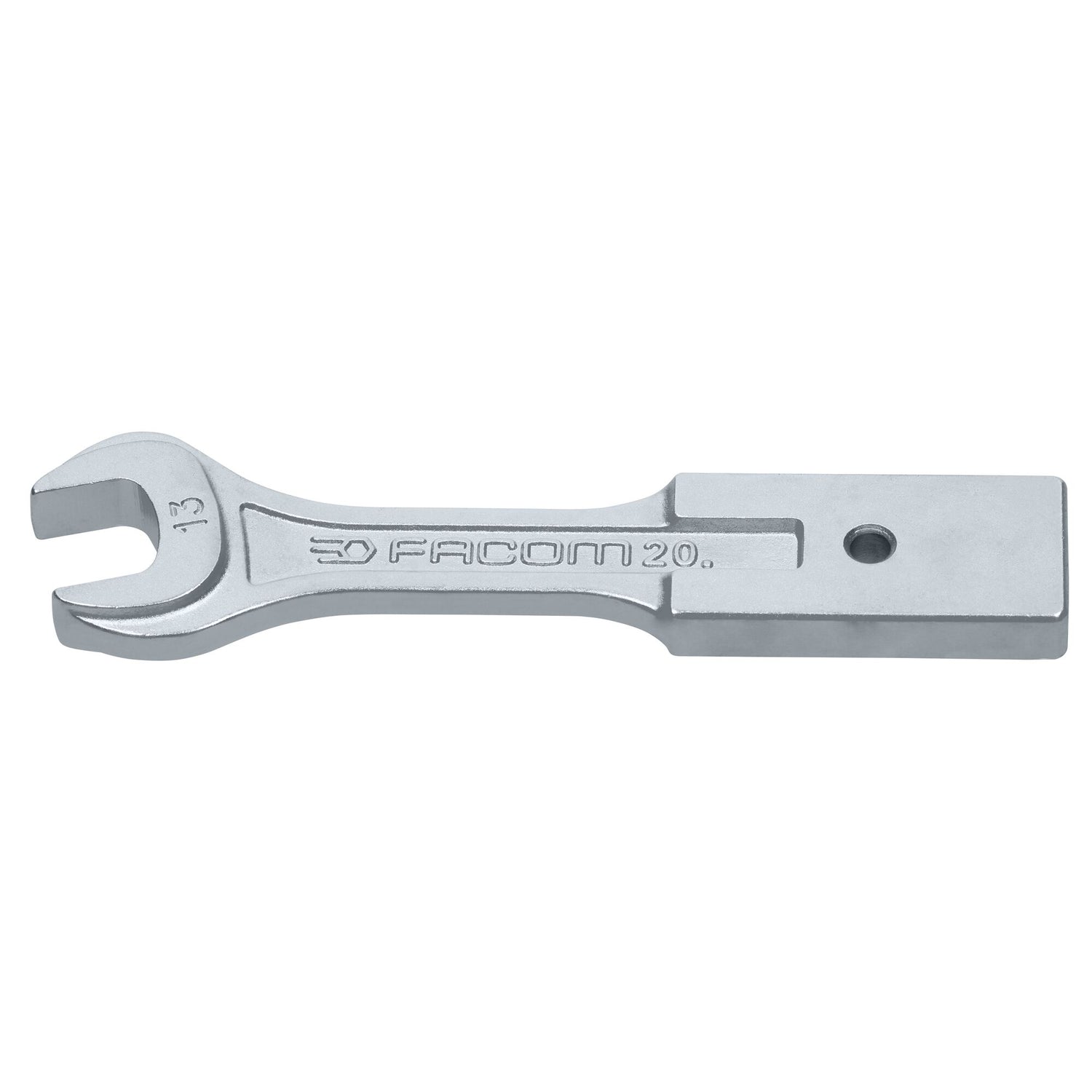

20 - Open Rnded Bits, Drive 20 x 7 mm
SKU:
20.10
20 - Open Rnded Bits, Drive 20 x 7 mm - [20.10] Open ended fork bit, attachment 20 x 7 mm, opening 10 mm is backordered and will ship as soon as it is back in stock.
Standards and certifications
Standards and certifications
This product complies with the following standards and certifications:
ISO 691
Click here to learn more about the different standards and certifications.
Warranty
Warranty
This product is: Lifetime warranty on the tool (replacement)
Click here to learn more about our warranties.
Description
Description
Technical drawing and dimensions
Technical drawing and dimensions
| A (mm) | B (mm) | E (mm) | L (mm) | |||
|---|---|---|---|---|---|---|
| 20.10 | [20.10] Open ended fork bit, attachment 20 x 7 mm, opening 10 mm | 10.00 | 24.00 | 6.00 | 105.00 | |
| 20.11 | [20.11] Open ended fork bit, attachment 20 x 7 mm, opening 11 mm | 11.00 | 24.00 | 6.00 | 105.00 | |
| 20.12 | [20.12] Open End Fork Bit, Attachment 20 x 7 mm, Opening 12 mm | 12.00 | 29.00 | 6.00 | 106.00 | |
| 20.13 | [20.13] Open ended fork bit, attachment 20 x 7 mm, opening 13 mm | 13.00 | 29.00 | 6.00 | 106.00 | |
| 20.14 | [20.14] Open End Fork Bit, Attachment 20 x 7 mm, Opening 14 mm | 14.00 | 29.00 | 6.00 | 106.00 | |
| 20.15 | [20.15] Open End Fork Bit, Attachment 20 x 7 mm, Opening 15 mm | 15.00 | 40.00 | 7.50 | 109.00 | |
| 20.16 | [20.16] 20 x 7 mm Open-End Fork Bit Attachment , Opening 16 mm | 16.00 | 40.00 | 7.50 | 109.00 | |
| 20.17 | [20.17] Open ended fork bit, attachment 20 x 7 mm, opening 17 mm | 17.00 | 40.00 | 7.50 | 109.00 | |
| 20.18 | [20.18] 20 x 7mm Open End Fork Bit Attachment, Opening 18 mm | 18.00 | 40.00 | 7.50 | 109.00 | |
| 20.19 | [20.19] 20 x 7 mm Open End Fork Bit Attachment, 19 mm Opening | 19.00 | 40.00 | 7.50 | 109.00 | |
| 20.21 | [20.21] Open-End Fork Bit, Attachment 20 x 7 mm, Opening 21 mm | 21.00 | 53.00 | 8.00 | 112.00 | |
| 20.22 | [20.22] 20 x 7 mm Open End Fork Bit Attachment, Opening 22 mm | 22.00 | 53.00 | 8.00 | 112.00 | |
| 20.23 | [20.23] Open End Fork Bit, Attachment 20 x 7 mm, Opening 23 mm | 23.00 | 53.00 | 8.00 | 112.00 | |
| 20.24 | [20.24] Open ended fork bit, attachment 20 x 7 mm, opening 24 mm | 24.00 | 53.00 | 8.00 | 112.00 | |
| 20.27 | [20.27] 20 x 7 mm Open End Fork Bit Attachment , Opening 27 mm | 27.00 | 66.00 | 9.00 | 115.00 | |
| 20.30 | [20.30] Open End Fork Bit, Attachment 20 x 7 mm, Opening 30 mm | 30.00 | 66.00 | 9.00 | 115.00 | |
| 20.32 | [20.32] Open-End Fork Bit Attachment 20 x 7 mm, Opening 32 mm | 32.00 | 66.00 | 9.00 | 115.00 | |
| 20.34 | [20.34] 34 mm Open End | 34.00 | 76.00 | 10.00 | 118.00 | |
| 20.36 | [20.36] Open End Fork Bit 20 x 7mm Attachment, Opening 36 mm | 36.00 | 76.00 | 10.00 | 118.00 |
