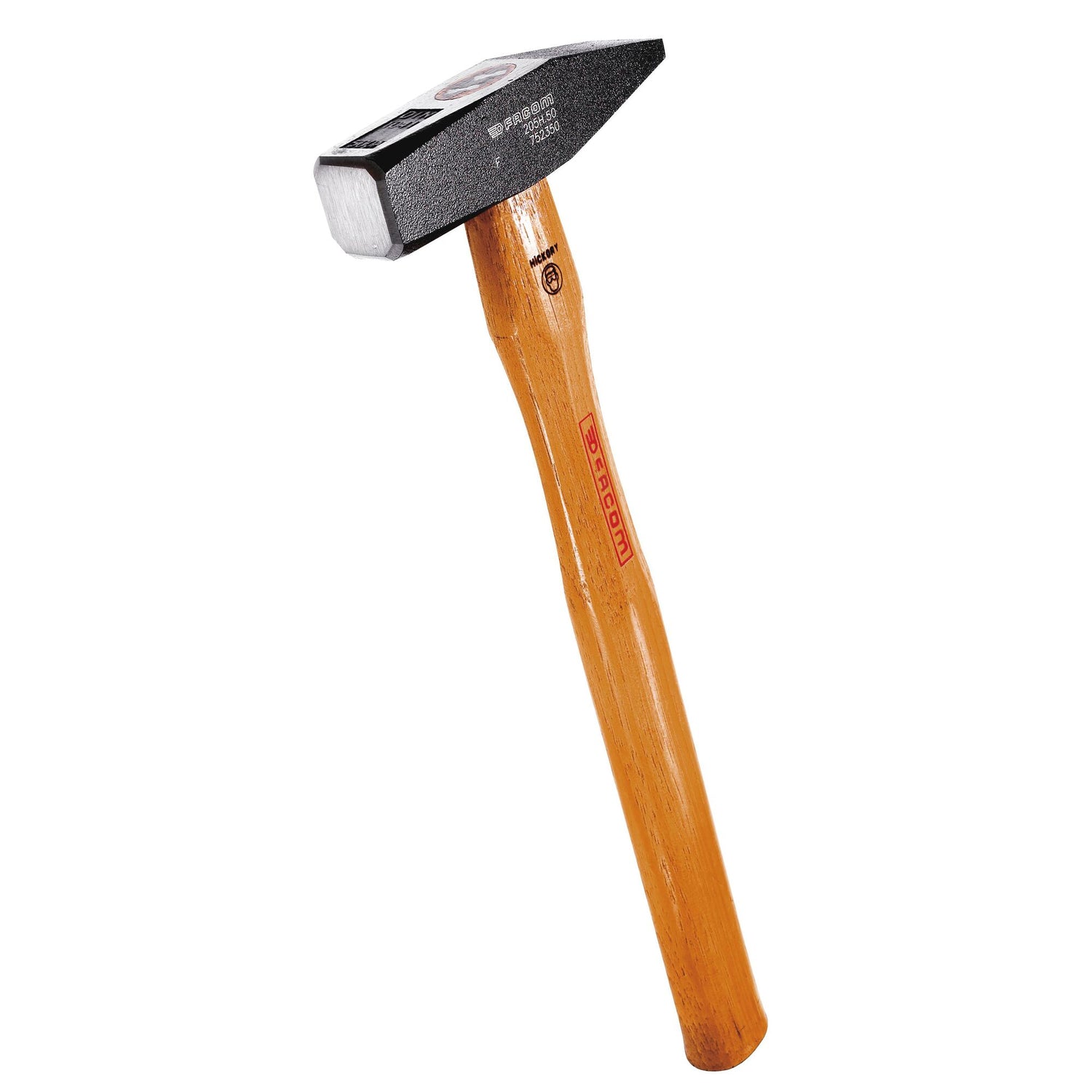

205H - Din Engineers Hammers
SKU:
205H.20
205H - Din Engineers Hammers - [205H.20] 200g Din Engineers Hammer is backordered and will ship as soon as it is back in stock.
Standards and certifications
Standards and certifications
This product complies with the following standards and certifications:
DIN 1041, ISO 15601, NF ISO 15601
Click here to learn more about the different standards and certifications.
Warranty
Warranty
This product is: This product is covered by a 2-year warranty
Click here to learn more about our warranties.
Description
Description
Specifications
Specifications
- Caractéristiques du manchePoignée de blocage
- FaceCirculaire
- Finition de la faceMoulu
- Hauteur du produit96 mm
- Longueur du produit280 mm
- Largeur du produit19 mm
- Marquage CEOui
- Mécanisme de trempe de la faceInduction de bobine
- Manche antidérapantPas de prise en main
- Matériau de la poignéeBois
- Matériau de la têteAcier
- Nombre de pièces1
- Procédé de fabrication des manchesAcier monobloc
- Poids net0.25 Kg
- Type de marteauxMarteau rivoir
Technical drawing and dimensions
Technical drawing and dimensions
| L1 (mm) | L2 (mm) | L (mm) | |||
|---|---|---|---|---|---|
| 205H.20 | [205H.20] 200g Din Engineers Hammer | 96.00 | 19.00 | 280.00 | |
| 205H.30 | [205H.30] 300g Din Engineers Hammer | 106.00 | 23.00 | 300.00 | |
| 205H.50 | [205H.50] 500g DIN Engineers Hammer | 122.00 | 27.00 | 320.00 | |
| 205H.80 | [205H.80] 800g Din Engineers Hammer | 132.00 | 33.00 | 350.00 | |
| 205H.100 | [205H.100] 1 kg Din Engineers Hammer | 137.00 | 36.00 | 360.00 |
