227 - Standard taps
SKU:
227.3X50T2

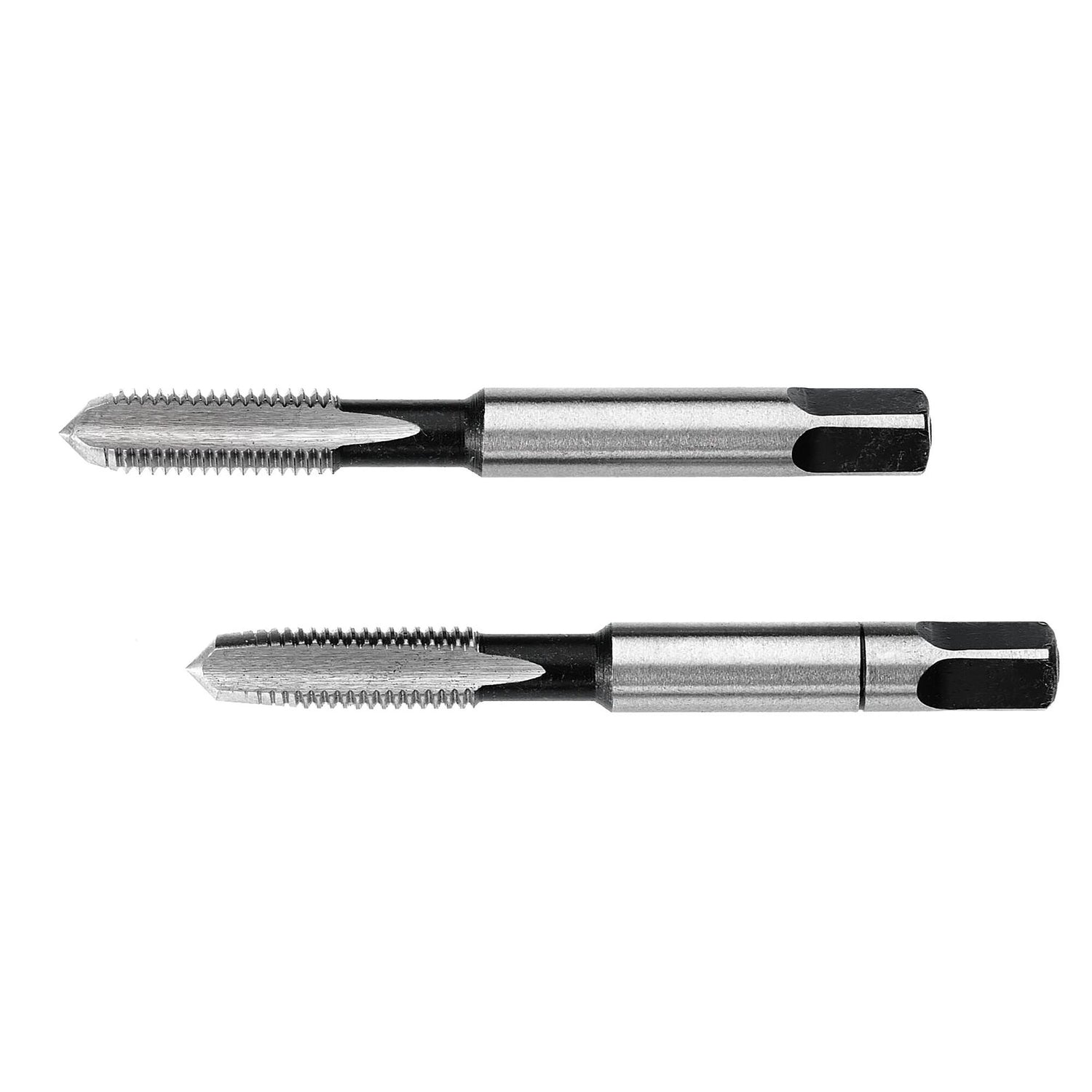

227 - Standard taps - [227.3X50T2] Standard taps, set of 2 taps (taper and bottoming), M3 x 0.5 mm is backordered and will ship as soon as it is back in stock.
Standards and certifications
Standards and certifications
This product complies with the following standards and certifications:
ISO 2857, ISO 529, NF ISO 529, NFEN 22857
Click here to learn more about the different standards and certifications.
Warranty
Warranty
This product is: This product is covered by a 2-year warranty
Click here to learn more about our warranties.
Description
Description
Specifications
Specifications
- Hauteur du produit3 mm
- Longueur du produit48 mm
- Nombre de pièces2
- Nombre de produits par pack2
- Poids net0.01 Kg
Technical drawing and dimensions
Technical drawing and dimensions
| D1 (mm) | D2 (mm) | L1 (mm) | L (mm) | |||
|---|---|---|---|---|---|---|
| 227.3X50T2 | [227.3X50T2] Standard taps, set of 2 taps (taper and bottoming), M3 x 0.5 mm | 3.00 | 2.50 | 0.50 | 48.00 | |
| 227.3X50T3 | [227.3X50T3] Standard taps, set of 3 taps (taper, second and bottoming), M3 x 0.5 mm | 3.00 | 2.50 | 0.50 | 48.00 | |
| 227.4X70T2 | [227.4X70T2] Set of 2 Standard Taps (Taper and Bottoming), M4 x 0.7 mm | 4.00 | 3.15 | 0.70 | 53.00 | |
| 227.4X70T3 | [227.4X70T3] Standard Tap Set (Taper, Second and Bottoming), M4 x 0.7 mm | 4.00 | 3.15 | 0.70 | 53.00 | |
| 227.5X80T2 | [227.5X80T2] Standard Tap Set (Taper and Bottoming), M5 x 0.8 mm | 5.00 | 4.00 | 0.80 | 58.00 | |
| 227.5X80T3 | [227.5X80T3] Standard taps, set of 3 taps (taper, second and bottoming), M5 x 0.8 mm | 5.00 | 4.00 | 0.80 | 58.00 | |
| 227.6X100T2 | [227.6X100T2] Standard taps, set of 2 taps (taper and bottoming), M6 x 1 mm | 6.00 | 5.00 | 1.00 | 66.00 | |
| 227.6X100T3 | [227.6X100T3] Standard taps, set of 3 taps (taper, second and bottoming), M6 x 1 mm | 6.00 | 5.00 | 1.00 | 66.00 | |
| 227.7X100T2 | [227.7X100T2] Standard taps, set of 2 taps (taper and bottoming), M7 x 1 mm | 7.00 | 5.60 | 1.00 | 66.00 | |
| 227.8X125T2 | [227.8X125T2] Standard Tap Set (Taper and Bottoming), M8 x 1.25 mm | 8.00 | 6.30 | 1.25 | 72.00 | |
| 227.8X125T3 | [227.8X125T3] M8 x 1.25 mm Standard Tap Set (Taper, Second and Bottoming) (3 pc.) | 8.00 | 6.30 | 1.25 | 72.00 | |
| 227.10X150T2 | [227.10X150T2] Standard taps, set of 2 taps (taper and bottoming), M10 x 1.5 mm | 10.00 | 8.00 | 1.50 | 80.00 | |
| 227.10X150T3 | [227.10X150T3] Standard Tap Set (Taper, Second and Bottoming), M10 x 1.5 mm | 10.00 | 8.00 | 1.50 | 80.00 | |
| 227.12X175T2 | [227.12X175T2] M12 x 1.75 mm Standard Tap Set (Taper and Bottoming) | 12.00 | 7.10 | 1.75 | 89.00 | |
| 227.12X175T3 | [227.12X175T3] Standard taps, set of 3 taps (taper, second and bottoming), M12 x 1.75 mm | 12.00 | 7.10 | 1.75 | 89.00 | |
| 227.14X200T3 | [227.14X200T3] Standard Tap Set (Taper, Second and Bottoming), M14 x 2.0 mm | 14.00 | 9.00 | 2.00 | 95.00 | |
| 227.16X200T3 | [227.16X200T3] Standard Tap Set (Taper, Second and Bottoming), M16 x 2.0 mm | 16.00 | 10.00 | 2.00 | 102.00 | |
| 227.20X250T3 | [227.20X250T3] Set of 3 Standard Taps (Taper, Second and Bottoming), M20 x 2.5 mm | 20.00 | 11.20 | 2.50 | 112.00 |
