Facom - The Art of Precision since 1918.

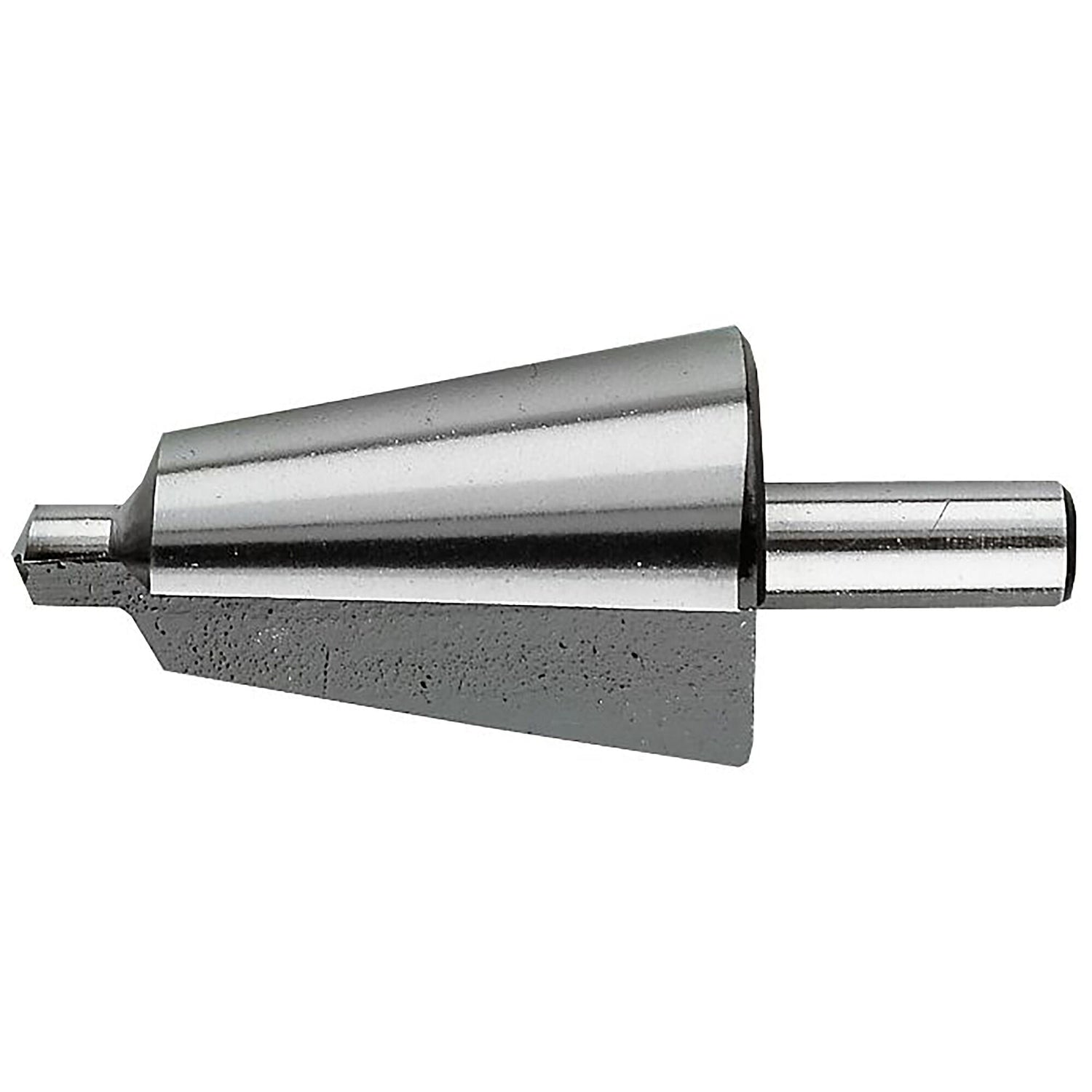

229A - Boring bits

SKU: 229A.1  -  Barcode: 3148516300614
  • For drilling, deburring, boring thin materials: press sheet, non ferrous metals.
  • HSS steel.
  • Max. thickness recommended: 4 mm.
  • Does not require a tapping hole.
  • 3-14 mm.
Full product description
Reference comparison

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description
  • For drilling, deburring, boring thin materials: press sheet, non ferrous metals.
  • HSS steel.
  • Max. thickness recommended: 4 mm.
  • Does not require a tapping hole.
  • 3-14 mm.

Specifications
  • Diamètre maximum14 mm
  • Longueur du produit59 mm
  • Poids net0.025 Kg

Technical drawing and dimensions

D1 (mm)D2 (mm)L1 (mm)L (mm)
229A.1 [229A.1] Boring bits, HSS steel no tapping hole required, diameter 3 - 14 mm 6.003 - 1437.0059.00
229A.2 [229A.2] 5 - 20 mm Boring Bits, HSS Steel, No Tapping Hole Required 8.005 - 2041.0071.00
229A.3 [229A.3] 16 - 30.5 mm HSS Boring Bit, No tapping Hole Required 9.0016 - 30.548.0076.00

Documents

229A - Boring bits

References available

  • [229A.1] Boring bits, HSS steel no tapping hole required, diameter 3 - 14 mm
  • [229A.2] 5 - 20 mm Boring Bits, HSS Steel, No Tapping Hole Required
  • [229A.3] 16 - 30.5 mm HSS Boring Bit, No tapping Hole Required

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

This product is covered by a 2-year warranty
