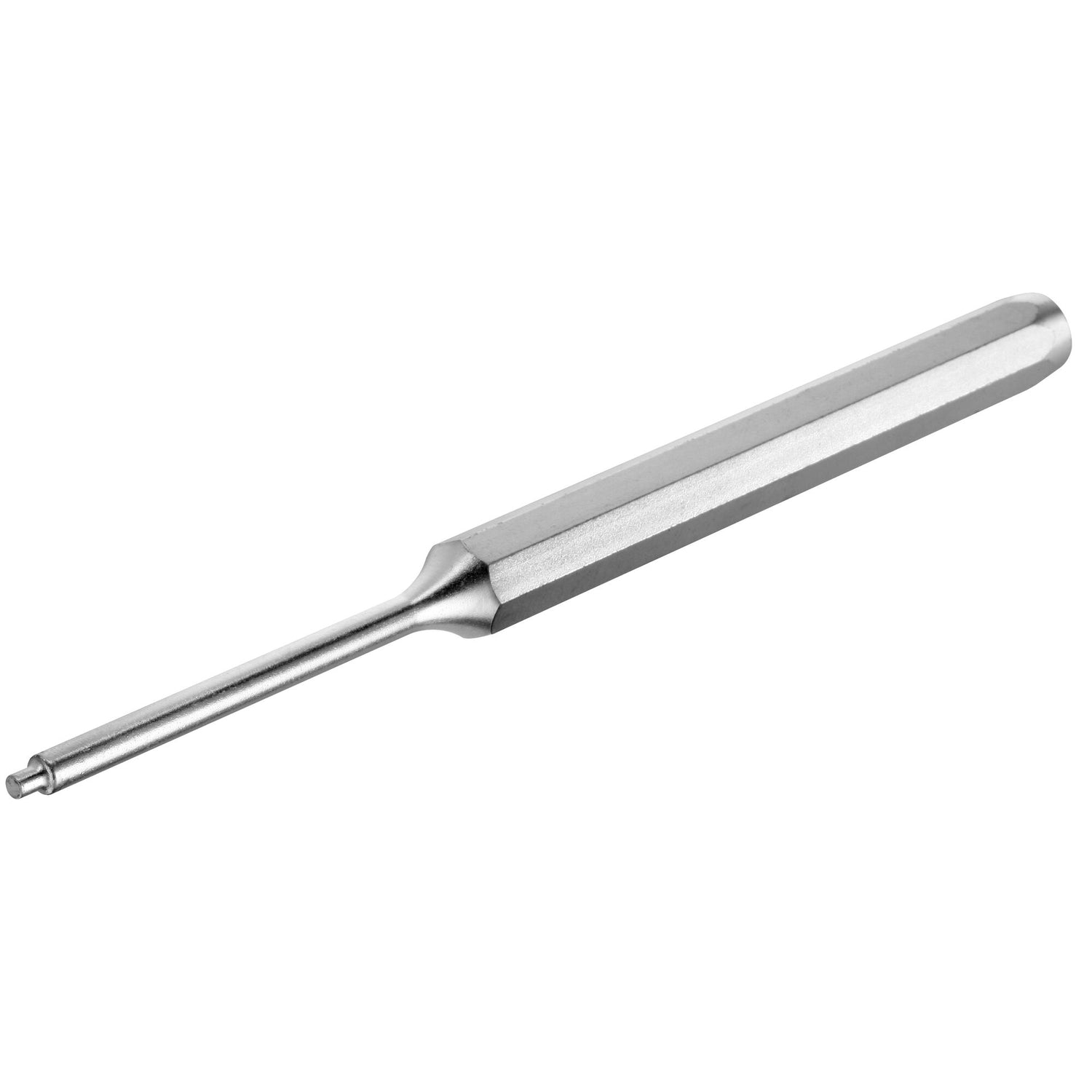

246 - Drift punches for spring pins

SKU: 246.2  -  Barcode: 3148511587003
  • Diameter 1.9 mm punch tip.
  • Hardened to 53 to 58 HRc for durability.
  • Shouldered tip accurately centers into split pins.
  • Zinc-plated finish.
Full product description
Reference comparison

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • Diameter 1.9 mm punch tip.
  • Hardened to 53 to 58 HRc for durability.
  • Shouldered tip accurately centers into split pins.
  • Zinc-plated finish.

Specifications
  • Diamètre de la pointe1.9 mm
  • FaceCarré
  • GripMétal
  • Hauteur du produit30 mm
  • Longueur du produit150 mm
  • Largeur du produit8 mm
  • Marquage CEOui
  • Matériau de l'axeAcier
  • Matière de la pointeAcier
  • Nombre de pièces1
  • Poids net0.045 Kg
  • Procédé de fabrication de l'axeUne pièce

Technical drawing and dimensions

A (mm)L1 (mm)L (mm)
246.2 [246.2] Drift Punch 1.9030.00150.00
246.3 [246.3] Drift Punch 2.9040.00150.00
246.4 [246.4] Spring pin drift punch, 3.9 mm 3.9050.00150.00
246.5 [246.5] 4.9mm Spring Pin Drift Punch 4.9050.00150.00
246.6 [246.6] 5.9mm Spring Pin Drift Punch 5.9050.00150.00
246.8 [246.8] 7.9 mm Spring Pin Drift Punch 7.9050.00150.00

Documents

246 - Drift punches for spring pins

References available

  • [246.2] Drift Punch
  • [246.3] Drift Punch
  • [246.4] Spring pin drift punch, 3.9 mm
  • [246.5] 4.9mm Spring Pin Drift Punch
  • [246.6] 5.9mm Spring Pin Drift Punch
  • [246.8] 7.9 mm Spring Pin Drift Punch

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Lifetime warranty on the tool (replacement)
