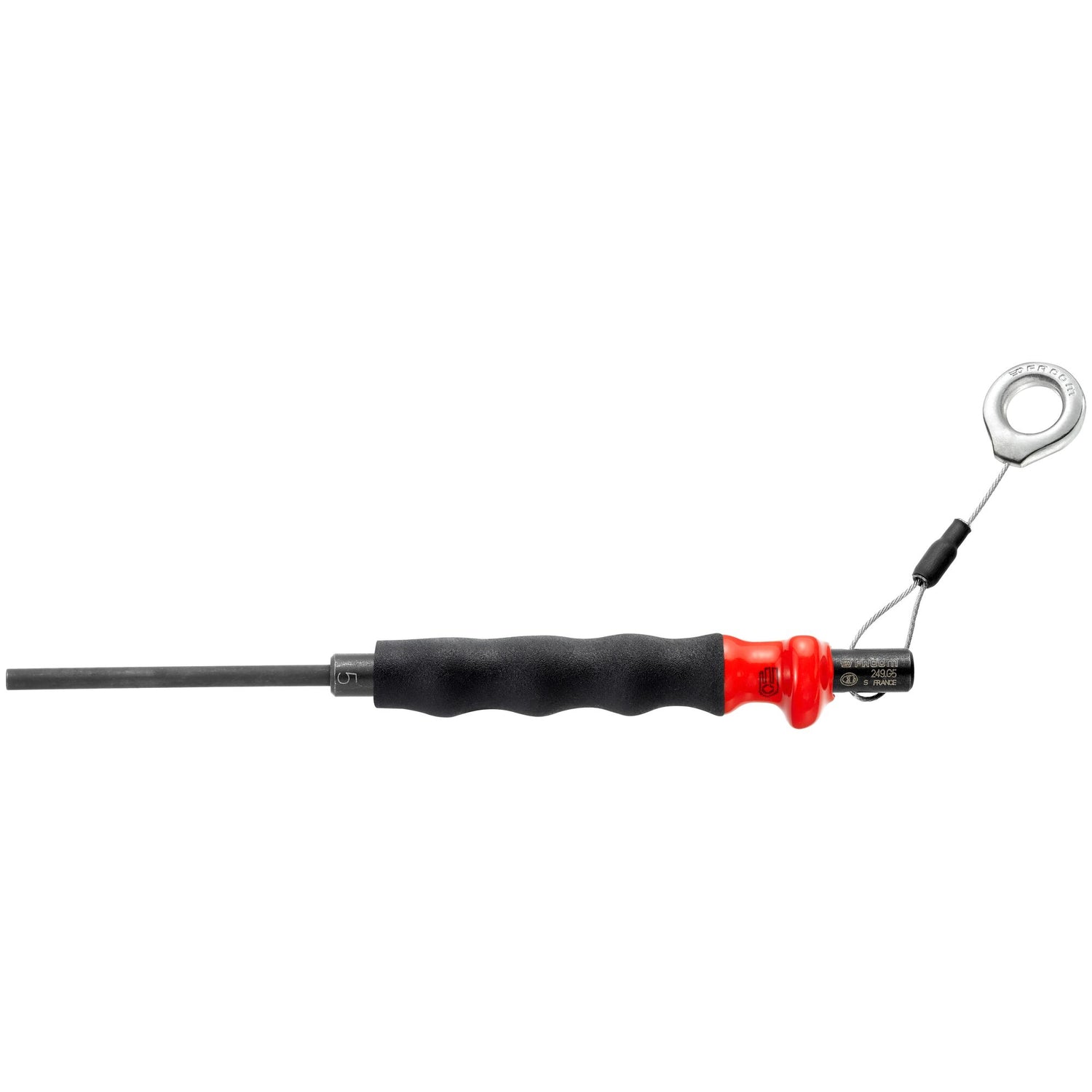

249.GSLS - Sheathed drift punch - SLS

SKU: 249.G2SLS - Barcode: 3662424051500

Tool fitted with a FACOM SLS attachment solution, preventing any risk of accidental falls.
The "turning" crimped cable solution, chosen and tested by FACOM, preserves the ergonomics of use of the tool.
Tip 1.95mm.
Very compact sleeve.
Positive grip.
Keys on 90° end stop for tightening.
Keys in silicon steel issued from series 82H.
Phosphate finish.
Tip 2.95mm.
Very compact sleeve.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

DIN 6450

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Tool fitted with a FACOM SLS attachment solution, preventing any risk of accidental falls.
The "turning" crimped cable solution, chosen and tested by FACOM, preserves the ergonomics of use of the tool.
Tip 1.95mm.
Very compact sleeve.
Positive grip.
Keys on 90° end stop for tightening.
Keys in silicon steel issued from series 82H.
Phosphate finish.
Tip 2.95mm.
Very compact sleeve.

Specifications

Technical drawing and dimensions

		A (mm)	L1 (mm)	L2 (mm)	L (mm)
249.G2SLS	[249.G2SLS] 1.95mm Sheath Erift Punch, Safety Lock System	1.950	35.00	105.00	140.00
249.G3SLS	[249.G3SLS] 2.95 mm Sheath Drift Punch, Safety Lock System	2.950	45.00	105.00	150.00
249.G4SLS	[249.G4SLS] Sheathed drift punch 3.95 mm Safety Lock System	3.950	60.00	105.00	190.00
249.G5SLS	[249.G5SLS] 4.95mm Sheath Drift Punch, Safety Lock System	4.950	70.00	105.00	200.00
249.G6SLS	[249.G6SLS] 5.9mm Sheathed Drift Punch, Safety Lock System	5.90	80.00	105.00	210.00
249.G8SLS	[249.G8SLS] 7.9mm Sheathed Drift Punch, Safety Lock System	7.90	86.00	105.00	216.00
