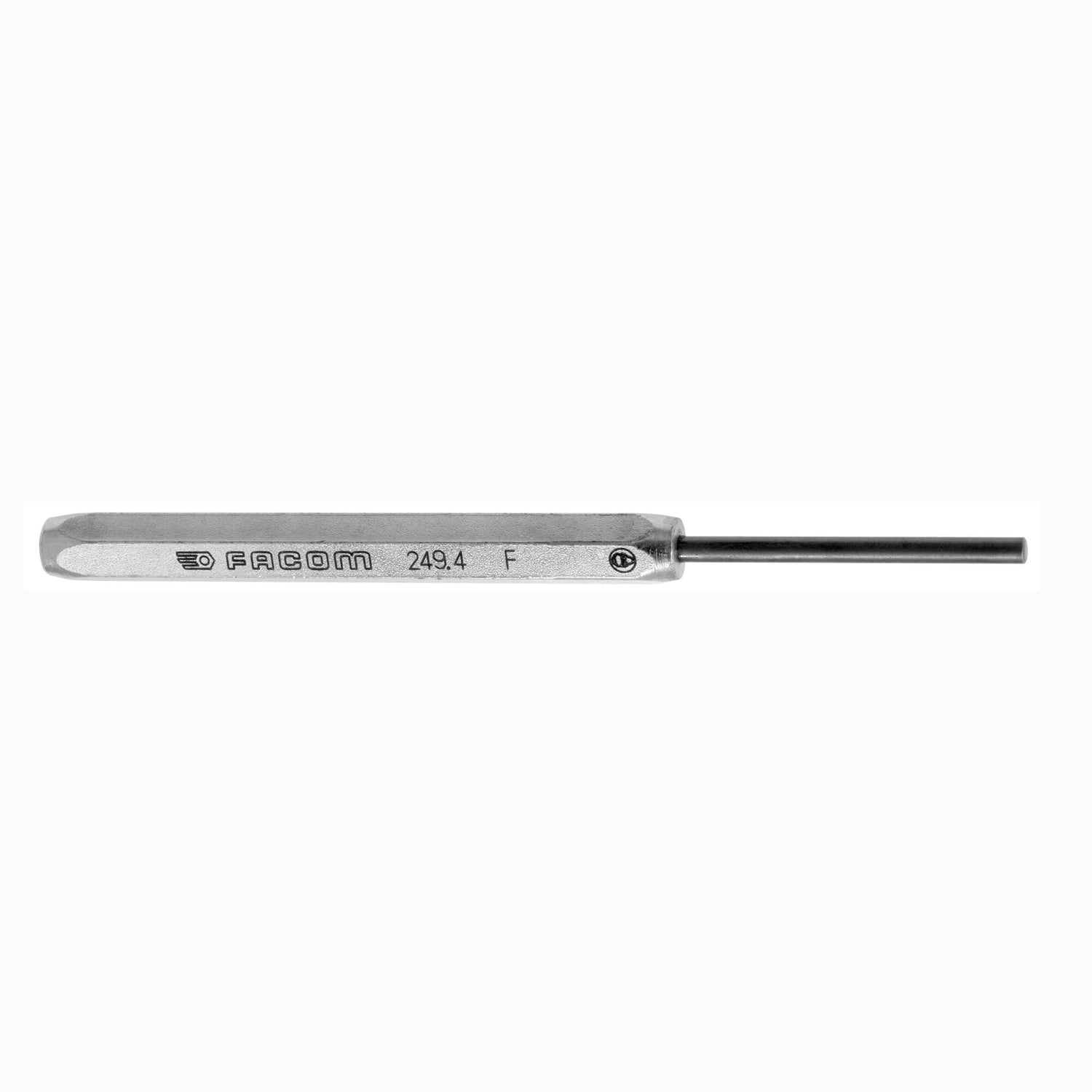

249 - Standard Drift Punches
SKU:
249.2
249 - Standard Drift Punches - [249.2] Drift Punch is backordered and will ship as soon as it is back in stock.
Standards and certifications
Standards and certifications
This product complies with the following standards and certifications:
ASME B107.410, DIN 6450, NF E 71-211
Click here to learn more about the different standards and certifications.
Warranty
Warranty
This product is: Lifetime warranty on the tool (replacement)
Click here to learn more about our warranties.
Description
Description
Specifications
Specifications
- Diamètre de la pointe1.9 mm
- FaceCarré
- GripMétal
- Hauteur du produit30 mm
- Longueur du produit115 mm
- Largeur du produit8 mm
- Marquage CEOui
- Matériau de l'axeAcier
- Matière de la pointeAcier
- Nombre de pièces1
- Poids net0.03 Kg
- Procédé de fabrication de l'axeDeux pièces
Technical drawing and dimensions
Technical drawing and dimensions
| A (mm) | L1 (mm) | L (mm) | |||
|---|---|---|---|---|---|
| 249.2 | [249.2] Drift Punch | 1.90 | 30.00 | 115.00 | |
| 249.3 | [249.3] Standard drift punch, 2.9 mm | 2.90 | 40.00 | 125.00 | |
| 249.4 | [249.4] 3.9mm Standard Drift Punch | 3.90 | 50.00 | 150.00 | |
| 249.5 | [249.5] 4.9mm Standard Drift Punch | 4.90 | 50.00 | 165.00 | |
| 249.6 | [249.6] 5.9mm Standard Drift Punch | 5.90 | 50.00 | 180.00 | |
| 249.8 | [249.8] 7.9mm Standard Drift Punch | 7.90 | 50.00 | 200.00 | |
| 249.10 | [249.10] 9.9 mm Standard Drift Punch | 9.90 | 50.00 | 200.00 |
