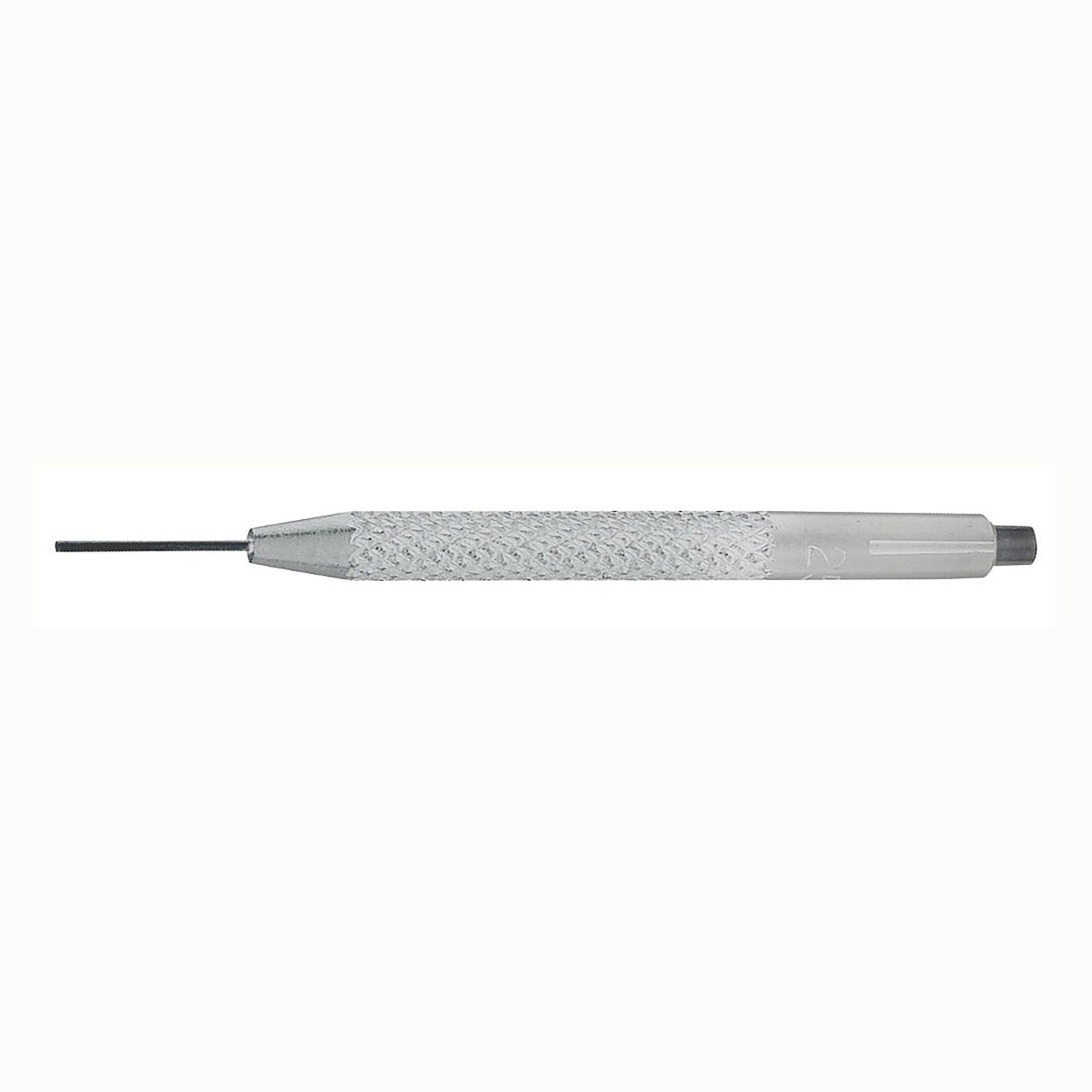

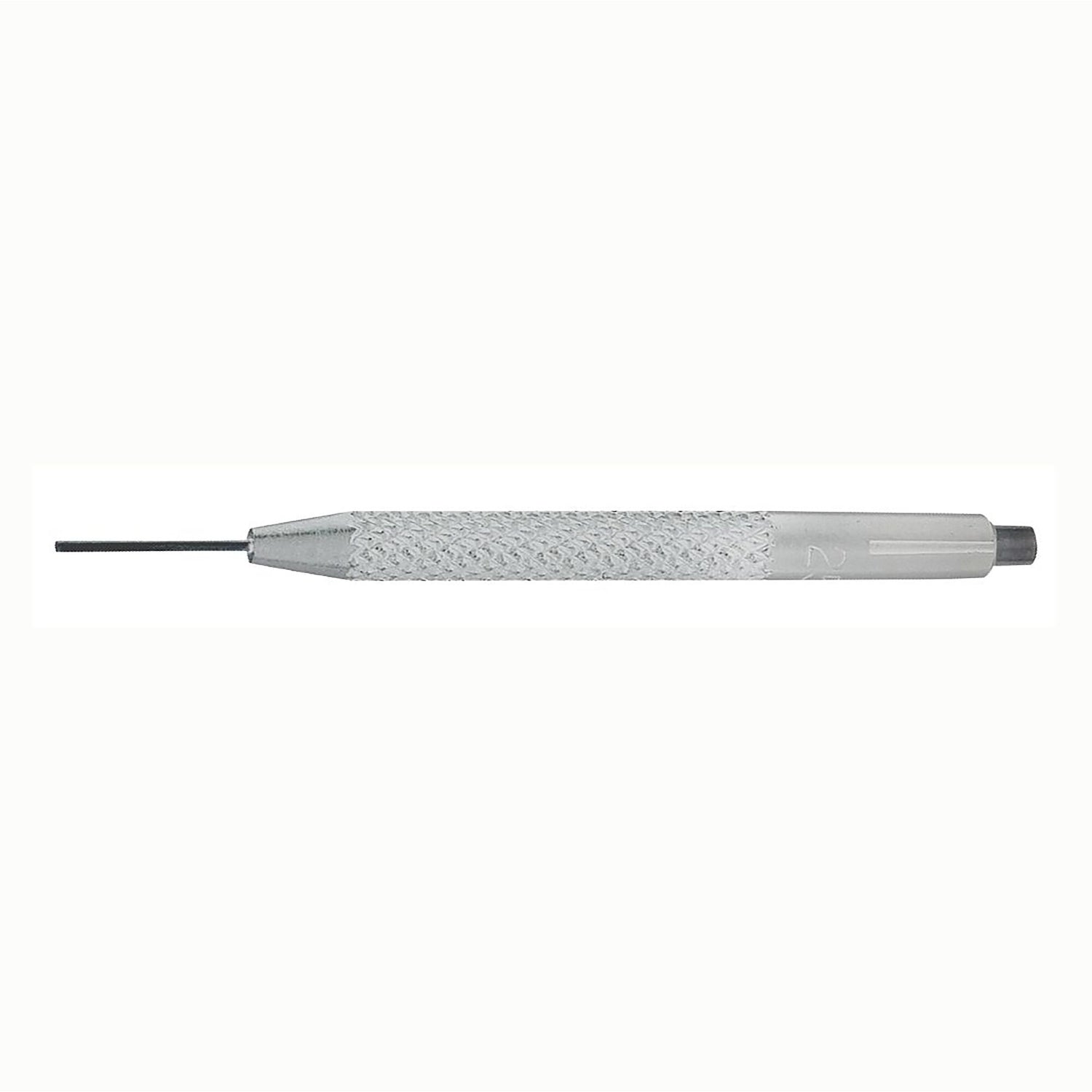

251A - Precision Sleeved Drift Punches
SKU:
251A.1
251A - Precision Sleeved Drift Punches - [251A.1] 1mm Precision Sleeved Drift Punch is backordered and will ship as soon as it is back in stock.
Standards and certifications
Standards and certifications
This product complies with the following standards and certifications:
ASME B107.410, DIN 6450, NF E 71-211
Click here to learn more about the different standards and certifications.
Warranty
Warranty
This product is: Lifetime warranty on the tool (replacement)
Click here to learn more about our warranties.
Description
Description
Specifications
Specifications
- Diamètre de la pointe0.9 mm
- FaceRond
- GripMétal fraisé
- Hauteur du produit14 mm
- Longueur du produit70 mm
- Largeur du produit3 mm
- Marquage CEOui
- Matériau de l'axeAcier
- Matière de la pointeAcier
- Nombre de pièces1
- Poids net0.005 Kg
- Procédé de fabrication de l'axeUne pièce
Technical drawing and dimensions
Technical drawing and dimensions
| A (mm) | L1 (mm) | L (mm) | |||
|---|---|---|---|---|---|
| 251A.1 | [251A.1] 1mm Precision Sleeved Drift Punch | 0.90 | 14.00 | 70.00 | |
| 251A.2 | [251A.2] 2mm Precision Sleeve Drift Punch | 1.90 | 26.00 | 88.00 | |
| 251A.3 | [251A.3] 3mm Precision Sleeved Drift Punch | 2.90 | 22.00 | 93.00 | |
| 251A.4 | [251A.4] Precision sleeved drift punch, 4 mm | 3.90 | 28.00 | 96.00 | |
| 251A.1.5 | [251A.1.5] 1.5mm Precision Sleeved Drift Punch | 1.40 | 21.00 | 83.00 | |
| 251A.2.5 | [251A.2.5] Precision sleeved drift punch, 2.5 mm | 2.40 | 22.00 | 93.00 | |
| 251A.3.5 | [251A.3.5] 3.5mm Precision Sleeve Drift Punch | 3.40 | 25.00 | 96.00 | |
| 251A.5 | [251A.5] 5mm Precision Sleeve Drift Punch | 4.90 | 33.00 | 107.00 | |
| 251A.6 | [251A.6] Precision sleeved drift punch, 6 mm | 5.90 | 36.00 | 112.00 |
