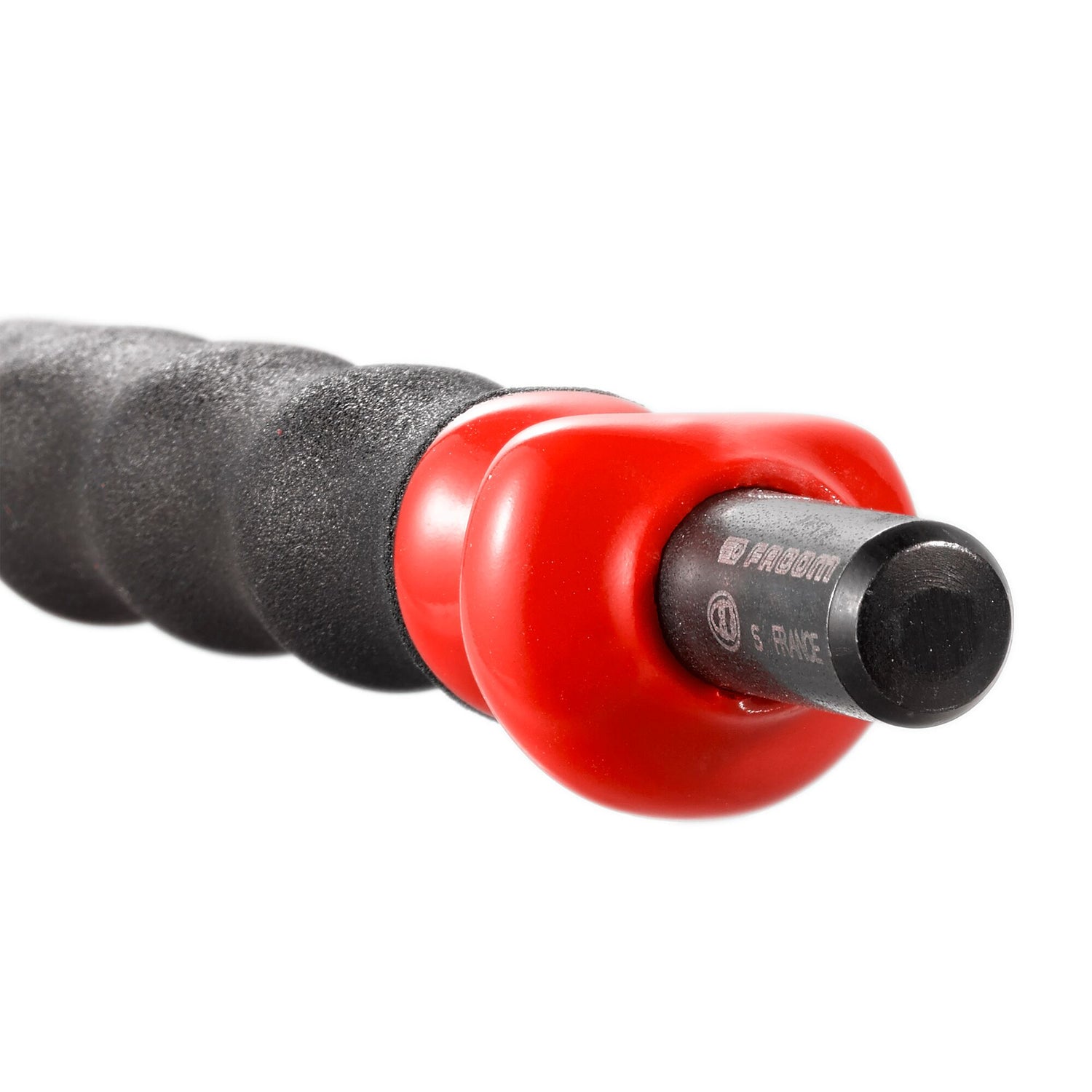

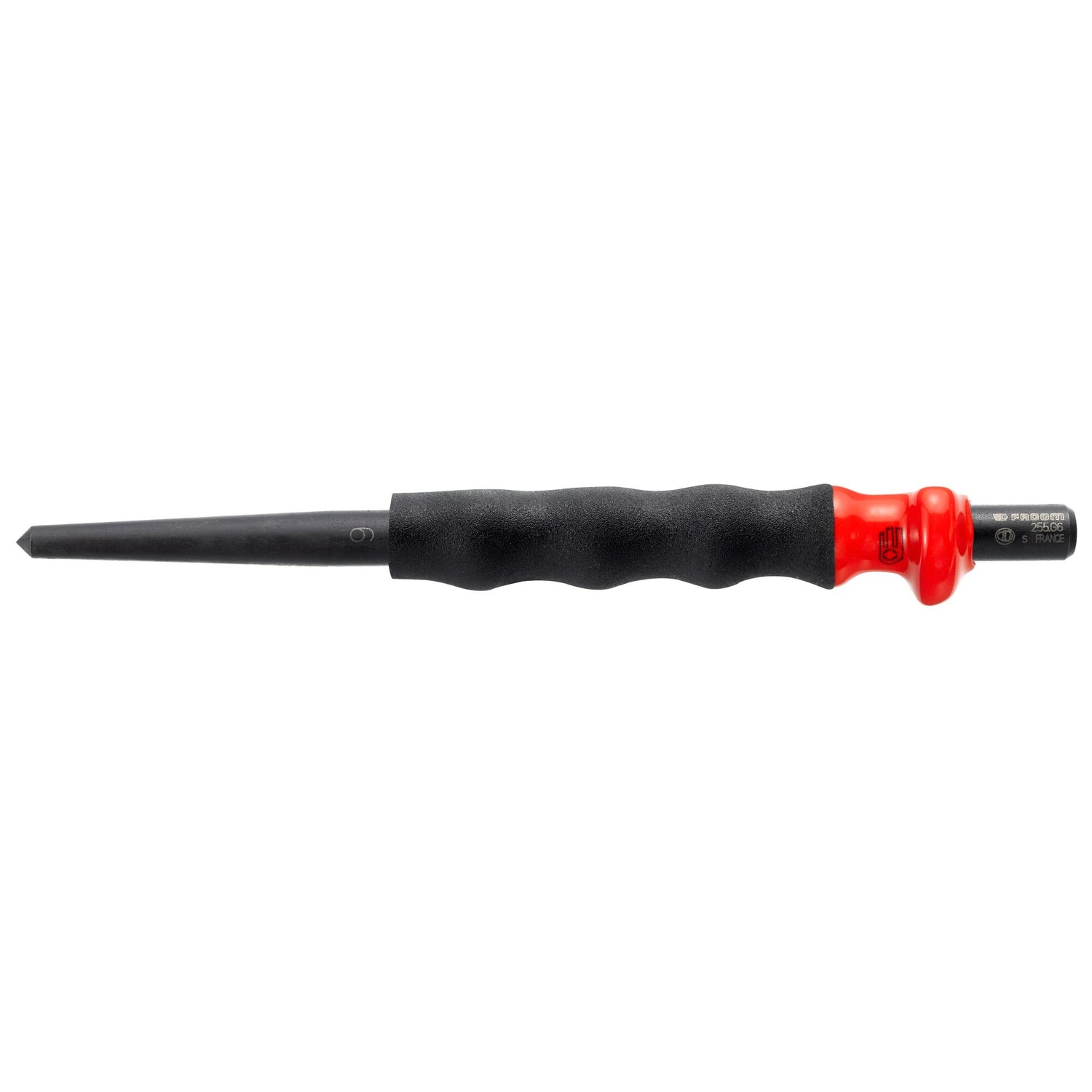

255G - Sheath Centre Punches
SKU:
255.G4
255G - Sheath Centre Punches - [255.G4] Sheath centre punch, 4 mm is backordered and will ship as soon as it is back in stock.
Standards and certifications
Standards and certifications
This product complies with the following standards and certifications:
ASME B107.410, DIN 6450, NF E 71-211
Click here to learn more about the different standards and certifications.
Warranty
Warranty
This product is: Lifetime warranty on the tool (replacement)
Click here to learn more about our warranties.
Description
Description
Specifications
Specifications
- Dimensions du produit sans emballage L x l x H575 x 73 x 115
- FacePointu
- GripPoignée ergonomique
- Hauteur du produit4 mm
- Longueur du ruban55 mm
- Longueur du produit185 mm
- Largeur du produit10 mm
- Mâchoire crantéeNon
- Pointes interchangeablesNon
- Poids net0.11 Kg
Technical drawing and dimensions
Technical drawing and dimensions
| A (mm) | L1 (mm) | L2 (mm) | L (mm) | |||
|---|---|---|---|---|---|---|
| 255.G4 | [255.G4] Sheath centre punch, 4 mm | 4.00 | 55.00 | 105.00 | 185.00 | |
| 255.G2.5 | [255.G2.5] 2.5mm Sheath Centre Punch | 2.50 | 55.00 | 105.00 | 185.00 | |
| 255.G6 | [255.G6] 6mm Sheath Centre Punch | 6.00 | 55.00 | 105.00 | 185.00 | |
| 255.G8 | [255.G8] 8mm Sheath Centre Punch | 8.00 | 55.00 | 105.00 | 185.00 | |
| 255.G10 | [255.G10] Sheath centre punch, 10 mm | 10.00 | 55.00 | 105.00 | 185.00 |
