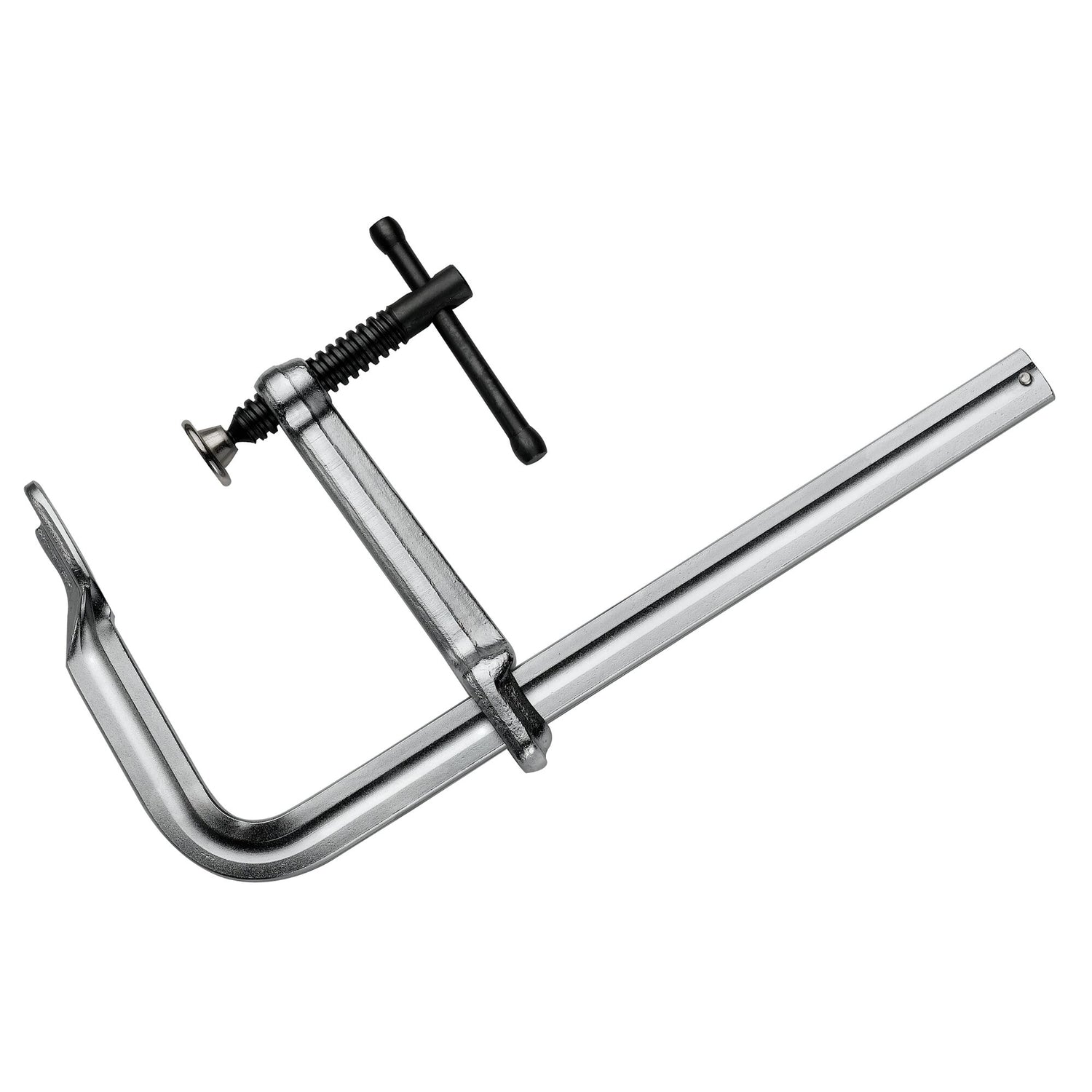

274 - G clamps, 6500 N

SKU: 274.200  -  Barcode: 3148511630204
  • Capacity: 0 to 500 mm.
  • Tightening: 6500 N max.
  • Hardened profile rail, forged dog and slider, square thread screw for tight fastening.
  • Ball joint angle 30°.
  • Presentation: galvanised.
Full product description
Reference comparison

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • Capacity: 0 to 500 mm.
  • Tightening: 6500 N max.
  • Hardened profile rail, forged dog and slider, square thread screw for tight fastening.
  • Ball joint angle 30°.
  • Presentation: galvanised.

Technical drawing and dimensions

A max (mm)E1 (mm)E (mm)L1 (mm)L2 (mm)L (mm)
274.200 [274.200] G-Clamp, 6500 N 200.0019.5019.50150.00100.00250.00
274.300 [274.300] G Clamp, 6500 N, 300 mm 300.00120250190.00140.00360.00
274.400 [274.400] 400mm G-Clamp, 6500 N 400.0012.0025.00170.00120.00460.00
274.500 [274.500] 500 mm G-Clamp, 6500 N 500.0012.0025.00170.00120.00560.00

Documents

274 - G clamps, 6500 N

References available

  • [274.200] G-Clamp, 6500 N
  • [274.300] G Clamp, 6500 N, 300 mm
  • [274.400] 400mm G-Clamp, 6500 N
  • [274.500] 500 mm G-Clamp, 6500 N

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Lifetime warranty on the tool (replacement)
