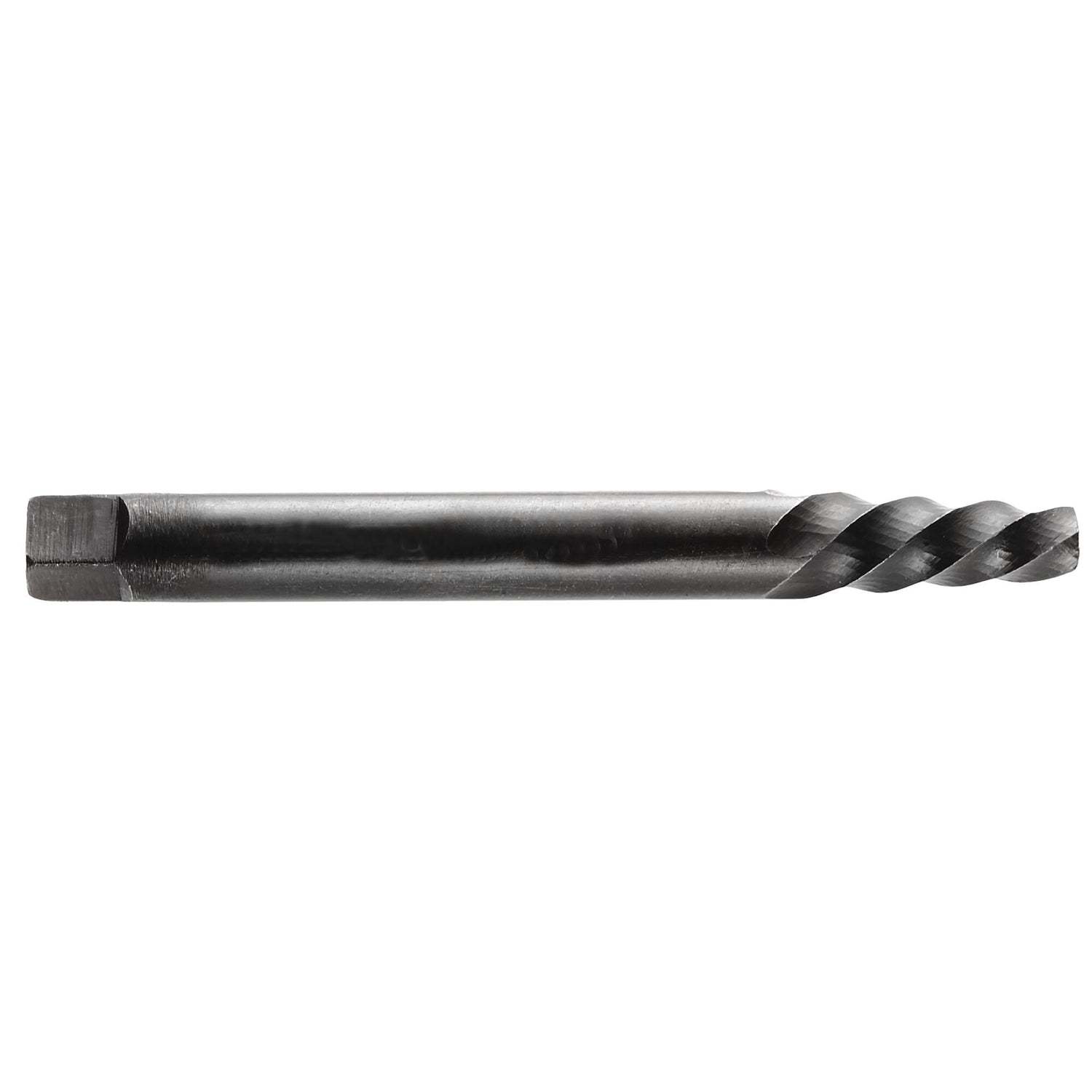

285 - Unit Stud Pullers, Right-Hand Pitch

SKU: 285.4 - Barcode: 3148511650004

These helical pullers allow pulling after drilling a pre-hole using specific tapered drill-bits 285.F.
diameter 14 to 18 mm.

Full product description

References available Reference comparison

Product variants

Warranty

This product is: This product is covered by the statutory warranty

Click here to learn more about our warranties.

Description

These helical pullers allow pulling after drilling a pre-hole using specific tapered drill-bits 285.F.
diameter 14 to 18 mm.

Specifications

Technical drawing and dimensions

		D1 (mm)	D2 (mm)	L (mm)
285.4	[285.4] Unit Stud Pullers, Right-Hand Pitch, Diameter 2.2 to 3.4 mm	2.2 - 3.4	30	550
285.5	[285.5] Unit Stud Pullers, Right-Hand Pitch, 3.7 to 4.3 mm Diameter	3.7 - 4.3	40	600
285.6	[285.6] 4.5 - 5.3mm Unit Stud Pullers, Right-Hand Pitch	4.5 - 5.3	4.50	650
285.8	[285.8] 6.2 - 7.1 mm Unit Stud Puller, Right-Hand Pitch	6.2 - 7.1	60	750
285.11	[285.11] Unit stud pullers, right-hand pitch, diameter 8.6 to 9.8 mm	8.6 - 9.8	8.50	850
285.14	[285.14] Unit stud pullers, right-hand pitch, diameter 11 to 12.5 mm	11 - 12.5	100	900
285.18	[285.18] 14.5 to 16 mm Right Hand Pitch Unit Stud Pullers	14.5 - 16	140	1050
285.25	[285.25] Unit Stud Pullers, Right-Hand Pitch, Diameter 20 to 22.5 mm	20 - 22.5	180	1200
