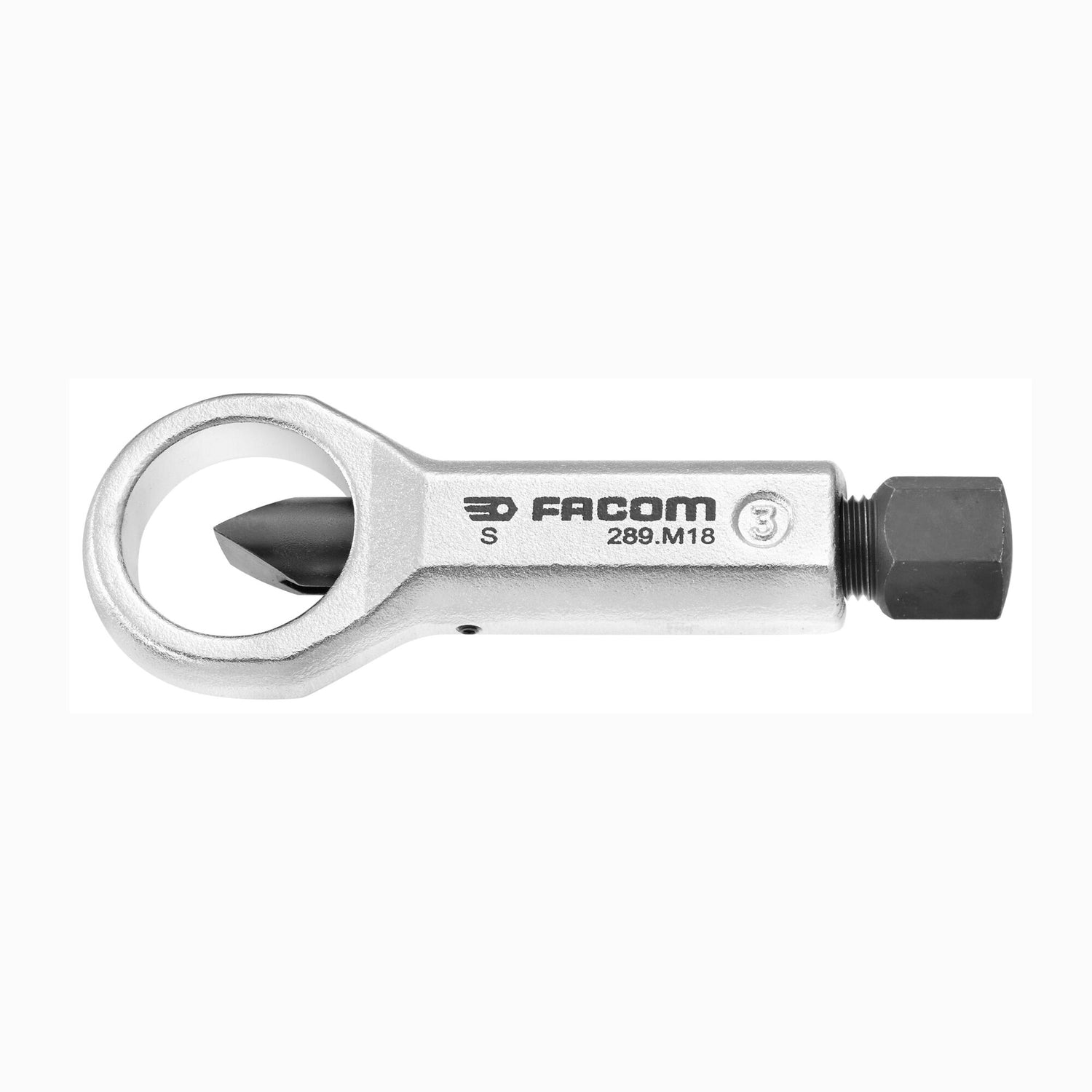

289.M - Nut splitter

SKU: 289.M8  -  Barcode: 3662424024931
  • For splitting a worn or jammed nut without damaging the screw thread.
  • capacity 16 to 22 mm.
Full product description
Reference comparison

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • For splitting a worn or jammed nut without damaging the screw thread.
  • capacity 16 to 22 mm.

Specifications
  • Longueur du produit100 mm
  • Poids net0.17 Kg

Technical drawing and dimensions

D1 (mm)D2 (mm)D max (mm)L (mm)
289.M8 [289.M8] Nut splitter, 12 - 16 mm 29.009.5012 - 16100.00
289.M18 [289.M18] 16 - 22 mm Nut Splitter 45.0013.0016 - 22128.00
289.M22 [289.M22] 22 - 27 mm Nut Splitter 56.5016.0022 - 27148.00
289.M24 [289.M24] 27 - 36 mm Nut Splitter 67.0017.0027 - 36170.00

Documents

289.M - Nut splitter

References available

  • [289.M8] Nut splitter, 12 - 16 mm
  • [289.M18] 16 - 22 mm Nut Splitter
  • [289.M22] 22 - 27 mm Nut Splitter
  • [289.M24] 27 - 36 mm Nut Splitter

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Lifetime warranty on the tool (replacement)
