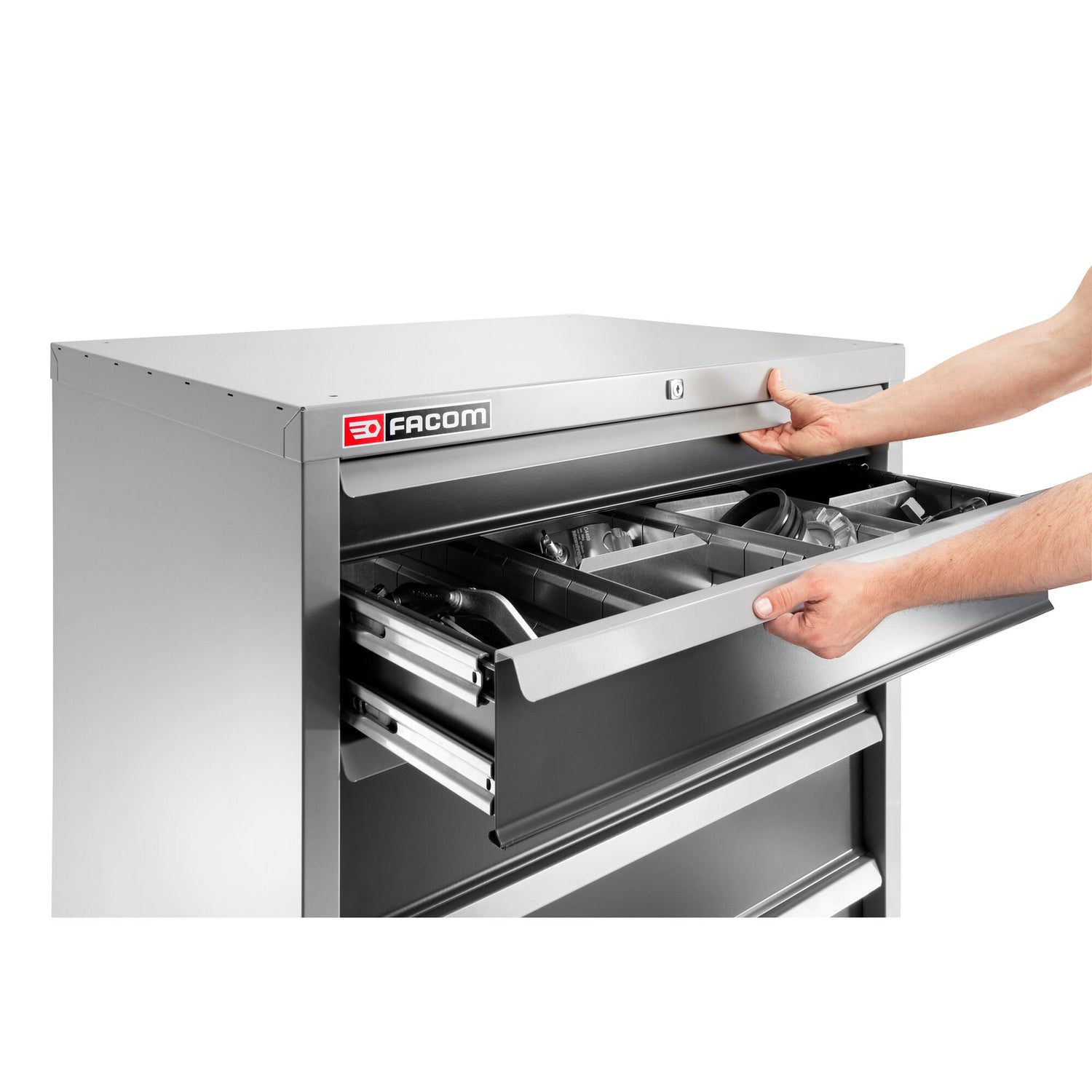

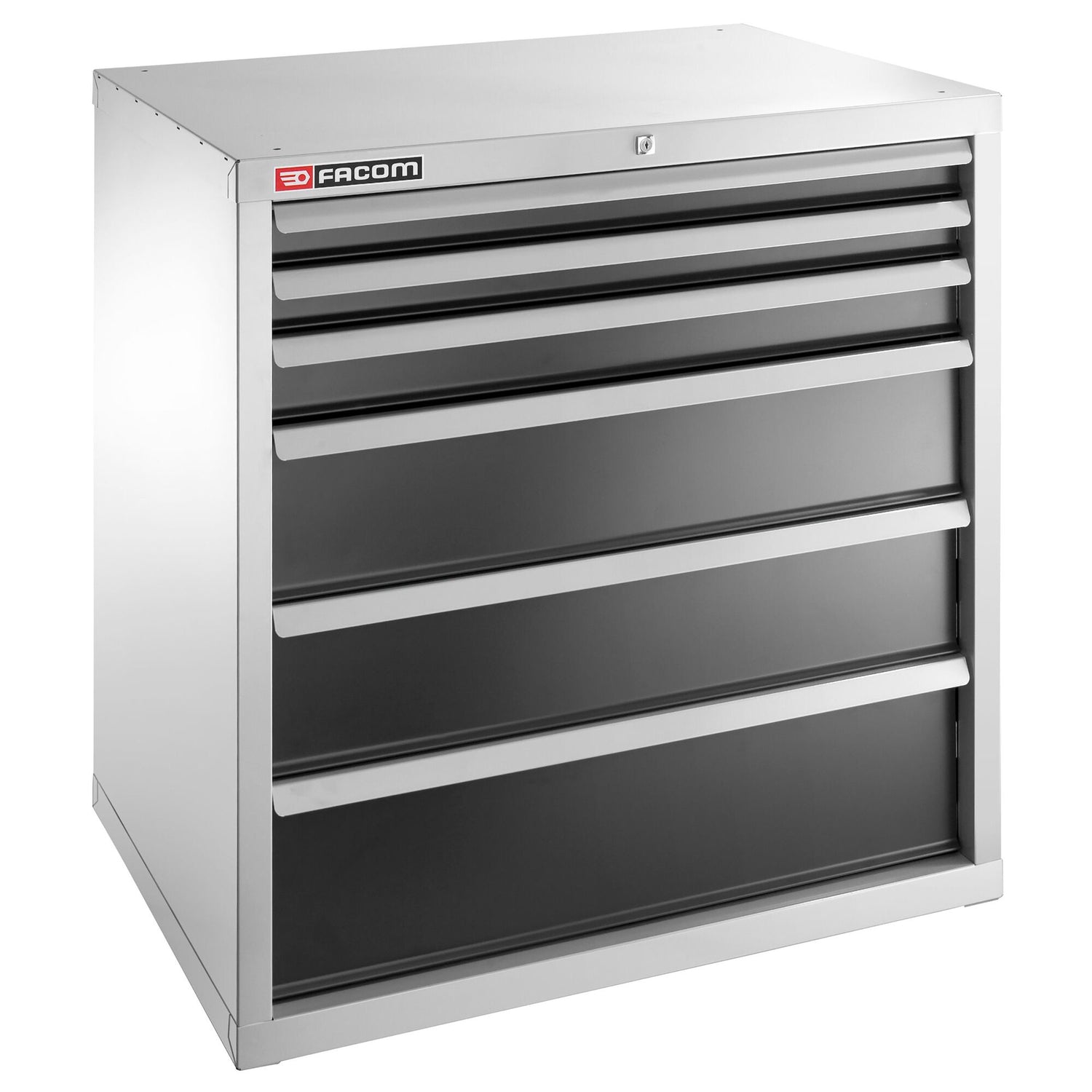

840mm x 570mm 6-Drawer Heavy Load Industrial Cabinet With Safety Lock System
SKU:
2936B
- High storage and load capacity.
- 6 drawers with height: 2 drawers 50 mm, 1 drawer 75 mm, 2 drawers 175 mm, 1 drawer 225 mm.
- The drawers can also be fitted with 'XL' modules.
- High strength 100% opening ball bearing telescopic sliders.
- 75 kg for small drawers (50/75/100).
- 120 kg for large drawers (125/175/225) - 2 pairs of sliders.
- Drawer useful dimensions: L 840 x D 570 x H 50/75/125/175/225 mm.
- The cabinets are stackable (supplied with linking kit).
- Safety: Drawer centralised locking, the drawers are locked simultaneously (cabinet supplied with 2 keys). Anti-tilting system, when opened individually, each drawer locks all others. This prevents the cabinet from tipping over. Ground-anchoring option.
Warranty
Warranty
This product is: This product is covered by a 5-year warranty
Click here to learn more about our warranties.
Description
Description
- High storage and load capacity.
- 6 drawers with height: 2 drawers 50 mm, 1 drawer 75 mm, 2 drawers 175 mm, 1 drawer 225 mm.
- The drawers can also be fitted with 'XL' modules.
- High strength 100% opening ball bearing telescopic sliders.
- 75 kg for small drawers (50/75/100).
- 120 kg for large drawers (125/175/225) - 2 pairs of sliders.
- Drawer useful dimensions: L 840 x D 570 x H 50/75/125/175/225 mm.
- The cabinets are stackable (supplied with linking kit).
- Safety: Drawer centralised locking, the drawers are locked simultaneously (cabinet supplied with 2 keys). Anti-tilting system, when opened individually, each drawer locks all others. This prevents the cabinet from tipping over. Ground-anchoring option.
Specifications
Specifications
- Capacité de rotation de 360°Non
- CouleurGris
- Capacité du tiroir75-120 Kg
- Capacité totale du tiroir249 Kg
- Épaisseur du corps en métal1 mm
- Hauteur du tiroir50-75-175-225 mm
- Hauteur du produit1000 mm
- Longueur du tiroir840 mm
- Longueur du produit980 mm
- Largeur du produit680 mm
- La surface de travail peut recevoir des accessoiresNon
- La surface de travail peut recevoir un étauNon
- Matériau des protections d'angle de boîtePlastique souple
- Matériau des protections d'angle de tiroirPlastique souple
- Matériau des glissièresAcier inoxydable
- Nombre de séparateurs de tiroirs6
- Nombre de tiroirs6
- Ouverture des tiroirs à 100%Oui
- Profondeur680 mm
- Profondeur du tiroir570 mm
- Possibilité d’accessoirisationNon
- Poids net139 Kg
- Plan de travail avec poignées intégréesNon
- Séparateurs de tiroirsOui
- Tapis de tiroirNon
- Type de poignéeMétal
- Traitement de surfacePeint au nickel
- Type de poignée latéraleMétal
- Un coffre supplémentaire peut être ajouté sur le dessusNon
Spare parts
Spare parts
SLIDE - 2936-03A
DRAWER - 2936-04A
DRAWER - 2936-05A
DRAWER - 2936-06A
DRAWER - 2936-07A
