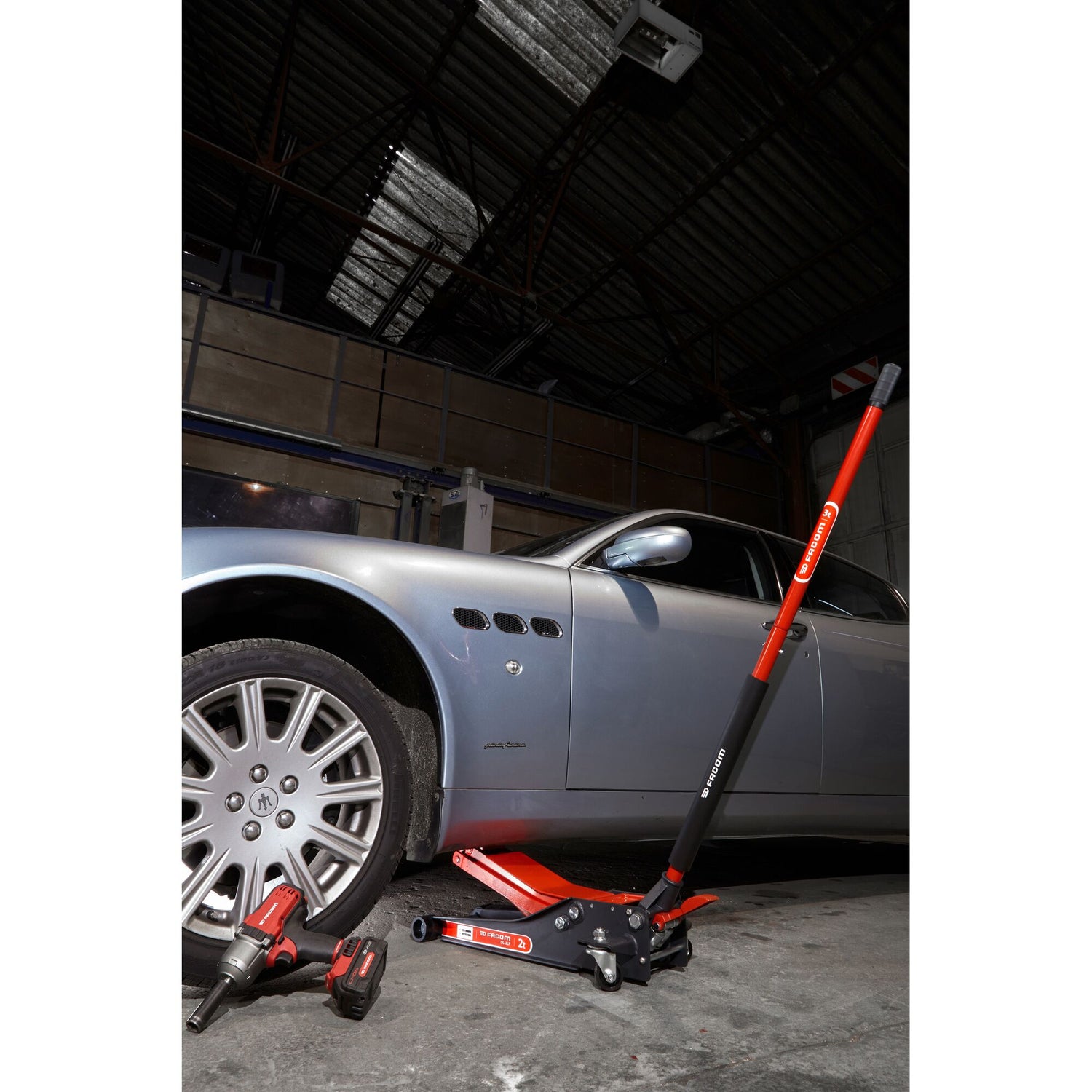

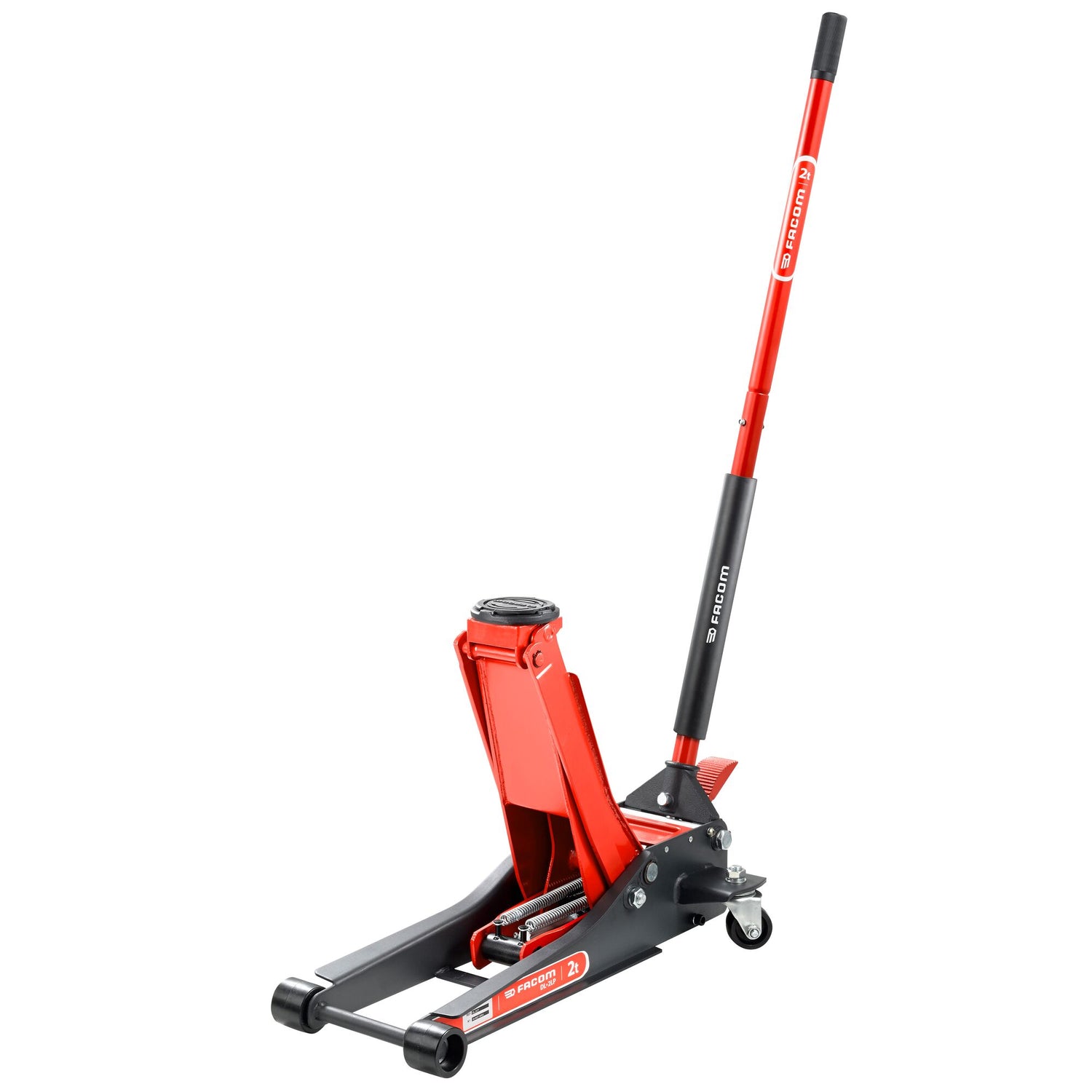

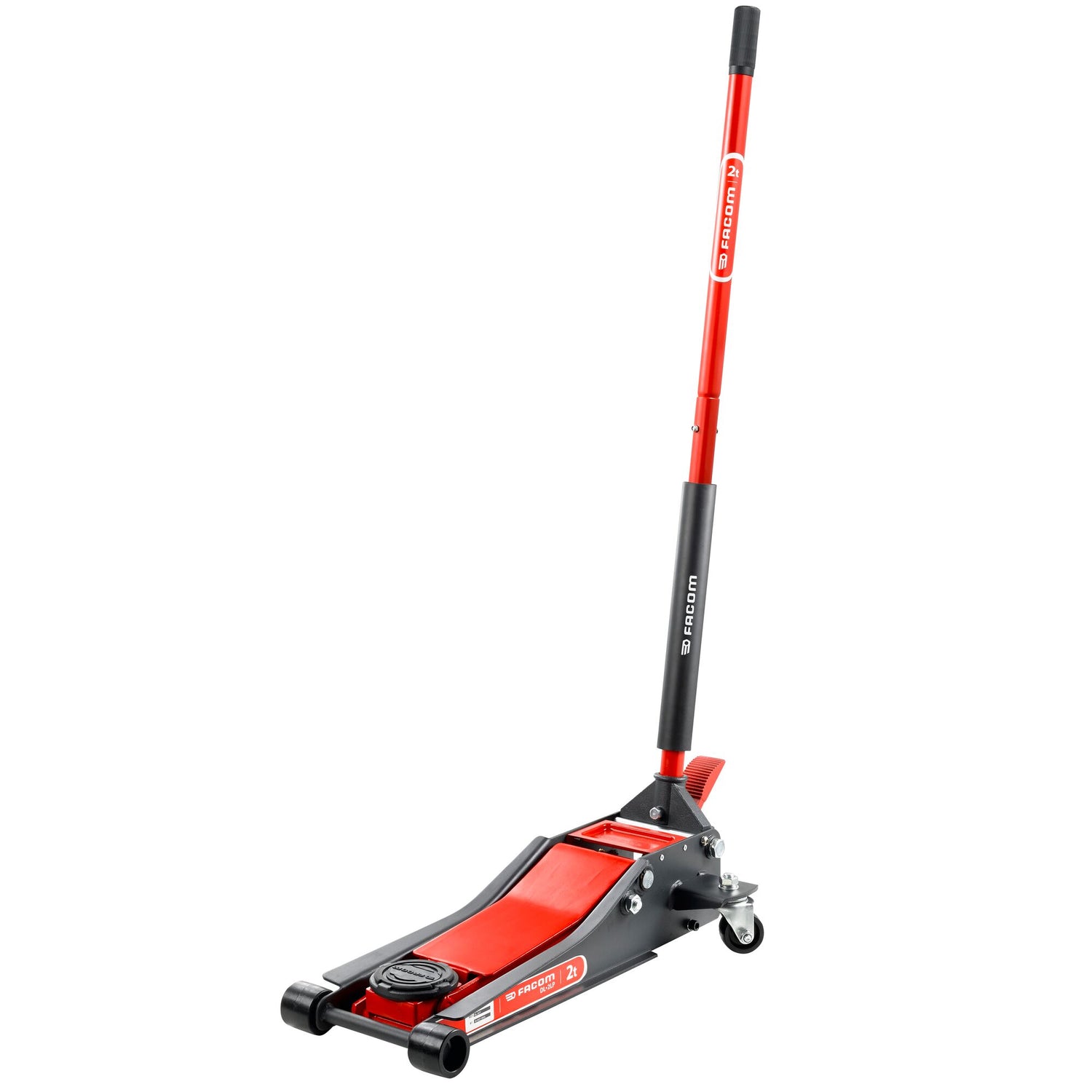

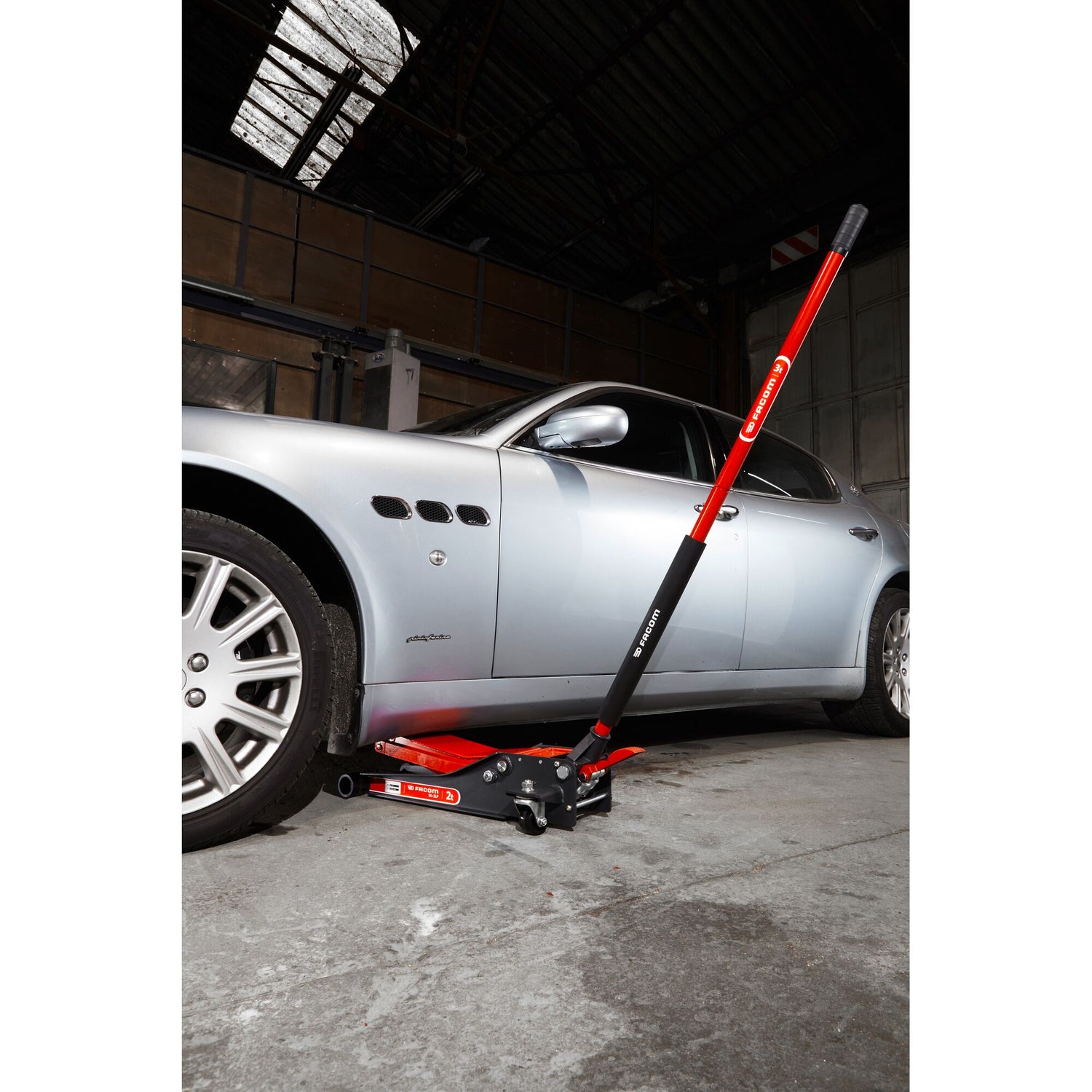

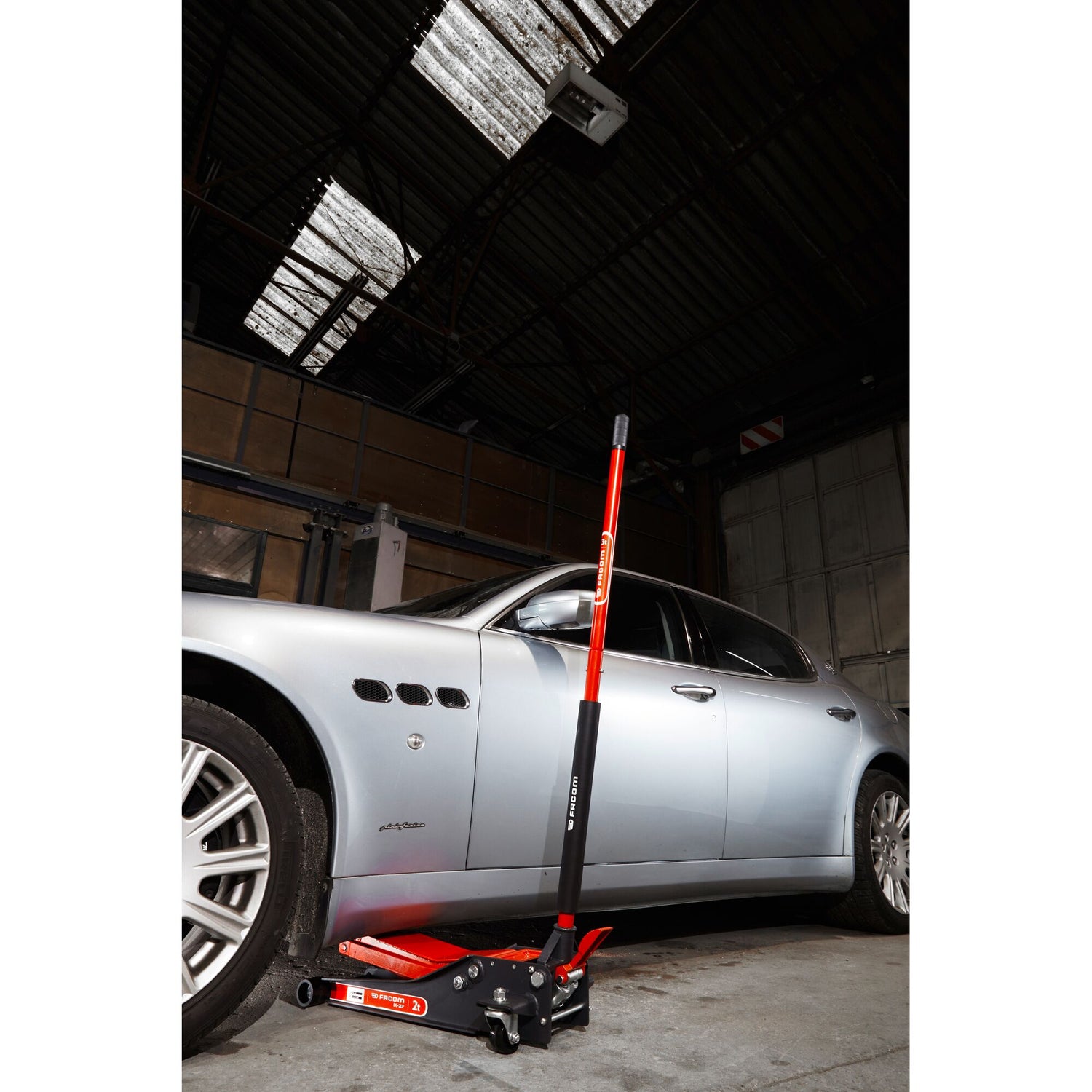

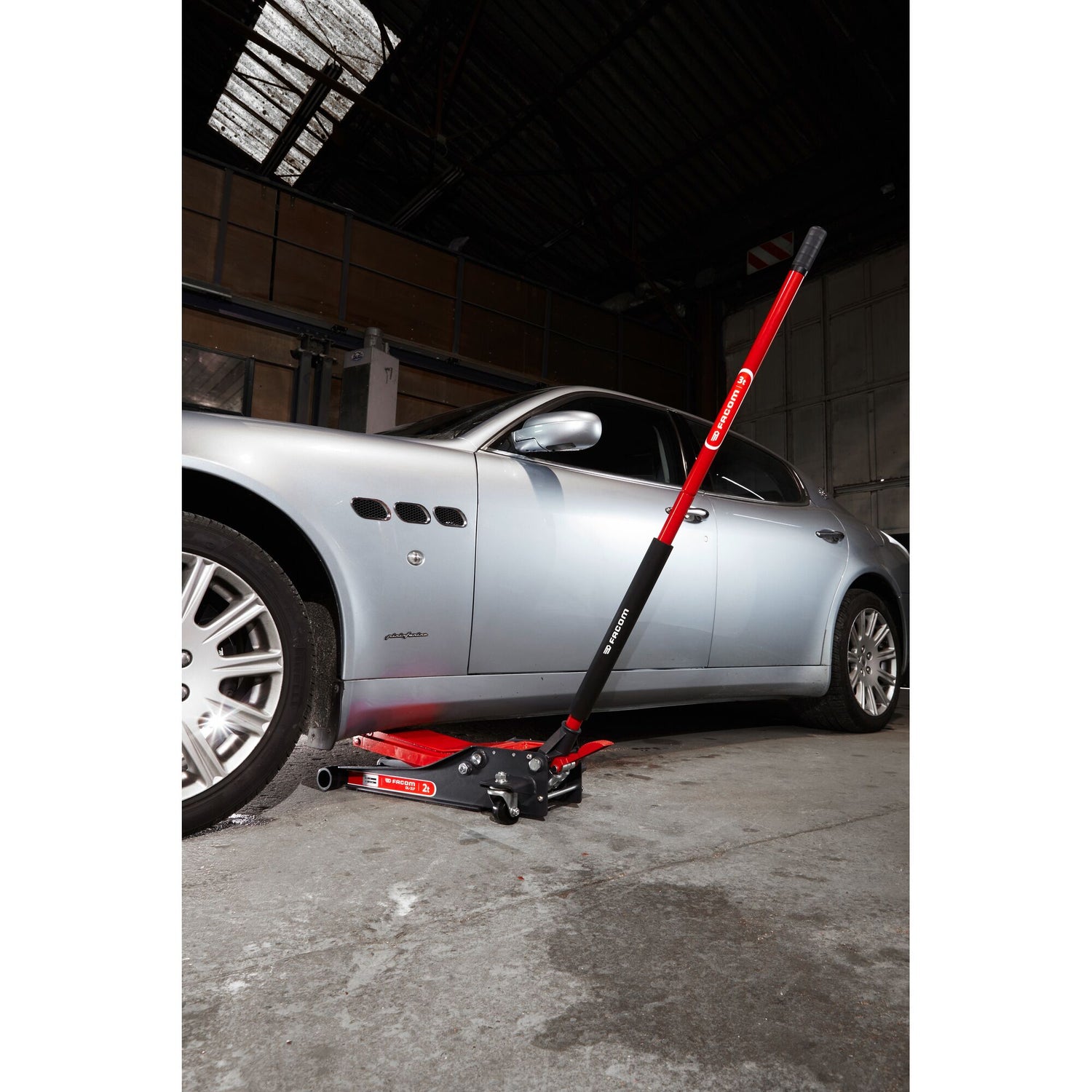

2T Extra-Flat Compact Trolley Jack
2T Extra-Flat Compact Trolley Jack - [DL.2LP] 2T Extra-Flat Compact Trolley Jack is backordered and will ship as soon as it is back in stock.
Standards and certifications
Standards and certifications
This product complies with the following standards and certifications:
EN 1494, EN 1494-ASME-PASE, MSD 2006/42/CE
Click here to learn more about the different standards and certifications.
Warranty
Warranty
This product is: This product is covered by a 2-year warranty
Click here to learn more about our warranties.
Description
Description
Specifications
Specifications
- Appareil connectéNon
- Bluetooth®Non
- Capacité de levage2 t
- Charge maximale du châssis75 mm
- Charge maximale20000 Kg
- Coussin rembourréOui
- Empreinte au sol762 mm
- Hauteur maximale1305 mm
- Levage maximum505 mm
- Longueur du produit350 mm
- Marquage CEOui
- MatériauAluminium
- Nombre de pièces1
- Nombre de roues4
- Presse d’établiOui
- Pour poids lourds-véhicules industrielsNon
- Poids lourds-véhicules industrielsOui
- Poids net32.5 Kg
- Surface magnétiséeNon
- Type de fonctionHydraulique
- Usage intensifNon
- VoitureOui
- Vanne de surchargeOui
Technical drawing and dimensions
Technical drawing and dimensions
| A (mm) | B1 (mm) | B (mm) | C1 (mm) | C (mm) | E (mm) | L (mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| DL.2LP | [DL.2LP] 2T Extra-Flat Compact Trolley Jack | 675.00 | 262.00 | 350.00 | 215.00 | 75.00 | 53.00 | 675.00 | |
| DL.3CLP | [DL.3CLP] Extra-flat compact trolley jack, 3 t | 688.00 | 285.00 | 375.00 | 230.00 | 100.00 | 52.00 | 688.00 |
Spare parts
Spare parts
JOINT - 1004749-51
WHEEL FRONT - DL.2LP-1
AXLE SA - DL.2LP-11
LABEL SET - DL.2LP-13
GREASE BIT - DL.2LP-3
MAIN UNIT SA - DL.2LP-7
FORK - DL.2LP-8
RUBBER PAD - DL.32A-10
SEALS KIT - DL.32A-14
SADDLE - DL.32A-2
COVER - DL.32A-4
HANDLE - DL.32A-5
SPRING - DL.32A-6
WHEEL REAR - DL.32A-9
