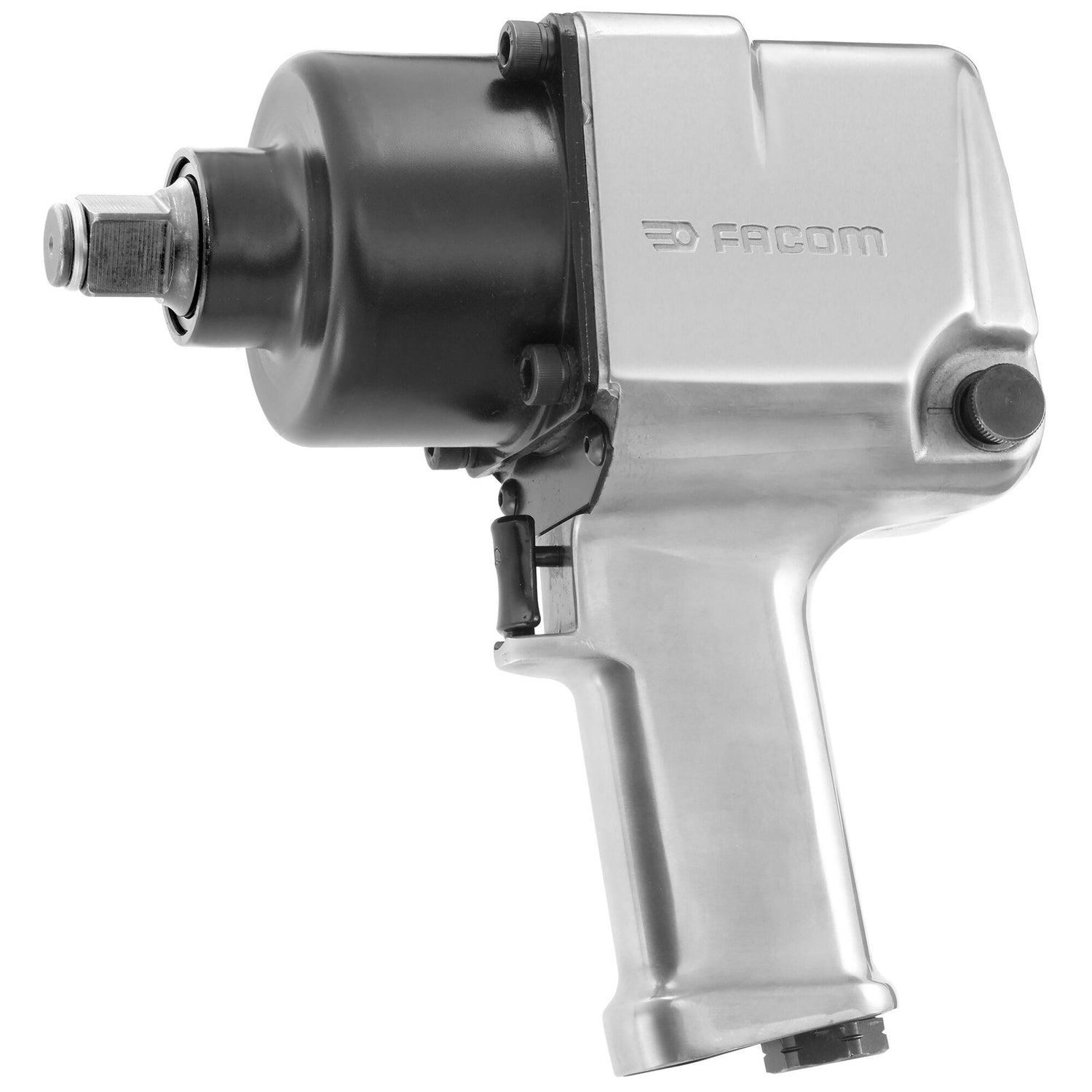

3/4 in. Aluminium Impact Wrench

SKU: NK.1000F2 - Barcode: 3148519189971

Durable twin hammer mechanism encased in a strong aluminium housing.
One hand forward reverse switch with integrated regulator with 6 positions.
Feather teasing trigger for optimal speed regulation.
Socket ring retainer for safety.

Full product description

References available Reference comparison

Product variants

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Durable twin hammer mechanism encased in a strong aluminium housing.
One hand forward reverse switch with integrated regulator with 6 positions.
Feather teasing trigger for optimal speed regulation.
Socket ring retainer for safety.

Specifications

Cadence de frappe par minute790
Couple maximal1700 Nm
Diamètre impérial3/4 in
Hauteur du produit233 mm
Lumière LEDNon
Longueur du produit222 mm
Largeur du produit93 mm
Marquage CEOui
Matériau de la poignéeAluminium
MatériauAluminium
Nombre de pièces1
Pour poids lourds-véhicules industrielsNon
Poids lourds-véhicules industrielsNon
Poids net5.6 Kg
Source d’alimentationPneumatique
Type de fonctionPneumatique
Usage intensifNon
VoitureOui
Vitesse à vide (tr/mn)5500
Vanne de surchargeNon

Spare parts

ANVIL ASSEMBLY - 31D200031
SOCKET RETAINER KIT - 31K100011
SCREW KIT - 31K100012
SEALS KIT - 31K100013
IMPACTOR - 31K100014
REVERSER - 31K100015
PLATE KIT - 31K100016
CYLINDER - 31K100017
THROTTLE CONTROL - 31K100018
INLET - 31K100019
PLATE KIT - 31K100020
ROTOR BLADE - 31K100021
PILOT VALVE KIT - 31K100022
SIDE HANDLE - 31K100028
CASE - 31K100068
HOUSING - 31K100069
ROTOR - 31M200035
TRIGGER - 31P100009
BEARING REAR - 31R200141
BEARING
BALL - 31R200144

Documents

User Guide
