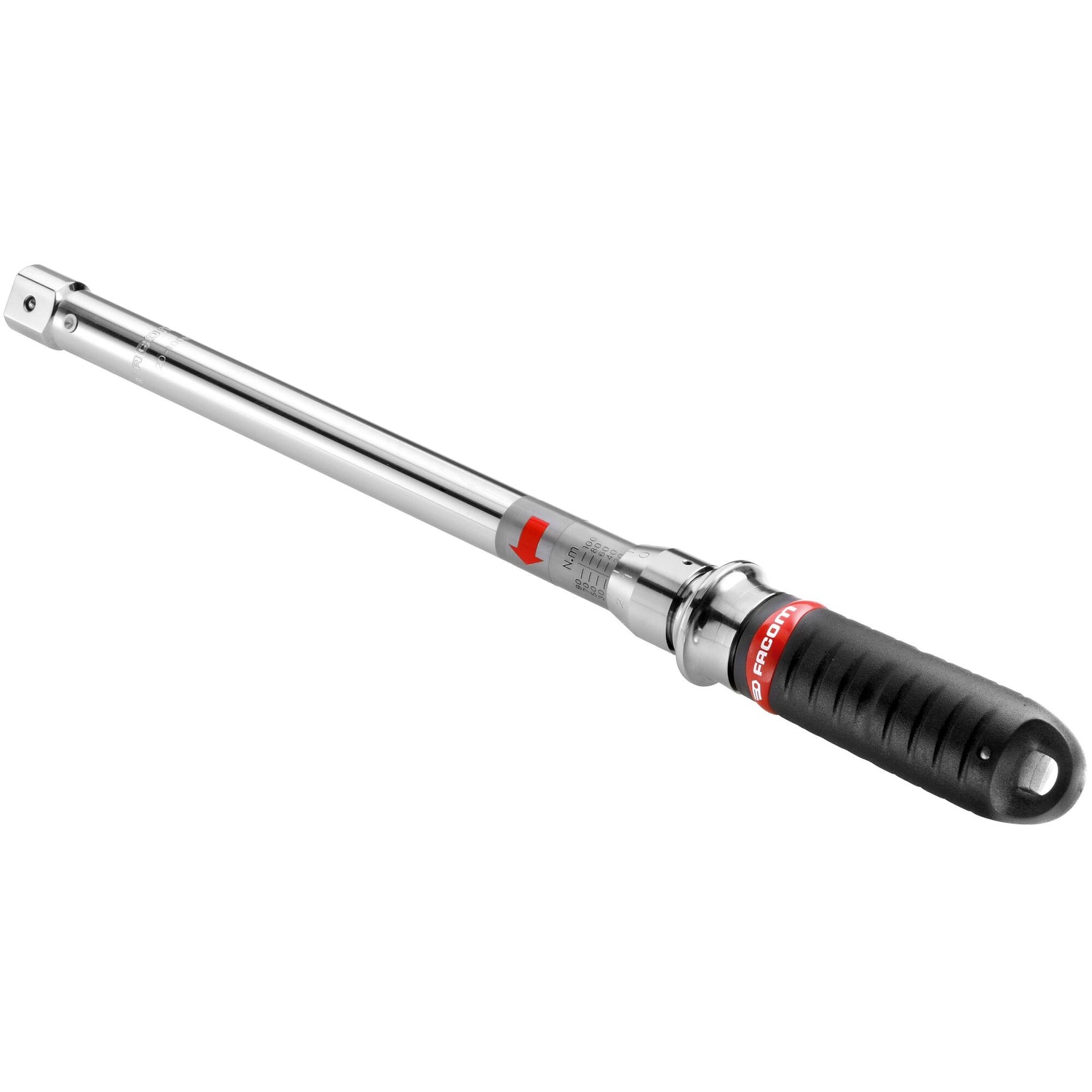

306D - Click wrenches without accessories

SKU: R.304DA  -  Barcode: 3148510531205
  • FACTORY ACCURACY: ± 2% except: - R.306-25D - K.306A600 - K.306A1000 (± 4%). - R.304DA (± 6%).
  • RELIABILITY: 50 000 cycles (wrenches up to 200 N.m).
  • ACCESSORIES: End fitting: 9 x 12 or 14 x 18 mm. Diameter: 30 mm.
  • BITS: One-way wrenches usable for unscrewing by reversing the bits.
  • CERTIFICATION: Numbered wrenches supplied with ISO 6789 calibration certificate.
  • STORAGE: Supplied in plastic box.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

DIN EN ISO 6789, ISO 6789, NF EN ISO 6789

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 3-year warranty

Click here to learn more about our warranties.

Description
  • FACTORY ACCURACY: ± 2% except: - R.306-25D - K.306A600 - K.306A1000 (± 4%). - R.304DA (± 6%).
  • RELIABILITY: 50 000 cycles (wrenches up to 200 N.m).
  • ACCESSORIES: End fitting: 9 x 12 or 14 x 18 mm. Diameter: 30 mm.
  • BITS: One-way wrenches usable for unscrewing by reversing the bits.
  • CERTIFICATION: Numbered wrenches supplied with ISO 6789 calibration certificate.
  • STORAGE: Supplied in plastic box.

Specifications
  • Application de contrôleNon
  • Attachement9 x 12
  • AttachéNon
  • Certificat d’étalonnage fourniOui
  • EmballageBoîtier en plastique
  • Indication de cibleCliquer
  • Longueur du produit185 mm
  • MémoireNon
  • Numéro d’identification individuel fourniOui
  • Précision sens horaire sortie d'usine+/-6%
  • Poids net0.29 Kg
  • Type de clé mécaniqueCliquer
  • Type de clés dynamométriques SmartCliquer

Spare parts

CAP - R.304D03
PUSHER - R.304D06
HANDLE - R.304D08
VERNIER - R.304D09
NUT - R.304D10
LOCKING RING - R.305D13
SPRING - R.305D15
INSERT - R.305D20

Documents
User Guide

306D - Click wrenches without accessories

References available

  • [R.304DA] Click Torque Wrench, no head, range 1-5Nm
  • [R.306-25D] Click Torque Wrench, No Head, Range 5-25Nm
  • [J.306-50D] 3/8 in. Click Torque Wrench, No head, Range 10-50Nm
  • [S.306-100D] 1/2 in. Click Torque Wrench, Range 20-100Nm
  • [S.306-200D] 1/2 in. Click Torque Wrench, Range 40-200Nm
  • [S.306-350D] Click Torque Wrench, 1/2 in. Drive, Range 70-350Nm
  • [K.306-600D] 1 in. Click Torque, No Head, Range 120Nm-600Nm
  • [K.306-1000D] Click Torque Wrench, Drive 1 in., No Head, Range 200Nm-1000Nm

Lieu de fabrication

N/A

Normes & certifications

DIN EN ISO 6789, ISO 6789, NF EN ISO 6789

Période de garantie

This product is covered by a 3-year warranty
