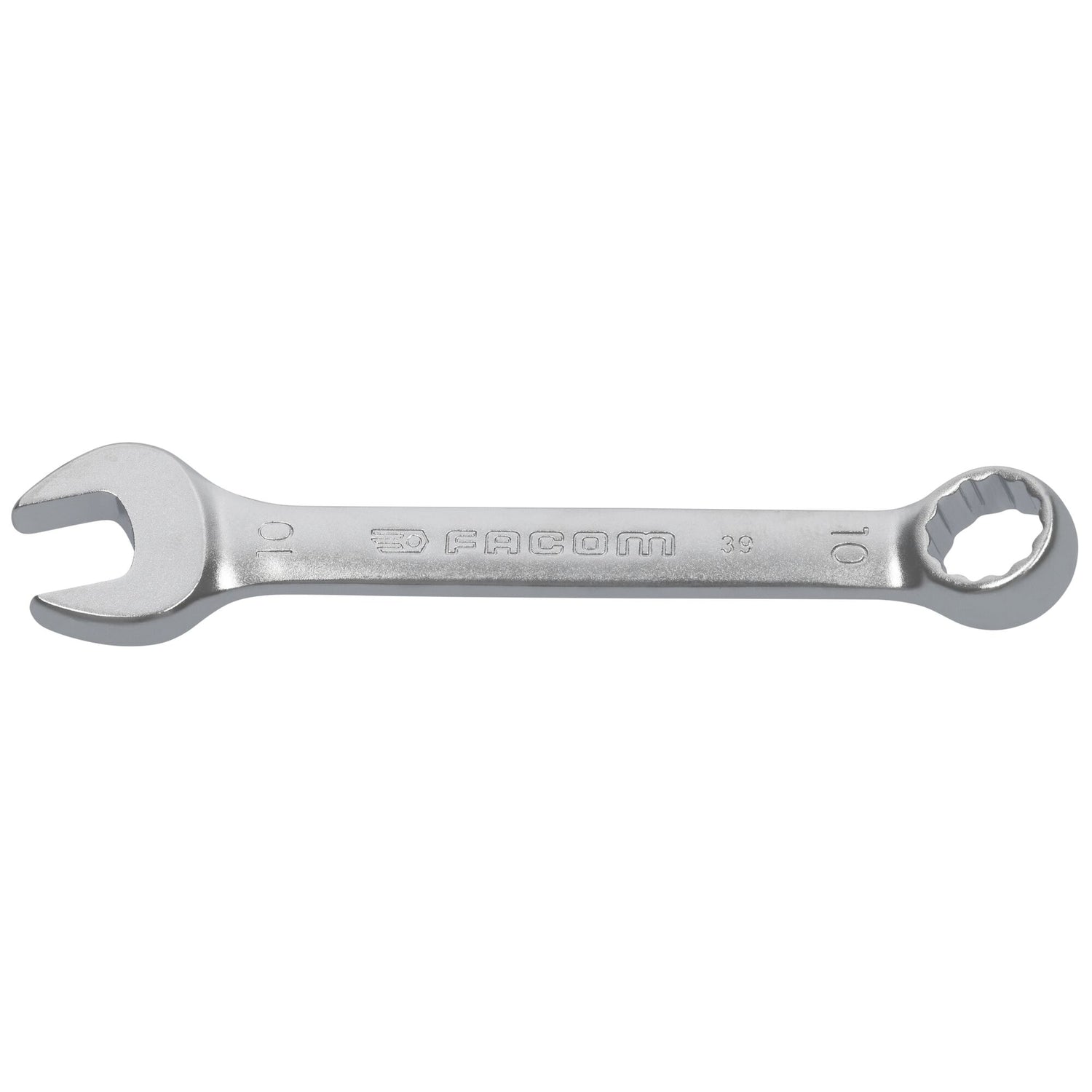

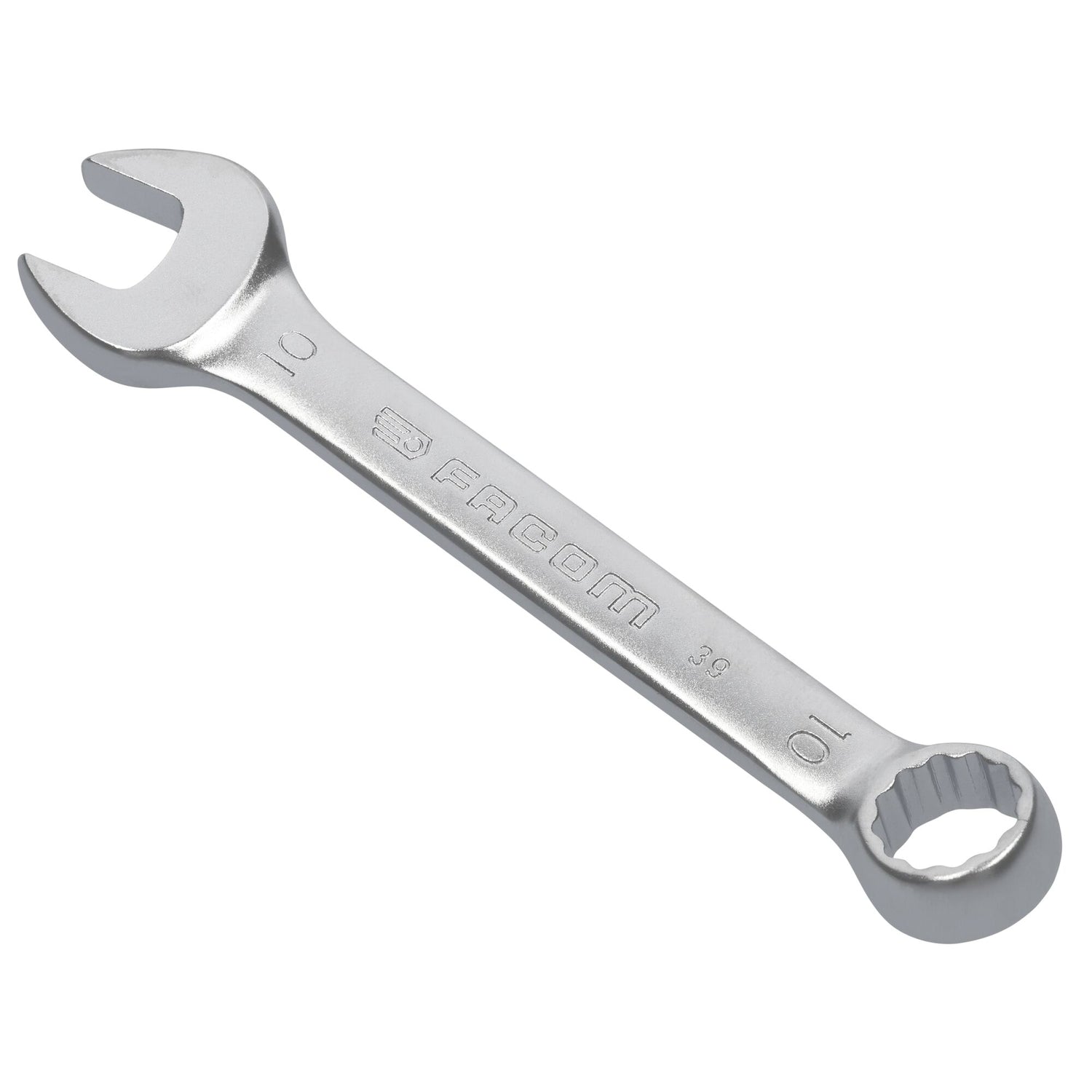

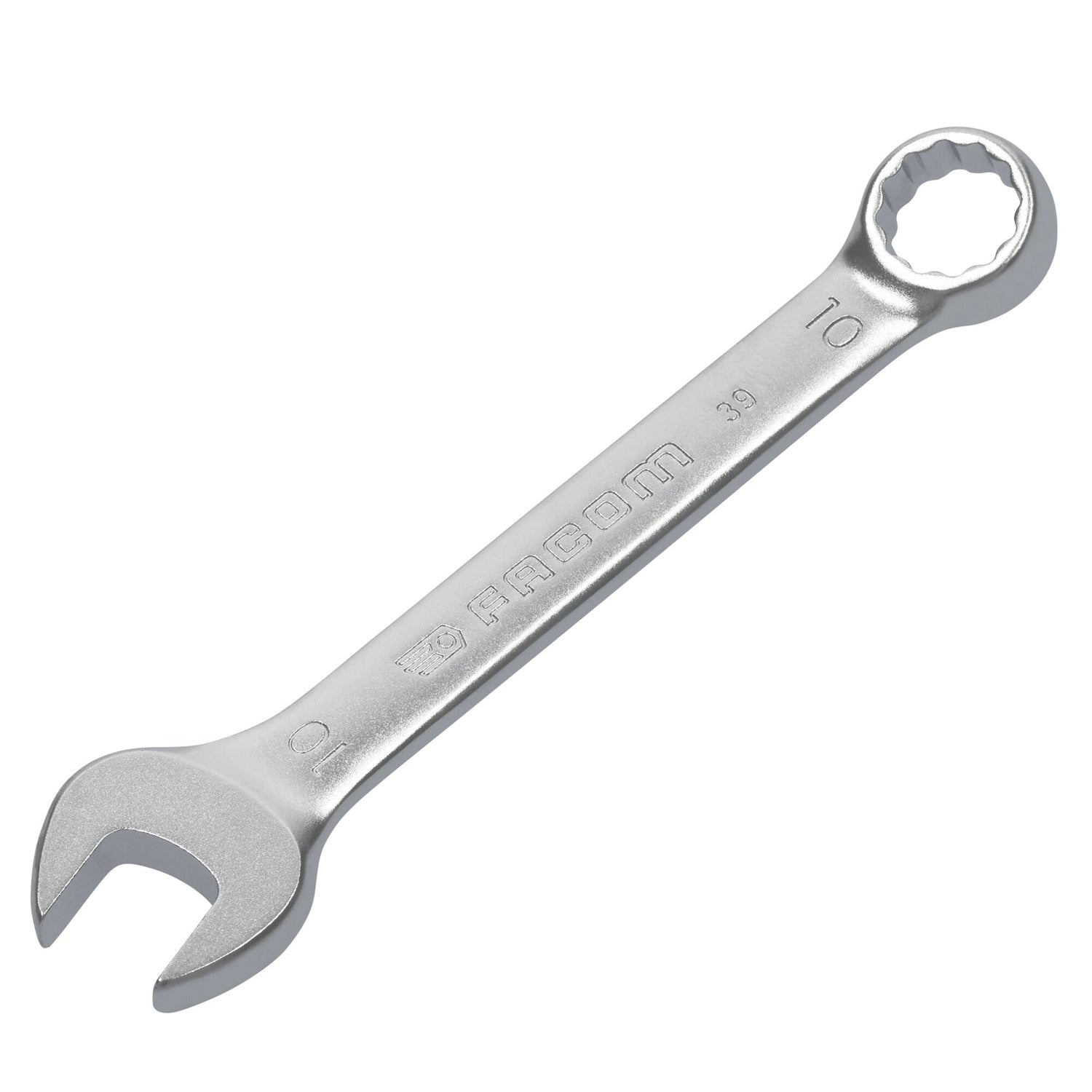

COMBINATION WRENCH - 39 - Short Handle - Compact Head - 10 mm

SKU: 39.10 - Barcode: 3148510998763

ACCESSIBILITY - The short handle and compact head allow for high handiness. Ideal for confined access.
OGV® PROFILE - 12-POINTS - Maximizing the contact between the socket and nut/bolt to preserves fasteners. H suffix = 6-point ring.
OFFSET - Ring head angled at 15°. Open end head angled at 15°.
DIMENSIONS - Metric sizes: 3.2 to 17 mm. Inches: from 3/16 to 11/16.

Full product description

Standards and certifications

This product complies with the following standards and certifications:

ISO 1711-1, ISO 3318, ISO 691, ISO 7738, NF ISO 1711-1, NF ISO 3318, NF ISO 691, NF ISO 7738

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

ACCESSIBILITY - The short handle and compact head allow for high handiness. Ideal for confined access.
OGV® PROFILE - 12-POINTS - Maximizing the contact between the socket and nut/bolt to preserves fasteners. H suffix = 6-point ring.
OFFSET - Ring head angled at 15°. Open end head angled at 15°.
DIMENSIONS - Metric sizes: 3.2 to 17 mm. Inches: from 3/16 to 11/16.

Technical drawing and dimensions

A (mm)

10.00
B (mm)

21.50
E1 (mm)

6.40
E (mm)

5.10
L (mm)

103.00

Documents
