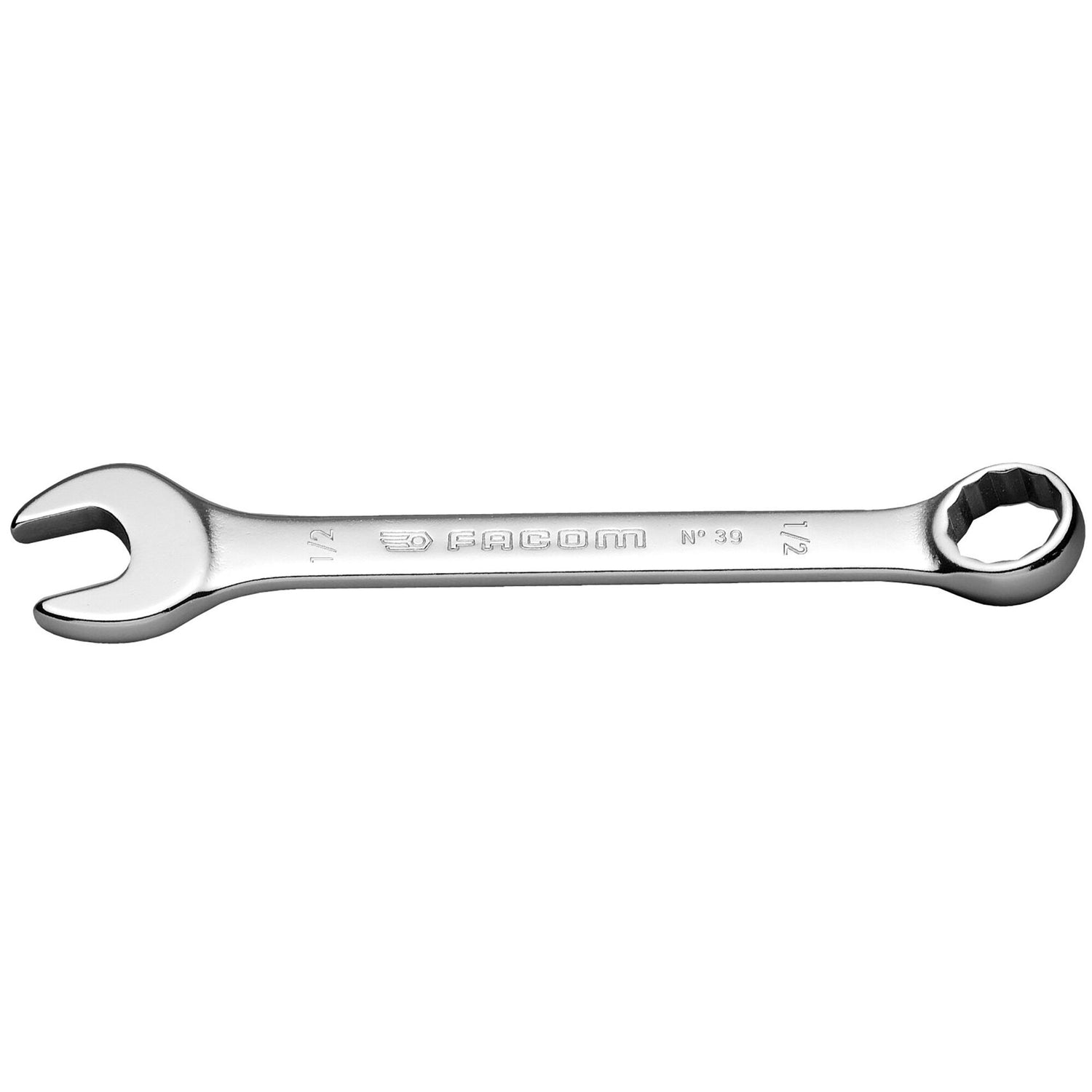

39 - Short Combination Wrenches, 6-Points, Inch

SKU: 39.1/4 - Barcode: 3148510999081

ACCESSIBILITY - The short handle and compact head allow for high handiness. Ideal for confined access.
OGV® PROFILE - 12-POINTS - Maximizing the contact between the socket and nut/bolt to preserves fasteners. H suffix = 6-point ring.
OFFSET - Ring head angled at 15°. Open end head angled at 15°.
DIMENSIONS - Metric sizes: 3.2 to 17 mm. Inches: from 3/16 to 11/16.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.100

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

ACCESSIBILITY - The short handle and compact head allow for high handiness. Ideal for confined access.
OGV® PROFILE - 12-POINTS - Maximizing the contact between the socket and nut/bolt to preserves fasteners. H suffix = 6-point ring.
OFFSET - Ring head angled at 15°. Open end head angled at 15°.
DIMENSIONS - Metric sizes: 3.2 to 17 mm. Inches: from 3/16 to 11/16.

Specifications

Technical drawing and dimensions

		B (mm)	E1 (mm)	E (mm)	L (mm)
39.1/4	[39.1/4] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 1/4 in.	15.00	5.00	4.10	90.00
39.9/32	[39.9/32] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 9/32 in.	15.00	5.00	4.10	90.00
39.5/16	[39.5/16] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 5/16 in.	17.20	5.80	4.50	94.00
39.11/32	[39.11/32] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 11/32 in.	19.40	6.00	4.80	98.00
39.3/8	[39.3/8] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 3/8 in.	21.50	6.40	5.10	103.00
39.7/16	[39.7/16] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 7/16 in.	23.70	6.80	5.30	109.00
39.1/2	[39.1/2] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 1/2 in.	28.00	8.00	5.80	141.00
39.9/16	[39.9/16] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 9/16 in.	30.20	8.50	6.00	147.00
39.5/8	[39.5/8] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 5/8 in.	34.40	9.60	6.70	158.00
39.11/16	[39.11/16] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 11/16 in.	36.50	10.00	6.90	165.00
39.1/8H	[39.1/8H] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 1/8 in.	10.00	3.10	3.10	77.00
39.3/16H	[39.3/16H] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 3/16 in.	11.80	4.00	3.50	82.00
39.5/32H	[39.5/32H] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 5/32 in.	10.00	3.10	3.10	77.00
39.7/32H	[39.7/32H] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 7/32 in.	11.80	4.00	3.50	84.00
