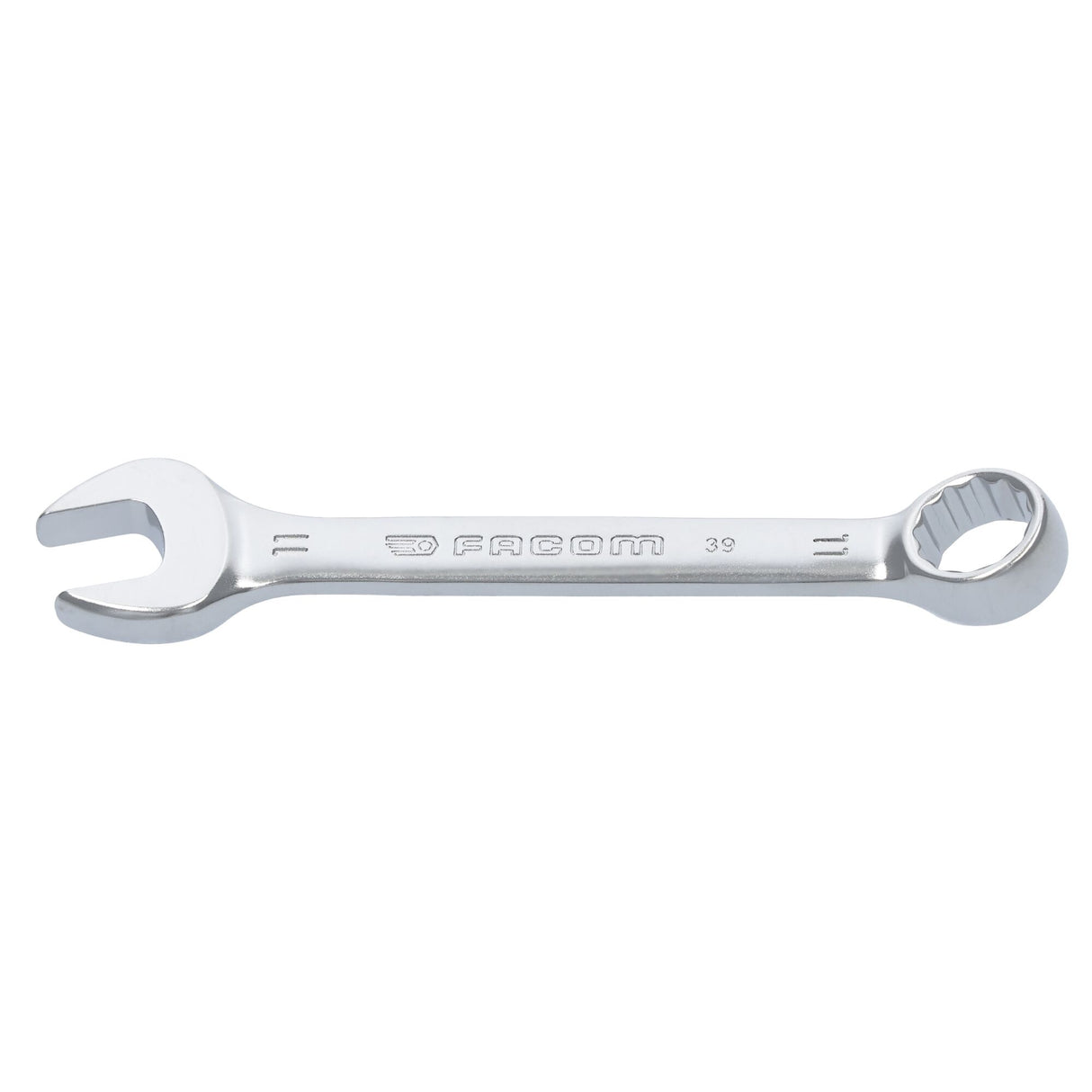

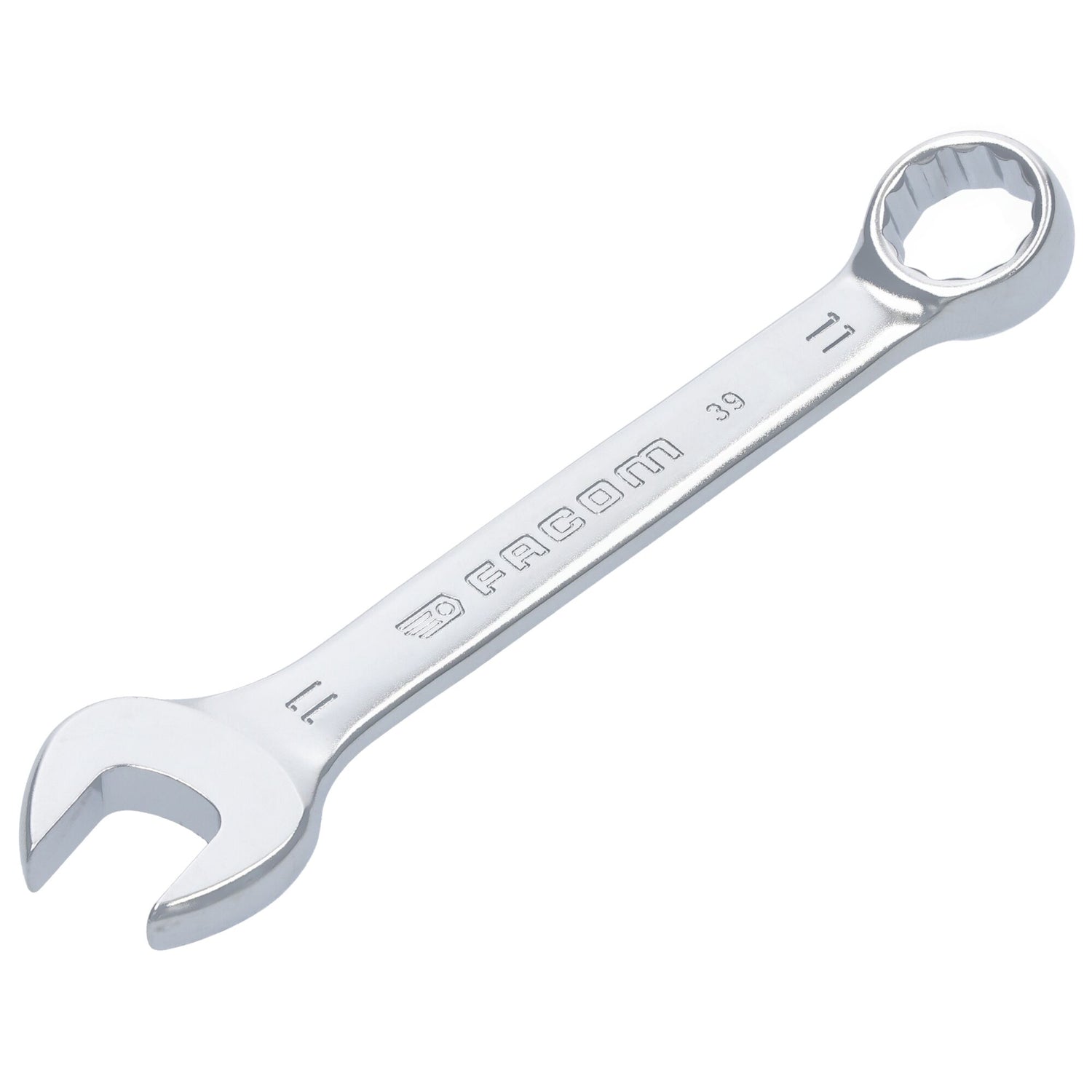

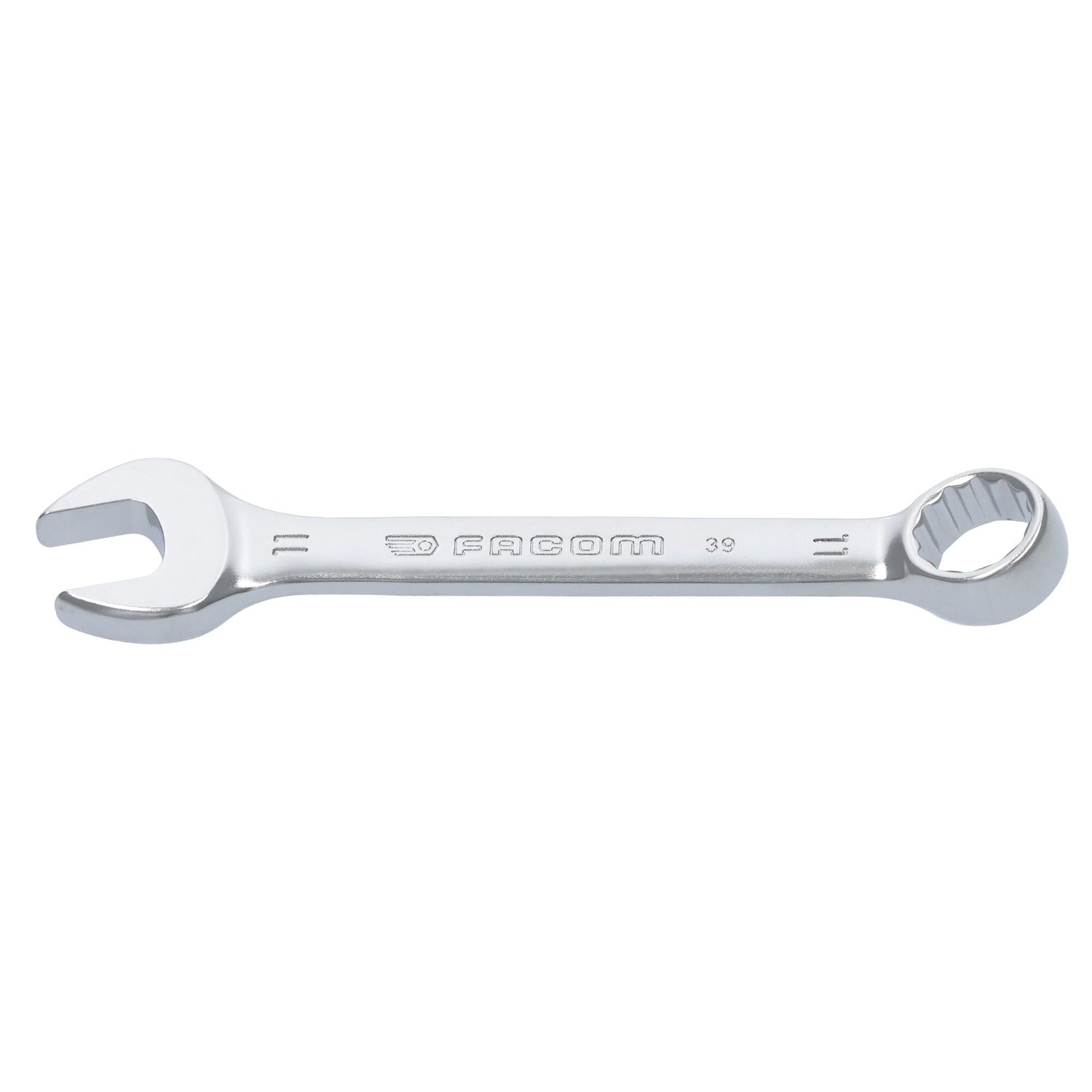

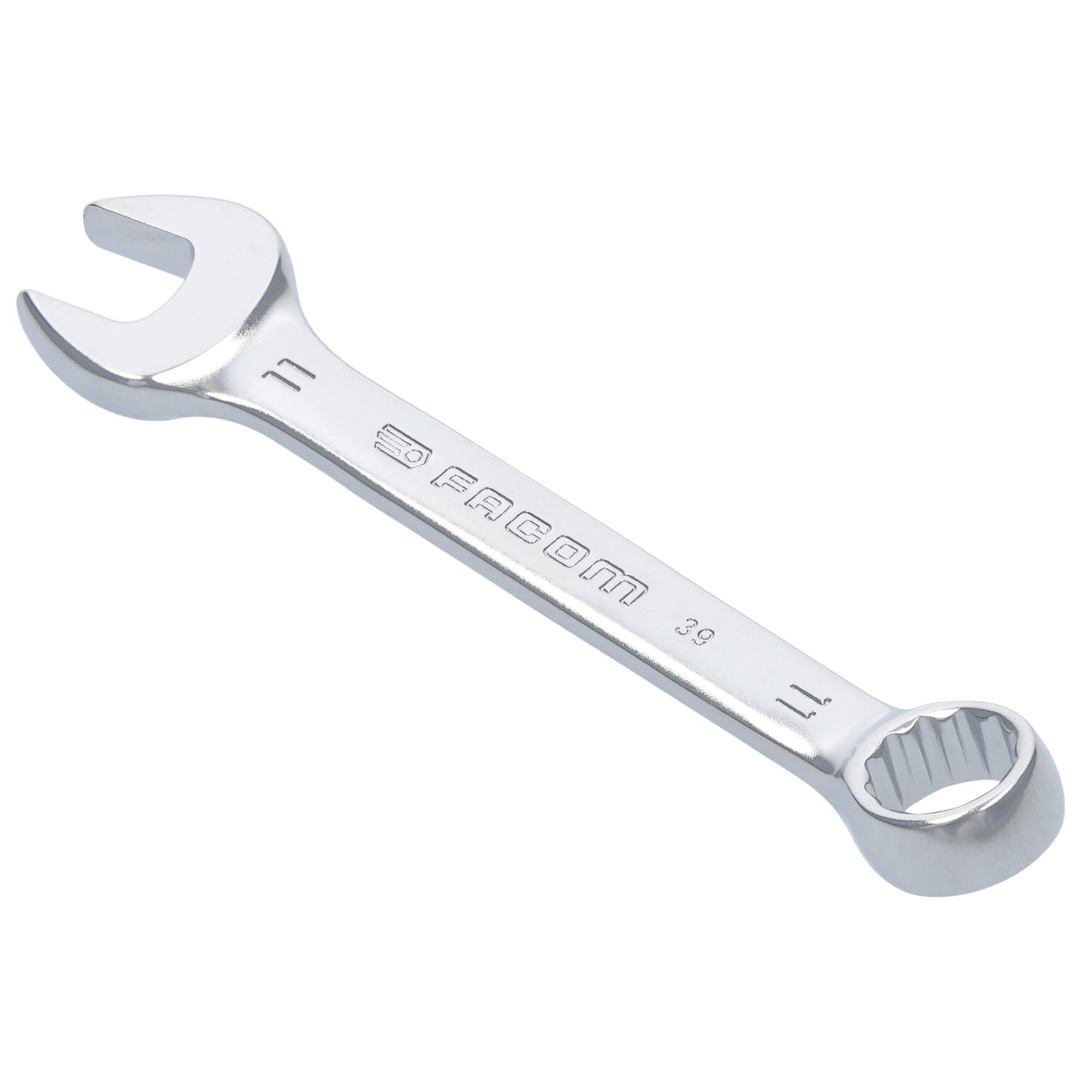

39 - Short Combination Wrenches, 6-Points, Metric

SKU: 39.3.2H - Barcode: 3148510998602

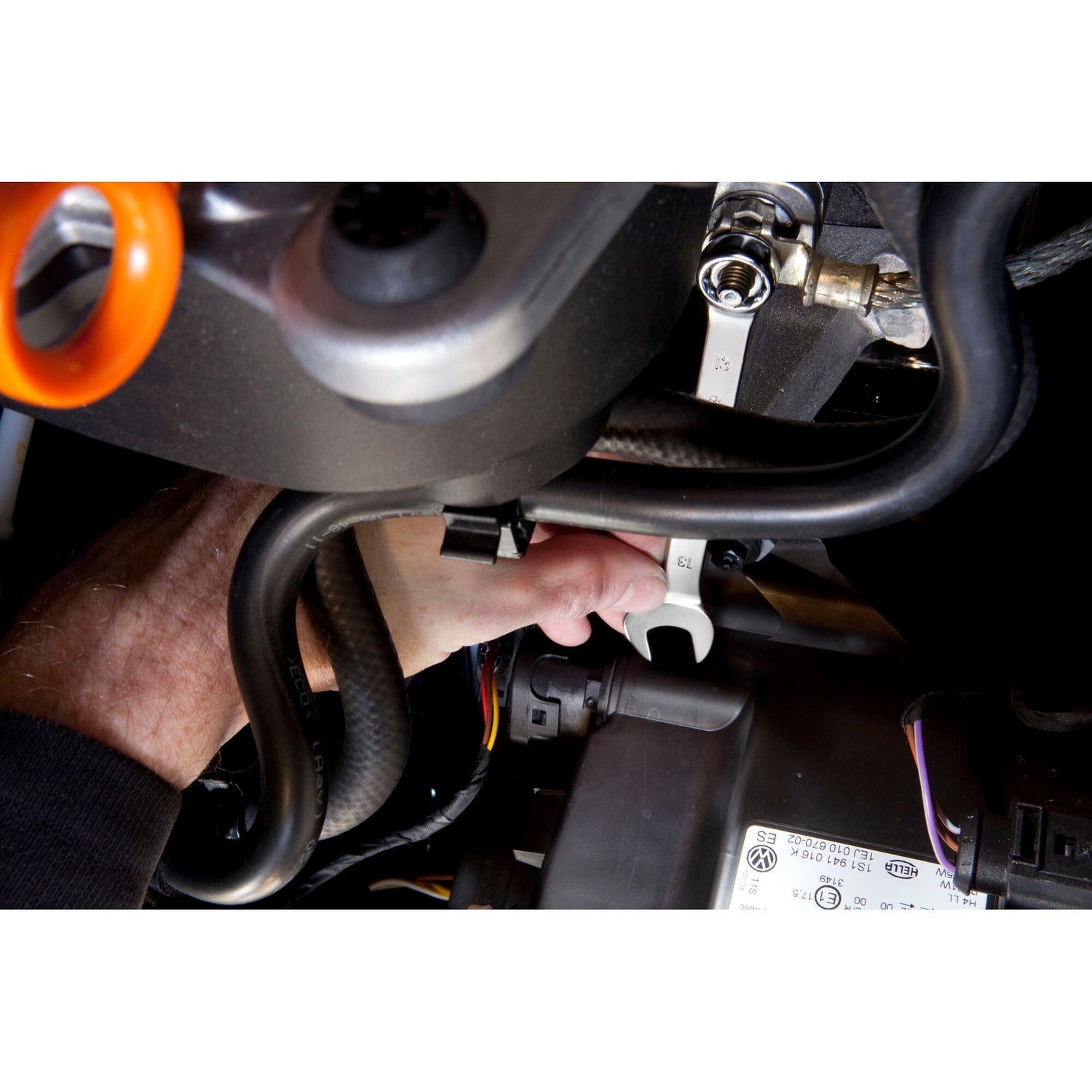

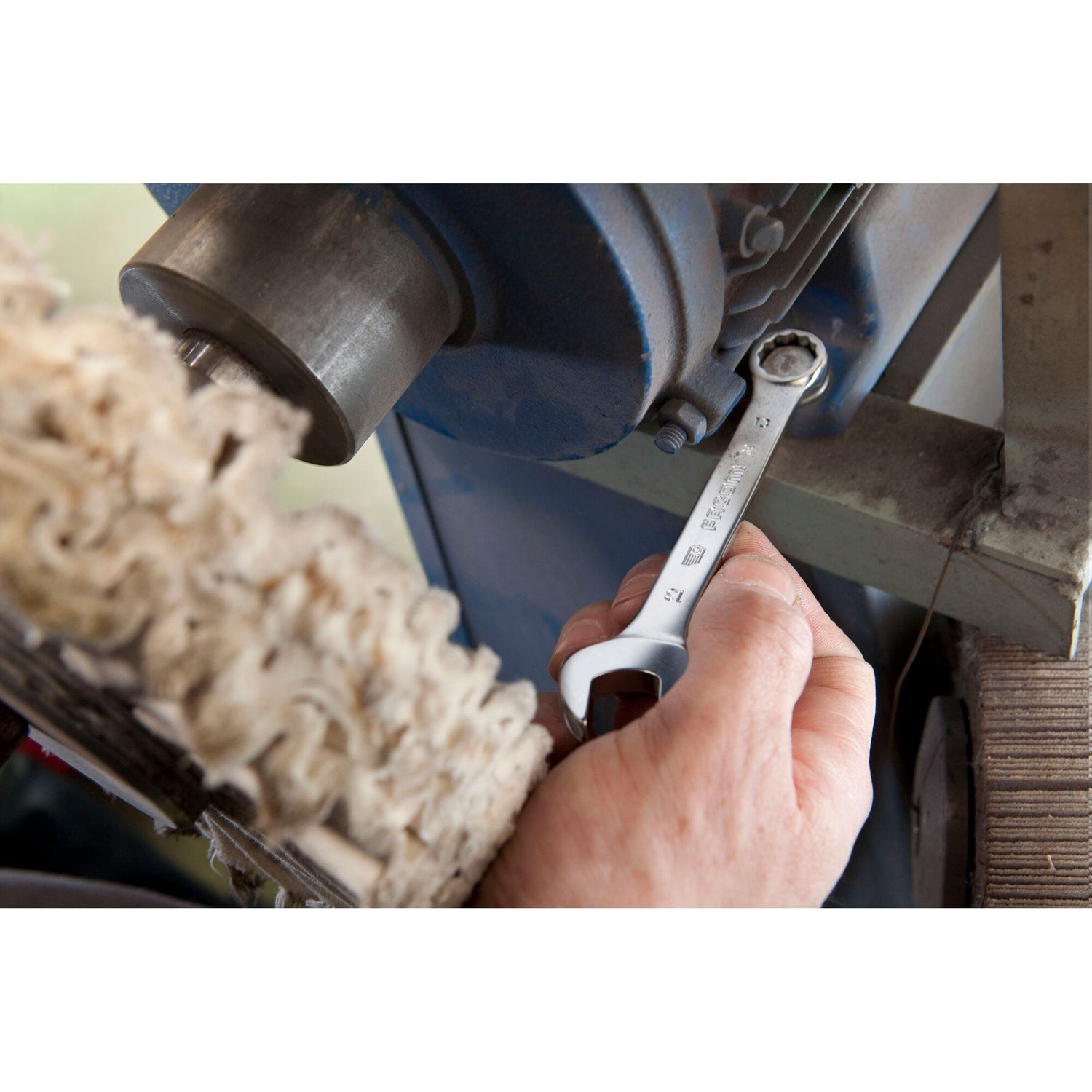

ACCESSIBILITY - The short handle and compact head allow for high handiness. Ideal for confined access.
OGV® PROFILE - 12-POINTS - Maximizing the contact between the socket and nut/bolt to preserves fasteners. H suffix = 6-point ring.
OFFSET - Ring head angled at 15°. Open end head angled at 15°.
DIMENSIONS - Metric sizes: 3.2 to 17 mm. Inches: from 3/16 to 11/16.

Full product description

Standards and certifications

This product complies with the following standards and certifications:

NF ISO 1711-1, NF ISO 3318, NF ISO 691, NF ISO 7738

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

ACCESSIBILITY - The short handle and compact head allow for high handiness. Ideal for confined access.
OGV® PROFILE - 12-POINTS - Maximizing the contact between the socket and nut/bolt to preserves fasteners. H suffix = 6-point ring.
OFFSET - Ring head angled at 15°. Open end head angled at 15°.
DIMENSIONS - Metric sizes: 3.2 to 17 mm. Inches: from 3/16 to 11/16.

Specifications

Technical drawing and dimensions

		A (mm)	B (mm)	E1 (mm)	E (mm)	L (mm)
39.3.2H	[39.3.2H] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 3,2 mm	3.20	10.00	3.10	3.10	77.00
39.4H	[39.4H] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 4 mm	4.00	10.00	3.10	3.10	77.00
39.5.5H	[39.5.5H] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 5.5 mm	5.50	11.80	4.00	3.50	84.00
39.5H	[39.5H] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 5 mm	5.00	11.80	4.00	3.50	82.00
39.6	[39.6] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 6 mm	6.00	15.00	5.00	4.10	90.00
39.7	[39.7] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 7 mm	7.00	15.00	5.00	4.10	90.00
39.8	[39.8] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 8 mm	8.00	17.20	5.80	4.50	94.00
39.9	[39.9] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 9 mm	9.00	19.40	6.00	4.80	98.00
39.11	[39.11] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 11 mm	11.00	23.70	6.80	5.30	109.00
39.12	[39.12] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 12 mm	12.00	26.00	7.50	5.50	127.00
39.13	[39.13] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 13 mm	13.00	28.00	8.00	5.80	141.00
39.14	[39.14] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 14 mm	14.00	30.20	8.50	6.00	147.00
39.15	[39.15] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 15 mm	15.00	32.30	9.00	6.40	152.00
39.16	[39.16] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 16 mm	16.00	34.40	9.60	6.70	158.00
39.17	[39.17] COMBINATION WRENCH - 39 - Short Handle - Compact Head - 17 mm	17.00	36.50	10.00	6.90	165.00
