395 - Diagonal plastics cutters
SKU:
395.14

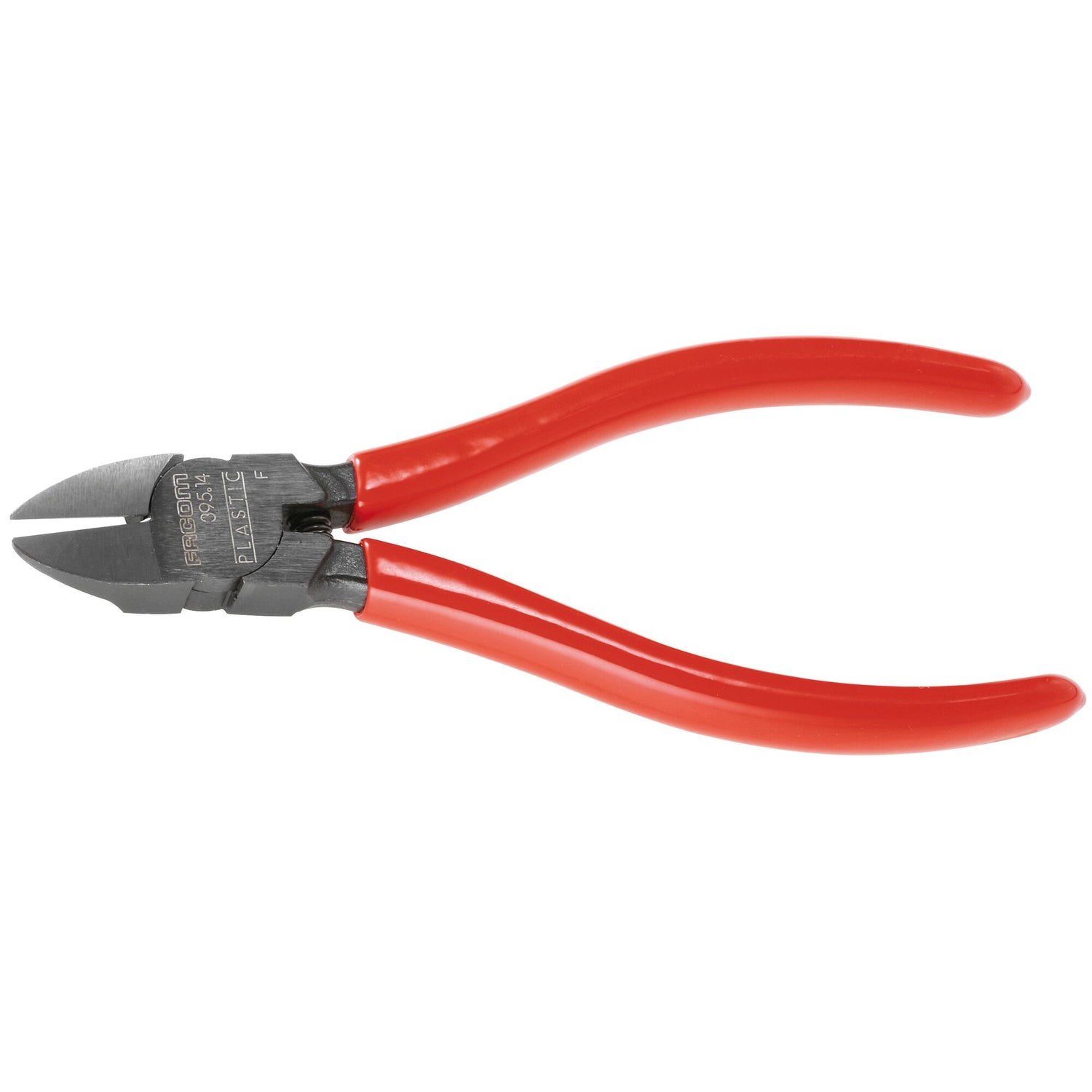

395 - Diagonal plastics cutters - [395.14] Diagonal plastics cutters, 140 mm is backordered and will ship as soon as it is back in stock.
Standards and certifications
Standards and certifications
This product complies with the following standards and certifications:
ASME B107.500, ISO 5749
Click here to learn more about the different standards and certifications.
Warranty
Warranty
This product is: Lifetime warranty on the tool (replacement)
Click here to learn more about our warranties.
Description
Description
Specifications
Specifications
- Attache pour travail en hauteurOui
- Bec coudé15°
- Épaisseur10 mm
- Hauteur du produit20 mm
- Isolation électrique 1000 VNon
- Largeur de la tête16
- Longueur du produit140 mm
- Largeur du produit16 mm
- Matériaux adaptésPlastique
- Poids net0.115 Kg
- Type de poignéePVC trempé
- Type de pincesPince coupante diagonale
Technical drawing and dimensions
Technical drawing and dimensions
| B (mm) | C (mm) | D max (mm) | E (mm) | L (mm) | |||
|---|---|---|---|---|---|---|---|
| 395.14 | [395.14] Diagonal plastics cutters, 140 mm | 16.00 | 20.00 | 6.00 | 10.00 | 140.00 | |
| 395.16 | [395.16] 160mm Diagonal Plastic Cutters | 18.00 | 22.00 | 7.00 | 11.00 | 160.00 |
