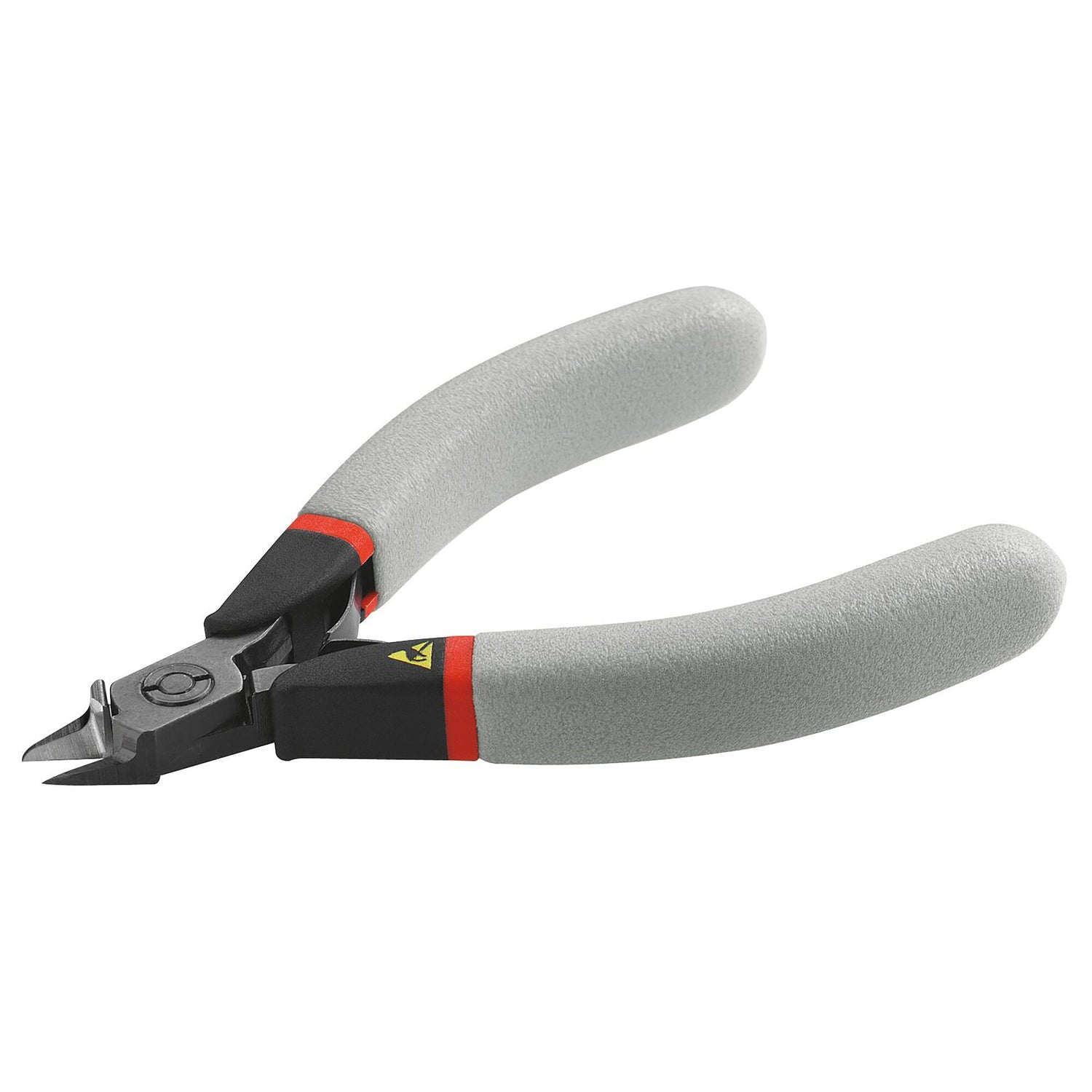

Diagonal Nose Cutting Pliers for DIP - CMS Components ESD

SKU: 417.SPE - Barcode: 3148511755310

Protection of electronic components from risks of electrostatic discharge (ESD).

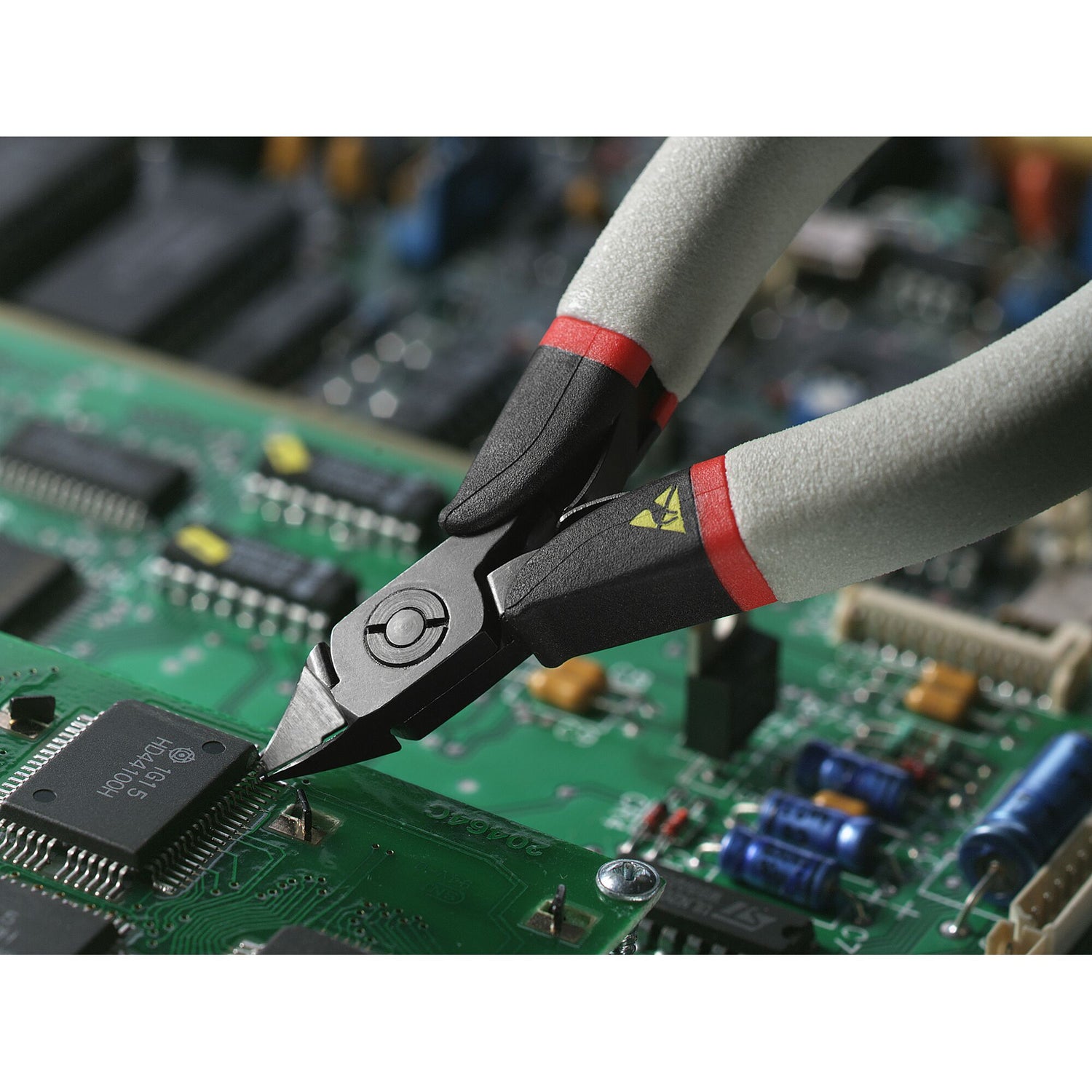

These pliers provide access between two legs of "DIP" components with a 0.65 mm gap. Due to their shape, these pliers can be used only in this configuration.

Full product description

Made in France

This product is Made in France in our factories.

Click here to learn more about Our Factories.

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.500, DIN ISO 9654, ISO 9654, NF ISO 9654

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by the statutory warranty

Click here to learn more about our warranties.

Description

Protection of electronic components from risks of electrostatic discharge (ESD).
These pliers provide access between two legs of "DIP" components with a 0.65 mm gap. Due to their shape, these pliers can be used only in this configuration.

Specifications

AntimagnétiqueNon
Hauteur du produit7 mm
Largeur de la tête10.5
Largeur de la pointe du nez10.5 mm
Longueur du produit110 mm
Largeur du produit10.5 mm
Nombre de pièces1
Poids net0.06 Kg
Résistant aux acidesNon
Type de coupeCoupe par poussée
Type de poignéeAntistatique
Type de tête de PinceCoupe diagonale

Technical drawing and dimensions

B (mm)

10.50
C (mm)

10.50
E (mm)

7.00
L1 (mm)

6.50
L (mm)

1100
