Facom - The Art of Precision since 1918.

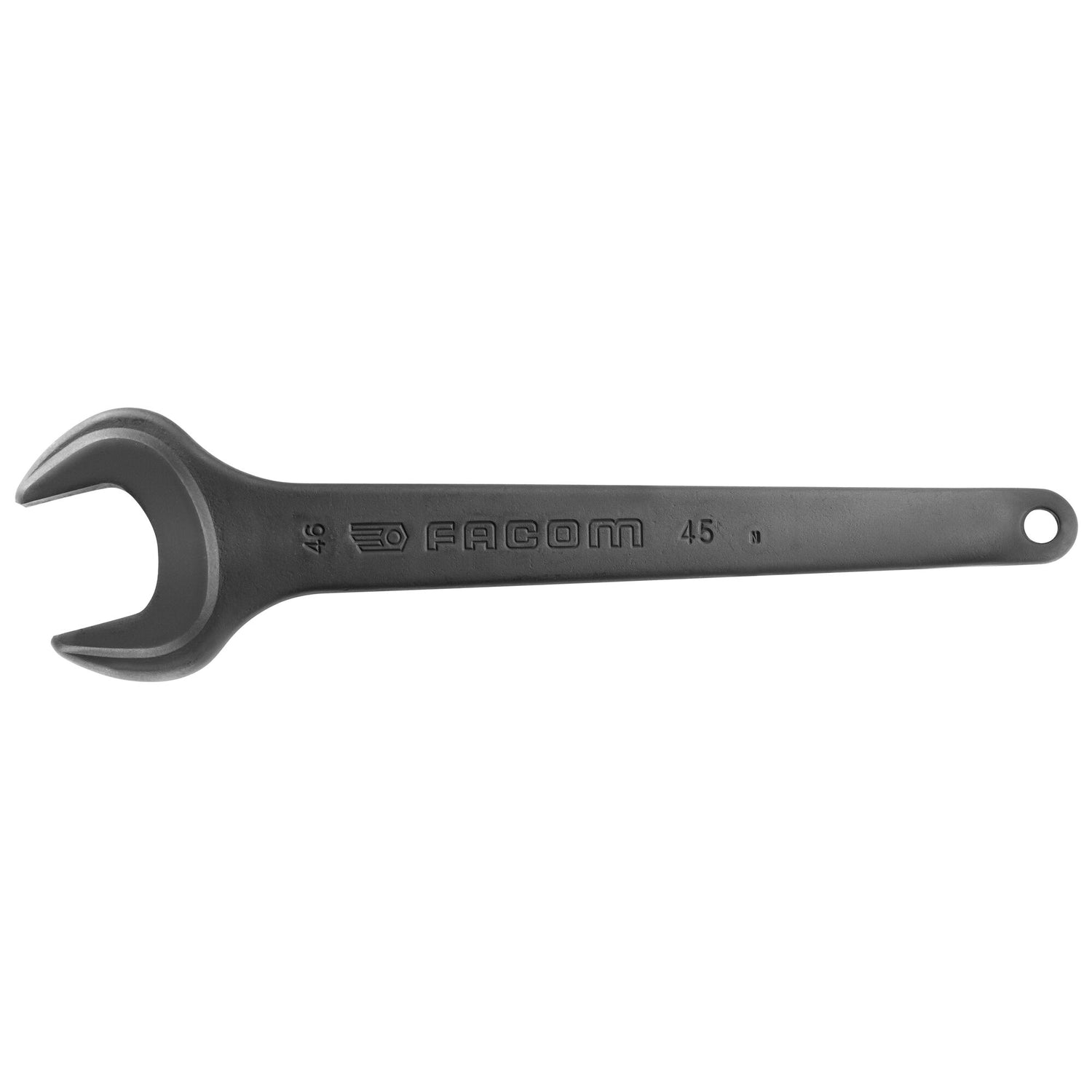

45 - Single Open-End Wrenches

SKU: 45.30  -  Barcode: 3148511051306
  • SINGLE OPEN END - The open end is thicker for very high tightening torques. Examples: public works, rail worksites, naval construction, agriculture, oil platforms, metallic constructions.
  • HANGING HOLE - To be stored on panel or hung to avoid loss or fall.
  • 15° OFFSET - Offers better manoeuvrability and allows you to avoid certain obstacles.
  • DIMENSIONS - Metric sizes: 30 to 75 mm.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

DIN 894, ISO 1711-1, ISO 4229, ISO 691, NF ISO 1711-1, NF ISO 4229, NF ISO 691

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • SINGLE OPEN END - The open end is thicker for very high tightening torques. Examples: public works, rail worksites, naval construction, agriculture, oil platforms, metallic constructions.
  • HANGING HOLE - To be stored on panel or hung to avoid loss or fall.
  • 15° OFFSET - Offers better manoeuvrability and allows you to avoid certain obstacles.
  • DIMENSIONS - Metric sizes: 30 to 75 mm.

Technical drawing and dimensions

A (mm)B (mm)E (mm)L (mm)
45.30 [45.30] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 30 mm 30.0066.0012.00240.00
45.32 [45.32] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 32 mm 32.0071.5013.00270.00
45.34 [45.34] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 34 mm 34.0071.5013.00270.00
45.36 [45.36] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 36 mm 36.0079.5014.50296.00
45.38 [45.38] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 38 mm 38.0079.5014.50296.00
45.41 [45.41] HEAVY-DUTY WRENCH - 45 - 41mm 15° Angled Single Open End 41.0090.5017.50335.00
45.46 [45.46] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 46 mm 46.0095.5018.00370.00
45.50 [45.50] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 50 mm 50.00106.5019.50410.00
45.55 [45.55] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 55 mm 55.00106.5019.50410.00
45.60 [45.60] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 60 mm 60.00121.5021.50488.00
45.65 [45.65] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 65 mm 65.00121.5021.50488.00
45.70 [45.70] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 70 mm 70.00153.0024.00595.00
45.75 [45.75] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 75 mm 75.00153.0024.00595.00

Documents

45 - Single Open-End Wrenches

References available

  • [45.30] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 30 mm
  • [45.32] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 32 mm
  • [45.34] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 34 mm
  • [45.36] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 36 mm
  • [45.38] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 38 mm
  • [45.41] HEAVY-DUTY WRENCH - 45 - 41mm 15° Angled Single Open End
  • [45.46] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 46 mm
  • [45.50] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 50 mm
  • [45.55] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 55 mm
  • [45.60] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 60 mm
  • [45.65] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 65 mm
  • [45.70] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 70 mm
  • [45.75] HEAVY-DUTY WRENCH - 45 - Single Open End - 15° Angled - 75 mm

Lieu de fabrication

N/A

Normes & certifications

DIN 894, ISO 1711-1, ISO 4229, ISO 691, NF ISO 1711-1, NF ISO 4229, NF ISO 691

Période de garantie

Lifetime warranty on the tool (replacement)
