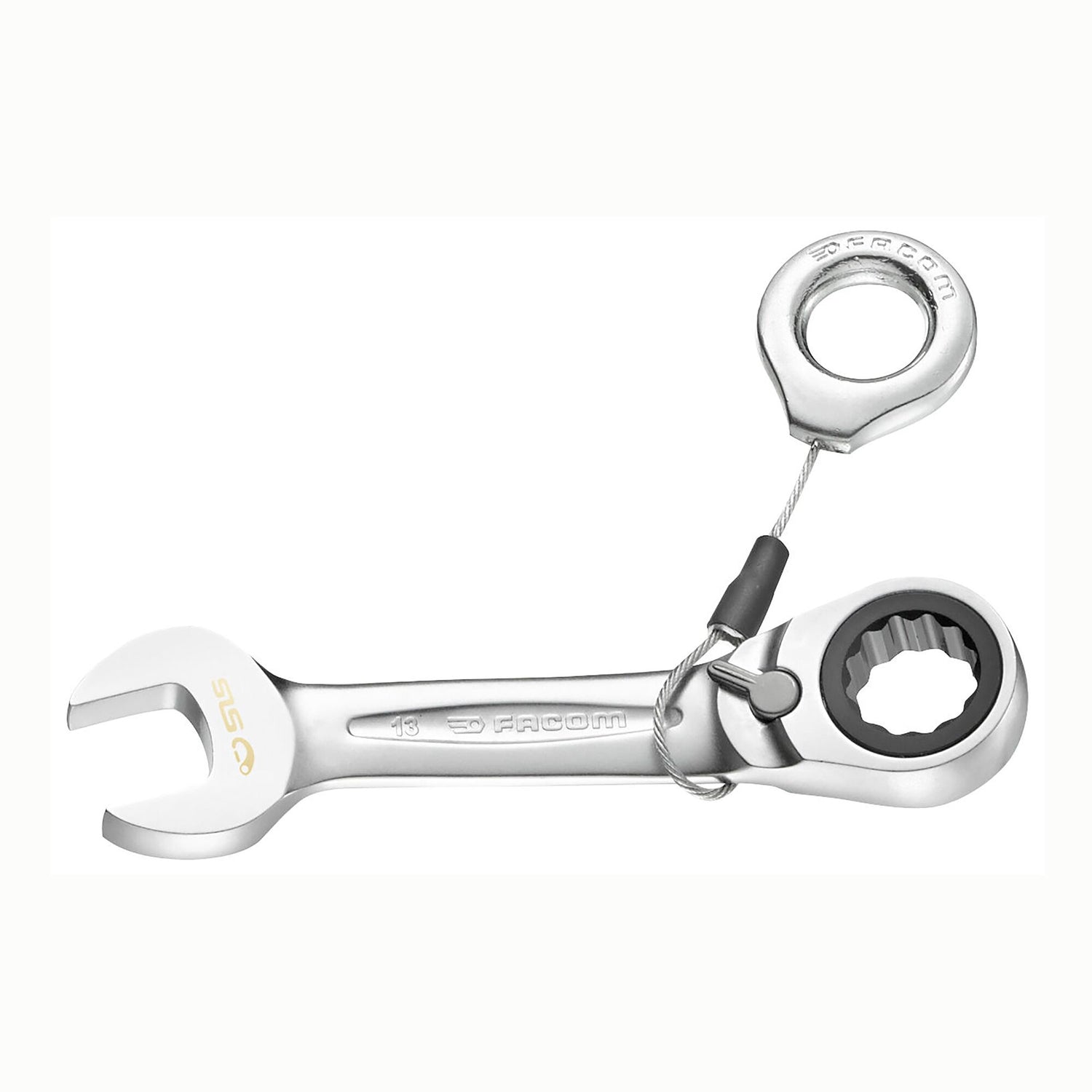

467S.SLS - Short metric ratchet combination wrenches

SKU: 467S.7SLS - Barcode: 3662424028892

Tool equipped with a FACOM SLS attachment solution, preventing any risk of accidental falls.The crimped "sliding" cable solution, selected and tested by FACOM, maintains user ergonomics (8 - 30 mm wrenches).Extra-short handle ratchet combination wrenches: ideal in inaccessible areas.Compact ratchet mechanism and reversible by lever.
Increment 5° (6° for dimension 7, 8 and 9 mm).
Ring head angled at 15°.
Open end head angled at 15°.
Metric size: 10mm.
Presentation: satin chrome finish.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.100, ISO 1711-1, ISO 21982, ISO 691, NF ISO 1711-1, NF ISO 691

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Tool equipped with a FACOM SLS attachment solution, preventing any risk of accidental falls.The crimped "sliding" cable solution, selected and tested by FACOM, maintains user ergonomics (8 - 30 mm wrenches).Extra-short handle ratchet combination wrenches: ideal in inaccessible areas.Compact ratchet mechanism and reversible by lever.
Increment 5° (6° for dimension 7, 8 and 9 mm).
Ring head angled at 15°.
Open end head angled at 15°.
Metric size: 10mm.
Presentation: satin chrome finish.

Specifications

Technical drawing and dimensions

		A (mm)	B1 (mm)	B (mm)	C (mm)	E1 (mm)	E2 (mm)	E (mm)	L (mm)
467S.7SLS	[467S.7SLS] 7mm Short Ratchet Combination Wrench, Safety Lock System	7.00	16.80	18.60	7.60	6.50	3.10	4.60	90.50
467S.8SLS	[467S.8SLS] 8mm Short Ratchet Combination Wrench, Safety Lock System	8.00	16.80	18.60	7.60	6.50	3.10	4.60	90.50
467S.10SLS	[467S.10SLS] 10mm Short Ratchet Combination Wrench, Safety Lock System	10.00	20.20	22.70	9.00	7.30	3.60	5.10	95.50
467S.11SLS	[467S.11SLS] Short ratchet combination wrench metric 11 mm Safety Lock System	11.00	22.00	23.70	9.20	7.70	3.70	5.20	103.50
467S.12SLS	[467S.12SLS] 12mm Short Ratchet Combination Wrench, Safety Lock System	12.00	23.20	26.80	10.00	8.20	4.00	5.40	106.50
467S.13SLS	[467S.13SLS] Short ratchet combination wrench metric 13 mm Safety Lock System	13.00	25.30	28.40	10.10	8.60	4.50	5.70	108.50
467S.14SLS	[467S.14SLS] 14mm Short Ratchet Combination Wrench, Safety Lock System	14.00	27.00	30.80	11.30	9.00	4.50	5.90	115.50
467S.15SLS	[467S.15SLS] 15mm Short Ratchet Combination Wrench, Safety Lock System	15.00	28.30	32.30	11.80	9.40	4.70	6.10	119.50
467S.16SLS	[467S.16SLS] 16mm Short Ratchet Combination Wrench, Safety Lock System	16.00	30.00	34.90	12.30	9.90	5.30	6.60	123.50
467S.17SLS	[467S.17SLS] 17mm Short Ratchet Combination Wrench, Safety Lock System	17.00	31.70	36.80	13.10	10.30	5.40	6.60	127.50
