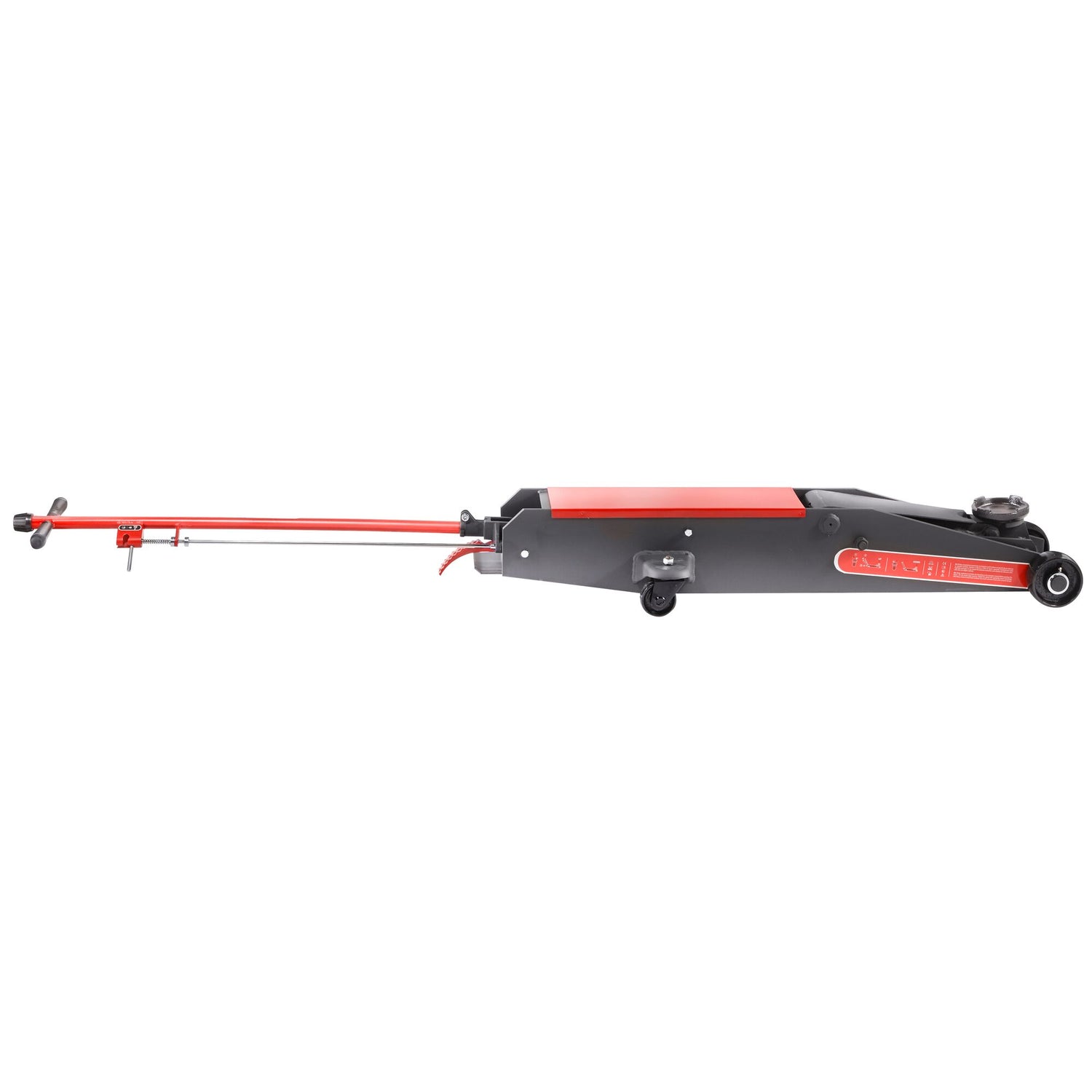

5 t rolling jack

SKU: DL.PL5 - Barcode: 3662424081279

Load capacity: 5 t.
Maximum lifting height: 685 mm.
Minimum height under body: 150 mm.

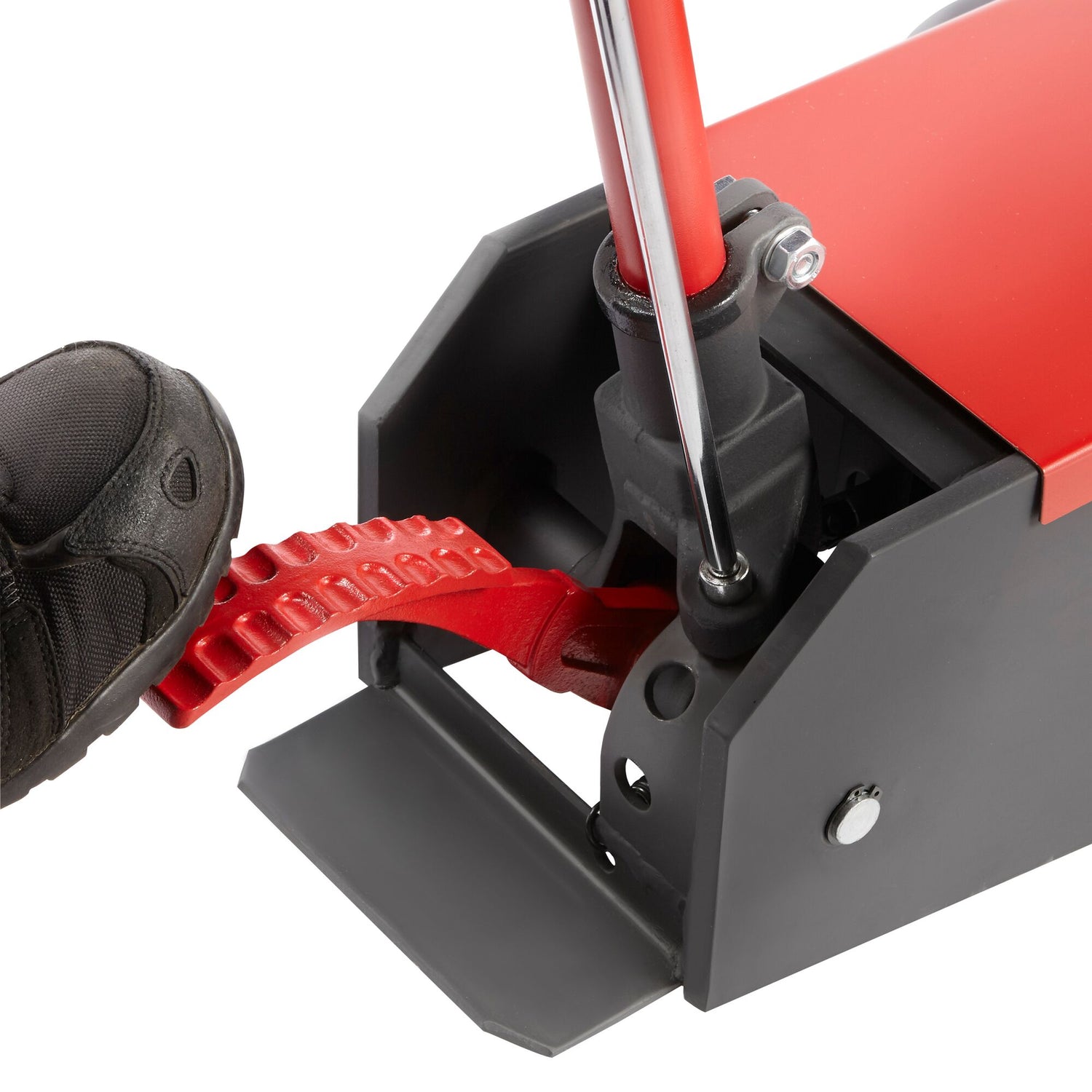

Fast foot lifting.
Handle adjustable in 3 positions 90, 135, 180 degrees.
Overload valve.
CE Compliance Standard EN1494+A1.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

EN 1494, EN1494+A1, MSD 2006/42/CE

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Load capacity: 5 t.
Maximum lifting height: 685 mm.
Minimum height under body: 150 mm.
Fast foot lifting.
Handle adjustable in 3 positions 90, 135, 180 degrees.
Overload valve.
CE Compliance Standard EN1494+A1.

Specifications

Appareil connectéNon
Bluetooth®Non
Conformité ECNon
Capacité de levage5 t
Charge maximale du châssis685 mm
Charge maximale50000 Kg
Diamètre685 mm
Empreinte au sol150 mm
Hauteur maximale1153 mm
Hauteur du produit200 mm
Longueur du produit1506 mm
Largeur du produit150 mm
Marquage CEOui
MatériauAcier
Nombre de pièces1
Nombre de roues4
Presse d’établiNon
Pour poids lourds-véhicules industrielsOui
Poids lourds-véhicules industrielsOui
Poids net89 Kg
Rangement des outilsNon
Surface magnétiséeNon
Source d’alimentationPneumatique
Type de fonctionHydraulique
Type de presses hydrauliquesPresses hydrauliques
Usage intensifOui
VoitureNon

Spare parts

SADDLE - 1004733-89
SPRING - 1004733-90
PEDAL - 1004733-92
SPRING - 1004733-94
WHEEL - 1004734-31
WHEEL REAR - 1004734-32
SPRING - 1004734-33
HANDLE - 1004734-34
SOCKET - 1004734-35
RAM SA - 1004734-36
COVERPLATE - 1004734-37
KNOB - 1004734-38
SEALS KIT - 1004734-39

Documents

User Guide
