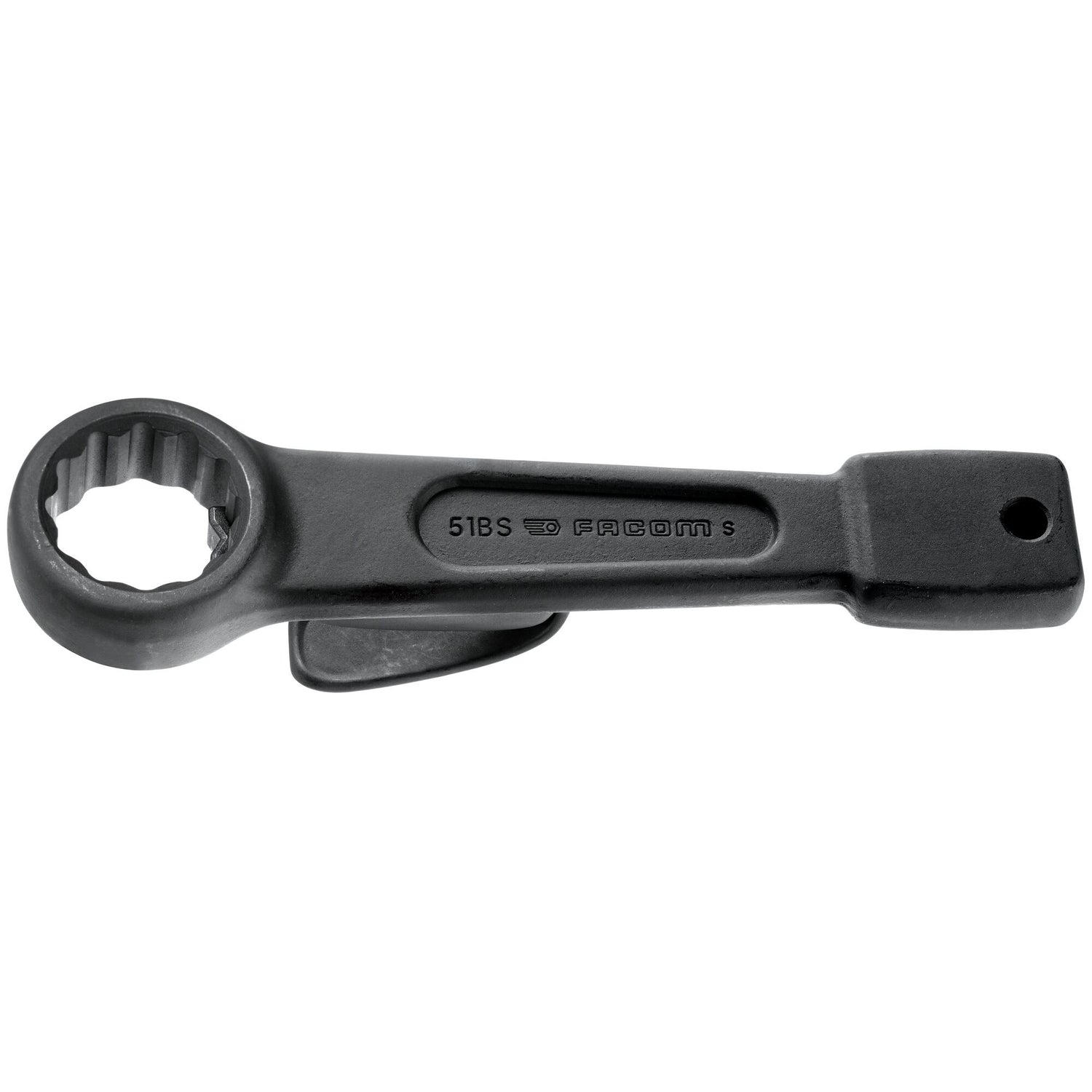

51BS - Safety slogging wrenches, metric

SKU: 51BS.24 - Barcode: 3662424013676

HEAVY APPLICATIONS - Use with a sledgehammer or pneumatic hammer for heavy mechanical (un)blocking.
HIGH PERFORMANCE - Wrenches forged in resilient steel to withstand impact. Designed to handle high levels of torque.

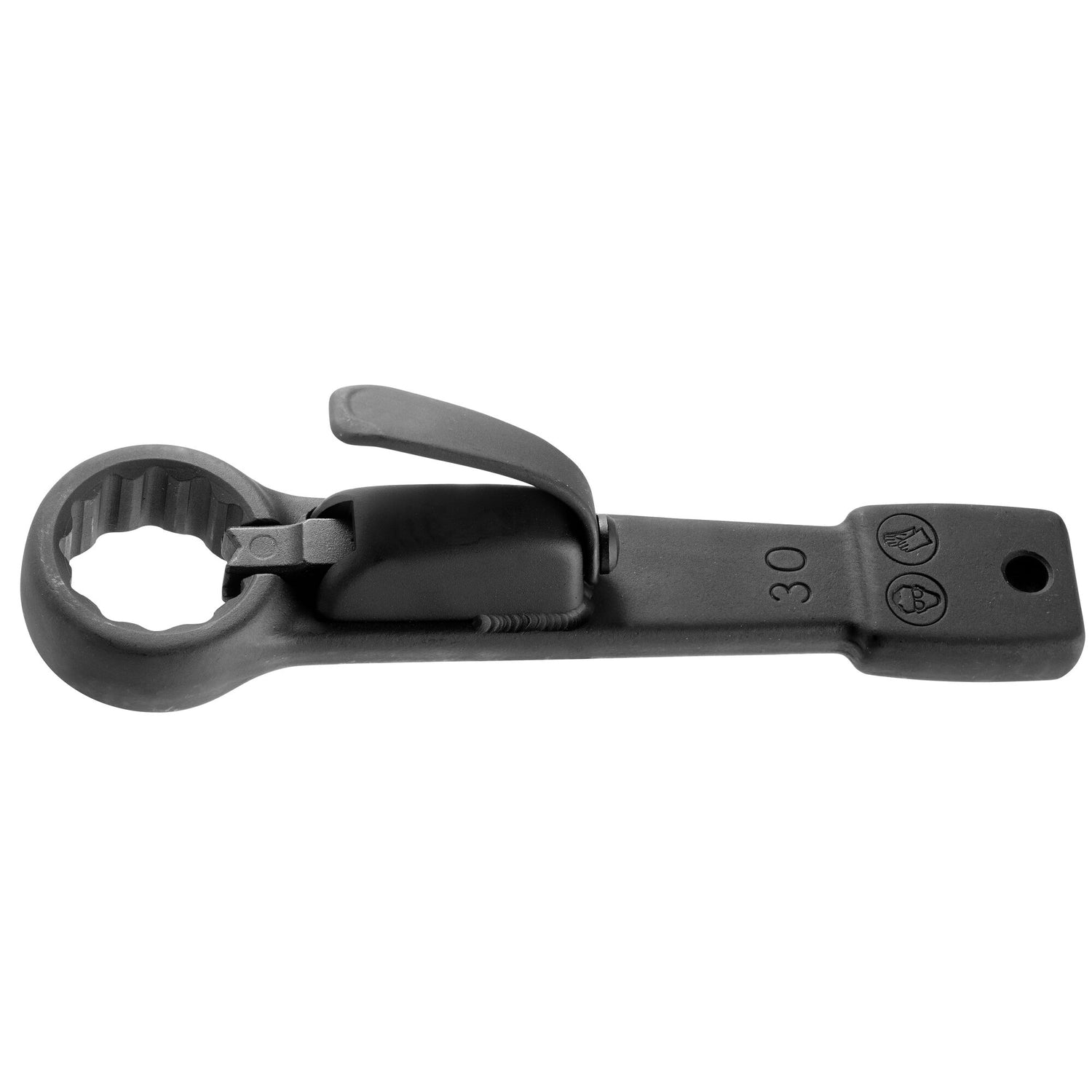

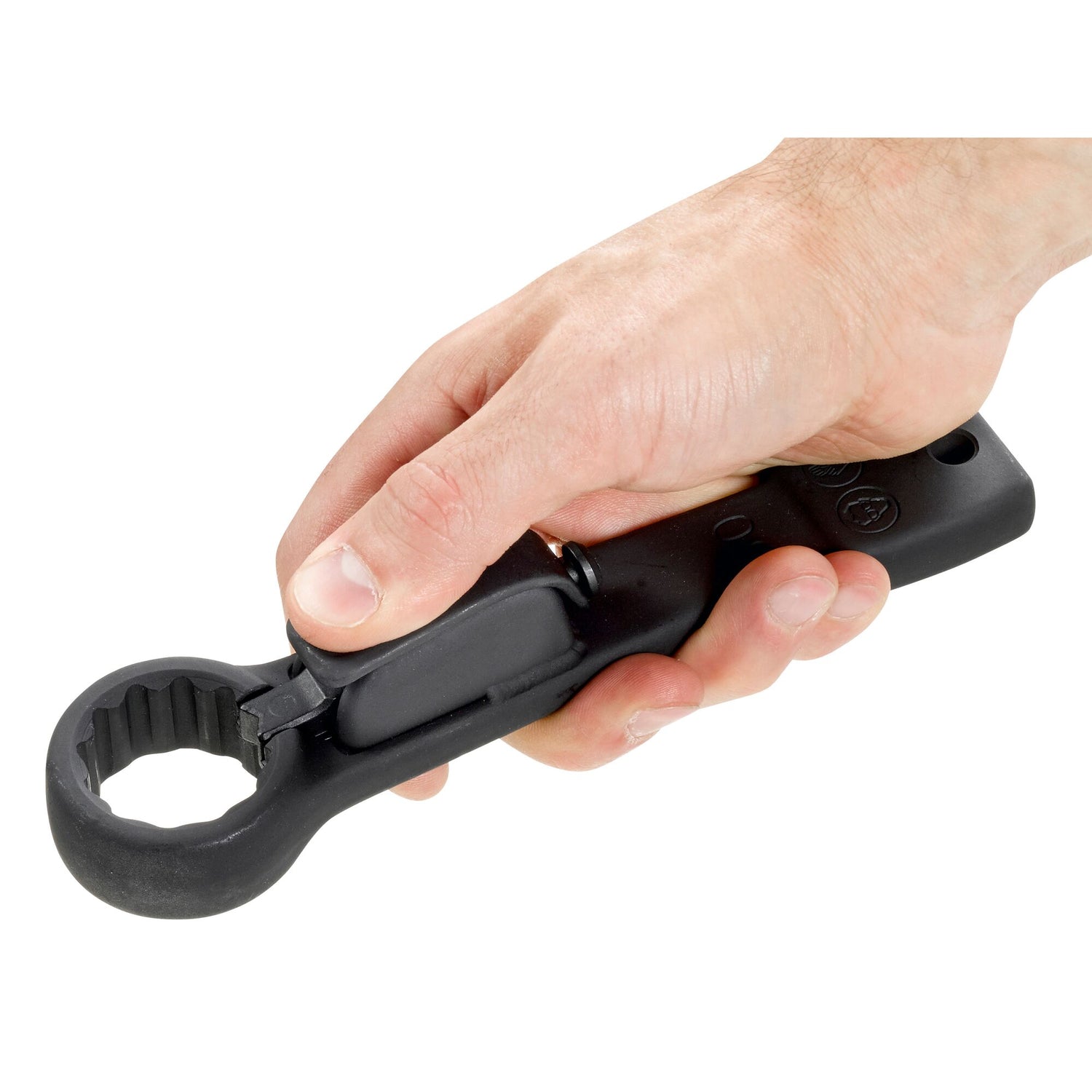

LOCKING SYSTEM - Patented mechanism to lock the wrench on the screw. Innovative & Easy to use unlock trigger. No need to hold the wrench when striking=no risk of injuries, maximum security.
SAFETY - Long handle that allows you to apply force at a safe distance from the nut or bolt. This reduces the risk of injury due to the sudden release of energy when a fastener breaks loose.
DIMENSIONS - Metric dimensions: 24 to 80 mm.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

DIN 7444

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

HEAVY APPLICATIONS - Use with a sledgehammer or pneumatic hammer for heavy mechanical (un)blocking.
HIGH PERFORMANCE - Wrenches forged in resilient steel to withstand impact. Designed to handle high levels of torque.
LOCKING SYSTEM - Patented mechanism to lock the wrench on the screw. Innovative & Easy to use unlock trigger. No need to hold the wrench when striking=no risk of injuries, maximum security.
SAFETY - Long handle that allows you to apply force at a safe distance from the nut or bolt. This reduces the risk of injury due to the sudden release of energy when a fastener breaks loose.
DIMENSIONS - Metric dimensions: 24 to 80 mm.

Specifications

AntidéflagrantNon
AttachéOui
FinitionPhosphate
Isolation 1000VNon
Largeur de la tête45
Longueur du produit180 mm
Poids net0.51 Kg

Technical drawing and dimensions

		A (mm)	B (mm)	E1 (mm)	E (mm)	L (mm)
51BS.24	[51BS.24] SLOGGING RING WRENCH - 51BS - Safety Locking System - 12 Points - 24 mm	24.00	45.00	32.50	19.50	180.00
51BS.27	[51BS.27] SLOGGING RING WRENCH - 51BS - Safety Locking System - 12 Points - 27 mm	27.00	45.00	32.50	19.50	180.00
51BS.30	[51BS.30] SLOGGING RING WRENCH - 51BS - Safety Locking System - 12 Points - 30 mm	30.00	48.00	33.80	21.00	195.00
51BS.32	[51BS.32] SLOGGING RING WRENCH - 51BS - Safety Locking System - 12 Points - 32 mm	32.00	51.00	34.20	21.50	195.00
51BS.36	[51BS.36] SLOGGING RING WRENCH - 51BS - Safety Locking System - 12 Points - 36 mm	36.00	59.00	37.20	25.00	205.00
51BS.41	[51BS.41] SLOGGING RING WRENCH - 51BS - Safety Locking System - 12 Points - 41 mm	41.00	62.00	37.20	26.00	231.00
51BS.46	[51BS.46] SLOGGING RING WRENCH - 51BS - Safety Locking System - 12 Points - 46 mm	46.00	71.00	39.00	28.00	240.00
51BS.50	[51BS.50] SLOGGING RING WRENCH - 51BS - Safety Locking System - 12 Points - 50 mm	50.00	75.00	41.00	31.00	255.00
51BS.55	[51BS.55] SLOGGING RING WRENCH - 51BS - Safety Locking System - 12 Points - 55 mm	55.00	80.00	47.50	35.00	270.00
51BS.60	[51BS.60] SLOGGING RING WRENCH - 51BS - Safety Locking System - 12 Points - 60 mm	60.00	85.00	49.50	38.00	280.00
51BS.65	[51BS.65] SLOGGING RING WRENCH - 51BS - Safety Locking System - 12 Points - 65 mm	65.00	93.00	48.00	41.00	300.00
51BS.70	[51BS.70] SLOGGING RING WRENCH - 51BS - Safety Locking System - 12 Points - 70 mm	70.00	102.00	58.00	43.00	320.00
51BS.75	[51BS.75] SLOGGING RING WRENCH - 51BS - Safety Locking System - 12 Points - 75 mm	75.00	108.00	60.00	48.00	330.00
