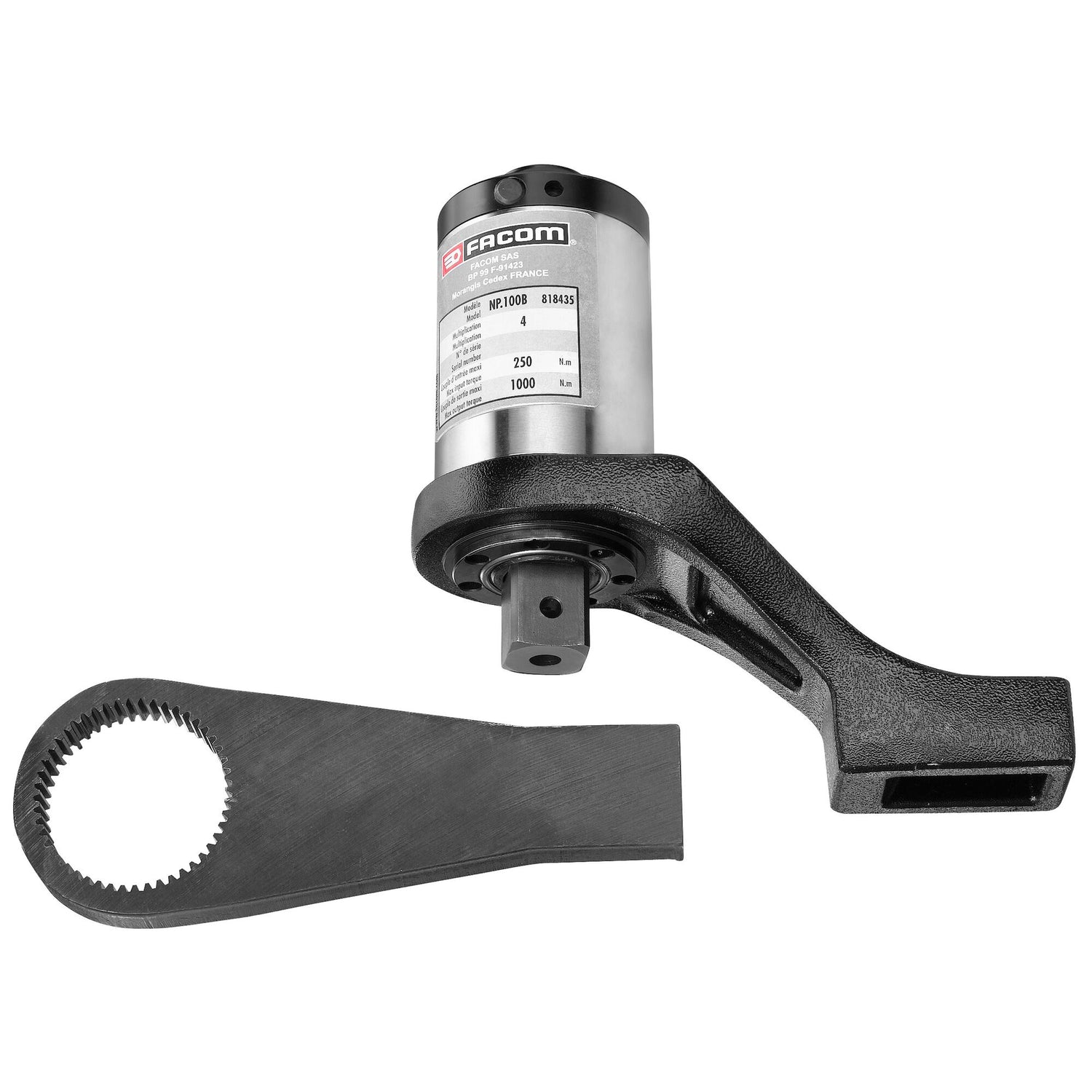

600Nm Torque Multiplier Set

SKU: NP.100B  -  Barcode: 3148518184359
  • TIGHTENING: Powerful tightening and untightening without external energy source.
  • RATIO: Constant multiplication ratio, 27:1.
  • SAFETY: Input torque limiter.
  • SOFTWARE: Non-return system.
  • CONTENTS: Supplied with 2 reaction arms (straight and angled) and one spare drive square.
  • CERTIFICATION: Supplied with compliance certificate.
Full product description
Reference comparison

Warranty

This product is: This product is covered by a 3-year warranty

Click here to learn more about our warranties.

Description
  • TIGHTENING: Powerful tightening and untightening without external energy source.
  • RATIO: Constant multiplication ratio, 27:1.
  • SAFETY: Input torque limiter.
  • SOFTWARE: Non-return system.
  • CONTENTS: Supplied with 2 reaction arms (straight and angled) and one spare drive square.
  • CERTIFICATION: Supplied with compliance certificate.

Specifications
  • Diamètre72 mm
  • Hauteur du produit165 mm
  • Largeur de la tête165
  • Poids net3 Kg
  • Taille de la douille174 mm

Technical drawing and dimensions

A (mm)B (mm)C (mm)
NP.100B [NP.100B] 100Nm Torque Multi-Plier Set 174.00165.00218.00
NP.200B [NP.200B] 200Nm Torque Multiplier Set 174.00165.00218.00
NP.300B [NP.300B] 300Nm Torque Multiplier Set 224.00141.00285.00
NP.600B [NP.600B] 600Nm Torque Multiplier Set 271.00154.00351.00

Documents
User Guide

600Nm Torque Multiplier Set

References available

  • [NP.100B] 100Nm Torque Multi-Plier Set
  • [NP.200B] 200Nm Torque Multiplier Set
  • [NP.300B] 300Nm Torque Multiplier Set
  • [NP.600B] 600Nm Torque Multiplier Set

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

This product is covered by a 3-year warranty
