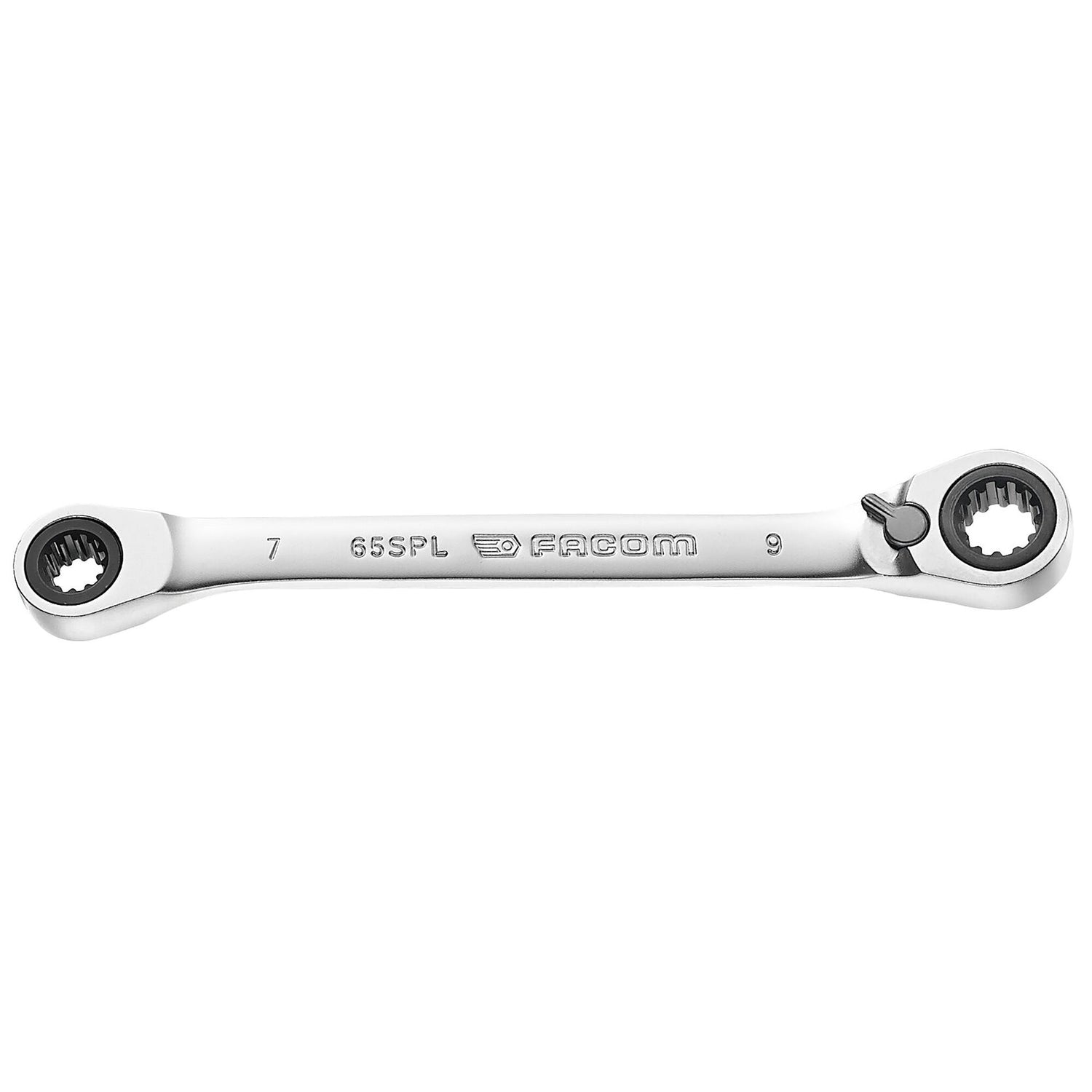

65 - 15° double box-end ratchet wrenches, inch

SKU: 65.7X9SPL  -  Barcode: 3662424019869
  • 15° OFFSET - Offers better manoeuvrability and allows you to avoid certain obstacles.
  • ACCESS & SPEED - Compact Ratchet Mechanism, Reversible by Lever.
  • 5° ARC SWING - For the full range except 6mm (7,5°) and 7-8-9mm (7°).
Full product description
Reference comparison

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • 15° OFFSET - Offers better manoeuvrability and allows you to avoid certain obstacles.
  • ACCESS & SPEED - Compact Ratchet Mechanism, Reversible by Lever.
  • 5° ARC SWING - For the full range except 6mm (7,5°) and 7-8-9mm (7°).

Specifications
  • Angle de reprise6 deg
  • Anneau d'arrêtNon
  • AntidéflagrantNon
  • AttachéNon
  • FinitionChrome satin
  • Isolation 1000VNon
  • InversionLevier
  • Longueur du produit115 mm
  • Nombre de dents72
  • Poids net0.024 Kg
  • ProfilSpline
  • Tête flexibleNon

Technical drawing and dimensions

B1 (mm)B (mm)E1 (mm)E (mm)L (mm)
65.7X9SPL [65.7X9SPL] DOUBLE RATCHETING WRENCH - 65 - Spline - 15° Offset - 7X9 mm 17.0014.006.506.30115.00
65.8X10SPL [65.8X10SPL] DOUBLE RATCHETING WRENCH - 65 - Spline - 15° Offset - 8X10 mm 17.0014.006.506.30115.00

Documents

65 - 15° double box-end ratchet wrenches, inch

References available

  • [65.7X9SPL] DOUBLE RATCHETING WRENCH - 65 - Spline - 15° Offset - 7X9 mm
  • [65.8X10SPL] DOUBLE RATCHETING WRENCH - 65 - Spline - 15° Offset - 8X10 mm

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Lifetime warranty on the tool (replacement)
