Facom - The Art of Precision since 1918.

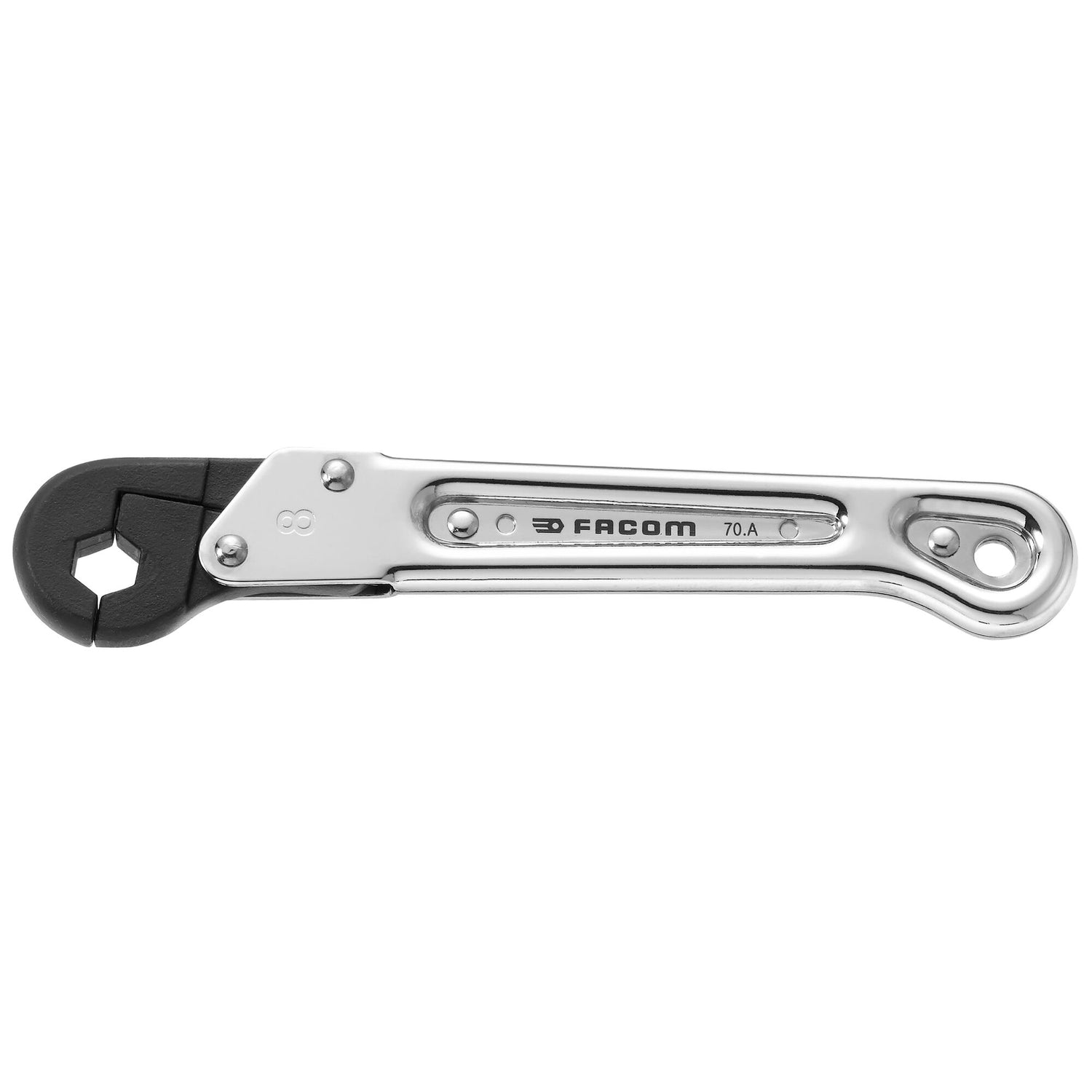

70A - Straight Flare-nut Wrenches, Metric

SKU: 70A.8  -  Barcode: 3148511166383
  • FLARE-NUT RATCHET - the wrench opens to pass around the pipe and closes down on the nut for optimum grip. The special shape of the wrench allows for a ratchet effect.
  • FAST TIGHTENING - on all piping in automotive, trucking, public works, compressors, refrigeration, aeronautics, sanitation.
  • HEAD PROFILE - 6-point head: 7 to 10 mm - 12-point head: 11 to 32 mm.
  • HANGING HOLE - To be stored on panel or hung to avoid loss or fall.
Full product description
Reference comparison

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • FLARE-NUT RATCHET - the wrench opens to pass around the pipe and closes down on the nut for optimum grip. The special shape of the wrench allows for a ratchet effect.
  • FAST TIGHTENING - on all piping in automotive, trucking, public works, compressors, refrigeration, aeronautics, sanitation.
  • HEAD PROFILE - 6-point head: 7 to 10 mm - 12-point head: 11 to 32 mm.
  • HANGING HOLE - To be stored on panel or hung to avoid loss or fall.

Specifications
  • Anneau d'arrêtNon
  • AntidéflagrantNon
  • AttachéNon
  • FinitionChrome satin
  • Isolation 1000VNon
  • Largeur de la tête24.6
  • Longueur du produit139.5 mm
  • Poids net0.09 Kg
  • Profil6 pans

Technical drawing and dimensions

A (mm)B (mm)E (mm)L (mm)
70A.8 [70A.8] FLARE NUT WRENCH - 70A - 6 Points - Ratchet Effect - 8 mm 8.0024.607.00139.50
70A.9 [70A.9] FLARE NUT WRENCH - 70A - 6 Points - Ratchet Effect - 9 mm 9.0024.607.00139.50
70A.10 [70A.10] FLARE NUT WRENCH - 70A - 6 Points - Ratchet Effect - 10 mm 10.0024.607.00139.50
70A.11 [70A.11] FLARE NUT WRENCH - 70A - 12 Points - Ratchet Effect - 11 mm 11.0025.407.20141.00
70A.12 [70A.12] FLARE NUT WRENCH - 70A - 12 Points - Ratchet Effect - 12 mm 12.0027.507.20141.00
70A.13 [70A.13] FLARE NUT WRENCH - 70A - 12 Points - Ratchet Effect - 13 mm 13.0027.507.20141.00
70A.14 [70A.14] FLARE NUT WRENCH - 70A - 12 Points - Ratchet Effect - 14 mm 14.0035.7010.00191.00
70A.16 [70A.16] FLARE NUT WRENCH - 70A - 12 Points - Ratchet Effect - 16 mm 16.0035.7010.00191.00
70A.17 [70A.17] FLARE NUT WRENCH - 70A - 12 Points - Ratchet Effect - 17 mm 17.0035.7010.00191.00
70A.18 [70A.18] FLARE NUT WRENCH - 70A - 12 Points - Ratchet Effect - 18 mm 18.0035.7010.00191.00
70A.19 [70A.19] FLARE NUT WRENCH - 70A - 12 Points - Ratchet Effect - 19 mm 19.0037.0010.00191.00
70A.22 [70A.22] FLARE NUT WRENCH - 70A - 12 Points - Ratchet Effect - 22 mm 22.0040.7013.00233.00
70A.24 [70A.24] FLARE NUT WRENCH - 70A - 12 Points - Ratchet Effect - 24 mm 24.0043.2013.00235.00
70A.27 [70A.27] FLARE NUT WRENCH - 70A - 12 Points - Ratchet Effect - 27 mm 27.0055.5014.10325.00
70A.30 [70A.30] FLARE NUT WRENCH - 70A - 12 Points - Ratchet Effect - 30 mm 30.0056.4015.90325.00
70A.32 [70A.32] FLARE NUT WRENCH - 70A - 12 Points - Ratchet Effect - 32 mm 32.0058.5015.90325.00
