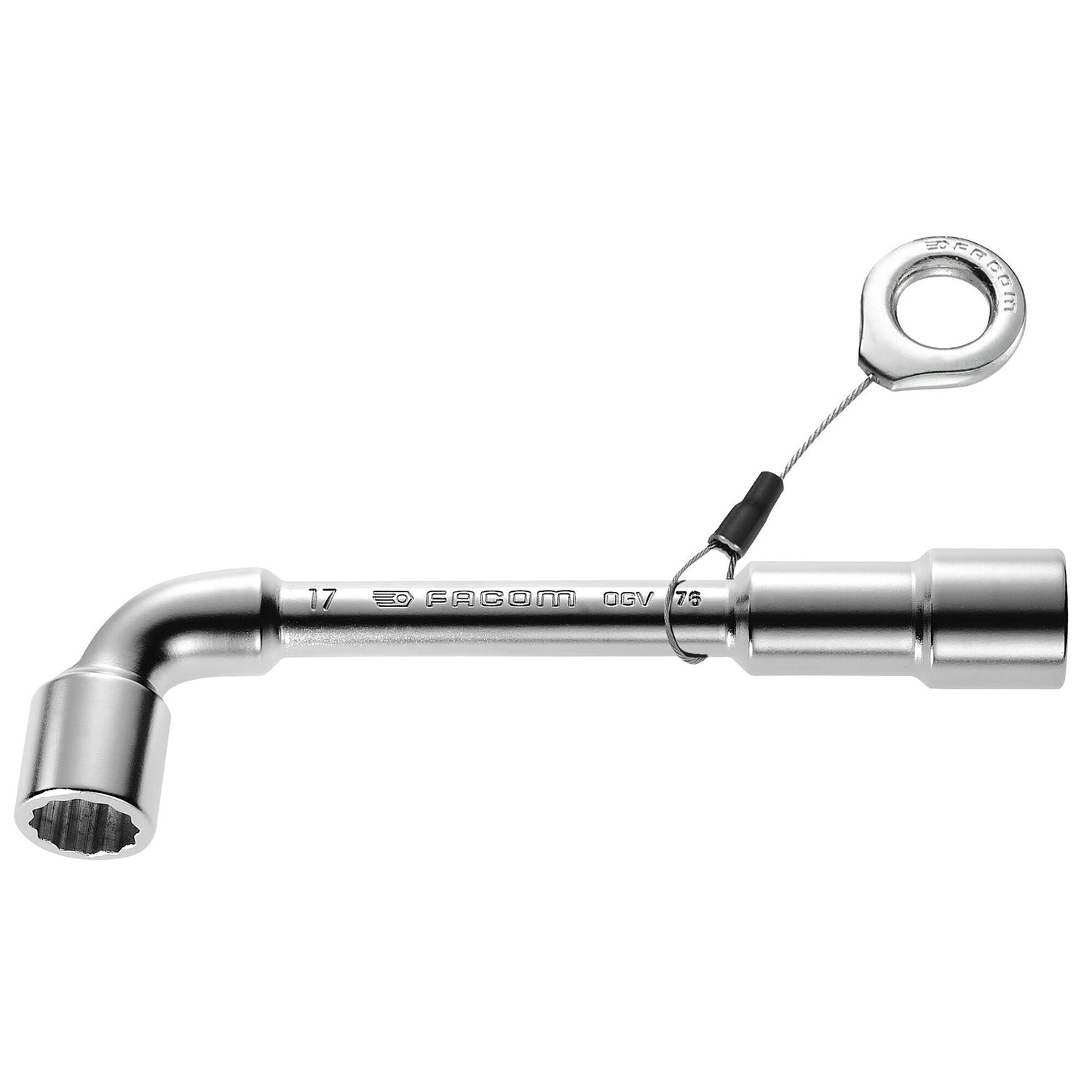

76.SLS - 12 x 6 Point Angled Open Socket Wrenches with Safety Lock System
SKU:
76.8SLS
76.SLS - 12 x 6 Point Angled Open Socket Wrenches with Safety Lock System - [76.8SLS] 8mm 12 x 6-point Angle Open Socket Wrench, Safety Lock System is backordered and will ship as soon as it is back in stock.
Standards and certifications
Standards and certifications
This product complies with the following standards and certifications:
ISO 2236, ISO 691
Click here to learn more about the different standards and certifications.
Warranty
Warranty
This product is: This product is covered by a 2-year warranty
Click here to learn more about our warranties.
Description
Description
Specifications
Specifications
- Diamètre maximum7 mm
- Hauteur du produit19 mm
- Largeur de la tête12.5 mm
- Longueur du produit114 mm
- Largeur du produit8 mm
- Marquage CEOui
- Nombre de pièces1
- Poids net0.08 Kg
Technical drawing and dimensions
Technical drawing and dimensions
| A (mm) | B (mm) | D1 (mm) | L1 (mm) | L (mm) | |||
|---|---|---|---|---|---|---|---|
| 76.8SLS | [76.8SLS] 8mm 12 x 6-point Angle Open Socket Wrench, Safety Lock System | 8.00 | 12.50 | 6.00 | 25.00 | 114.00 | |
| 76.9SLS | [76.9SLS] 9mm 12 x 6-point Angle Open-Socket WrenchWith Safety Lock System | 9.00 | 13.50 | 6.00 | 26.00 | 122.00 | |
| 76.10SLS | [76.10SLS] 10mm 12 x 6-point Angle Open-Socket Wrench, Safety Lock System | 10.00 | 15.00 | 7.00 | 28.00 | 129.00 | |
| 76.11SLS | [76.11SLS] 11mm 12 x 6-point Angle Open Socket Wrench, Safety Lock System | 11.00 | 16.50 | 7.00 | 30.00 | 136.00 | |
| 76.12SLS | [76.12SLS] 12 x 6 Point Angle Open Socket Wrench With Safety Lock System (12mm) | 12.00 | 18.00 | 8.00 | 36.00 | 144.00 | |
| 76.13SLS | [76.13SLS] 13mm 12 x 6-point Angle Open-Socket Wrench, Safety Lock System | 13.00 | 19.50 | 8.00 | 38.00 | 152.00 | |
| 76.14SLS | [76.14SLS] Angle Open-Socket Wrench, 12 x 6-point, Safety Lock System | 14.00 | 21.00 | 9.00 | 40.00 | 160.00 | |
| 76.15SLS | [76.15SLS] 12 x 6 point angled open-socket wrench metric 15 mm Safety Lock System | 15.00 | 22.50 | 10.00 | 42.00 | 169.00 | |
| 76.16SLS | [76.16SLS] 16mm Angle Open Socket Wrench, 12 x 6-point, Safety Lock System | 16.00 | 24.00 | 12.00 | 46.00 | 178.00 | |
| 76.17SLS | [76.17SLS] 17mm 12 x 6-point Angle Open Socket Wrench, Safety Lock System | 17.00 | 25.50 | 12.00 | 48.00 | 187.00 | |
| 76.18SLS | [76.18SLS] 18mm Open Socket Wrench, 12 x 6-point. Safety Lock System | 18.00 | 26.50 | 12.00 | 50.00 | 195.00 | |
| 76.19SLS | [76.19SLS] 12 x 6 point angled open-socket wrench metric 19 mm Safety Lock System | 19.00 | 28.50 | 12.00 | 51.00 | 204.00 | |
| 76.21SLS | [76.21SLS] 21mm Open Socket Angle Wrench, 12 x 6 point, Safety Lock System | 21.00 | 30.50 | 14.00 | 55.00 | 221.00 | |
| 76.22SLS | [76.22SLS] 22mm 12 x 6-point Angle Open-Socket Wrench, Safety Lock System | 22.00 | 32.00 | 14.00 | 57.00 | 230.00 | |
| 76.24SLS | [76.24SLS] 12 x 6 point angled open-socket wrench metric 24 mm Safety Lock System | 24.00 | 34.50 | 16.00 | 67.00 | 250.00 | |
| 76.27SLS | [76.27SLS] 27mm 12 x 6-point Angle Open-Socket Wrench, Safety Lock System | 27.00 | 38.00 | 19.00 | 73.00 | 280.00 | |
| 76.30SLS | [76.30SLS] 30mm 12 x 6-point Angle Open-Socket Wrench With Safety Lock System | 30.00 | 42.00 | 24.00 | 83.00 | 310.00 | |
| 76.32SLS | [76.32SLS] 32mm 12 x 6-point Angle Open-Socket Wrench, Safety Lock System | 32.00 | 44.50 | 22.60 | 88.00 | 330.00 |
