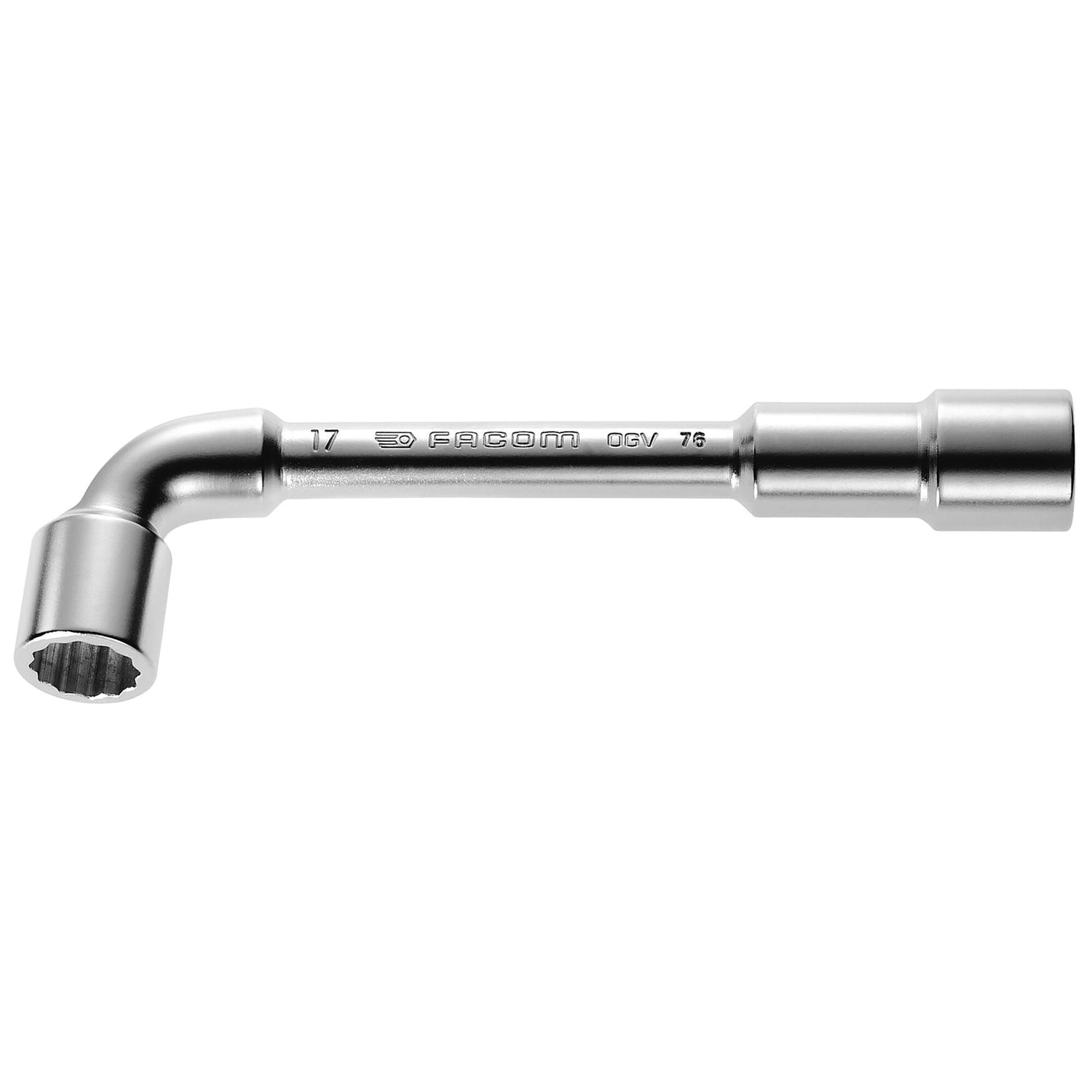

76 - Tubular Socket Wrenches, 12 x 6 Points, Metric

SKU: 76.6 - Barcode: 3148511207802

Full product description

Standards and certifications

This product complies with the following standards and certifications:

ISO 2236, ISO 691, NF ISO 2236, NF ISO 691

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

Specifications

Angle de reprise30 deg
AntidéflagrantNon
AttachéNon
FinitionChrome satin
Hauteur du produit16 mm
Isolation 1000VNon
Largeur de la tête10
Longueur du produit102 mm
Poids net impérial0.07 lbs
Poids net30 g
Unité de mesureMétrique

Technical drawing and dimensions

		A (mm)	B (mm)	D1 (mm)	H (mm)	L1 (mm)	L (mm)
76.6	[76.6] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 6 mm	6.00	10.00	4.50	16.00	21.00	102.00
76.6PB	[76.6PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 6 mm	60	10.00	4.50	16.00	21.00
76.7	[76.7] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 7 mm	7.00	11.00	4.50	17.00	22.00	106.00
76.7PB	[76.7PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 7 mm	70	11.00	4.50	17.00	22.00
76.8	[76.8] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 8 mm	8.00	12.50	6.00	19.00	25.00	114.00
76.8PB	[76.8PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 8 mm	80	12.50	6.00	19.00	25.00
76.9	[76.9] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 9 mm	9.00	13.50	6.00	20.00	26.00	122.00
76.9PB	[76.9PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 9 mm	90	13.50	6.00	20.00	26.00
76.10	[76.10] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 10 mm	10.00	15.00	7.00	24.00	28.00	129.00
76.10PB	[76.10PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 10 mm	100	15.00	7.00	24.00	28.00
76.11	[76.11] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 11 mm	11.00	16.50	7.00	25.00	30.00	136.00
76.11PB	[76.11PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 11 mm	110	16.50	7.00	25.00	30.00
76.12	[76.12] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 12 mm	12.00	18.00	8.00	28.00	36.00	144.00
76.12PB	[76.12PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 12 mm	120	18.00	8.00	28.00	36.00
76.13	[76.13] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 13 mm	13.00	19.50	8.00	30.00	38.00	152.00
76.13PB	[76.13PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 13 mm	130	19.50	8.00	30.00	38.00
76.14	[76.14] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 14 mm	14.00	21.00	9.00	32.00	40.00	160.00
76.14PB	[76.14PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 14 mm	140	21.00	9.00	32.00	40.00
76.15	[76.15] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 15 mm	15.00	22.50	10.00	34.00	42.00	169.00
76.15PB	[76.15PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 15 mm	150	22.50	10.00	34.00	42.00
76.16	[76.16] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 16 mm	16.00	24.00	12.00	37.00	46.00	178.00
76.16PB	[76.16PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 16 mm	160	24.00	12.00	37.00	46.00
76.17	[76.17] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 17 mm	13.00	25.50	12.00	39.00	48.00	187.00
76.17PB	[76.17PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 17 mm	130	25.50	12.00	39.00	48.00
76.18	[76.18] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 18 mm	18.00	26.50	12.00	40.00	50.00	195.00
76.18PB	[76.18PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 18 mm	180	26.50	12.00	40.00	50.00
76.19	[76.19] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 19 mm	19.00	28.50	12.00	41.00	51.00	204.00
76.19PB	[76.19PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 19 mm	190	28.50	12.00	41.00	51.00
76.20	[76.20] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 20 mm	20.00	29.50	13.00	43.00	53.00	212.00
76.20PB	[76.20PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 20 mm	200	29.50	13.00	43.00	53.00
76.21	[76.21] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 21 mm	21.00	30.50	14.00	46.00	55.00	221.00
76.21PB	[76.21PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 21 mm	210	30.50	14.00	46.00	55.00
76.22	[76.22] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 22 mm	22.00	32.00	14.00	48.00	57.00	230.00
76.22PB	[76.22PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 22 mm	220	32.00	14.00	48.00	57.00
76.23	[76.23] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 23 mm	23.00	33.50	15.00	51.00	64.00	240.00
76.23PB	[76.23PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 23 mm	230	33.50	15.00	51.00	64.00
76.24	[76.24] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 24 mm	24.00	34.50	16.00	54.00	67.00	250.00
76.24PB	[76.24PB] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 24 mm	240	34.50	16.00	54.00	67.00
76.25	[76.25] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 25 mm	25.00	36.00	17.00	56.00	69.00	260.00
76.26	[76.26] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 26 mm	26.00	37.00	17.00	57.00	70.00	270.00
76.27	[76.27] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 27 mm	27.00	38.00	19.00	58.00	73.00	280.00
76.28	[76.28] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 28 mm	28.00	39.50	19.00	60.00	75.00	290.00
76.29	[76.29] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 29 mm	29.00	41.00	19.00	62.00	76.00	300.00
76.30	[76.30] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 30 mm	30.00	42.00	21.00	64.00	83.00	310.00
76.31	[76.31] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 31 mm	31.00	43.50	22.60	70.00	86.00	320.00
76.32	[76.32] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 32 mm	32.00	44.50	22.60	74.00	88.00	33.00
76.36	[76.36] ANGLED OPEN SOCKET WRENCH - 76 - 6X12 Points - High Performance - 36 mm	36.00	49.50	24.00	82.00	97.00	370.00
