Facom - The Art of Precision since 1918.

1 2

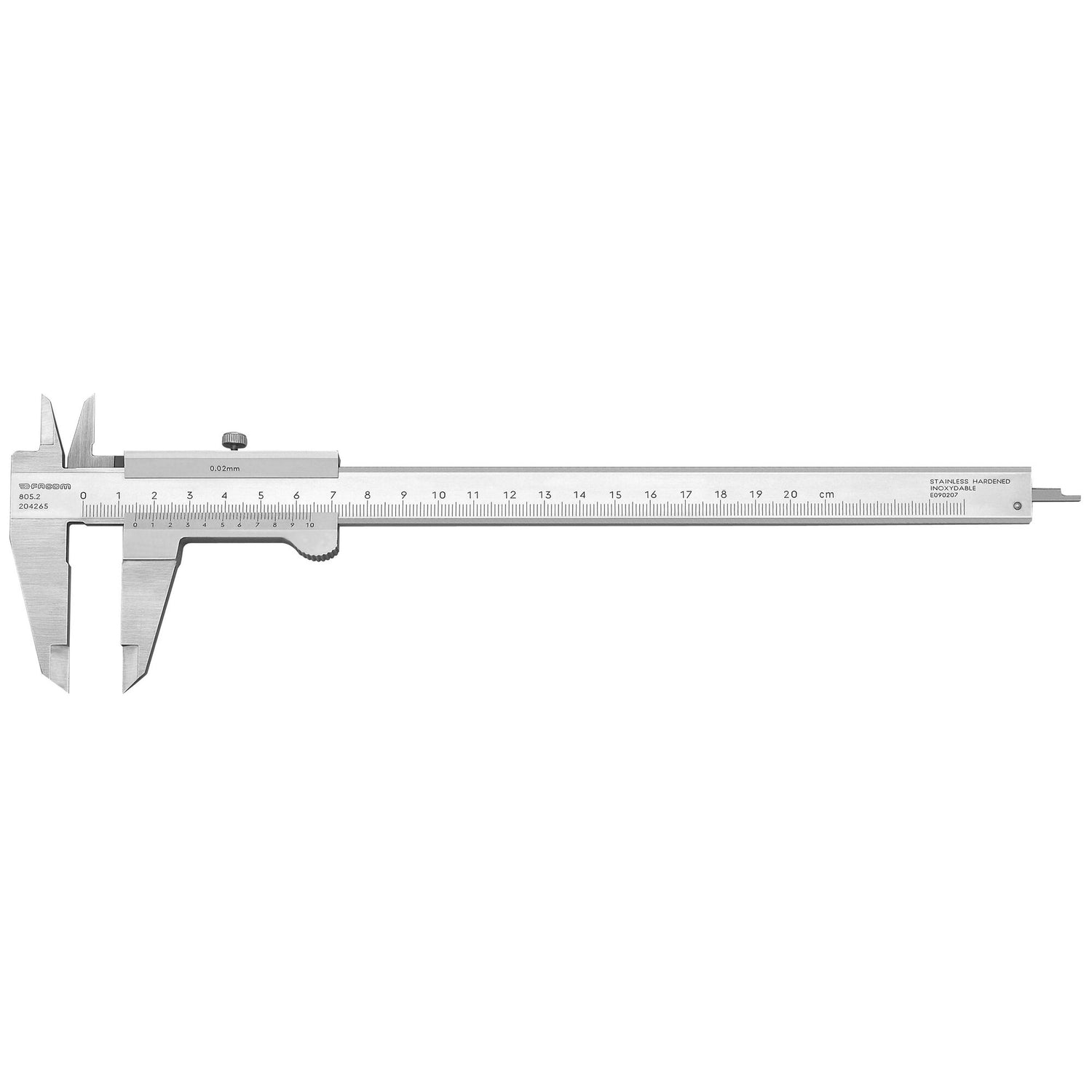

200mm Universal Caliper

SKU: 805.2 - Barcode: 3148512042655

Accuracy: 1/50th - 0.02 mm.
Interior, exterior, depth measurement.
Stainless steel rule - mat finish.
Rule hardness: 40 HRc minimum.
Flat depth gauge.
Vernier with guide for better thumb position.
Vernier endurance: 20 000 cycles minimum.
Vernier screw locking.

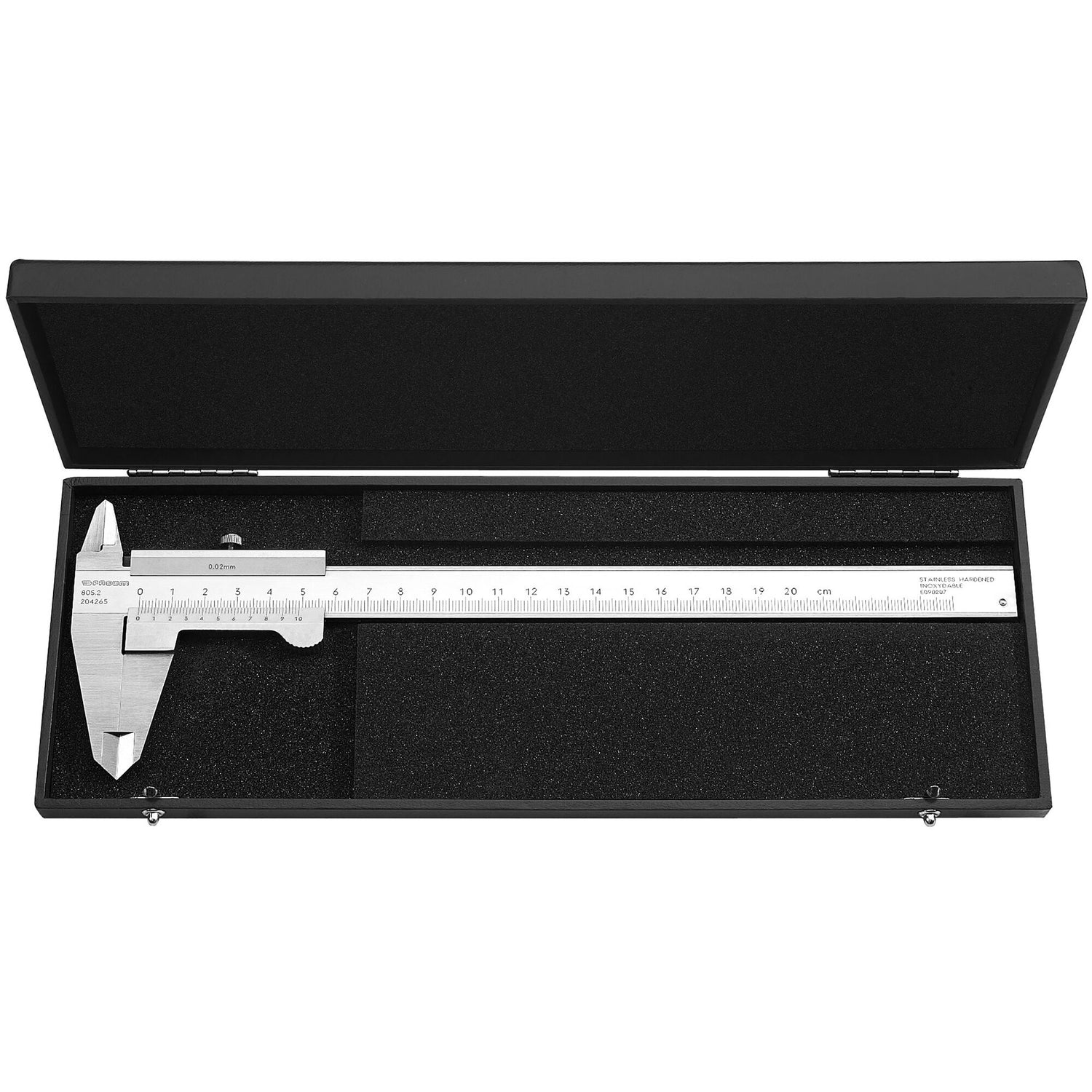

Supplied in case with compliance certificate.

Full product description

Standards and certifications

This product complies with the following standards and certifications:

DIN 862, ISO 13385-1, NF EN ISO 13385-1

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

Accuracy: 1/50th - 0.02 mm.
Interior, exterior, depth measurement.
Stainless steel rule - mat finish.
Rule hardness: 40 HRc minimum.
Flat depth gauge.
Vernier with guide for better thumb position.
Vernier endurance: 20 000 cycles minimum.
Vernier screw locking.
Supplied in case with compliance certificate.

Specifications

EmballageBoîte
Fourni avec certificatOui
Longueur du produit290 mm
Précision de la métrologie1/50ème - 0,02 mm
Poids net0.419 Kg

Technical drawing and dimensions

A (mm)

200.00
C (mm)

50.00
E (mm)

17.00
L (mm)

290.00

Documents

200mm Universal Caliper

Accuracy: 1/50th - 0.02 mm.
Interior, exterior, depth measurement.
Stainless steel rule - mat finish.
Rule hardness: 40 HRc minimum.
Flat depth gauge.
Vernier with guide for better thumb position.
Vernier endurance: 20 000 cycles minimum.
Vernier screw locking.
Supplied in case with compliance certificate.

Lieu de fabrication

N/A

Normes & certifications

DIN 862, ISO 13385-1, NF EN ISO 13385-1

Période de garantie

Lifetime warranty on the tool (replacement)
