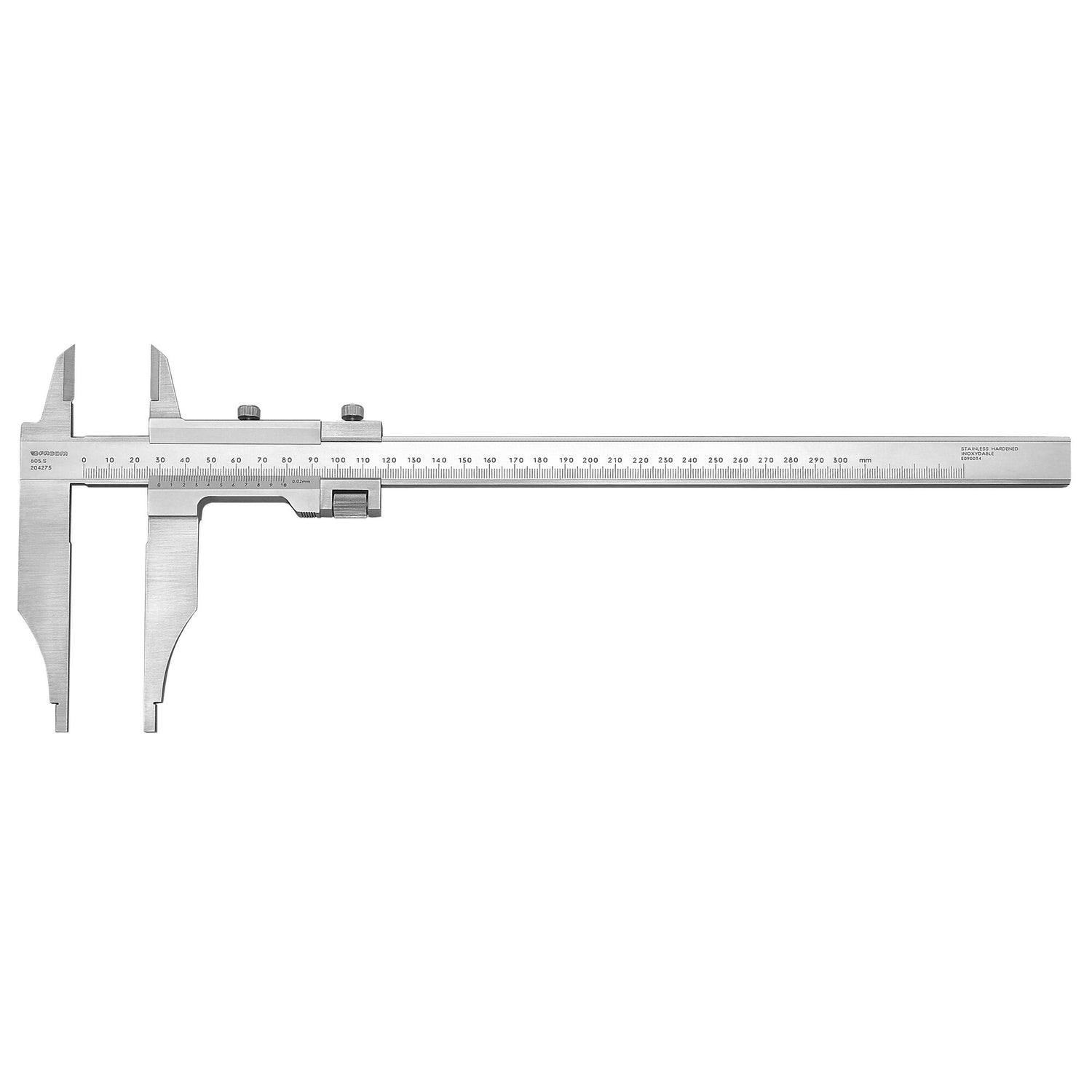

300mm Universal Caliper

SKU: 805.S  -  Barcode: 3148512042754
  • Accuracy: 1/50th - 0.02 mm.
  • Measurement capacity: 300 mm.
  • Interior, exterior measurement (bore exceeding 10 mm).
  • Stainless steel rule - mat finish.
  • Rule hardness: 40 HRc minimum.
  • Vernier with guide for better thumb position.
  • Vernier endurance: 20 000 cycles minimum.
  • Vernier screw locking.
  • Precision adjustment screw.

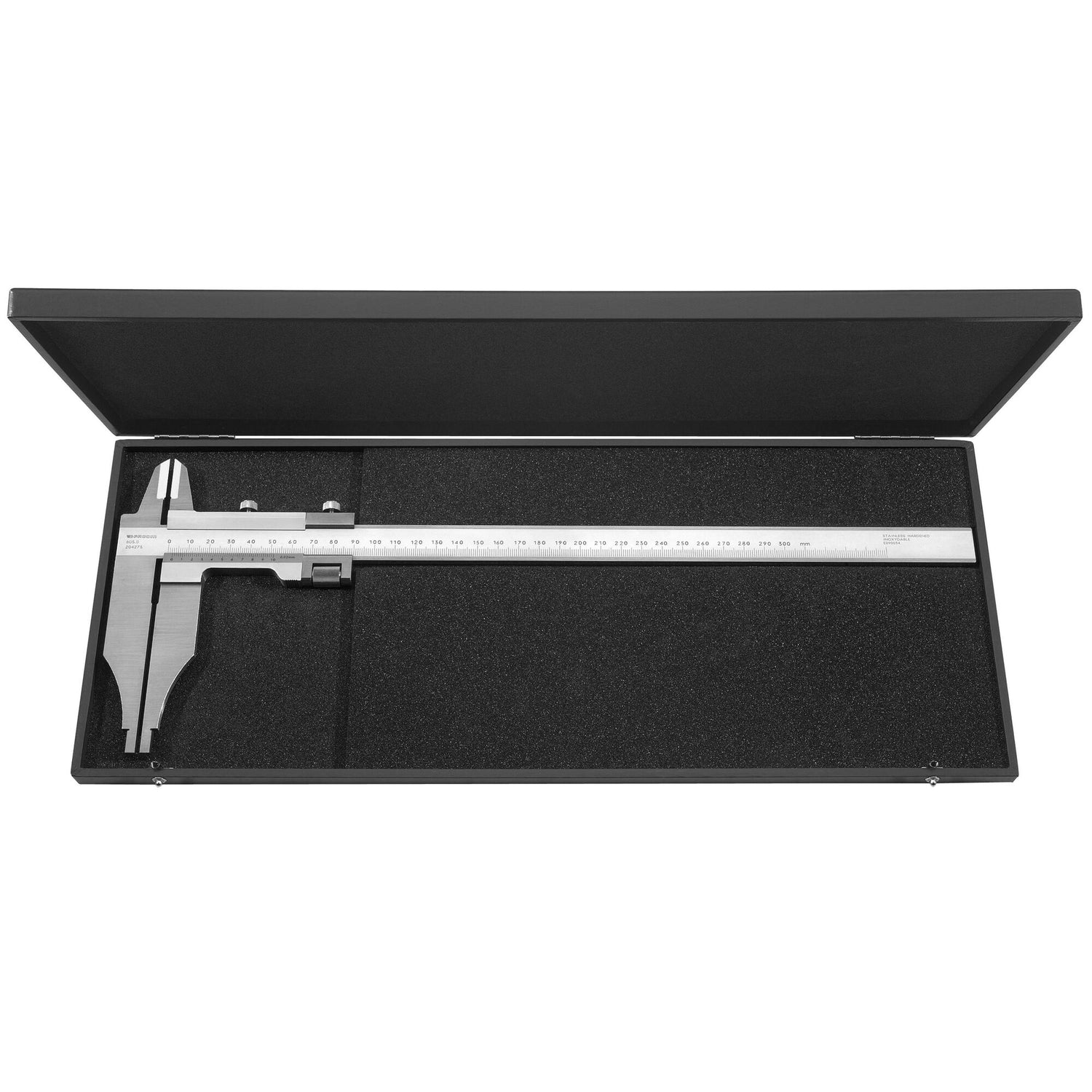

  • Supplied in case with compliance certificate.
Full product description

Standards and certifications

This product complies with the following standards and certifications:

DIN 862, ISO 13385-1, NF EN ISO 13385-1

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • Accuracy: 1/50th - 0.02 mm.
  • Measurement capacity: 300 mm.
  • Interior, exterior measurement (bore exceeding 10 mm).
  • Stainless steel rule - mat finish.
  • Rule hardness: 40 HRc minimum.
  • Vernier with guide for better thumb position.
  • Vernier endurance: 20 000 cycles minimum.
  • Vernier screw locking.
  • Precision adjustment screw.
  • Supplied in case with compliance certificate.

Specifications
  • EmballageBoîte
  • Fourni avec certificatOui
  • Longueur du produit418 mm
  • Plage de capacité de mesure300 mm
  • Précision de la métrologie1/50ème - 0,02 mm
  • Poids net0.941 Kg

Technical drawing and dimensions

  • A (mm)
    300.00
  • C (mm)
    100.00
  • E (mm)
    20.00
  • L (mm)
    418.00

Documents

300mm Universal Caliper

Lieu de fabrication

N/A

Normes & certifications

DIN 862, ISO 13385-1, NF EN ISO 13385-1

Période de garantie

Lifetime warranty on the tool (replacement)
