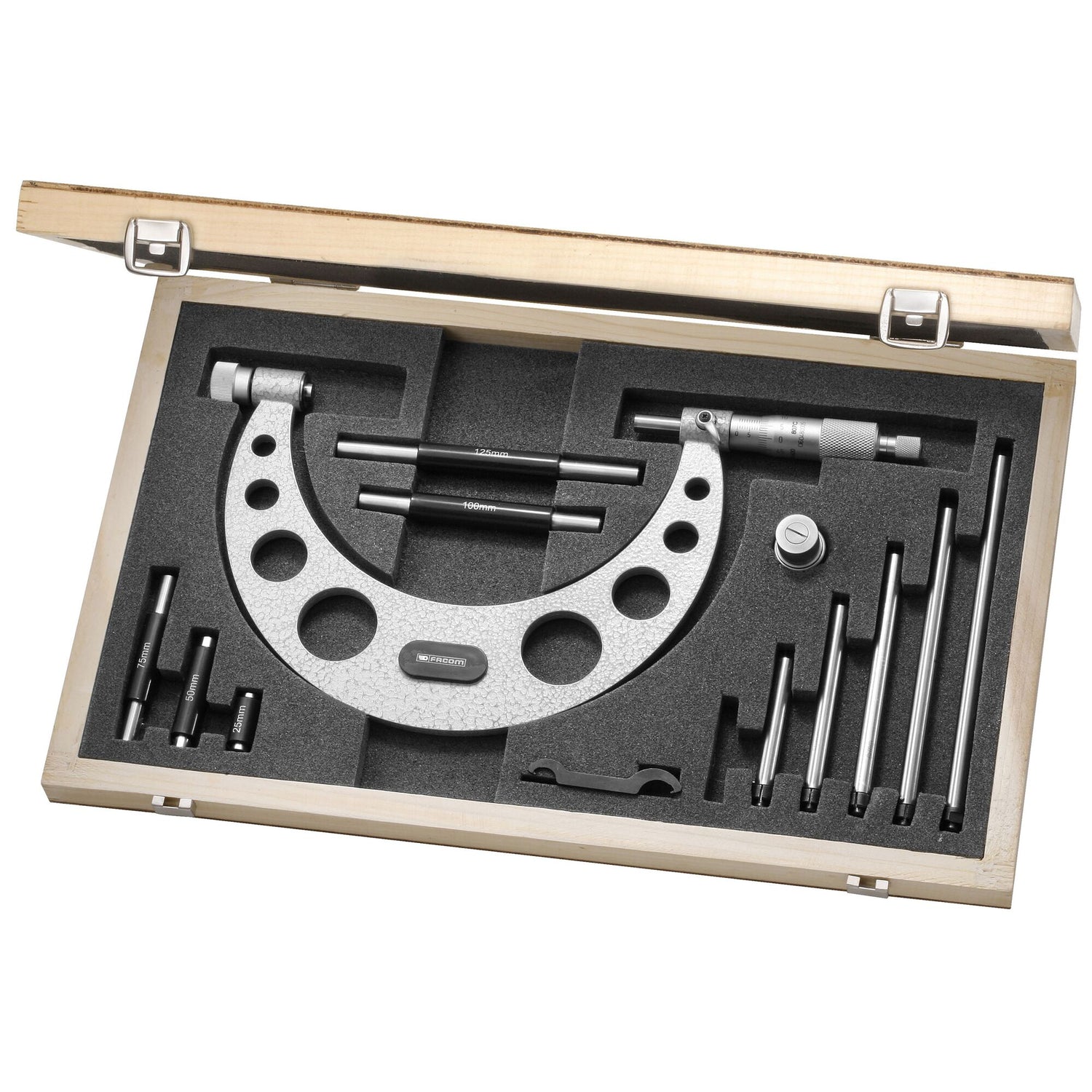

1/100th Exterior Micrometer With Extension

SKU: 807C - Barcode: 3148512044000

Accuracy: 1/100th - 0.01 mm.
Reading range 0 to 150 mm.
Accuracy: 0.01 mm.
Ratchet drum with torque limiter.
Force applied on the part included strictly between 5 and 10 N.m.
Drum: Ø 18 mm.
Carbide plunger tip: Ø 6.5 mm.
Interchangeable fixed plunger tip.
Supplied with a set of 5 extensions.
Supplied with the 5 calibration shims.
Calibration shims: - 807.CALE25: 25 mm ± 1.5 µm. - 807.CALE50: 50 mm ± 2 µm. - 807.CALE75: 75 mm ± 2.5 µm. - 807.CALE100: 100 mm ± 3 µm. - 807.CALE125: 125 mm ± 3.5 µm.
Isothermal pads.
Plunger tip lock.
Supplied in wood case.
Supplied with compliance certificate.

Full product description

Standards and certifications

This product complies with the following standards and certifications:

DIN 863, ISO 3611, NF EN ISO 3611, NF EN ISO 3611

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

Accuracy: 1/100th - 0.01 mm.
Reading range 0 to 150 mm.
Accuracy: 0.01 mm.
Ratchet drum with torque limiter.
Force applied on the part included strictly between 5 and 10 N.m.
Drum: Ø 18 mm.
Carbide plunger tip: Ø 6.5 mm.
Interchangeable fixed plunger tip.
Supplied with a set of 5 extensions.
Supplied with the 5 calibration shims.
Calibration shims: - 807.CALE25: 25 mm ± 1.5 µm. - 807.CALE50: 50 mm ± 2 µm. - 807.CALE75: 75 mm ± 2.5 µm. - 807.CALE100: 100 mm ± 3 µm. - 807.CALE125: 125 mm ± 3.5 µm.
Isothermal pads.
Plunger tip lock.
Supplied in wood case.
Supplied with compliance certificate.
