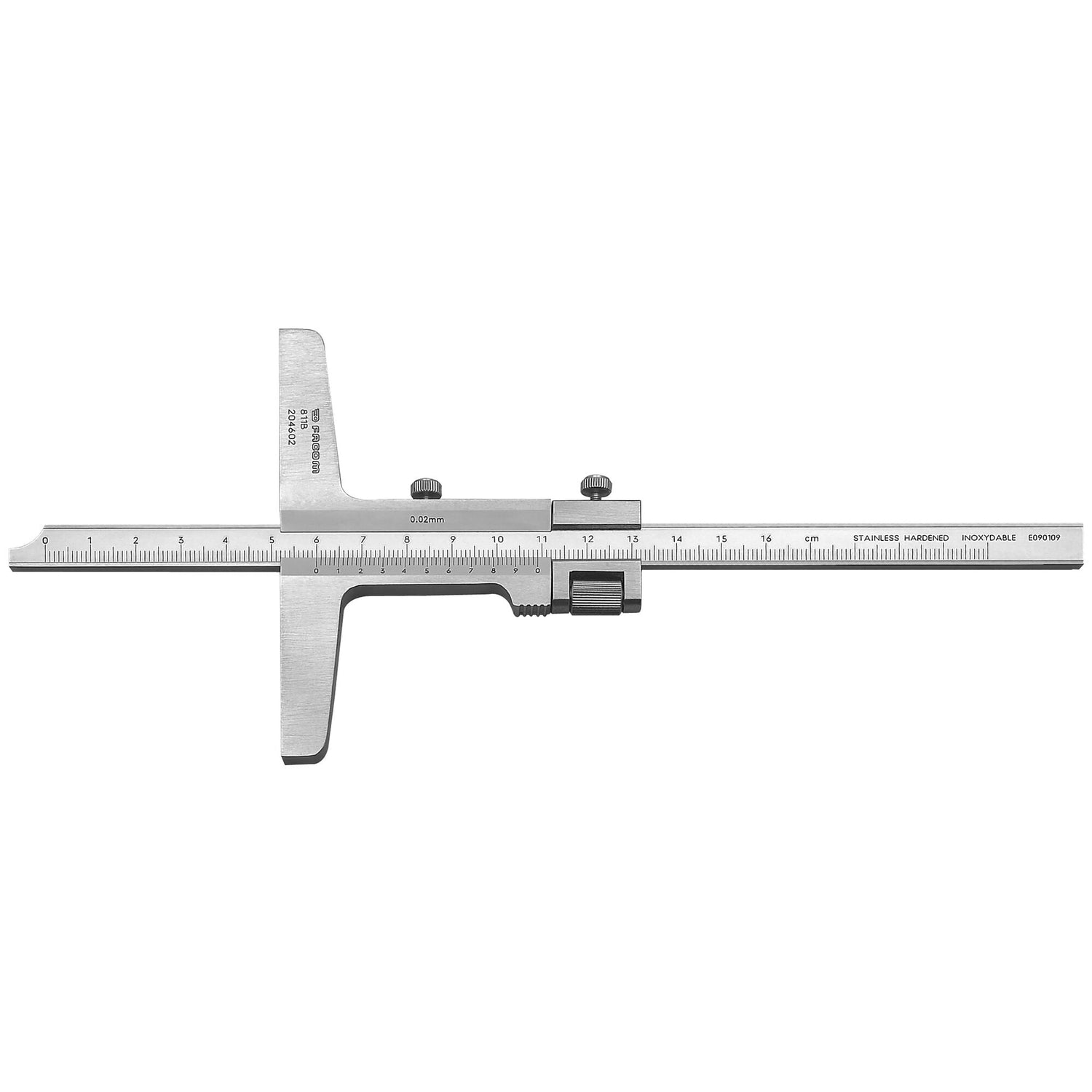

811 - Depth gauges class 0 - 1/50th

SKU: 811C.250 - Barcode: 3148512046134

Accuracy: 1/50th - 0.02 mm.
Stainless steel rule - mat finish.
Rule hardness: 40 HRc minimum.
Measurement surface hardness: 53 HRc minimum.
Vernier with guide for better thumb position.
Vernier endurance: 20 000 cycles minimum.
Vernier locking by precision adjustment screw.

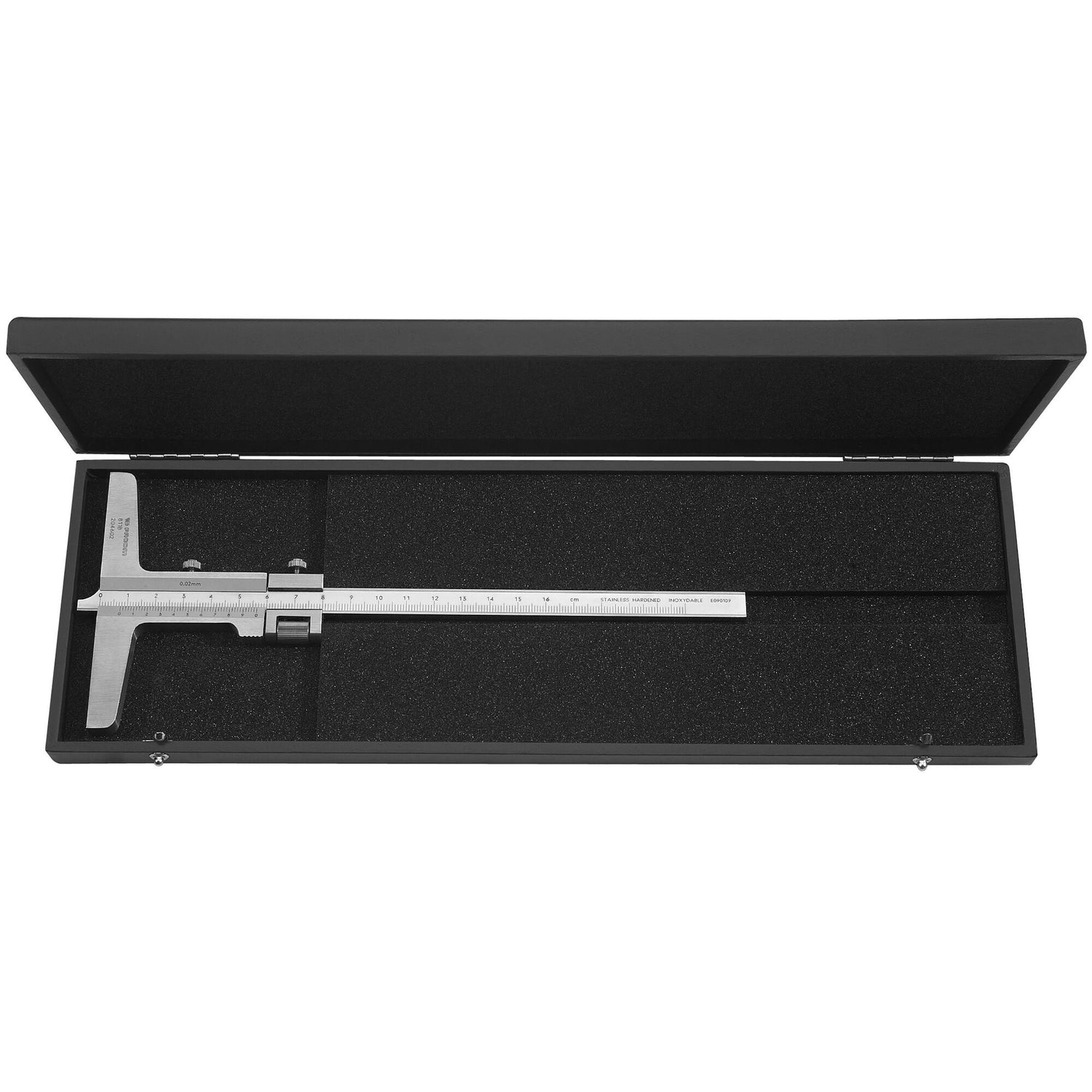

Supplied in case with compliance certificate.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

DIN 862, ISO 13385-2, NF EN ISO 13385-2

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

Accuracy: 1/50th - 0.02 mm.
Stainless steel rule - mat finish.
Rule hardness: 40 HRc minimum.
Measurement surface hardness: 53 HRc minimum.
Vernier with guide for better thumb position.
Vernier endurance: 20 000 cycles minimum.
Vernier locking by precision adjustment screw.
Supplied in case with compliance certificate.

Specifications

Classe de précision0
EmballageBoîte
Fourni avec certificatOui
Longueur du produit330 mm
Précision de la métrologie1/50ème - 0,02 mm
Poids net0.491 Kg

Technical drawing and dimensions

			A (mm)	E (mm)	L1 (mm)	L2 (mm)	L (mm)
	811C.250	[811C.250] 1/50th Depth Gauge	250.00	10.00	250.00	100.00	330.00
	811B	[811B] Depth Gauge 1/50th	160.00	10.00	160.00	100.00	240.00

Documents

811 - Depth gauges class 0 - 1/50th

References available

[811C.250] 1/50th Depth Gauge
[811B] Depth Gauge 1/50th

Lieu de fabrication

N/A

Normes & certifications

DIN 862, ISO 13385-2, NF EN ISO 13385-2

Période de garantie

Lifetime warranty on the tool (replacement)
