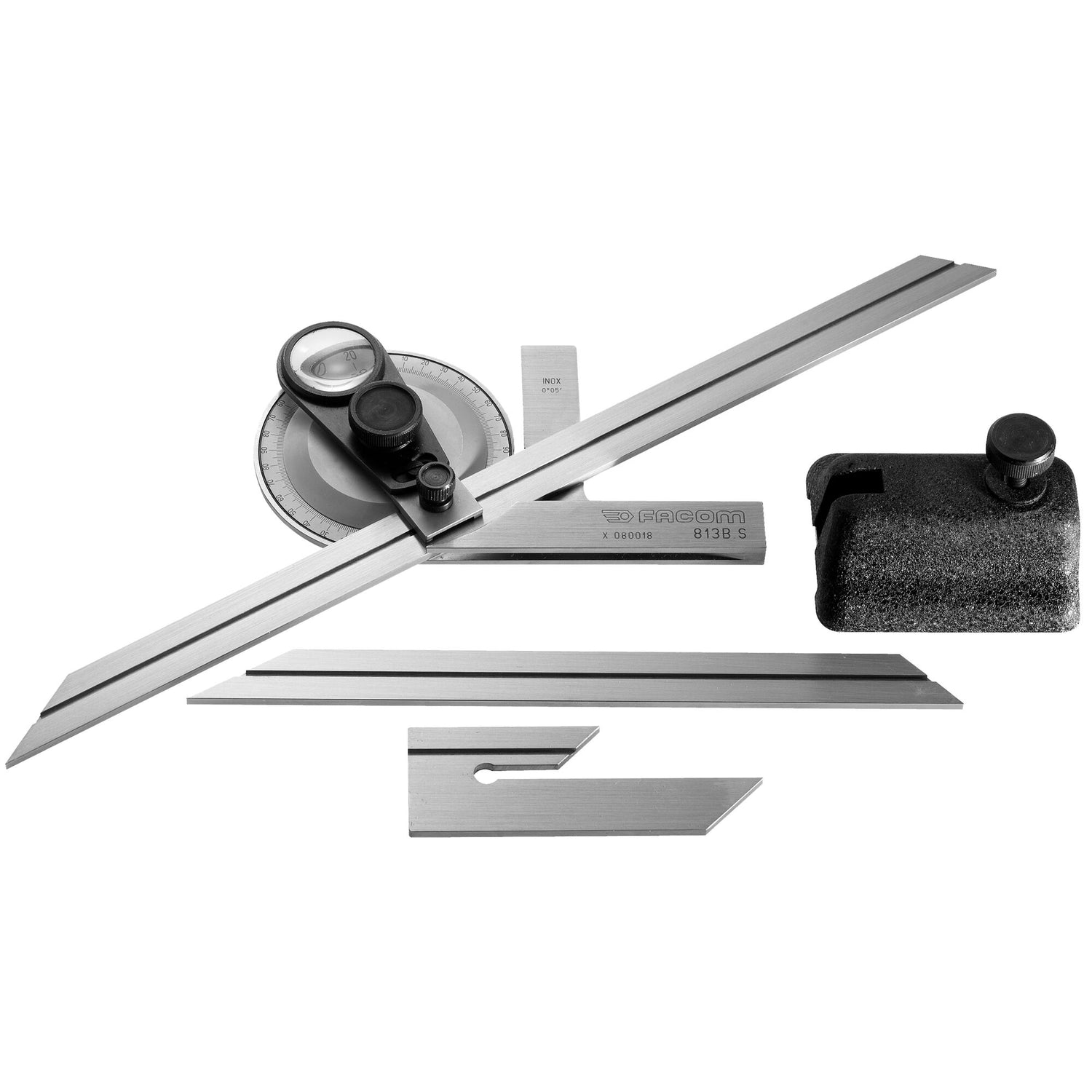

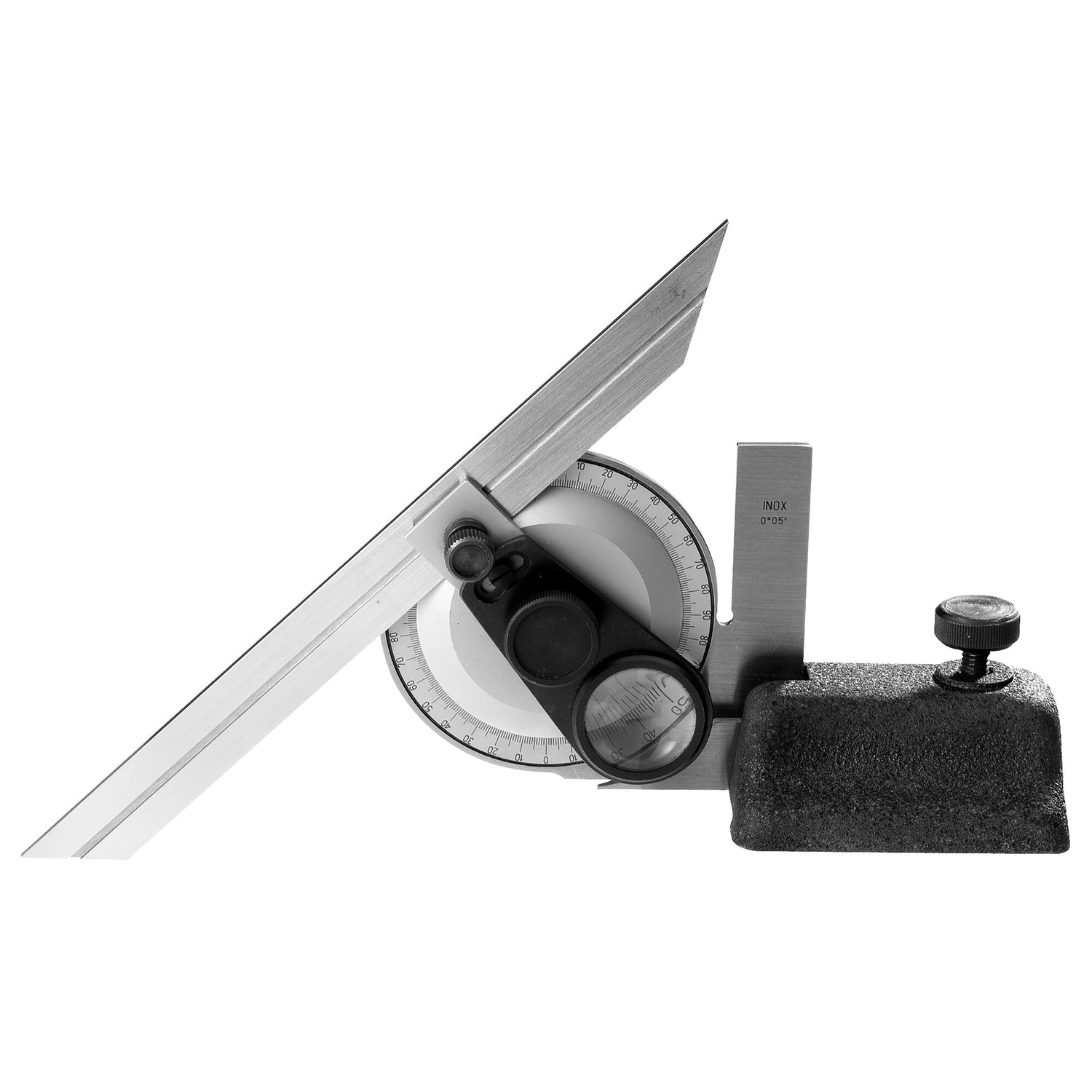

High Precision Bevel Protractor
SKU:
813B.S
- Tempered stainless steel bevel protractor.
- Anti-reflection mat chrome reading surface.
- Measurement range 0 - 360°.
- Minimum reading: 5° arc on vernier.
- Dial diameter: 70 mm.
- Dimensions (L. x D. x H.): 315 x 75 x 20 mm.
- Dial pivots with vernier and dial locking screw.
- 2 End rules cut at 45° and 60°, including: - 1 short rule 200 mm x 16 mm. - 1 long rule 300 mm x 16 mm.
- Rule offset by 85 mm x 16 mm.
- Slide rules locking screw.
- Magnifying glass.
- Cast iron base: 70 mm x 30 mm.
Warranty
Warranty
This product is: Lifetime warranty on the tool (replacement)
Click here to learn more about our warranties.
Description
Description
- Tempered stainless steel bevel protractor.
- Anti-reflection mat chrome reading surface.
- Measurement range 0 - 360°.
- Minimum reading: 5° arc on vernier.
- Dial diameter: 70 mm.
- Dimensions (L. x D. x H.): 315 x 75 x 20 mm.
- Dial pivots with vernier and dial locking screw.
- 2 End rules cut at 45° and 60°, including: - 1 short rule 200 mm x 16 mm. - 1 long rule 300 mm x 16 mm.
- Rule offset by 85 mm x 16 mm.
- Slide rules locking screw.
- Magnifying glass.
- Cast iron base: 70 mm x 30 mm.
Specifications
Specifications
- Diamètre du corps70 mm
- EmballageBoîte
- Hauteur du produit20 mm
- Longueur du produit315 mm
- Largeur du produit75 mm
- Matériau du corpsAcier
- Poids net0.035 Kg
- RéglagesRéglable
