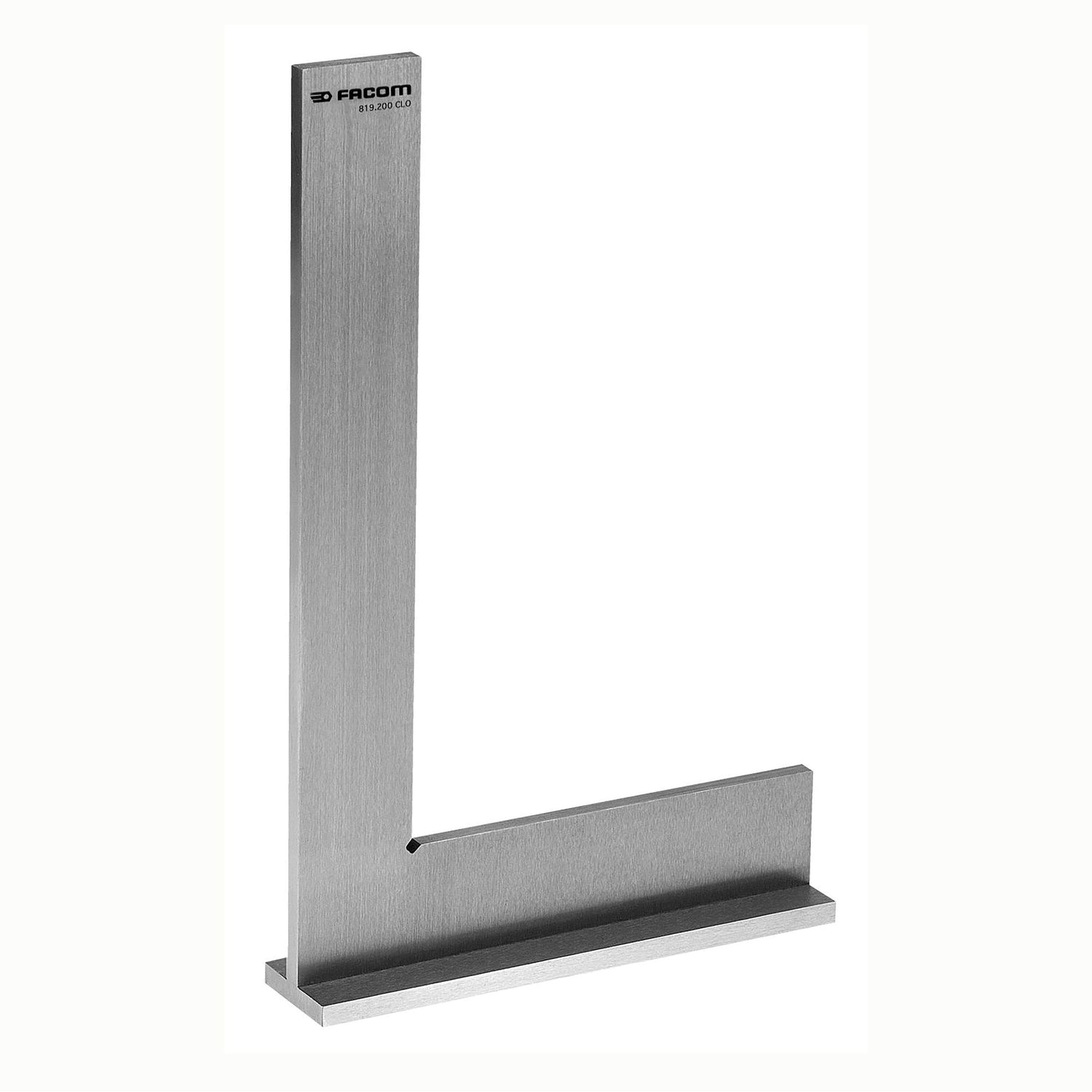

819.CLO - Stainless Steel Flanged Precision Square Class 0
SKU:
819.75CLO
819.CLO - Stainless Steel Flanged Precision Square Class 0 - [819.75CLO] Stainless Steel Flange Precision Square, Class 0, 75x50 mm is backordered and will ship as soon as it is back in stock.
Standards and certifications
Standards and certifications
This product complies with the following standards and certifications:
DIN 875, NF E 11-103
Click here to learn more about the different standards and certifications.
Warranty
Warranty
This product is: This product is covered by the statutory warranty
Click here to learn more about our warranties.
Description
Description
Specifications
Specifications
- AttachéNon
- Classe de précision0
- Couleur de la lameAcier
- Épaisseur de la lame5 mm
- Hauteur du produit50 mm
- Longueur du ruban75 mm
- Largeur de la lame15 mm
- Longueur du produit75 mm
- Matériau de la lameAcier inoxydable
- Poids net0.175 Kg
Technical drawing and dimensions
Technical drawing and dimensions
| E1 (mm) | E (mm) | H (mm) | L1 (mm) | L (mm) | |||
|---|---|---|---|---|---|---|---|
| 819.75CLO | [819.75CLO] Stainless Steel Flange Precision Square, Class 0, 75x50 mm | 5.00 | 15.00 | 50.00 | 15.00 | 75.00 | |
| 819.100CLO | [819.100CLO] Stainless Steel Flange Precision Square, Class 0, 100x70 mm | 5.00 | 20.00 | 70.00 | 20.00 | 100.00 | |
| 819.150CLO | [819.150CLO] 150x100 mm Stainless Steel Flange Precision Square, Class 0 | 6.00 | 27.00 | 100.00 | 28.00 | 150.00 | |
| 819.200CLO | [819.200CLO] 200 x 130mm Stainless Steel Flanged Precision Square Class 0 | 7.00 | 31.00 | 130.00 | 32.00 | 200.00 | |
| 819.300CLO | [819.300CLO] Stainless steel flanged precision square Class 0, 300x200 mm | 8.00 | 39.00 | 200.00 | 40.00 | 300.00 |
